摘要

本节主要记录如何通过ardupilot的uavcan来实现一个Service帧信息，进而配置UAVCAN电调。有问题可以一起交流@18129927205

1.初始化一个Service 请求数据帧

还记得一个数据帧有Message帧（广播）和Service帧（非广播），这里我们重点学习如何创建Service帧。在创建Service帧时，需要创建客户端和服务器，这里的客户端指的是请求方，服务器指的是应答方。

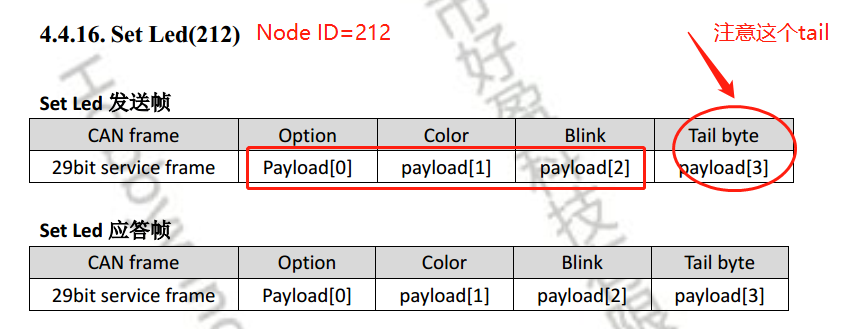

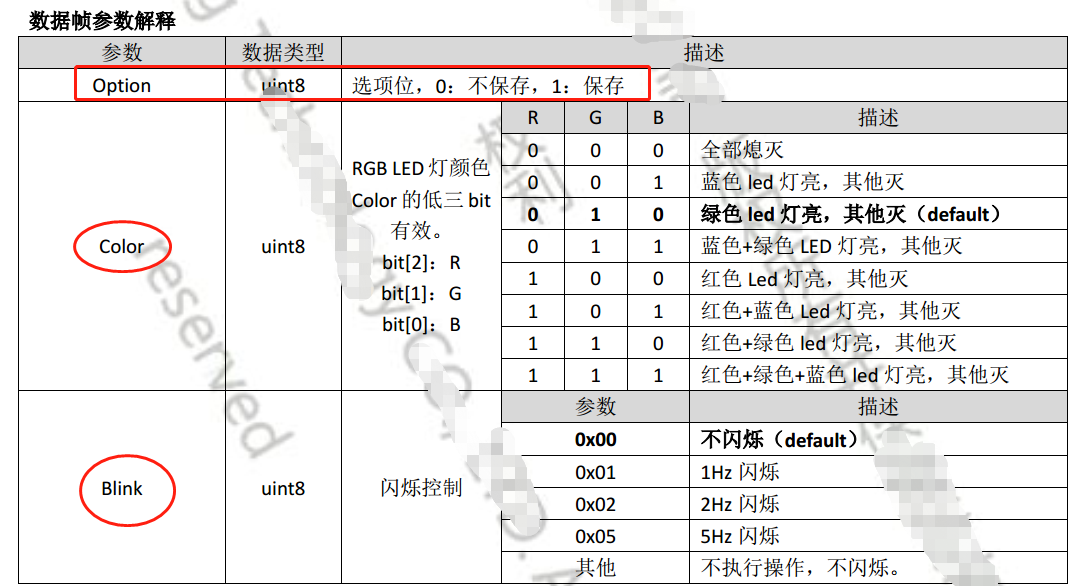

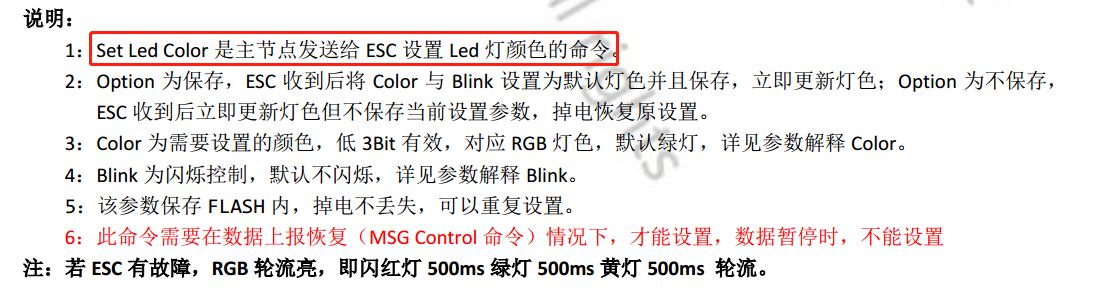

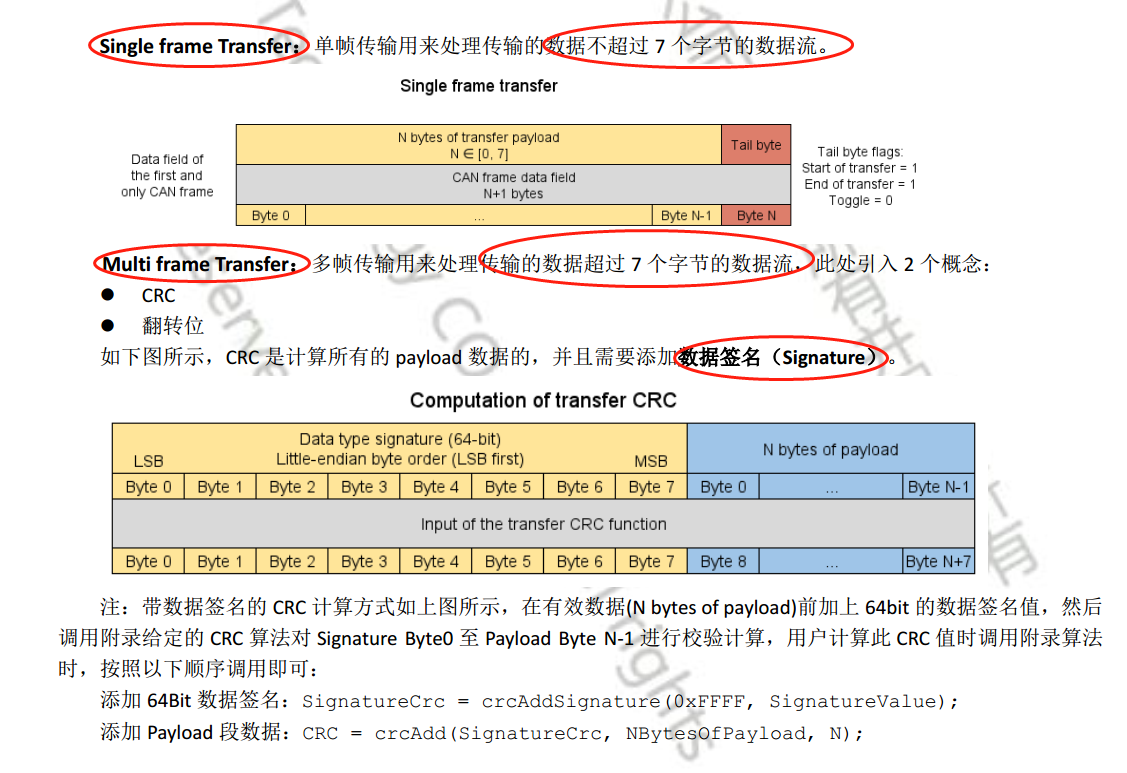

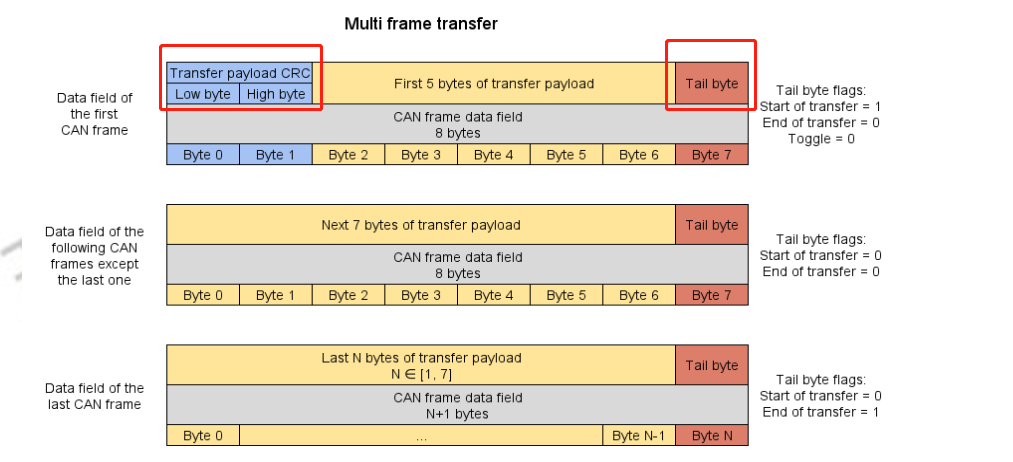

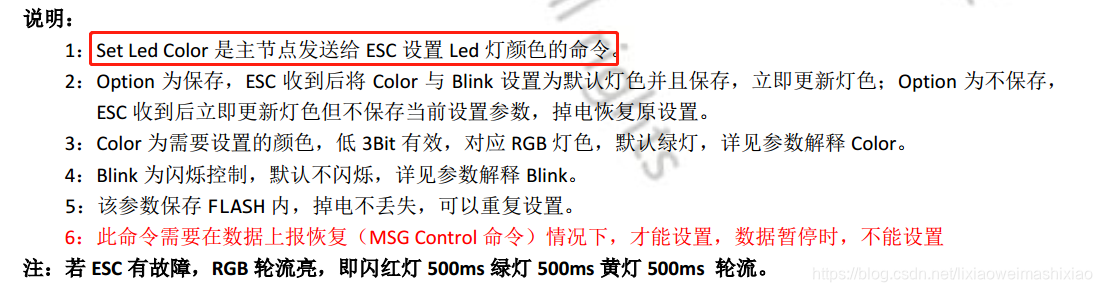

这里我们通过飞控配置电调的指示灯，首先看下电调指示灯配置文档，如下图。

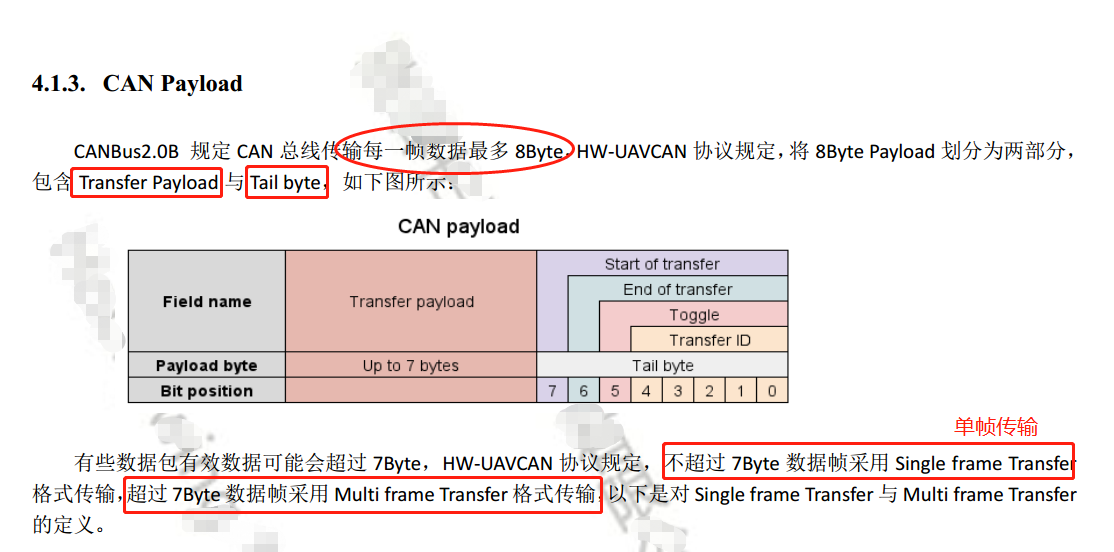

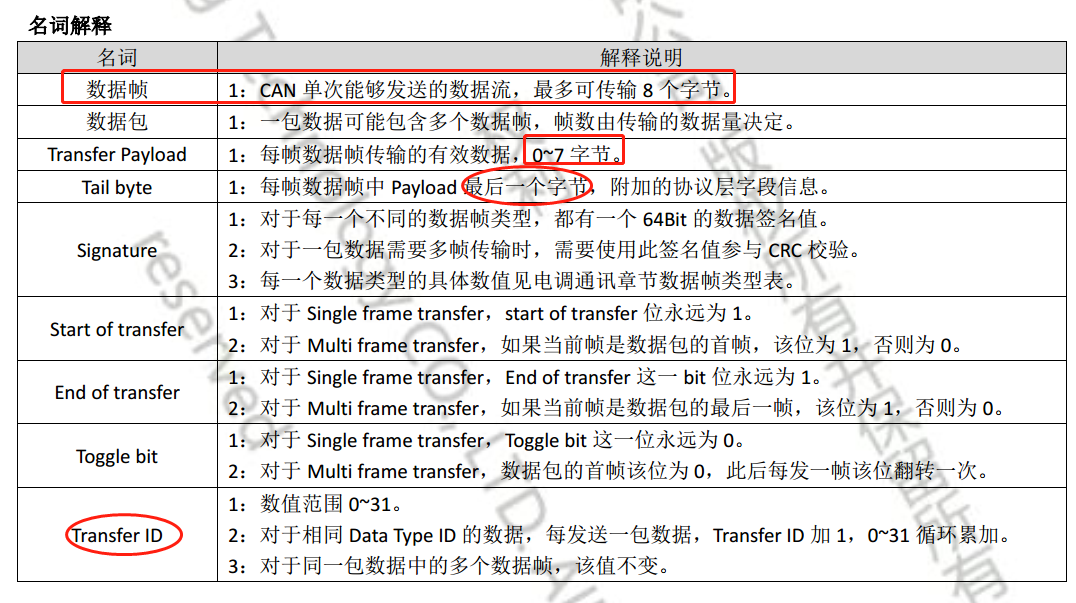

这些就是我们要参考的文档知识。

1.定义UAVCAN 驱动文件

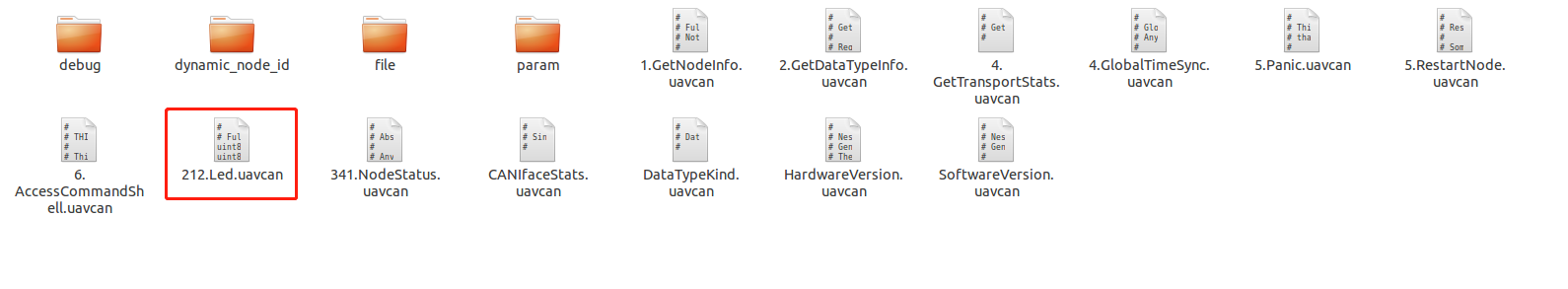

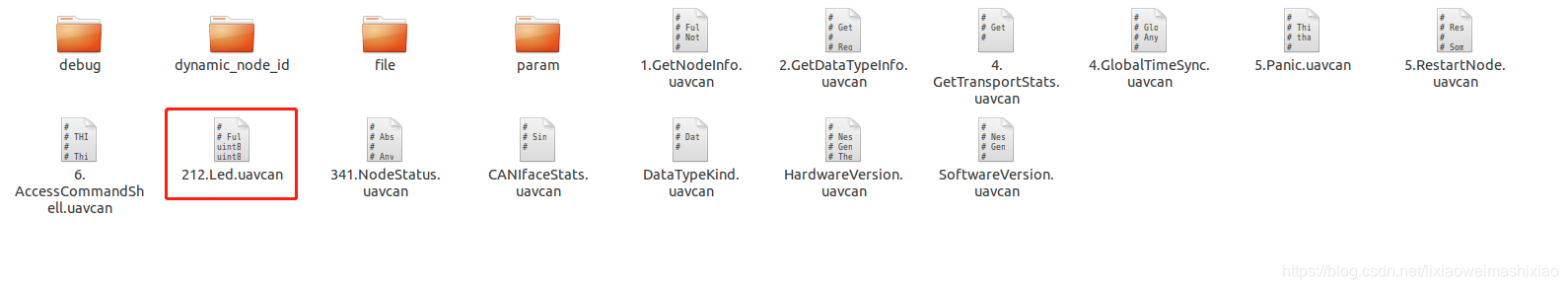

在目录ardupilot/modules/uavcan/dsdl/uavcan/protocol中定义如下文件，注意文件名的含义（212是我们的Node ID不是CAN ID ）。

在目录ardupilot/modules/uavcan/libuavcan/dsdl_compiler/pyuavcan/dsdl/uavcan/protocol中定义如下文件，注意文件名的含义。

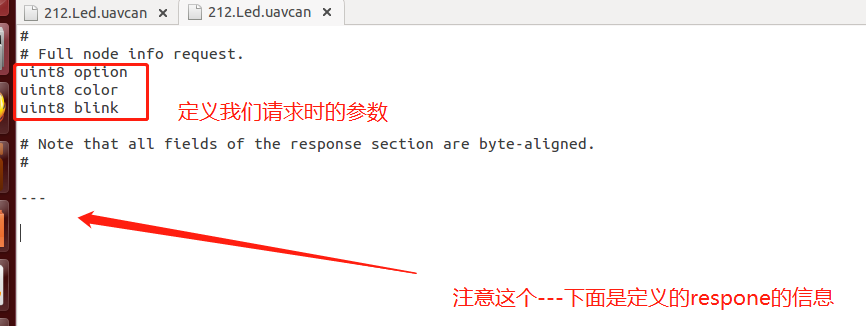

注意两个文件完全一样，内容如下：

2.初始化驱动文件

1. void Copter::setup()—》 //API函数初始化接口
2. init_ardupilot()—》 //设备层初始化接口
3. BoardConfig_CAN.init(); //ardupilot板层can初始化函数接口

void AP_BoardConfig_CAN::init() { for (uint8_t i = 0; i < MAX_NUMBER_OF_CAN_INTERFACES; i++) //最多支持两个can总线 { //_driver_number驱动号         _st_driver_number[i] = (int8_t) _var_info_can[i]._driver_number; //_can_debug调试号         _st_can_debug[i] = (int8_t) _var_info_can[i]._can_debug; } //初始化can总线 setup_canbus(); }

4. setup_canbus();

5. _var_info_can_protocol[i]._uavcan->try_init() == true

到这里进入核心初始化代码，在文件目录ardupilot/libraries文件下找到AP_UAVCAN文件夹会看到AP_UAVCAN.cpp和AP_UAVCAN.h文件。

1》增加头文件

#include <uavcan/protocol/Led.hpp>

备注：这个文件是在编译时自动生成的Led.hpp，文件来源于我们定义的212.Led.uavcan那个文件

2》增加客户端函数和控制函数

//定义LED控制函数 static void led_ctrl_Info(const uavcan::ServiceCallResult<uavcan::protocol::Led>& resp); //定义客户端函数 static uavcan::ServiceClient<uavcan::protocol::Led>* Led_Ctrl_client[MAX_NUMBER_OF_CAN_DRIVERS];

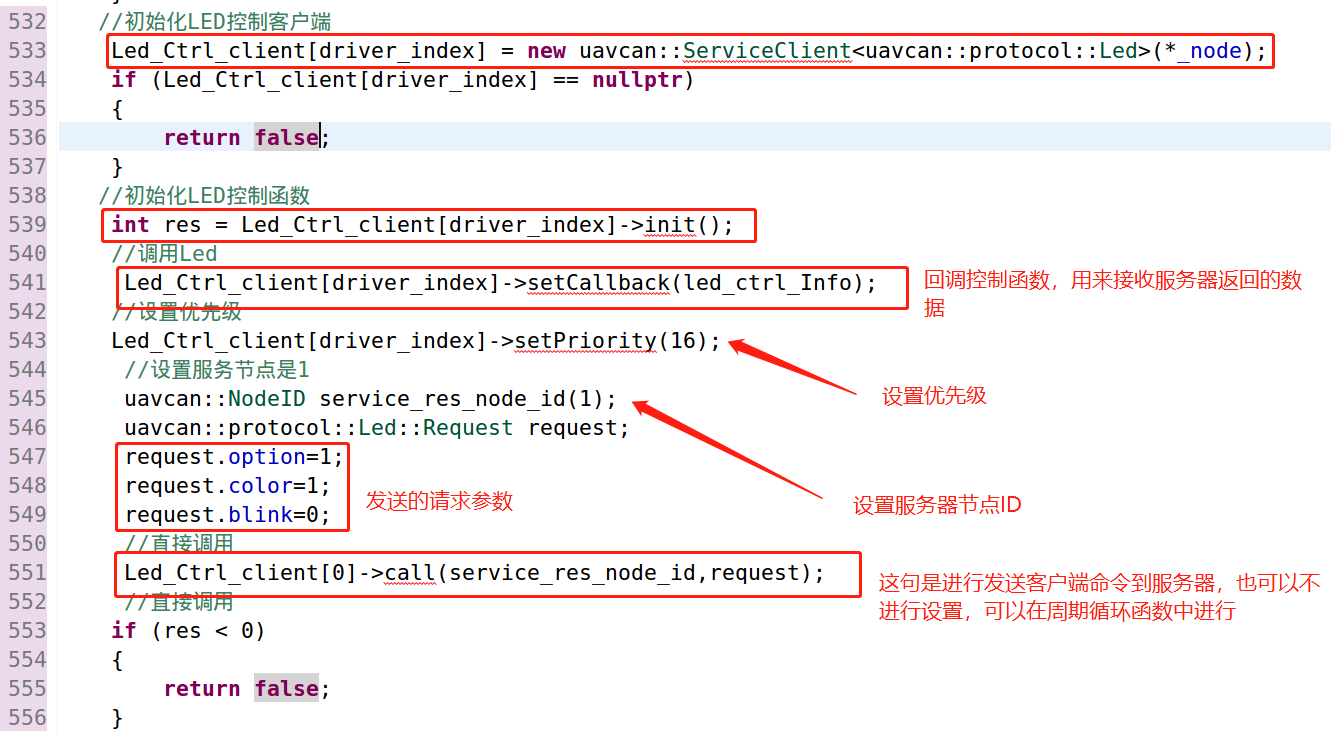

3》初始化客户端和回调函数

bool AP_UAVCAN::try_init(void) { //父类对象 if (_parent_can_mgr == nullptr) { return false; } //初始化OK吗 if (_initialized) { return true; } //对象初始化OK吗 if (!_parent_can_mgr->is_initialized()) { return false; }     _uavcan_i = UINT8_MAX; for (uint8_t i = 0; i < MAX_NUMBER_OF_CAN_DRIVERS; i++) { if (_parent_can_mgr == hal.can_mgr[i]) {             _uavcan_i = i; break; } } if(_uavcan_i == UINT8_MAX) { return false; } //获取结点 auto *node = get_node(); if (node == nullptr) { return false; } //结点初始化OK if (node->isStarted()) { return false; } uint8_t driver_index = _uavcan_i;     uavcan::NodeID self_node_id(_uavcan_node); //设置节点ID=10     node->setNodeID(self_node_id); char ndname[20]; snprintf(ndname, sizeof(ndname), "org.ardupilot:%u", _uavcan_i);      uavcan::NodeStatusProvider::NodeName name(ndname);     node->setName(name); // Standard type uavcan.protocol.SoftwareVersion //标准型uavcan.protocol.SoftwareVersion协议     uavcan::protocol::SoftwareVersion sw_version;     sw_version.major = AP_UAVCAN_SW_VERS_MAJOR; //1     sw_version.minor = AP_UAVCAN_SW_VERS_MINOR; //1     node->setSoftwareVersion(sw_version); //设置软件版本      uavcan::protocol::HardwareVersion hw_version; // Standard type uavcan.protocol.HardwareVersion //设置硬件版本1.0     hw_version.major = AP_UAVCAN_HW_VERS_MAJOR;     hw_version.minor = AP_UAVCAN_HW_VERS_MINOR;     node->setHardwareVersion(hw_version); //初始化节点 const int node_start_res = node->start(); if (node_start_res < 0) { debug_uavcan(1, "UAVCAN: node start problemnr"); } //初始化LED控制客户端      Led_Ctrl_client[driver_index] = new uavcan::ServiceClient<uavcan::protocol::Led>(*_node); if (Led_Ctrl_client[driver_index] == nullptr) { return false; } //初始化LED控制函数 int res = Led_Ctrl_client[driver_index]->init(); //调用Led    Led_Ctrl_client[driver_index]->setCallback(led_ctrl_Info); //设置优先级      Led_Ctrl_client[driver_index]->setPriority(16); //设置服务节点是1       uavcan::NodeID service_res_node_id(1);       uavcan::protocol::Led::Request request;       request.option=1;       request.color=1;       request.blink=0; //直接调用       Led_Ctrl_client[0]->call(service_res_node_id,request); //直接调用 if (res < 0) { return false; } ...... **后续省略** ..... }

到这里初始化函数基本完成，对于控制函数可以暂时不写，如果你想接收服务器端的数据过来，可以在控制函数中进行解析收到的服务器数据。

3.分析初始化函数

重点两个函数需要分析：init()和call()函数

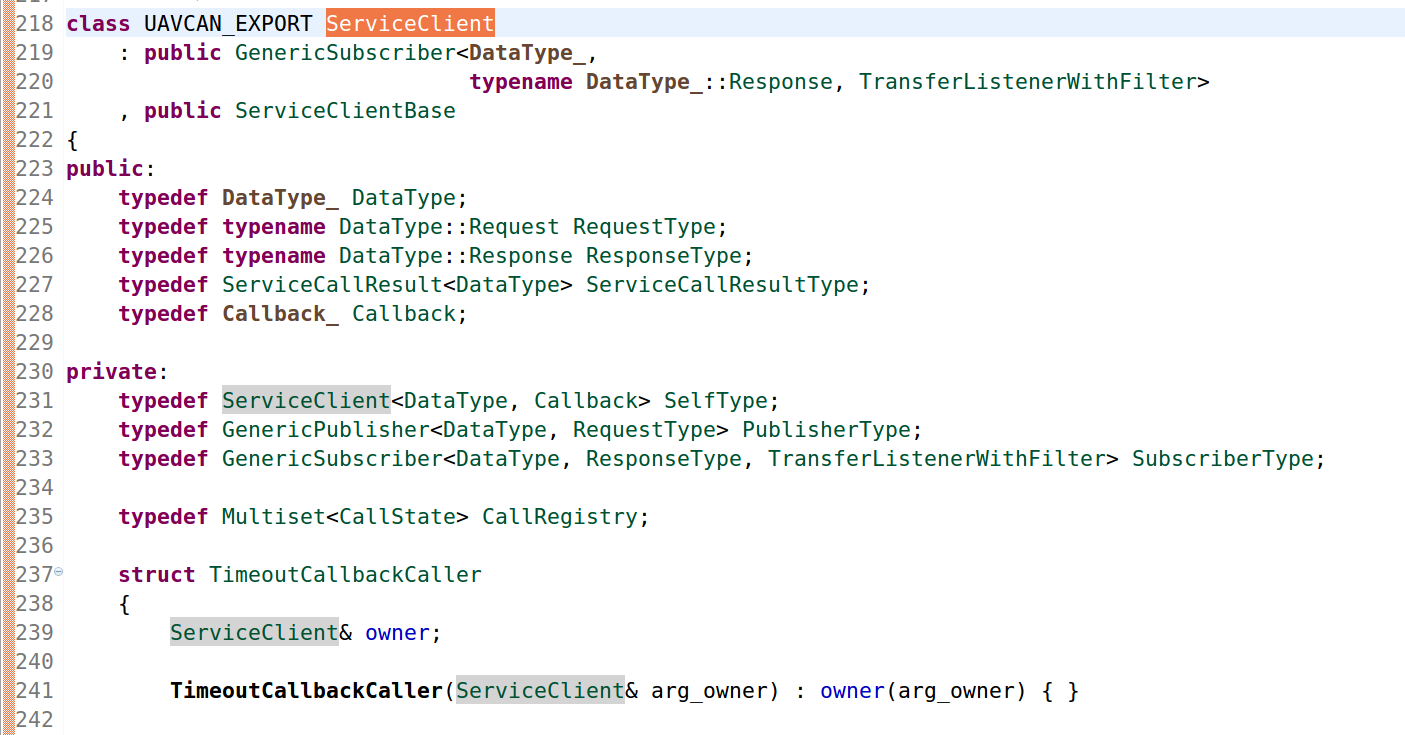

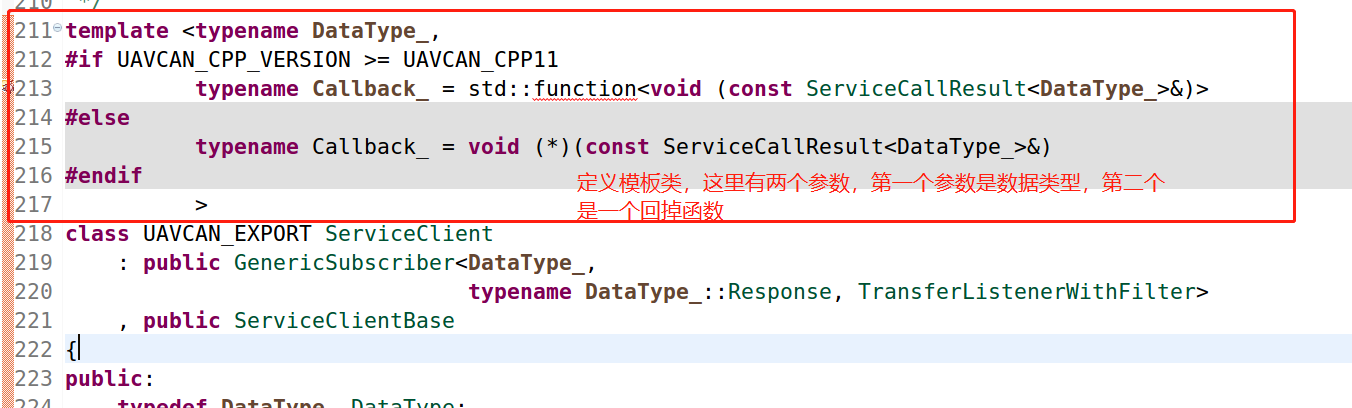

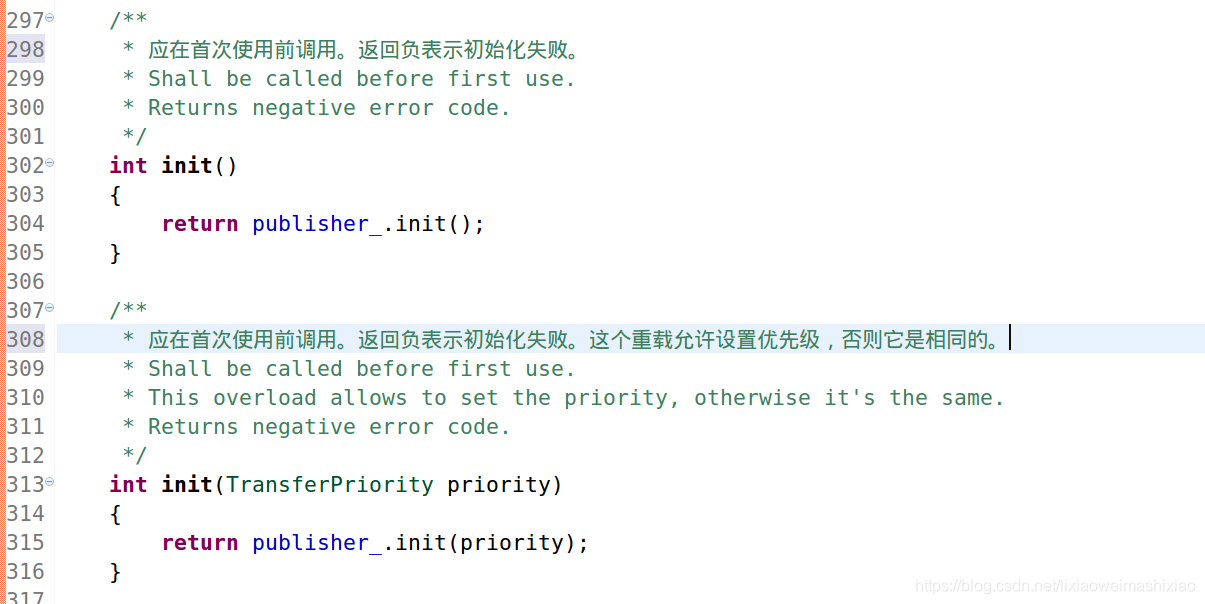

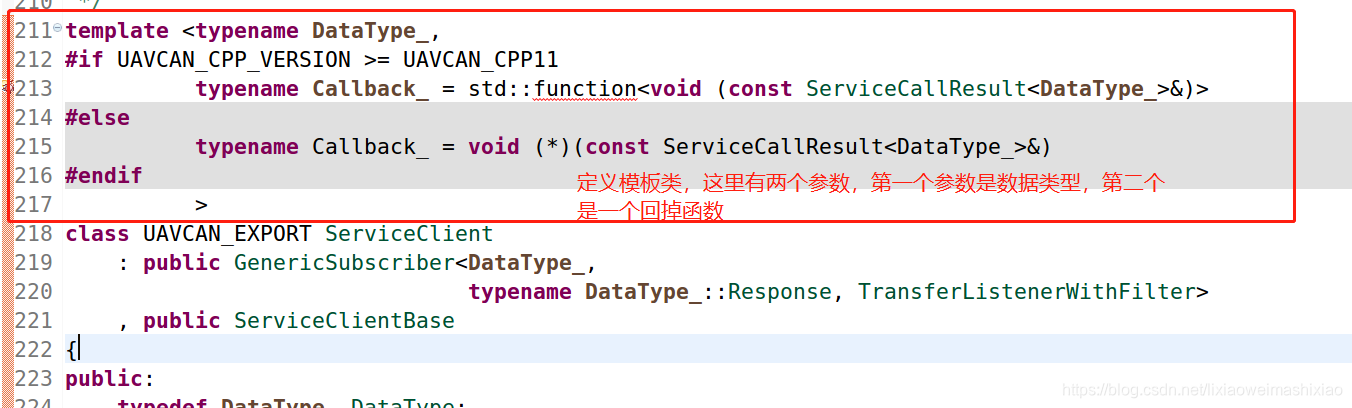

找到ardupilot/modules/uavcan/libuavcan/include/uavcan/node/service_client.hpp

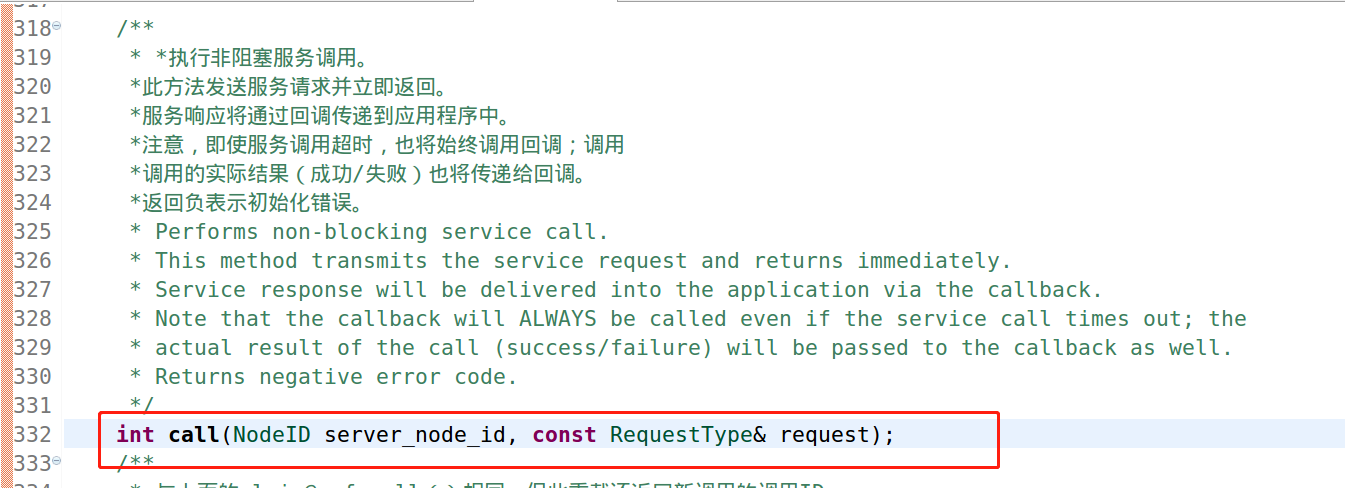

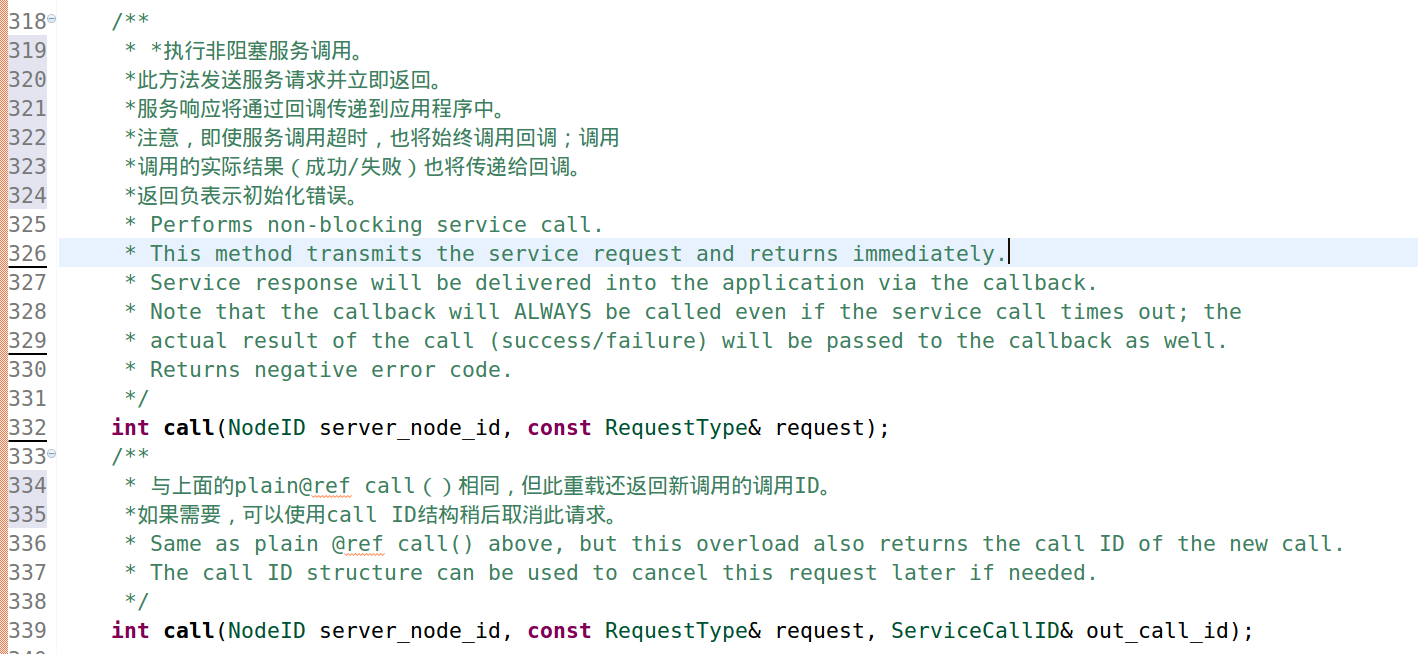

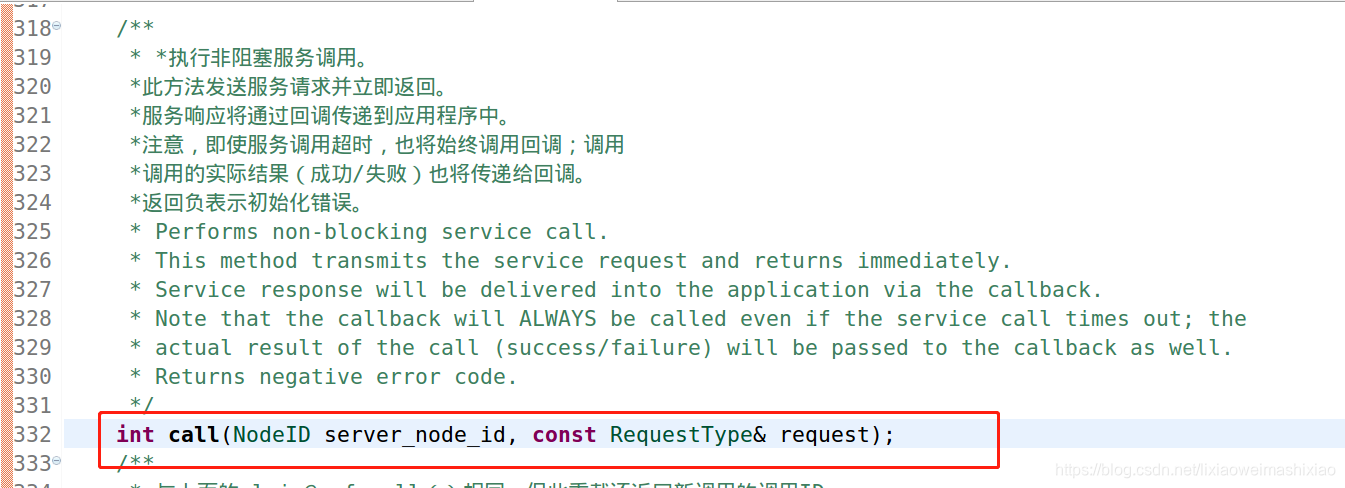

可以找到这两个定义

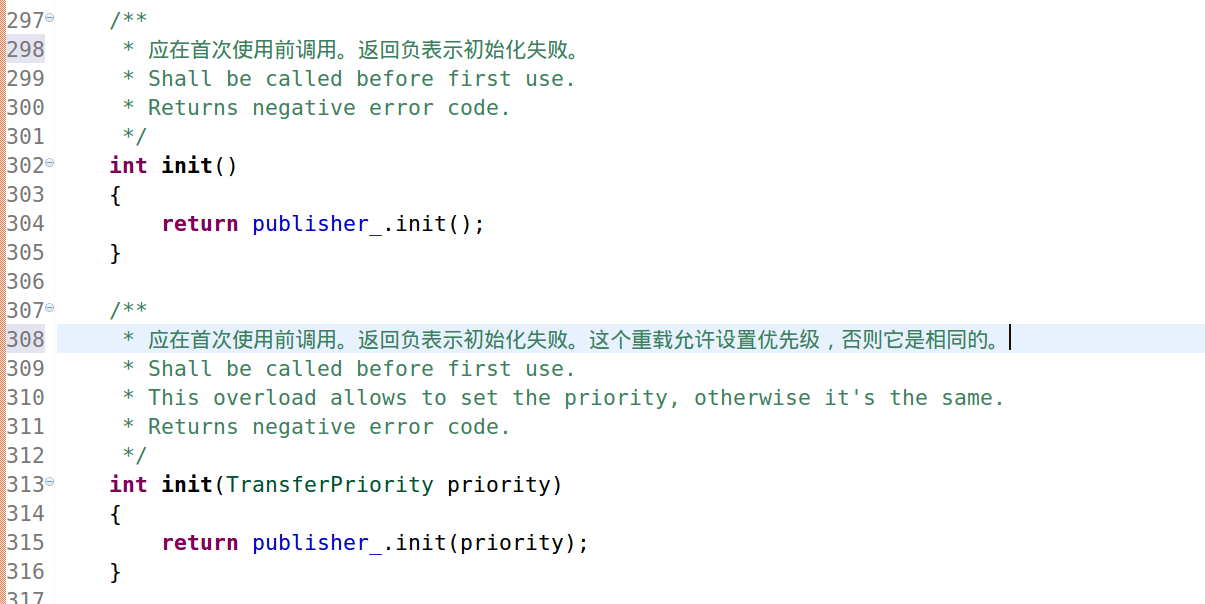

这里我们只先分析init函数，对应call我们在loop中进行分析

 int init() { //PublisherType publisher_; return publisher_.init(); }

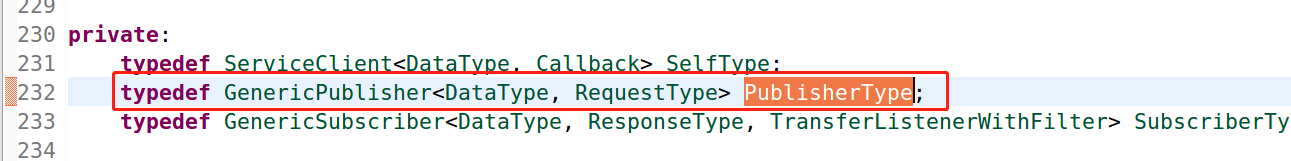

可以看出publisher属于PublisherType publisher_;的一个对象，PublisherType属于ServiceClient的一个私有模板数据成员

而typedef GenericPublisher<DataType, RequestType> PublisherType;中的第二个参数RequestType，属于typedef typename DataType::Request RequestType;
可以看出都是属于Request类型的

我们分析下面这个函数

 int init(TransferPriority priority) { return publisher_.init(priority); }

执行
这个下面函数Init方法可以在第一次发布之前调用，但不必 因为发布服务器可以自动初始化。

 int init() { return checkInit(); }

template <typename DataSpec, typename DataStruct> int GenericPublisher<DataSpec, DataStruct>::checkInit() { if (isInited()) { return 0; } return doInit(DataTypeKind(DataSpec::DataTypeKind), DataSpec::getDataTypeFullName(), CanTxQueue::Qos(Qos)); }

注意这里面又两个函数

bool GenericPublisherBase::isInited() const { return sender_.isInitialized(); }

int GenericPublisherBase::doInit(DataTypeKind dtkind, const char* dtname, CanTxQueue::Qos qos) { if (isInited()) { return 0; }      GlobalDataTypeRegistry::instance().freeze(); const DataTypeDescriptor* const descr = GlobalDataTypeRegistry::instance().find(dtkind, dtname); if (descr == UAVCAN_NULLPTR) { UAVCAN_TRACE("GenericPublisher", "Type [%s] is not registered", dtname); return -ErrUnknownDataType; } //初始化     sender_.init(*descr, qos); return 0; }

继续执行

/**  * 传送ID初始化  */ void TransferSender::init(const DataTypeDescriptor& dtid, CanTxQueue::Qos qos) { UAVCAN_ASSERT(!isInitialized());      qos_          = qos;     data_type_id_ = dtid.getID();     crc_base_     = dtid.getSignature().toTransferCRC(); }

建议这部分代码先不要深入研究，等用起来后再仔细分析。

2.周期执行一个Service 请求

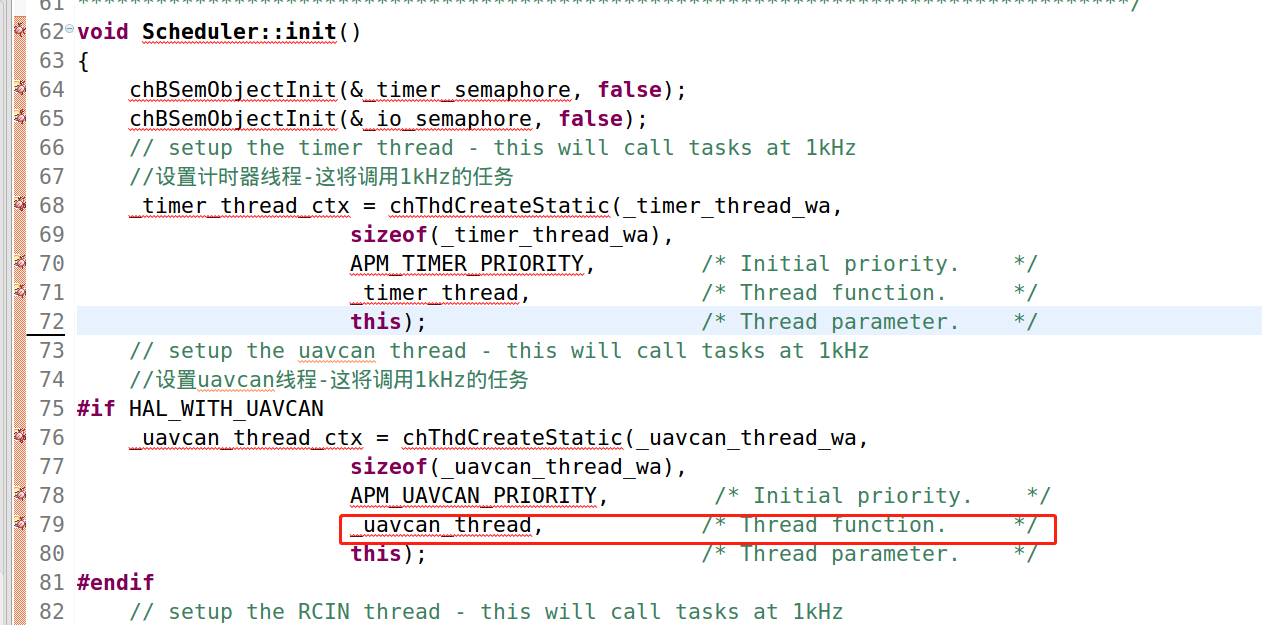

void Scheduler::_uavcan_thread(void *arg) {     Scheduler *sched = (Scheduler *)arg; chRegSetThreadName("apm_uavcan"); while (!sched->_hal_initialized) {         sched->delay_microseconds(20000); } while (true) {          sched->delay_microseconds(300); for (int i = 0; i < MAX_NUMBER_OF_CAN_INTERFACES; i++) { if (AP_UAVCAN::get_uavcan(i) != nullptr) { //调用定时器函数                 CANManager::from(hal.can_mgr[i])->_timer_tick(); } } } }

void CANManager::_timer_tick() { if (!initialized_) return; if (p_uavcan != nullptr) {         p_uavcan->do_cyclic(); //循环处理 } }

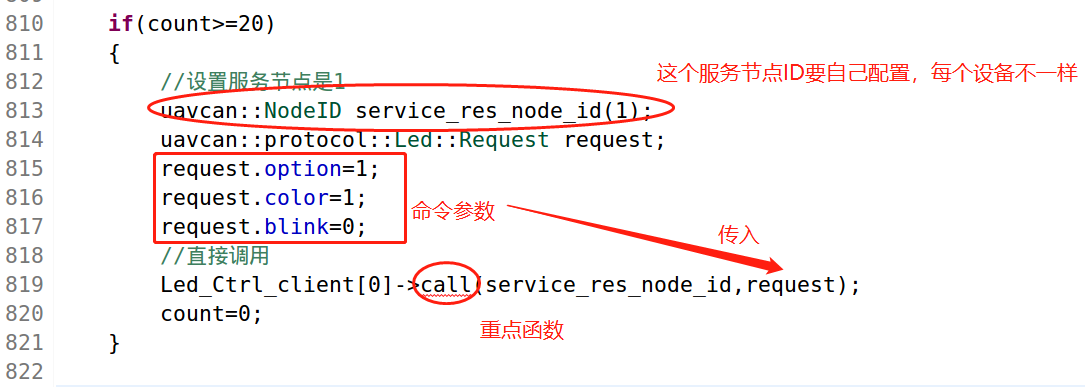

void AP_UAVCAN::do_cyclic(void) { static uint8_t count=0; if (!_initialized) {         hal.scheduler->delay_microseconds(1000); return; } //获取结点 auto *node = get_node();     count++; if(count>=20) { //设置服务节点是1         uavcan::NodeID service_res_node_id(1);         uavcan::protocol::Led::Request request;         request.option=1;         request.color=1;         request.blink=0; //直接调用         Led_Ctrl_client[0]->call(service_res_node_id,request);         count=0; } //开始执行 const int error = node->spin(uavcan::MonotonicDuration::fromMSec(1)); //获取解析数据 if (error < 0) {         hal.scheduler->delay_microseconds(100); return; } ...... 此处省略 ...... }

重点函数：

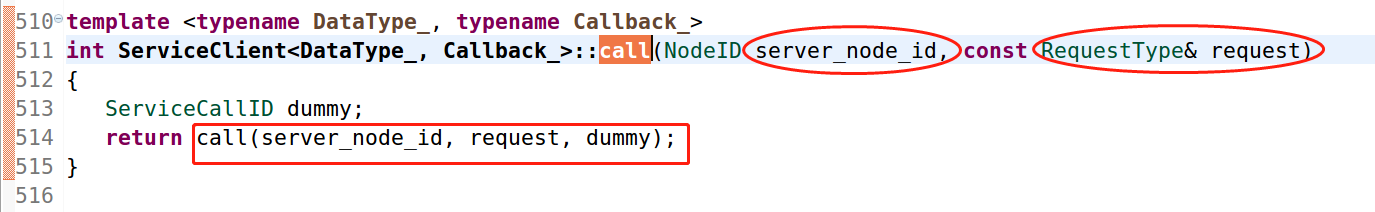

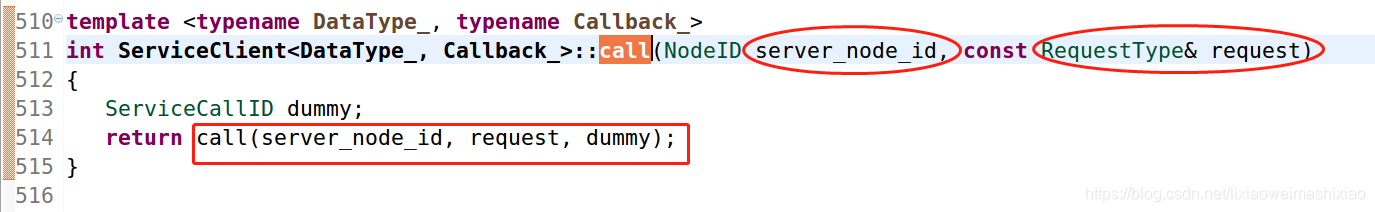

Led_Ctrl_client[0]->call(service_res_node_id,request);

这个函数传入了两个参数，第一个是服务节点ID，第二个是客户端请求的带的参数对象

template <typename DataType_, typename Callback_> int ServiceClient<DataType_, Callback_>::call(NodeID server_node_id, const RequestType& request,                                               ServiceCallID& out_call_id) { if (!coerceOrFallback<bool>(callback_, true)) { printf("Invalid callbackrn"); UAVCAN_TRACE("ServiceClient", "Invalid callback"); return -ErrInvalidConfiguration; } /*      * 不依赖于结构数据类型的公共过程      * Common procedures that don't depend on the struct data type      */ const int prep_res =prepareToCall(SubscriberType::getNode(), DataType::getDataTypeFullName(), server_node_id, out_call_id); if (prep_res < 0) { UAVCAN_TRACE("ServiceClient", "Failed to prepare the call, error: %i", prep_res); return prep_res; } /*      * Initializing the call state - this will start the subscriber ad-hoc      * 初始化呼叫状态-这将临时启动订户      */ const int call_state_res = addCallState(out_call_id); if (call_state_res < 0) { UAVCAN_TRACE("ServiceClient", "Failed to add call state, error: %i", call_state_res); return call_state_res; } /*      * 配置侦听器以便它只接受匹配的响应      * TODO移动到init（），但这需要对GenericSubscriber进行一些重构<>（删除TransferForwarder）      * Configuring the listener so it will accept only the matching responses      * TODO move to init(), but this requires to somewhat refactor GenericSubscriber<> (remove TransferForwarder)      */     TransferListenerWithFilter* const tl = SubscriberType::getTransferListener(); if (tl == UAVCAN_NULLPTR) { UAVCAN_ASSERT(0); // Must have been created cancelCall(out_call_id); return -ErrLogic; }     tl->installAcceptanceFilter(this); /*      *发布请求------Publishing the request      */ const int publisher_res = publisher_.publish(request, TransferTypeServiceRequest, server_node_id,                                                  out_call_id.transfer_id); if (publisher_res < 0) { cancelCall(out_call_id); return publisher_res; } UAVCAN_ASSERT(server_node_id == out_call_id.server_node_id); return publisher_res; }

重点分析一下几个函数

1.callback_函数

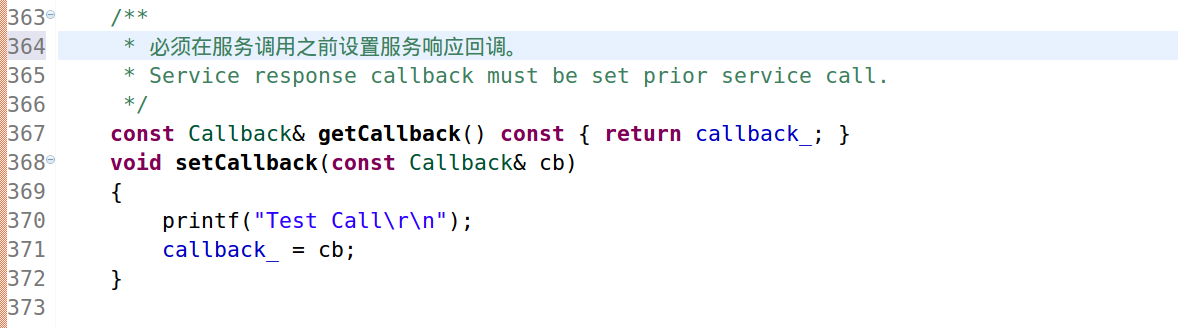

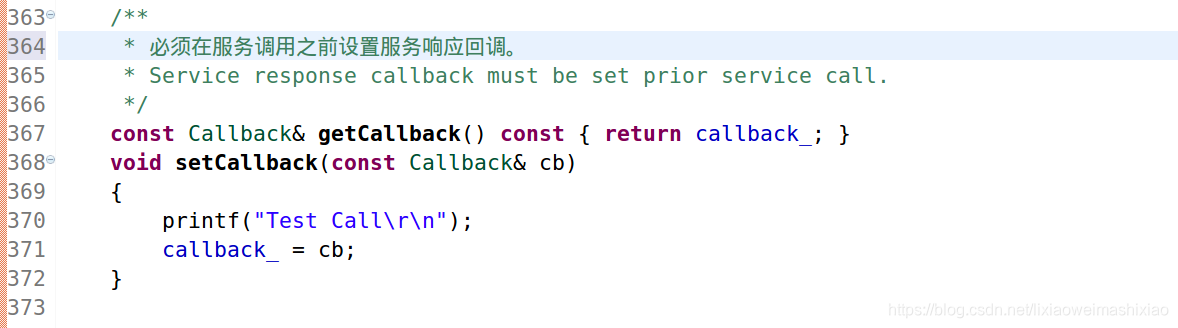

这个函数指的是哪个函数呢？还得的初始化时我们设置的回调函数吗？

  Led_Ctrl_client[driver_index]->setCallback(led_ctrl_Info);

从这里可以看出callback_指的就是led_ctrl_Info（）函数。

2.prepareToCall（）函数

const int prep_res =prepareToCall(SubscriberType::getNode(), DataType::getDataTypeFullName(), server_node_id, out_call_id);

这里面又四个参数：要弄明白这四个参数的含义

• SubscriberType::getNode()：获取节点对象
• DataType::getDataTypeFullName()：获取驱动名称
• server_node_id：也就是服务器ID
• out_call_id：我们的Node ID

int ServiceClientBase::prepareToCall(INode& node, const char* dtname,                                      NodeID server_node_id,                                      ServiceCallID& out_call_id)

int ServiceClientBase::prepareToCall(INode& node, const char* dtname,                                      NodeID server_node_id,                                      ServiceCallID& out_call_id) { /*      * 确保不会因为输入数据无效而导致传输错误      * Making sure we're not going to get transport error because of invalid input data      */ //判断服务节点是不是非广播，服务节点等于NODE ID吗 if (!server_node_id.isUnicast() || (server_node_id == node.getNodeID())) { UAVCAN_TRACE("ServiceClient", "Invalid Server Node ID"); return -ErrInvalidParam; } //参数传递     out_call_id.server_node_id = server_node_id; /*      * 确定数据类型ID      * Determining the Data Type ID      */ if (data_type_descriptor_ == UAVCAN_NULLPTR) {         GlobalDataTypeRegistry::instance().freeze(); //查找到我们定义的.uavcan名字         data_type_descriptor_ = GlobalDataTypeRegistry::instance().find(DataTypeKindService, dtname); if (data_type_descriptor_ == UAVCAN_NULLPTR) { UAVCAN_TRACE("ServiceClient", "Type [%s] is not registered", dtname); return -ErrUnknownDataType; } UAVCAN_TRACE("ServiceClient", "Data type descriptor inited: %s", data_type_descriptor_->toString().c_str()); } UAVCAN_ASSERT(data_type_descriptor_ != UAVCAN_NULLPTR); /*      * 确定传输ID      * Determining the Transfer ID      */ const OutgoingTransferRegistryKey otr_key(data_type_descriptor_->getID(),                                               TransferTypeServiceRequest, server_node_id); const MonotonicTime otr_deadline = node.getMonotonicTime() + TransferSender::getDefaultMaxTransferInterval();     TransferID* const otr_tid =         node.getDispatcher().getOutgoingTransferRegistry().accessOrCreate(otr_key, otr_deadline); if (!otr_tid) { UAVCAN_TRACE("ServiceClient", "OTR access failure, dtd=%s", data_type_descriptor_->toString().c_str()); return -ErrMemory; }     out_call_id.transfer_id = *otr_tid;     otr_tid->increment(); return 0; }

这个函数主要实现：1.判断服务节点是不是非广播，服务节点等于NODE ID吗，2.确定数据类型ID 3.确定传输ID

3.发布请求函数

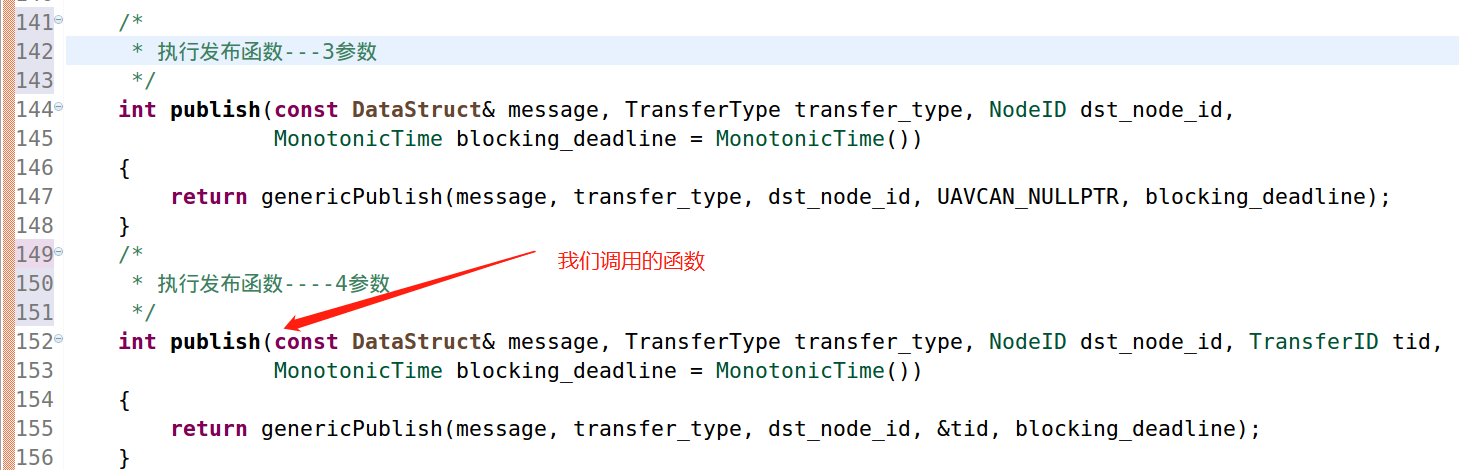

 const int publisher_res = publisher_.publish(request, TransferTypeServiceRequest, server_node_id,                                                  out_call_id.transfer_id);

template <typename DataSpec, typename DataStruct> int GenericPublisher<DataSpec, DataStruct>::genericPublish(const DataStruct& message, TransferType transfer_type,                                                            NodeID dst_node_id, TransferID* tid,                                                            MonotonicTime blocking_deadline) { const int res = checkInit(); if (res < 0) { return res; }      Buffer buffer; const int encode_res = doEncode(message, buffer); if (encode_res < 0) { return encode_res; } return GenericPublisherBase::genericPublish(buffer, transfer_type, dst_node_id, tid, blocking_deadline); }

int GenericPublisherBase::genericPublish(const StaticTransferBufferImpl& buffer, TransferType transfer_type,                                          NodeID dst_node_id, TransferID* tid, MonotonicTime blocking_deadline) { /*      * tid必须不等于0，我们执行if      */ if (tid) { return sender_.send(buffer.getRawPtr(), buffer.getMaxWritePos(), getTxDeadline(),                             blocking_deadline, transfer_type, dst_node_id, *tid); } else { return sender_.send(buffer.getRawPtr(), buffer.getMaxWritePos(), getTxDeadline(),                             blocking_deadline, transfer_type, dst_node_id); } }

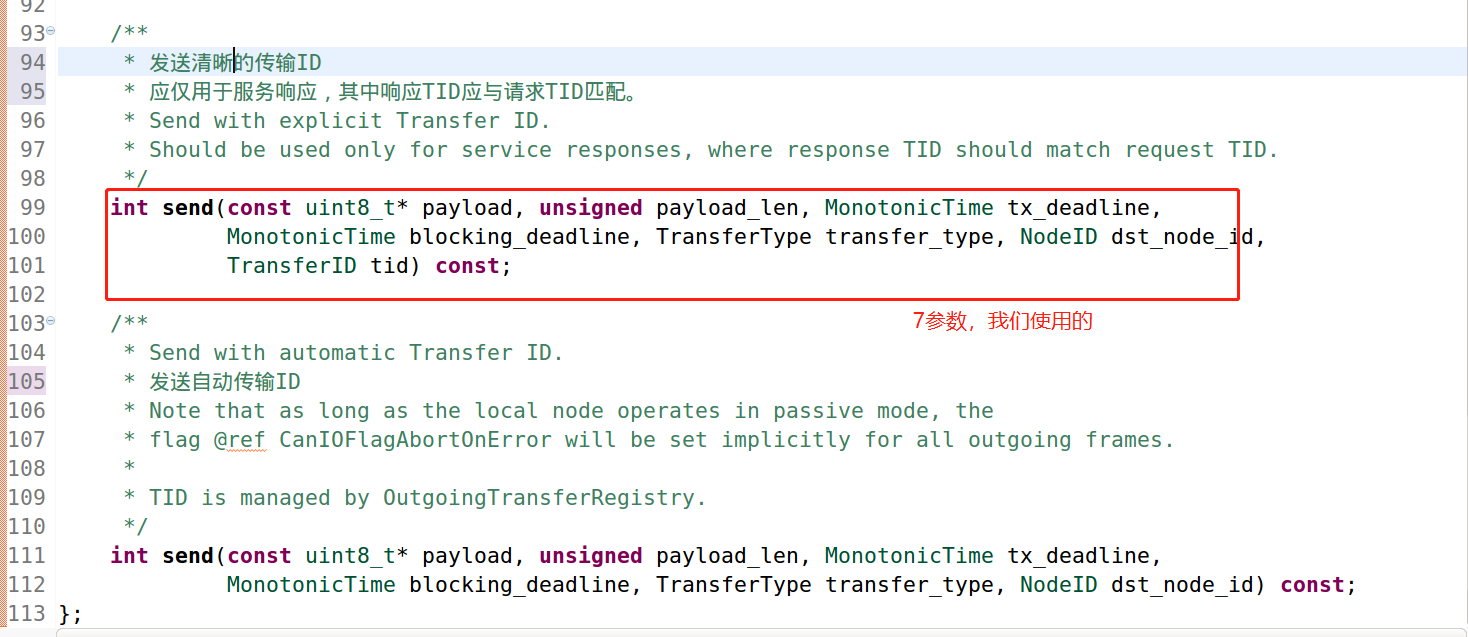

int TransferSender::send(const uint8_t* payload, unsigned payload_len, MonotonicTime tx_deadline,                          MonotonicTime blocking_deadline, TransferType transfer_type, NodeID dst_node_id,                          TransferID tid) const {     Frame frame(data_type_id_, transfer_type, dispatcher_.getNodeID(), dst_node_id, tid);      frame.setPriority(priority_);     frame.setStartOfTransfer(true); UAVCAN_TRACE("TransferSender", "%s", frame.toString().c_str()); /*      * Checking if we're allowed to send.      * In passive mode we can send only anonymous transfers, if they are enabled.      */ if (dispatcher_.isPassiveMode()) { const bool allow = allow_anonymous_transfers_ && (transfer_type == TransferTypeMessageBroadcast) && (int(payload_len) <= frame.getPayloadCapacity()); if (!allow) { return -ErrPassiveMode; } }      dispatcher_.getTransferPerfCounter().addTxTransfer(); /*      *发送结构---- Sending frames      */ if (frame.getPayloadCapacity() >= payload_len) // Single Frame Transfer { const int res = frame.setPayload(payload, payload_len); if (res != int(payload_len)) { UAVCAN_ASSERT(0); UAVCAN_TRACE("TransferSender", "Frame payload write failure, %i", res); registerError(); return (res < 0) ? res : -ErrLogic; }          frame.setEndOfTransfer(true); UAVCAN_ASSERT(frame.isStartOfTransfer() && frame.isEndOfTransfer() && !frame.getToggle()); const CanIOFlags flags = frame.getSrcNodeID().isUnicast() ? flags_ : (flags_ | CanIOFlagAbortOnError); //发送出去 return dispatcher_.send(frame, tx_deadline, blocking_deadline, qos_, flags, iface_mask_); } else // Multi Frame Transfer { UAVCAN_ASSERT(!dispatcher_.isPassiveMode()); UAVCAN_ASSERT(frame.getSrcNodeID().isUnicast()); int offset = 0; {             TransferCRC crc = crc_base_;             crc.add(payload, payload_len); static const int BUFLEN = sizeof(static_cast<CanFrame*>(0)->data); uint8_t buf[BUFLEN];              buf[0] = uint8_t(crc.get() & 0xFFU); // Transfer CRC, little endian             buf[1] = uint8_t((crc.get() >> 8) & 0xFF); (void)copy(payload, payload + BUFLEN - 2, buf + 2); const int write_res = frame.setPayload(buf, BUFLEN); if (write_res < 2) { UAVCAN_TRACE("TransferSender", "Frame payload write failure, %i", write_res); registerError(); return write_res; }             offset = write_res - 2; UAVCAN_ASSERT(int(payload_len) > offset); } int num_sent = 0; while (true) { const int send_res = dispatcher_.send(frame, tx_deadline, blocking_deadline, qos_, flags_, iface_mask_); if (send_res < 0) { registerError(); return send_res; }              num_sent++; if (frame.isEndOfTransfer()) { return num_sent; // Number of frames transmitted }              frame.setStartOfTransfer(false);             frame.flipToggle(); UAVCAN_ASSERT(offset >= 0); const int write_res = frame.setPayload(payload + offset, payload_len - unsigned(offset)); if (write_res < 0) { UAVCAN_TRACE("TransferSender", "Frame payload write failure, %i", write_res); registerError(); return write_res; }              offset += write_res; UAVCAN_ASSERT(offset <= int(payload_len)); if (offset >= int(payload_len)) {                 frame.setEndOfTransfer(true); } } } UAVCAN_ASSERT(0); return -ErrLogic; // Return path analysis is apparently broken. There should be no warning, this 'return' is unreachable. }

注意这个函数：dispatcher_.send(frame, tx_deadline, blocking_deadline, qos_, flags, iface_mask_);

int Dispatcher::send(const Frame& frame, MonotonicTime tx_deadline, MonotonicTime blocking_deadline,                      CanTxQueue::Qos qos, CanIOFlags flags, uint8_t iface_mask) { if (frame.getSrcNodeID() != getNodeID()) { UAVCAN_ASSERT(0); return -ErrLogic; }      CanFrame can_frame; //形成CAN协议数据格式类型 if (!frame.compile(can_frame)) { UAVCAN_TRACE("Dispatcher", "Unable to send: frame is malformed: %s", frame.toString().c_str()); UAVCAN_ASSERT(0); return -ErrLogic; } //准备发送出去 return canio_.send(can_frame, tx_deadline, blocking_deadline, iface_mask, qos, flags); }

这里面有两个函数需要注意。

frame.compile(can_frame)

bool Frame::compile(CanFrame& out_can_frame) const { if (!isValid()) { UAVCAN_ASSERT(0); // This is an application error, so we need to maximize it. return false; } /*      *CAN ID字段------ CAN ID field      */ //获取CAN ID      out_can_frame.id = CanFrame::FlagEFF |         bitpack<0, 7>(src_node_id_.get()) |         bitpack<24, 5>(transfer_priority_.get()); //判断数据帧的类型 if (transfer_type_ == TransferTypeMessageBroadcast) {         out_can_frame.id |=             bitpack<7, 1>(0U) |             bitpack<8, 16>(data_type_id_.get()); } else { const bool request_not_response = transfer_type_ == TransferTypeServiceRequest;         out_can_frame.id |=             bitpack<7, 1>(1U) |             bitpack<8, 7>(dst_node_id_.get()) |             bitpack<15, 1>(request_not_response ? 1U : 0U) |             bitpack<16, 8>(data_type_id_.get()); } /*      *有效帧----- Payload      */ uint8_t tail = transfer_id_.get(); //还记得刚开始说的这个tail吗 if (start_of_transfer_) {         tail |= (1U << 7); } if (end_of_transfer_) {         tail |= (1U << 6); } if (toggle_) {         tail |= (1U << 5); } UAVCAN_ASSERT(payload_len_ < sizeof(static_cast<CanFrame*>(UAVCAN_NULLPTR)->data));      out_can_frame.dlc = static_cast<uint8_t>(payload_len_); (void)copy(payload_, payload_ + payload_len_, out_can_frame.data);      out_can_frame.data[out_can_frame.dlc] = tail;     out_can_frame.dlc++; /*      * Discriminator鉴别器      */ if (src_node_id_.isBroadcast()) {         TransferCRC crc;         crc.add(out_can_frame.data, out_can_frame.dlc); //value_ = uint16_t(uint16_t((value_ << 8) ^ Table[uint16_t((value_ >> 8) ^ byte) & 0xFFU]) & 0xFFFFU);         out_can_frame.id |= bitpack<10, 14>(crc.get() & ((1U << 14) - 1U)); } return true; }

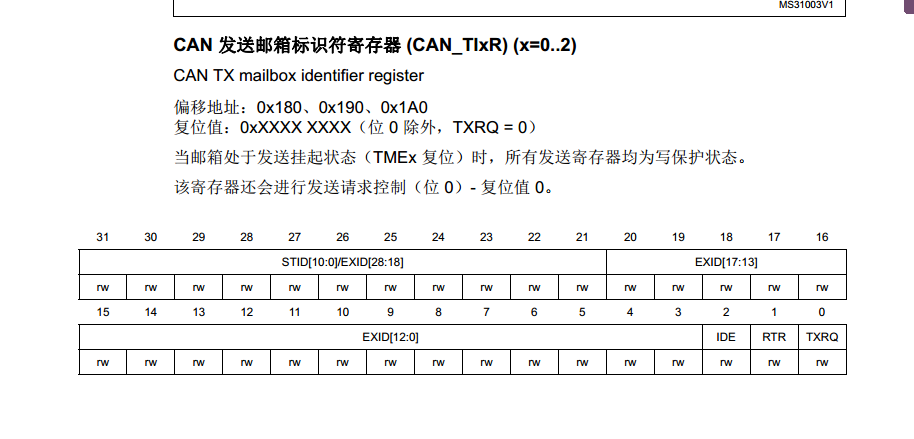

这个函数很重要，是形成CAN ID 字段的关键，如果前面没有设置对，在这里打印检测也可以定位问题。

canio_.send(can_frame, tx_deadline, blocking_deadline, iface_mask, qos, flags)

int CanIOManager::send(const CanFrame& frame, MonotonicTime tx_deadline, MonotonicTime blocking_deadline, uint8_t iface_mask, CanTxQueue::Qos qos, CanIOFlags flags) { const uint8_t num_ifaces = getNumIfaces(); const uint8_t all_ifaces_mask = uint8_t((1U << num_ifaces) - 1);     iface_mask &= all_ifaces_mask; if (blocking_deadline > tx_deadline) {         blocking_deadline = tx_deadline; } int retval = 0; while (true) // Somebody please refactor this. { if (iface_mask == 0) { break; }          CanSelectMasks masks;         masks.write = iface_mask | makePendingTxMask(); { // Building the list of next pending frames per iface. // The driver will give them a scrutinizing look before deciding whether he wants to accept them. const CanFrame* pending_tx[MaxCanIfaces] = {}; for (int i = 0; i < num_ifaces; i++) {                 CanTxQueue& q = *tx_queues_[i]; if (iface_mask & (1 << i)) // I hate myself so much right now. {                     pending_tx[i] = q.topPriorityHigherOrEqual(frame) ? q.getTopPriorityPendingFrame() : &frame; } else {                     pending_tx[i] = q.getTopPriorityPendingFrame(); } } //号召选择 const int select_res = callSelect(masks, pending_tx, blocking_deadline); if (select_res < 0) { return -ErrDriver; } UAVCAN_ASSERT(masks.read == 0); } // Transmission for (uint8_t i = 0; i < num_ifaces; i++) { if (masks.write & (1 << i)) { int res = 0; if (iface_mask & (1 << i)) { if (tx_queues_[i]->topPriorityHigherOrEqual(frame)) {                         res = sendFromTxQueue(i); // May return 0 if nothing to transmit (e.g. expired) } if (res <= 0) { //重要函数                         res = sendToIface(i, frame, tx_deadline, flags); if (res > 0) {                             iface_mask &= uint8_t(~(1 << i)); // Mark transmitted } } } else {                     res = sendFromTxQueue(i); } if (res > 0) {                     retval++; } } } // Timeout. Enqueue the frame if wasn't transmitted and leave. const bool timed_out = sysclock_.getMonotonic() >= blocking_deadline; if (masks.write == 0 || timed_out) { if (!timed_out) { UAVCAN_TRACE("CanIOManager", "Send: Premature timeout in select(), will try again"); continue; } for (uint8_t i = 0; i < num_ifaces; i++) { if (iface_mask & (1 << i)) {                     tx_queues_[i]->push(frame, tx_deadline, qos, flags); } } break; } } return retval; }

核心底层接口函数sendToIface(i, frame, tx_deadline, flags);

int CanIOManager::sendToIface(uint8_t iface_index, const CanFrame& frame, MonotonicTime tx_deadline, CanIOFlags flags) { UAVCAN_ASSERT(iface_index < MaxCanIfaces);     ICanIface* const iface = driver_.getIface(iface_index); if (iface == UAVCAN_NULLPTR) { UAVCAN_ASSERT(0); // Nonexistent interface return -ErrLogic; } const int res = iface->send(frame, tx_deadline, flags); if (res != 1) { UAVCAN_TRACE("CanIOManager", "Send failed: code %i, iface %i, frame %s",                      res, iface_index, frame.toString().c_str()); } if (res > 0) {         counters_[iface_index].frames_tx += unsigned(res); } return res; }

uavcan::int16_t CanIface::send(const uavcan::CanFrame& frame, uavcan::MonotonicTime tx_deadline,                                uavcan::CanIOFlags flags) { if (frame.isErrorFrame() || frame.dlc > 8) { return -ErrUnsupportedFrame; } /*      * Normally we should perform the same check as in @ref canAcceptNewTxFrame(), because      * it is possible that the highest-priority frame between select() and send() could have been      * replaced with a lower priority one due to TX timeout. But we don't do this check because:      *      *  - It is a highly unlikely scenario.      *      *  - Frames do not timeout on a properly functioning bus. Since frames do not timeout, the new      *    frame can only have higher priority, which doesn't break the logic.      *      *  - If high-priority frames are timing out in the TX queue, there's probably a lot of other      *    issues to take care of before this one becomes relevant.      *      *  - It takes CPU time. Not just CPU time, but critical section time, which is expensive.      */     CriticalSectionLocker lock; /*      * Seeking for an empty slot      */     uavcan::uint8_t txmailbox = 0xFF; if ((can_->TSR & bxcan::TSR_TME0) == bxcan::TSR_TME0) {         txmailbox = 0; } else if ((can_->TSR & bxcan::TSR_TME1) == bxcan::TSR_TME1) {         txmailbox = 1; } else if ((can_->TSR & bxcan::TSR_TME2) == bxcan::TSR_TME2) {         txmailbox = 2; } else { return 0; // No transmission for you. }      peak_tx_mailbox_index_ = uavcan::max(peak_tx_mailbox_index_, txmailbox); // Statistics /*      * Setting up the mailbox      */     bxcan::TxMailboxType& mb = can_->TxMailbox[txmailbox]; //最终把数据合并，传递到发送邮箱寄存器 if (frame.isExtended()) { //注意这个寄存器地址要王右移3位         mb.TIR = ((frame.id & uavcan::CanFrame::MaskExtID) << 3) | bxcan::TIR_IDE; } else {         mb.TIR = ((frame.id & uavcan::CanFrame::MaskStdID) << 21); } if (frame.isRemoteTransmissionRequest()) {         mb.TIR |= bxcan::TIR_RTR; }     mb.TDTR = frame.dlc;      mb.TDHR = (uavcan::uint32_t(frame.data[7]) << 24) | (uavcan::uint32_t(frame.data[6]) << 16) | (uavcan::uint32_t(frame.data[5]) << 8) | (uavcan::uint32_t(frame.data[4]) << 0);     mb.TDLR = (uavcan::uint32_t(frame.data[3]) << 24) | (uavcan::uint32_t(frame.data[2]) << 16) | (uavcan::uint32_t(frame.data[1]) << 8) | (uavcan::uint32_t(frame.data[0]) << 0);      mb.TIR |= bxcan::TIR_TXRQ; // Go. /*      * Registering the pending transmission so we can track its deadline and loopback it as needed      */     TxItem& txi = pending_tx_[txmailbox];     txi.deadline       = tx_deadline;     txi.frame          = frame;     txi.loopback       = (flags & uavcan::CanIOFlagLoopback) != 0;     txi.abort_on_error = (flags & uavcan::CanIOFlagAbortOnError) != 0;     txi.pending        = true; return 1; }

到这里基本实现了把服务帧数据发送出去。

3.CAN调试方法

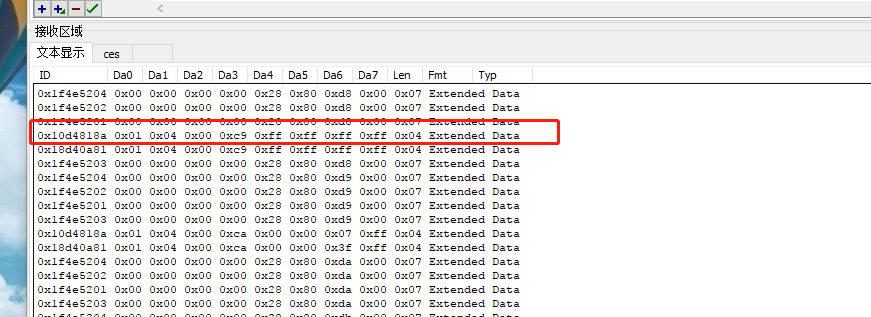

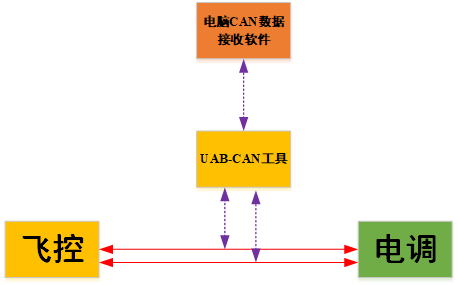

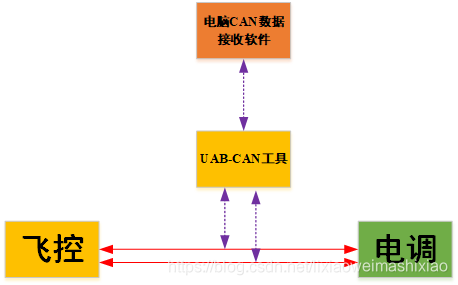

所谓工欲善其事必先利其器，我们最好买个USB-CAN 模块方便实时监控我们发的和收到的数据是否正常，接线方式可以见下面的方式。
