前言

采用SSM整合开发一个web系统是这学期web期末项目考核，前前后后花了八九天的时间，一个bug能玩一天，真是令人焦头烂额，著此博客复盘记录，颗粒入仓。_{写得不好有错请指出}

主要功能

• 用户的登录，注册和注销
• 修改个人资料，查看/查找商品
• 写留言和回复，查自己的留言，删除自己的留言和回复
• 管理员对商品的增删改查以及批量删除
• 防盗链，分页，时间显示等
  商品方面目前要求只是增删改查，扩展的订单购买退货等未开发。

数据库设计

1. product表，描述商品相关信息，主键pid，包含名字，品牌价格等。
2. user表，用户存储相关信息，主键uid，包含账密，邮箱，和权限(管理员，普通用户)
3. message表，留言表相关，主键mid，包含标题，内容，时间等，对应外键uid和pid，即某用户关于某商品的留言。
4. revert表，回复相关表，包含回复内容等，对应外键uid和mid，即某用户对某条留言的回复。

关于级联删除使用references…cascade语句实现，级联更新采用触发器，例在新增回复后更新留言表的回复数字段。

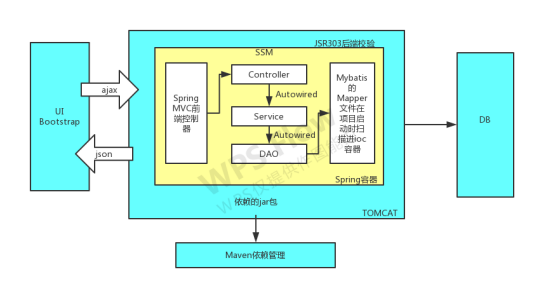

整体架构

采用Spring+SpringMVC+Mybatis整合开发，一个B站教程。

• 前端界面发送一个ajax请求到服务器tomcat
• SpringMVC前端控制器拦截请求，基于注解开发的方式寻找映射路径，调用相应Controller类的方法
• @Autowired自动注入Service，并调用Service层相应方法
• Service同样自动注入了DAO层的mapper接口，调用相应的mapper方法执行数据库操作
• 接口对应的mapper.xml配置文件，就是具体实现，包括具体sql语句等
• 在数据库获取到数据后，最后以json字符串的形式返回给前端
• 整个项目的jar包依赖通过maven来管理


技术介绍

为此我还写了一些前置博客来具体介绍，点击链接进入。

1. Maven项目管理(jar包)
2. Bootstrap前端框架(样式，模态框等)
3. MyBatis Generator逆向工程(根据数据库生成Mapper文件等)
4. JSR303后端检验
5. JQuery框架(前端校验，事件处理等)和ajax技术（动态请求数据，局部刷新/异步更新等）并以json数据格式（实现服务器和客户端跨平台(浏览器，安卓，ios等))返回数据。
6. pageHelper分页

效果演示

_{商品数据来源网络，侵删}

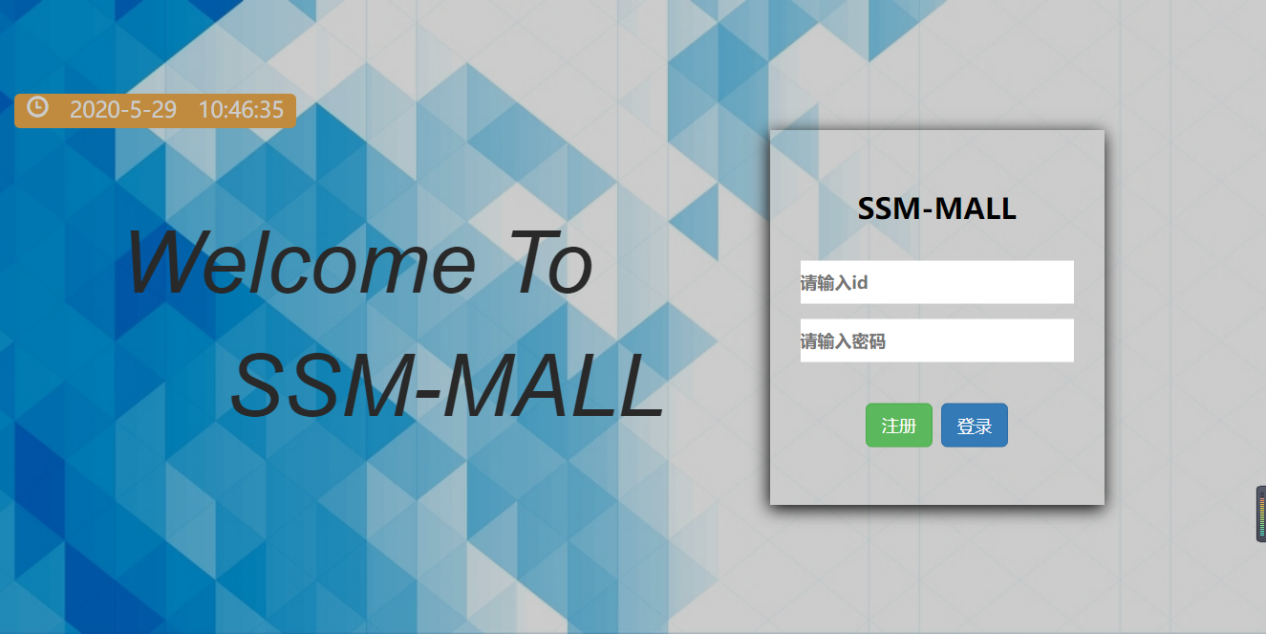

登录页面

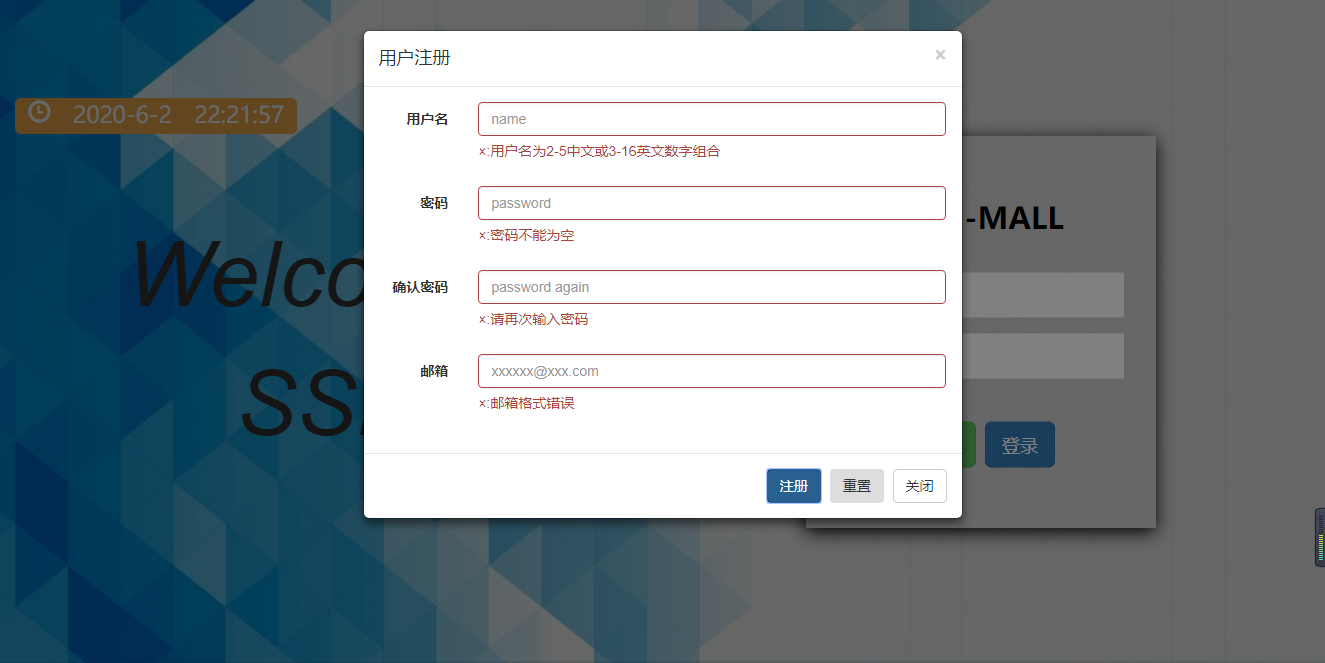

注册(验证失败)

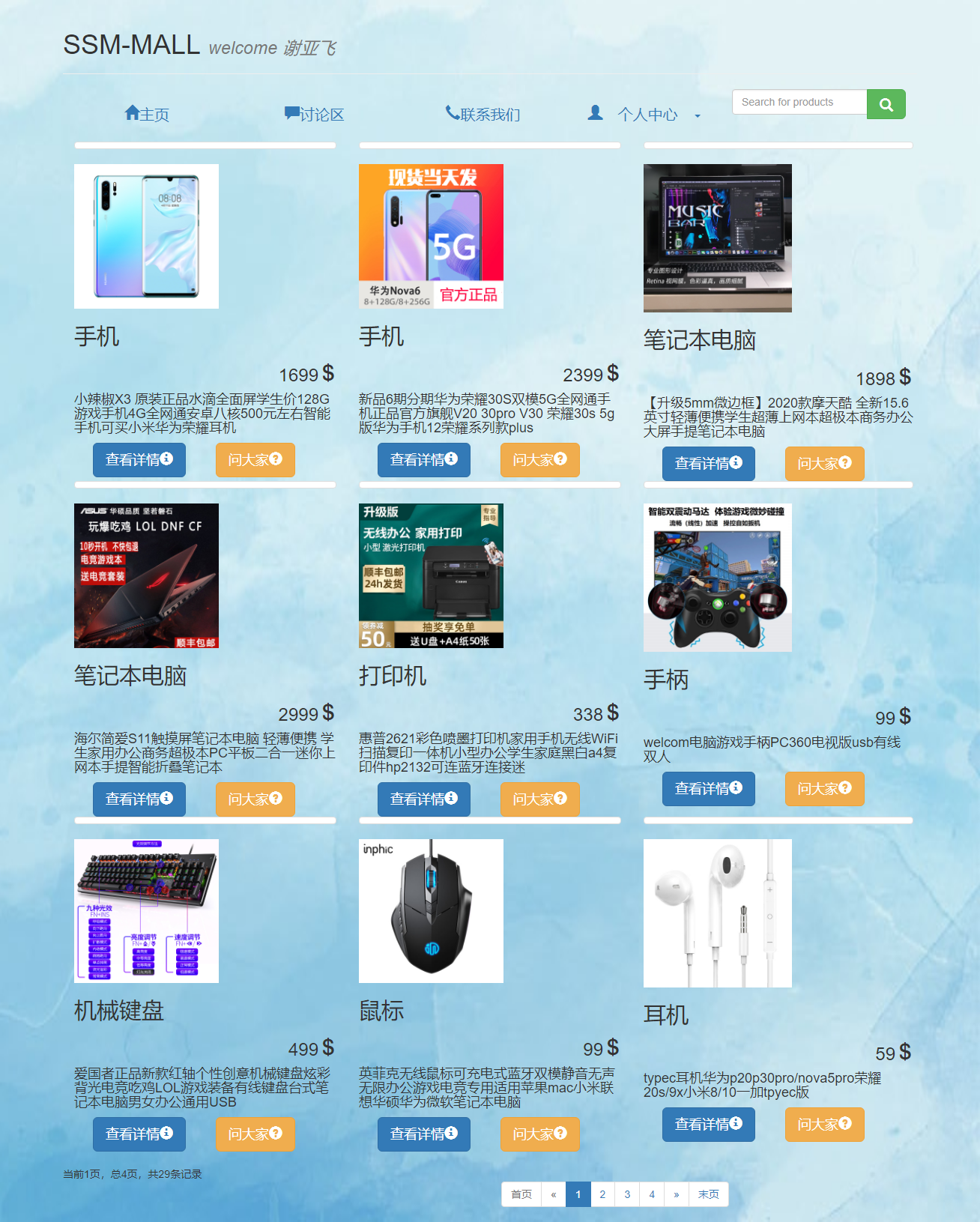

用户界面

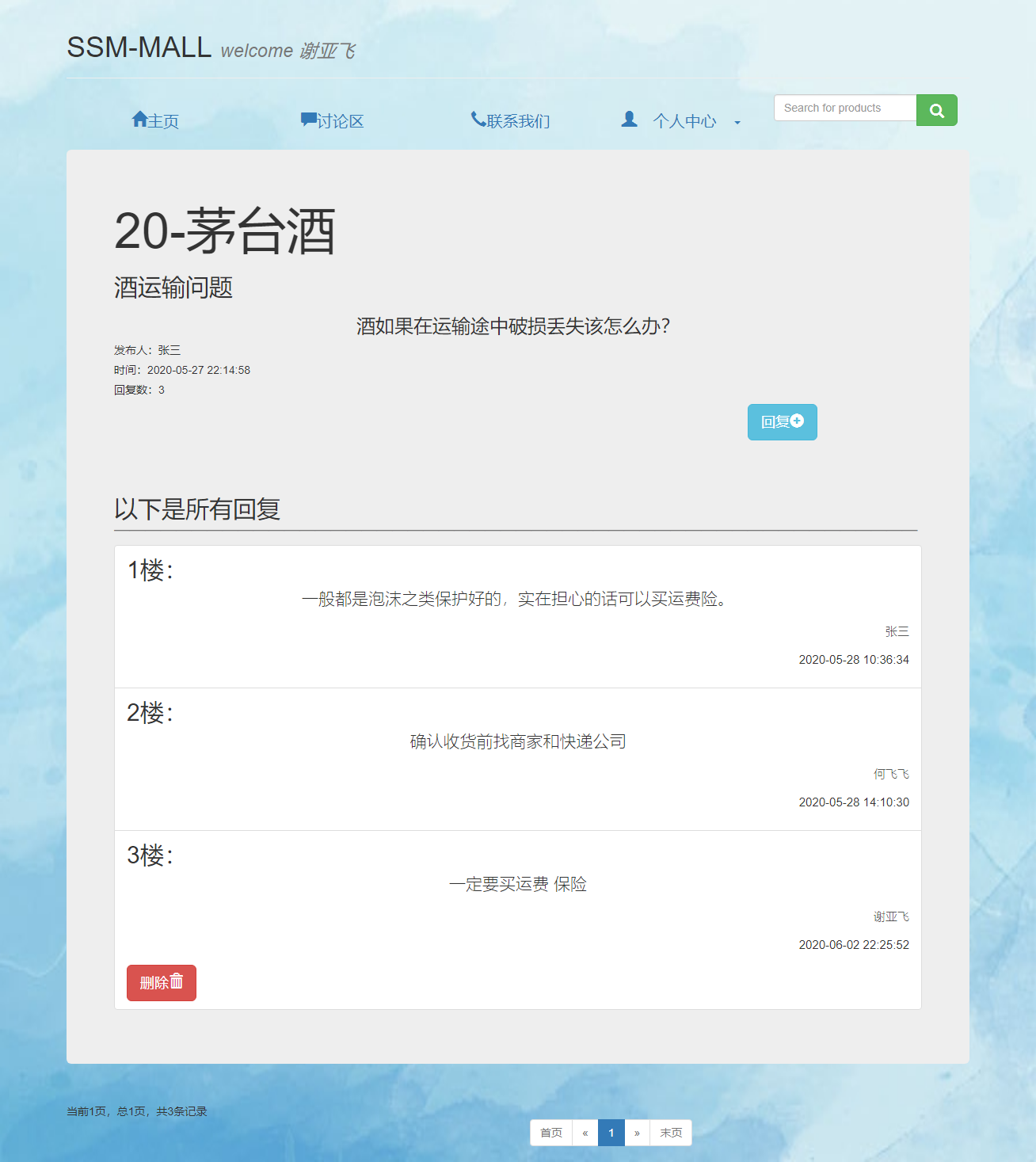

讨论区(留言板)的详情界面

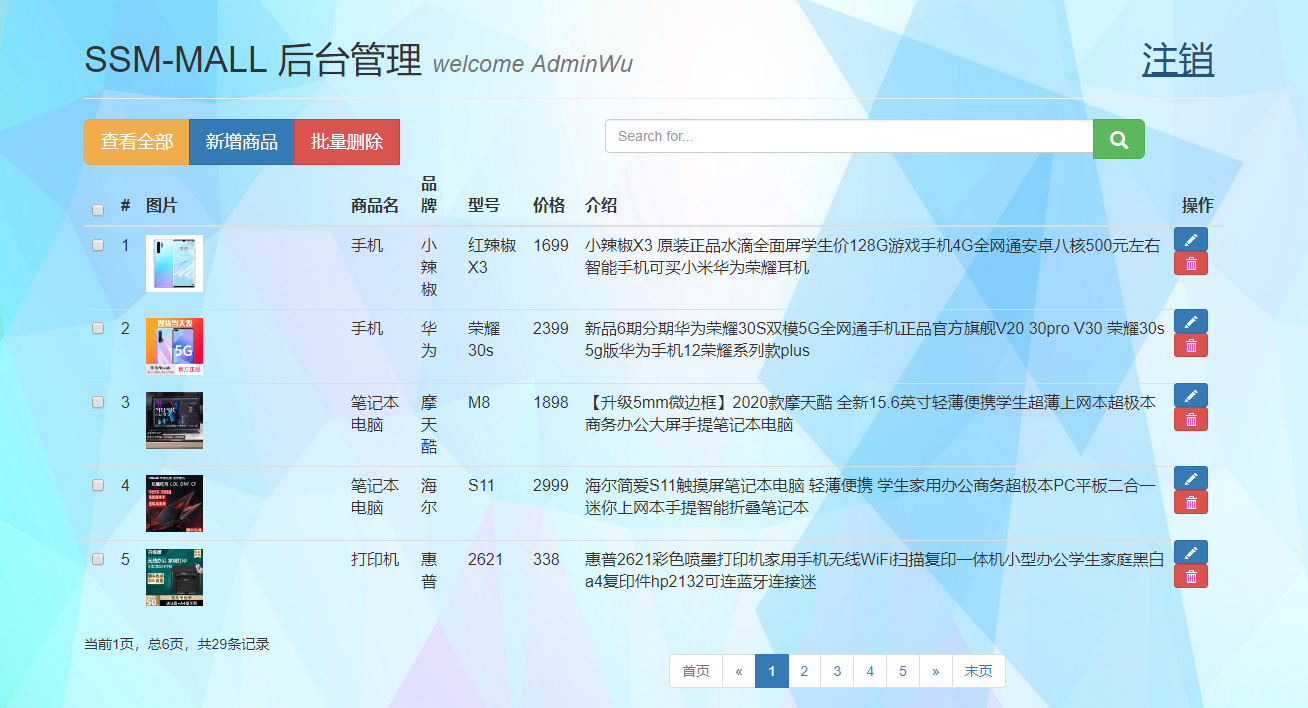

管理员界面

配置代码

数据库代码

/*==============================================================*/ /* DBMS name:      MySQL 5.0                                    */ /* Created on:     2020/5/20 21:43:05                           */ /*==============================================================*/ drop table if exists revert; drop table if exists message; drop table if exists product; drop table if exists user; /*==============================================================*/ /* Table: message                                               */ /*==============================================================*/ create table message (    mid            int not null AUTO_INCREMENT,    uid               int,    pid            int,    title                varchar(25),    content              varchar(200), time varchar(25),    revertCount          int default 0, primary key (mid) ); /*==============================================================*/ /* Table: product                                               */ /*==============================================================*/ create table product (    pid            int not null AUTO_INCREMENT,    name          varchar(30),    brand                 varchar(25),    model                varchar(25),    price                numeric(10,1)check(price>0),    picture              varchar(100),    introduction         varchar(200), primary key (pid) ); /*==============================================================*/ /* Table: revert                                                */ /*==============================================================*/ create table revert (    rid             int not null AUTO_INCREMENT,    mid            int,    uid               int,    content              varchar(200), time varchar(25), primary key (rid) ); /*==============================================================*/ /* Table: user                                                  */ /*==============================================================*/ create table user (    uid               int not null AUTO_INCREMENT,    password             varchar(25),    name             varchar(30),    email                varchar(30),    role                 varchar(10) default 'users', primary key (uid) ); alter table message add constraint FK_Relationship_2 foreign key (pid) references product (pid) on delete cascade on update cascade; alter table message add constraint FK_Relationship_4 foreign key (uid) references user (uid) on delete cascade on update cascade; alter table revert add constraint FK_Relationship_3 foreign key (mid) references message (mid) on delete cascade on update cascade; alter table revert add constraint FK_Relationship_5 foreign key (uid) references user (uid) on delete cascade on update cascade; create trigger trOnMessage after insert on revert for each row update message set revertCount=revertCount+1 where mid=new.mid;

pom.xml

<project xmlns="https://maven.apache.org/POM/4.0.0" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="https://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>jmu.wzl</groupId> <artifactId>experiment-9</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>war</packaging> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> </properties> <!-- 引入项目依赖jar包 --> <dependencies> <!-- Springmvc,Spring --> <!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>4.3.7.RELEASE</version> </dependency> <!-- Spring-jdbc --> <!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-jdbc</artifactId> <version>4.3.7.RELEASE</version> </dependency> <!-- Spring面向切面编程 --> <!-- https://mvnrepository.com/artifact/org.springframework/spring-aspects --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-aspects</artifactId> <version>4.3.7.RELEASE</version> </dependency> <!-- MyBatis --> <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis --> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.4.2</version> </dependency> <!-- MyBatis整合Spring适配包 --> <!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring --> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis-spring</artifactId> <version>1.3.1</version> </dependency> <!-- 数据库连接池，驱动 --> <!-- https://mvnrepository.com/artifact/c3p0/c3p0 --> <dependency> <groupId>c3p0</groupId> <artifactId>c3p0</artifactId> <version>0.9.1.2</version> </dependency> <!-- Mysql驱动 --> <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java --> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>8.0.19</version> </dependency> <!-- jstl --> <!-- https://mvnrepository.com/artifact/jstl/jstl --> <dependency> <groupId>jstl</groupId> <artifactId>jstl</artifactId> <version>1.2</version> </dependency> <!-- servlet-api --> <!-- https://mvnrepository.com/artifact/javax.servlet/servlet-api --> <dependency> <groupId>javax.servlet</groupId> <artifactId>javax.servlet-api</artifactId> <version>3.0.1</version> <scope>provided</scope> </dependency> <!-- junit --> <!-- https://mvnrepository.com/artifact/junit/junit --> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>4.12</version> <scope>test</scope> </dependency> <!-- MyBatis Generator --> <!-- https://mvnrepository.com/artifact/org.mybatis.generator/mybatis-generator-core --> <dependency> <groupId>org.mybatis.generator</groupId> <artifactId>mybatis-generator-core</artifactId> <version>1.3.5</version> </dependency> <!-- Spring test --> <!-- https://mvnrepository.com/artifact/org.springframework/spring-test --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-test</artifactId> <version>4.3.7.RELEASE</version> <scope>test</scope> </dependency> <!-- PageHelper分页插件 --> <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper</artifactId> <version>5.0.0</version> </dependency> <!-- taglibs --> <dependency> <groupId>taglibs</groupId> <artifactId>standard</artifactId> <version>1.1.2</version> </dependency> <!-- jackson(返回json字符串的支持) --> <dependency> <groupId>com.fasterxml.jackson.core</groupId> <artifactId>jackson-databind</artifactId> <version>2.8.8</version> </dependency> <!-- JSR303数据校验支持 --> <dependency> <groupId>org.hibernate</groupId> <artifactId>hibernate-validator</artifactId> <version>5.1.0.Final</version> </dependency> <dependency> <groupId>javax.el</groupId> <artifactId>javax.el-api</artifactId> <version>3.0.0</version> </dependency> </dependencies> </project>

web.xml

<?xml version="1.0" encoding="UTF-8"?> <web-app id="WebApp_ID" version="3.0" xmlns="https://java.sun.com/xml/ns/javaee" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="https://java.sun.com/xml/ns/javaee https://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"> <!--1.启动Spring容器  --> <!-- needed for ContextLoaderListener --> <context-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:applicationContext.xml</param-value> </context-param> <!-- Bootstraps the root web application context before servlet initialization --> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- 2.SpringMvc前端控制器（拦截请求） --> <!-- The front controller of this Spring Web application, responsible for handling all application requests --> <servlet> <servlet-name>dispatcherServlet</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <load-on-startup>1</load-on-startup> </servlet> <!-- Map all requests to the DispatcherServlet for handling --> <servlet-mapping> <servlet-name>dispatcherServlet</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> <!-- 3.字符编码过滤器 --> <filter> <filter-name>CharacterEncodingFilter</filter-name> <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class> <init-param> <param-name>encoding</param-name> <param-value>utf-8</param-value> </init-param> <init-param> <param-name>forceRequestEncoding</param-name> <param-value>true</param-value> </init-param> <init-param> <param-name>forceResponseEncoding</param-name> <param-value>true</param-value> </init-param> </filter> <filter-mapping> <filter-name>CharacterEncodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <!-- 4.Rest风格uri（post请求转为delete/put请求） --> <filter> <filter-name>HiddenHttpMethodFilter</filter-name> <filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class> </filter> <filter-mapping> <filter-name>HiddenHttpMethodFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <filter> <filter-name>httpPutFormContentFilter</filter-name> <filter-class>org.springframework.web.filter.HttpPutFormContentFilter</filter-class> </filter> <filter-mapping> <filter-name>httpPutFormContentFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> </web-app>

dispatcherServlet-servlet.xml

<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="https://www.springframework.org/schema/beans" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance" xmlns:context="https://www.springframework.org/schema/context" xmlns:mvc="https://www.springframework.org/schema/mvc" xsi:schemaLocation="https://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd   https://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd   https://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context-4.3.xsd"> <!-- 1.SpringMvc配置文件(网站跳转逻辑) --> <context:component-scan base-package="jmu.wzl" use-default-filters="false"> <!-- 只扫描控制器 --> <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/> </context:component-scan> <!-- 2.视图解析器配置（方便页面返回） --> <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="prefix" value="/WEB-INF/views/"></property> <property name="suffix" value=".jsp"></property> </bean> <!-- 3.标准配置 --> <!-- 3.1将SpringMvc不能处理的请求交给tomcat --> <mvc:default-servlet-handler/> <!-- 3.2支持SpringMvc高级功能 (JSR303校验，快捷ajax,映射动态请求)--> <mvc:annotation-driven/> </beans>

applicationContext.xml

<beans xmlns="https://www.springframework.org/schema/beans" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance" xmlns:context="https://www.springframework.org/schema/context" xmlns:aop="https://www.springframework.org/schema/aop" xmlns:tx="https://www.springframework.org/schema/tx" xsi:schemaLocation="https://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd   https://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context-4.3.xsd   https://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop-4.3.xsd   https://www.springframework.org/schema/tx https://www.springframework.org/schema/tx/spring-tx-4.3.xsd"> <!-- Spring配置文件核心点(数据源，MyBatis整合，事务控制) --> <!-- 扫描控制器外的所有(控制器SpringMvc扫了) --> <context:component-scan base-package="jmu.wzl"> <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/> </context:component-scan> <!-- 数据源  --> <context:property-placeholder location="classpath:dbconfig.properties"/> <bean id="pooledDataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource"> <property name="jdbcUrl" value="${jdbc.jdbcUrl}"></property> <property name="driverClass" value="${jdbc.driverClass}"></property> <property name="user" value="${jdbc.user}"></property> <property name="password" value="${jdbc.password}"></property> </bean> <!-- MyBatis整合配置 --> <bean id="SqlSessionFactoryBean" class="org.mybatis.spring.SqlSessionFactoryBean"> <!-- 指定 MyBatis全局配置文件--> <property name="configLocation" value="classpath:myBatis-config.xml"></property> <property name="dataSource" ref="pooledDataSource"></property> <!-- 指定MyBatis。mapper文件的位置 --> <property name="mapperLocations" value="classpath:mapper/*.xml"></property> </bean> <!-- 扫描器配置(将MyBatis接口实现加入待ioc容器) --> <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer"> <!-- 扫描所有dao接口的实现加入ioc容器 --> <property name="basePackage" value="jmu.wzl"></property> </bean> <!-- 事务控制配置 --> <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager"> <!-- 控制住数据源 --> <property name="dataSource" ref="pooledDataSource"></property> </bean> <!-- 开启基于注解的事务，使用xml配置形式的事务 --> <aop:config> <!-- 切入点表达式 --> <aop:pointcut expression="execution(* jmu.wzl.service..*(..))" id="txPoint"/> <!-- 配置事务 --> <aop:advisor advice-ref="txAdvice" pointcut-ref="txPoint"/> </aop:config> <!-- 配置事务增强(事务如何切入) --> <tx:advice id="txAdvice"> <tx:attributes> <!-- 所有方法都是事务方法 --> <tx:method name="*"/> <!-- 以get开始的所有方法 --> <tx:method name="get*" read-only="true"/> </tx:attributes> </tx:advice> </beans>

完整源码

github下载地址
