oozie的使用

使用oozie调度shell脚本

oozie安装好了之后，需要测试oozie的功能是否完整好使，官方已经给我们带了各种测试案例，我们可以通过官方提供的各种案例来对oozie进行调度

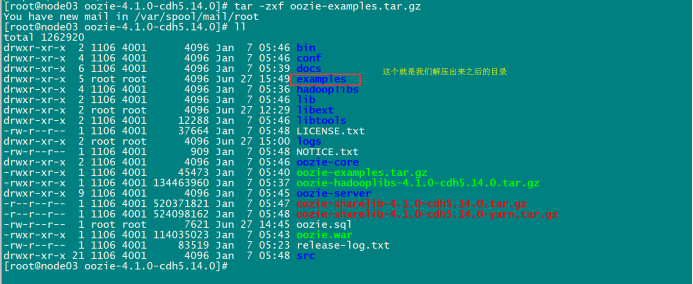

第一步：解压官方提供的调度案例

oozie自带了各种案例，我们可以使用oozie自带的各种案例来作为模板，所以我们这里先把官方提供的各种案例给解压出来

 cd /export/servers/oozie-4.1.0-cdh5.14.0  tar -zxf oozie-examples.tar.gz

第二步：创建工作目录

在任意地方创建一个oozie的工作目录，以后调度任务的配置文件全部放到oozie的工作目录当中去

我这里直接在oozie的安装目录下面创建工作目录

 cd /export/servers/oozie-4.1.0-cdh5.14.0  mkdir oozie_works

第三步：拷贝任务模板到工作目录当中去

任务模板以及工作目录都准备好了之后，我们把shell的任务模板拷贝到我们oozie的工作目录当中去

 cd /export/servers/oozie-4.1.0-cdh5.14.0  cp -r examples/apps/shell/ oozie_works/

第四步：随意准备一个shell脚本

 cd /export/servers/oozie-4.1.0-cdh5.14.0  vim oozie_works/shell/hello.sh

注意：这个脚本一定要是在我们oozie工作路径下的shell路径下的位置

 #!/bin/bash  echo "hello world" >> /export/servers/hello_oozie.txt

第五步：修改模板下的配置文件

修改job.properties

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/shell  vim job.properties

  nameNode=hdfs://node01:8020  jobTracker=node01:8032  queueName=default  examplesRoot=oozie_works  oozie.wf.application.path=${nameNode}/user/${user.name}/${examplesRoot}/shell  EXEC=hello.sh

修改workflow.xml

 vim workflow.xml

 <workflow-app xmlns="uri:oozie:workflow:0.4" name="shell-wf">  <start to="shell-node"/>  <action name="shell-node">      <shell xmlns="uri:oozie:shell-action:0.2">          <job-tracker>${jobTracker}</job-tracker>          <name-node>${nameNode}</name-node>          <configuration>              <property>                  <name>mapred.job.queue.name</name>                  <value>${queueName}</value>              </property>          </configuration>          <exec>${EXEC}</exec>          <!-- <argument>my_output=Hello Oozie</argument> -->          <file>/user/root/oozie_works/shell/${EXEC}#${EXEC}</file>            <capture-output/>      </shell>      <ok to="end"/>      <error to="fail"/>  </action>  <decision name="check-output">      <switch>          <case to="end">              ${wf:actionData('shell-node')['my_output'] eq 'Hello Oozie'}          </case>          <default to="fail-output"/>      </switch>  </decision>  <kill name="fail">      <message>Shell action failed, error message[${wf:errorMessage(wf:lastErrorNode())}]</message>  </kill>  <kill name="fail-output">      <message>Incorrect output, expected [Hello Oozie] but was [${wf:actionData('shell-node')['my_output']}]</message>  </kill>  <end name="end"/>  </workflow-app>

第六步：上传调度任务到hdfs上面去

注意：上传的hdfs目录为/user/root，因为我们hadoop启动的时候使用的是root用户，如果hadoop启动的是其他用户，那么就上传到

/user/其他用户

 cd /export/servers/oozie-4.1.0-cdh5.14.0  hdfs dfs -put oozie_works/ /user/root

第七步：执行调度任务

通过oozie的命令来执行调度任务

 cd /export/servers/oozie-4.1.0-cdh5.14.0  bin/oozie job -oozie https://bd001:11000/oozie -config oozie_works/shell/job.properties  -run

从监控界面可以看到任务执行成功了

查看hadoop的19888端口，我们会发现，oozie启动了一个MR的任务去执行shell脚本

使用oozie调度hive

第一步：拷贝hive的案例模板

 cd /export/servers/oozie-4.1.0-cdh5.14.0  cp -ra examples/apps/hive2/ oozie_works/

第二步：编辑hive模板

这里使用的是hiveserver2来进行提交任务，需要注意我们要将hiveserver2的服务给启动起来

 hive --service hiveserver2 &  hive --service metastore  &

修改job.properties

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/hive2  vim job.properties

 nameNode=hdfs://bd001:8020  jobTracker=bd001:8032  queueName=default  jdbcURL=jdbc:hive2://bd001:10000/default  examplesRoot=oozie_works    oozie.use.system.libpath=true  # 配置我们文件上传到hdfs的保存路径 实际上就是在hdfs 的/user/root/oozie_works/hive2这个路径下  oozie.wf.application.path=${nameNode}/user/${user.name}/${examplesRoot}/hive2

修改workflow.xml

 vim workflow.xml

 <?xml version="1.0" encoding="UTF-8"?>  <workflow-app xmlns="uri:oozie:workflow:0.5" name="hive2-wf">      <start to="hive2-node"/>        <action name="hive2-node">          <hive2 xmlns="uri:oozie:hive2-action:0.1">              <job-tracker>${jobTracker}</job-tracker>              <name-node>${nameNode}</name-node>              <prepare>                  <delete path="${nameNode}/user/${wf:user()}/${examplesRoot}/output-data/hive2"/>                  <mkdir path="${nameNode}/user/${wf:user()}/${examplesRoot}/output-data"/>              </prepare>              <configuration>                  <property>                      <name>mapred.job.queue.name</name>                      <value>${queueName}</value>                  </property>              </configuration>              <jdbc-url>${jdbcURL}</jdbc-url>              <script>script.q</script>              <param>INPUT=/user/${wf:user()}/${examplesRoot}/input-data/table</param>              <param>OUTPUT=/user/${wf:user()}/${examplesRoot}/output-data/hive2</param>          </hive2>          <ok to="end"/>          <error to="fail"/>      </action>        <kill name="fail">          <message>Hive2 (Beeline) action failed, error message[${wf:errorMessage(wf:lastErrorNode())}]</message>      </kill>      <end name="end"/>  </workflow-app>

编辑hivesql文件

 vim script.q

 DROP TABLE IF EXISTS test;  CREATE EXTERNAL TABLE default.test (a INT) STORED AS TEXTFILE LOCATION '${INPUT}';  insert into test values(10);  insert into test values(20);  insert into test values(30);

第三步：上传工作文件到hdfs

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works  hdfs dfs -put hive2/ /user/root/oozie_works/

第四步：执行oozie的调度

 cd /export/servers/oozie-4.1.0-cdh5.14.0  bin/oozie job -oozie https://bd001:11000/oozie -config oozie_works/hive2/job.properties  -run

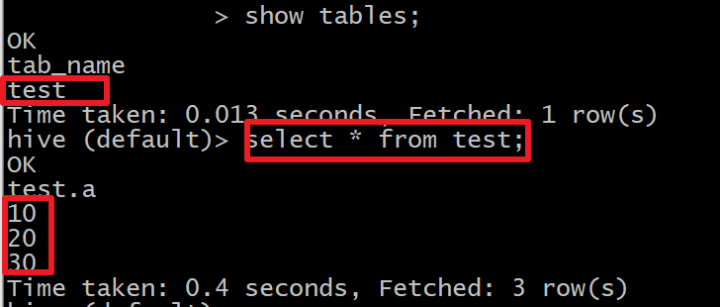

第五步：查看调度结果

使用oozie调度MR任务

第一步：准备MR执行的数据

我们这里通过oozie调度一个MR的程序的执行，MR的程序可以是自己写的，也可以是hadoop工程自带的，我们这里就选用hadoop工程自带的MR程序来运行wordcount的示例

准备以下数据上传到HDFS的/oozie/input路径下去

 hdfs dfs -mkdir -p /oozie/input  vim wordcount.txt

 hello   world   hadoop  spark   hive    hadoop

将数据上传到hdfs对应目录

 hdfs dfs -put wordcount.txt /oozie/input

第二步：执行官方测试案例

 hadoop jar /export/servers/hadoop-2.6.0-cdh5.14.0/share/hadoop/mapreduce/hadoop-mapreduce-examples-2.6.0-cdh5.14.0.jar   wordcount  /oozie/input/  /oozie/output

第三步：准备调度的资源

将需要调度的资源都准备好放到一个文件夹下面去，包括jar包，job.properties，以及workflow.xml。

拷贝MR的任务模板

 cd /export/servers/oozie-4.1.0-cdh5.14.0  cp -ra examples/apps/map-reduce/   oozie_works/

删掉MR任务模板lib目录下自带的jar包

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/map-reduce/lib  rm -rf oozie-examples-4.1.0-cdh5.14.0.jar

第三步：拷贝的jar包到对应目录

从上一步的删除当中，可以看到需要调度的jar包存放在了

/export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/map-reduce/lib这个目录下，所以我们把我们需要调度的jar包也放到这个路径下即可

 cp /export/servers/hadoop-2.6.0-cdh5.14.0/share/hadoop/mapreduce/hadoop-mapreduce-examples-2.6.0-cdh5.14.0.jar /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/map-reduce/lib/

第四步：修改配置文件

修改job.properties

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/map-reduce  vim job.properties

  nameNode=hdfs://node01:8020  jobTracker=node01:8032  queueName=default  examplesRoot=oozie_works    oozie.wf.application.path=${nameNode}/user/${user.name}/${examplesRoot}/map-reduce/workflow.xml  outputDir=/oozie/output  inputdir=/oozie/input

修改workflow.xml

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/map-reduce  vim workflow.xml

 <?xml version="1.0" encoding="UTF-8"?>  <!--    Licensed to the Apache Software Foundation (ASF) under one    or more contributor license agreements.  See the NOTICE file    distributed with this work for additional information    regarding copyright ownership.  The ASF licenses this file    to you under the Apache License, Version 2.0 (the    "License"); you may not use this file except in compliance    with the License.  You may obtain a copy of the License at             https://www.apache.org/licenses/LICENSE-2.0        Unless required by applicable law or agreed to in writing, software    distributed under the License is distributed on an "AS IS" BASIS,    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.    See the License for the specific language governing permissions and    limitations under the License.  -->  <workflow-app xmlns="uri:oozie:workflow:0.5" name="map-reduce-wf">      <start to="mr-node"/>      <action name="mr-node">          <map-reduce>              <job-tracker>${jobTracker}</job-tracker>              <name-node>${nameNode}</name-node>              <prepare>                  <delete path="${nameNode}/${outputDir}"/>              </prepare>              <configuration>                  <property>                      <name>mapred.job.queue.name</name>                      <value>${queueName}</value>                  </property>  <!--                    <property>                      <name>mapred.mapper.class</name>                      <value>org.apache.oozie.example.SampleMapper</value>                  </property>                  <property>                      <name>mapred.reducer.class</name>                      <value>org.apache.oozie.example.SampleReducer</value>                  </property>                  <property>                      <name>mapred.map.tasks</name>                      <value>1</value>                  </property>                  <property>                      <name>mapred.input.dir</name>                      <value>/user/${wf:user()}/${examplesRoot}/input-data/text</value>                  </property>                  <property>                      <name>mapred.output.dir</name>                      <value>/user/${wf:user()}/${examplesRoot}/output-data/${outputDir}</value>                  </property>  -->       <!-- 开启使用新的API来进行配置 -->                  <property>                      <name>mapred.mapper.new-api</name>                      <value>true</value>                  </property>                    <property>                      <name>mapred.reducer.new-api</name>                      <value>true</value>                  </property>                    <!-- 指定MR的输出key的类型 -->                  <property>                      <name>mapreduce.job.output.key.class</name>                      <value>org.apache.hadoop.io.Text</value>                  </property>                    <!-- 指定MR的输出的value的类型-->                  <property>                      <name>mapreduce.job.output.value.class</name>                      <value>org.apache.hadoop.io.IntWritable</value>                  </property>                    <!-- 指定输入路径 -->                  <property>                      <name>mapred.input.dir</name>                      <value>${nameNode}/${inputdir}</value>                  </property>                    <!-- 指定输出路径 -->                  <property>                      <name>mapred.output.dir</name>                      <value>${nameNode}/${outputDir}</value>                  </property>                    <!-- 指定执行的map类 -->                  <property>                      <name>mapreduce.job.map.class</name>                      <value>org.apache.hadoop.examples.WordCount$TokenizerMapper</value>                  </property>                    <!-- 指定执行的reduce类 -->                  <property>                      <name>mapreduce.job.reduce.class</name>                      <value>org.apache.hadoop.examples.WordCount$IntSumReducer</value>                  </property>  <!--  配置map task的个数 -->                  <property>                      <name>mapred.map.tasks</name>                      <value>1</value>                  </property>                </configuration>          </map-reduce>          <ok to="end"/>          <error to="fail"/>      </action>      <kill name="fail">          <message>Map/Reduce failed, error message[${wf:errorMessage(wf:lastErrorNode())}]</message>      </kill>      <end name="end"/>  </workflow-app>

第五步：上传调度任务到hdfs对应目录

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works  hdfs dfs -put map-reduce/ /user/root/oozie_works/

第六步：执行调度任务

执行调度任务，然后通过oozie的11000端口进行查看任务结果

 cd /export/servers/oozie-4.1.0-cdh5.14.0  bin/oozie job -oozie https://bd001:11000/oozie -config oozie_works/map-reduce/job.properties -run

oozie的任务串联

在实际工作当中，肯定会存在多个任务需要执行，并且存在上一个任务的输出结果作为下一个任务的输入数据这样的情况，所以我们需要在workflow.xml配置文件当中配置多个action，实现多个任务之间的相互依赖关系

需求：首先执行一个shell脚本，执行完了之后再执行一个MR的程序，最后再执行一个hive的程序

第一步：准备工作目录

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works  mkdir -p sereval-actions

第二步：准备调度文件

将我们之前的hive，shell，以及MR的执行，进行串联成到一个workflow当中去，准备资源文件

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works  cp hive2/script.q    sereval-actions/  cp shell/hello.sh    sereval-actions/  cp -ra map-reduce/lib    sereval-actions/

第三步：开发调度的配置文件

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/sereval-actions

创建配置文件workflow.xml并编辑

 vim workflow.xml

 <workflow-app xmlns="uri:oozie:workflow:0.4" name="shell-wf">  <start to="shell-node"/>  <action name="shell-node">      <shell xmlns="uri:oozie:shell-action:0.2">          <job-tracker>${jobTracker}</job-tracker>          <name-node>${nameNode}</name-node>          <configuration>              <property>                  <name>mapred.job.queue.name</name>                  <value>${queueName}</value>              </property>          </configuration>          <exec>${EXEC}</exec>          <!-- <argument>my_output=Hello Oozie</argument> -->          <file>/user/root/oozie_works/sereval-actions/${EXEC}#${EXEC}</file>            <capture-output/>      </shell>      <ok to="mr-node"/>      <error to="mr-node"/>  </action>          <action name="mr-node">          <map-reduce>              <job-tracker>${jobTracker}</job-tracker>              <name-node>${nameNode}</name-node>              <prepare>                  <delete path="${nameNode}/${outputDir}"/>              </prepare>              <configuration>                  <property>                      <name>mapred.job.queue.name</name>                      <value>${queueName}</value>                  </property>  <!--                    <property>                      <name>mapred.mapper.class</name>                      <value>org.apache.oozie.example.SampleMapper</value>                  </property>                  <property>                      <name>mapred.reducer.class</name>                      <value>org.apache.oozie.example.SampleReducer</value>                  </property>                  <property>                      <name>mapred.map.tasks</name>                      <value>1</value>                  </property>                  <property>                      <name>mapred.input.dir</name>                      <value>/user/${wf:user()}/${examplesRoot}/input-data/text</value>                  </property>                  <property>                      <name>mapred.output.dir</name>                      <value>/user/${wf:user()}/${examplesRoot}/output-data/${outputDir}</value>                  </property>  -->       <!-- 开启使用新的API来进行配置 -->                  <property>                      <name>mapred.mapper.new-api</name>                      <value>true</value>                  </property>                    <property>                      <name>mapred.reducer.new-api</name>                      <value>true</value>                  </property>                    <!-- 指定MR的输出key的类型 -->                  <property>                      <name>mapreduce.job.output.key.class</name>                      <value>org.apache.hadoop.io.Text</value>                  </property>                    <!-- 指定MR的输出的value的类型-->                  <property>                      <name>mapreduce.job.output.value.class</name>                      <value>org.apache.hadoop.io.IntWritable</value>                  </property>                    <!-- 指定输入路径 -->                  <property>                      <name>mapred.input.dir</name>                      <value>${nameNode}/${inputdir}</value>                  </property>                    <!-- 指定输出路径 -->                  <property>                      <name>mapred.output.dir</name>                      <value>${nameNode}/${outputDir}</value>                  </property>                    <!-- 指定执行的map类 -->                  <property>                      <name>mapreduce.job.map.class</name>                      <value>org.apache.hadoop.examples.WordCount$TokenizerMapper</value>                  </property>                    <!-- 指定执行的reduce类 -->                  <property>                      <name>mapreduce.job.reduce.class</name>                      <value>org.apache.hadoop.examples.WordCount$IntSumReducer</value>                  </property>  <!--  配置map task的个数 -->                  <property>                      <name>mapred.map.tasks</name>                      <value>1</value>                  </property>                </configuration>          </map-reduce>          <ok to="hive2-node"/>          <error to="fail"/>      </action>               <action name="hive2-node">          <hive2 xmlns="uri:oozie:hive2-action:0.1">              <job-tracker>${jobTracker}</job-tracker>              <name-node>${nameNode}</name-node>              <prepare>                  <delete path="${nameNode}/user/${wf:user()}/${examplesRoot}/output-data/hive2"/>                  <mkdir path="${nameNode}/user/${wf:user()}/${examplesRoot}/output-data"/>              </prepare>              <configuration>                  <property>                      <name>mapred.job.queue.name</name>                      <value>${queueName}</value>                  </property>              </configuration>              <jdbc-url>${jdbcURL}</jdbc-url>              <script>script.q</script>              <param>INPUT=/user/${wf:user()}/${examplesRoot}/input-data/table</param>              <param>OUTPUT=/user/${wf:user()}/${examplesRoot}/output-data/hive2</param>          </hive2>          <ok to="end"/>          <error to="fail"/>      </action>  <decision name="check-output">      <switch>          <case to="end">              ${wf:actionData('shell-node')['my_output'] eq 'Hello Oozie'}          </case>          <default to="fail-output"/>      </switch>  </decision>  <kill name="fail">      <message>Shell action failed, error message[${wf:errorMessage(wf:lastErrorNode())}]</message>  </kill>  <kill name="fail-output">      <message>Incorrect output, expected [Hello Oozie] but was [${wf:actionData('shell-node')['my_output']}]</message>  </kill>  <end name="end"/>  </workflow-app>

开发job.properties配置文件

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/sereval-actions  vim  job.properties

 nameNode=hdfs://bd001:8020  jobTracker=bd001:8032  queueName=default  examplesRoot=oozie_works  EXEC=hello.sh  outputDir=/oozie/output  inputdir=/oozie/input  jdbcURL=jdbc:hive2://bd001:10000/default  oozie.use.system.libpath=true  # 配置我们文件上传到hdfs的保存路径 实际上就是在hdfs 的/user/root/oozie_works/sereval-actions这个路径下  oozie.wf.application.path=${nameNode}/user/${user.name}/${examplesRoot}/sereval-actions/workflow.xml

第四步：上传资源文件夹到hdfs对应路径

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/  hdfs dfs -put sereval-actions/ /user/root/oozie_works/

第五步：执行调度任务

 cd /export/servers/oozie-4.1.0-cdh5.14.0/  bin/oozie job -oozie https://bd001:11000/oozie -config oozie_works/sereval-actions/job.properties -run

oozie当中定时任务的设置

第一步：拷贝定时任务的调度模板

 cd /export/servers/oozie-4.1.0-cdh5.14.0  cp -r examples/apps/cron oozie_works/cron-job

第二步：拷贝hello.sh脚本

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works  cp shell/hello.sh  cron-job/

第三步：修改配置文件

修改job.properties

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works/cron-job  vim job.properties

 nameNode=hdfs://node01:8020  jobTracker=node01:8032  queueName=default  examplesRoot=oozie_works    oozie.coord.application.path=${nameNode}/user/${user.name}/${examplesRoot}/cron-job/coordinator.xml  start=2018-08-22T19:20+0800  end=2019-08-22T19:20+0800  EXEC=hello.sh  workflowAppUri=${nameNode}/user/${user.name}/${examplesRoot}/cron-job/workflow.xml

修改coordinator.xml

 vim coordinator.xml

 <!--  oozie的frequency 可以支持很多表达式，其中可以通过定时每分，或者每小时，或者每天，或者每月进行执行，也支持可以通过与linux的crontab表达式类似的写法来进行定时任务的执行  例如frequency 也可以写成以下方式  frequency="10 9 * * *"  每天上午的09:10:00开始执行任务  frequency="0 1 * * *"  每天凌晨的01:00开始执行任务   -->  <coordinator-app name="cron-job" frequency="${coord:minutes(1)}" start="${start}" end="${end}" timezone="GMT+0800"                   xmlns="uri:oozie:coordinator:0.4">          <action>          <workflow>              <app-path>${workflowAppUri}</app-path>              <configuration>                  <property>                      <name>jobTracker</name>                      <value>${jobTracker}</value>                  </property>                  <property>                      <name>nameNode</name>                      <value>${nameNode}</value>                  </property>                  <property>                      <name>queueName</name>                      <value>${queueName}</value>                  </property>              </configuration>          </workflow>      </action>  </coordinator-app>

修改workflow.xml

 vim workflow.xml

 <workflow-app xmlns="uri:oozie:workflow:0.5" name="one-op-wf">      <start to="action1"/>      <action name="action1">      <shell xmlns="uri:oozie:shell-action:0.2">          <job-tracker>${jobTracker}</job-tracker>          <name-node>${nameNode}</name-node>          <configuration>              <property>                  <name>mapred.job.queue.name</name>                  <value>${queueName}</value>              </property>          </configuration>          <exec>${EXEC}</exec>          <!-- <argument>my_output=Hello Oozie</argument> -->          <file>/user/root/oozie_works/cron-job/${EXEC}#${EXEC}</file>            <capture-output/>      </shell>      <ok to="end"/>      <error to="end"/>  </action>      <end name="end"/>  </workflow-app>

第四步：上传到hdfs对应路径

 cd /export/servers/oozie-4.1.0-cdh5.14.0/oozie_works  hdfs dfs -put cron-job/ /user/root/oozie_works/

第五步：运行定时任务

 cd /export/servers/oozie-4.1.0-cdh5.14.0  bin/oozie job -oozie https://node03:11000/oozie -config oozie_works/cron-job/job.properties -run
