样式效果

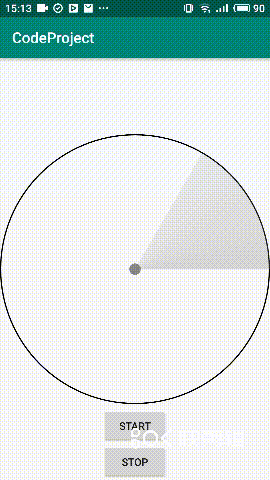

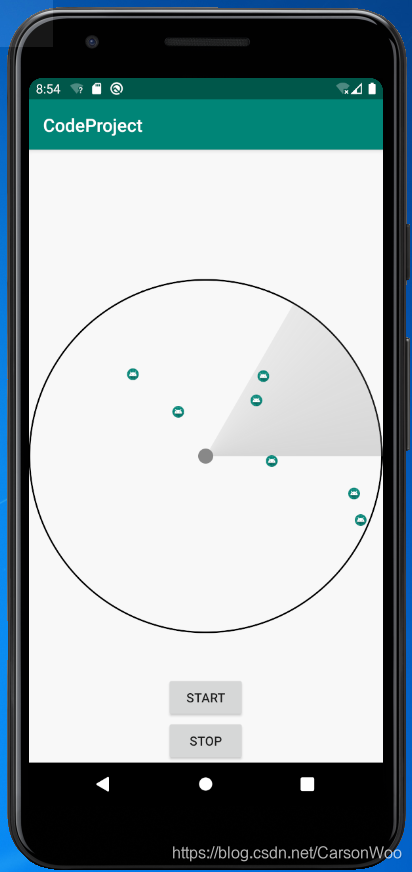

  还是先来看效果：

  这是一个仿雷达扫描的效果，是之前在做地图sdk接入时就想实现的效果，但之前由于赶着毕业设计，就没有亲手去实现，不过现在自己撸一个发现还是挺简单的。

  这里主要一下我的做法。

目录

主体轮廓的实现（雷达的结构）

动画的实现（雷达扫描的效果）

目标点的加入（图片/点）

主体轮廓实现

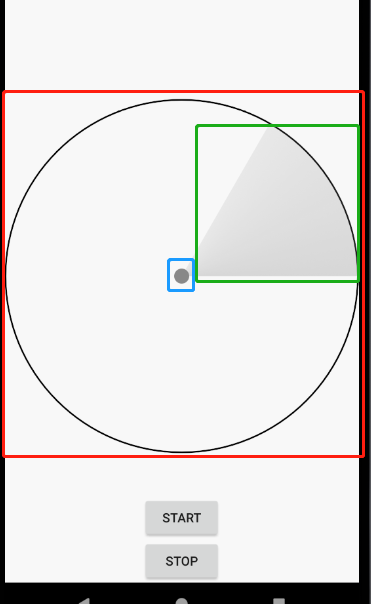

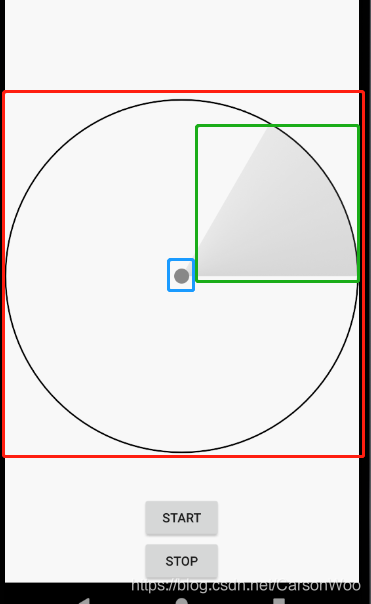

  不难分析得出，这个View主要由外部的一个圆，中间的锚点圆以及扇形旋转区域组成。而且每个部分理应由不同的Paint去绘制，以方便去定制各部分的样式。

  外部圆以及锚点圆的绘制较为简单，主要的点还是要对整个View的宽高进行一定的限制，例如宽高必须相等且在某种模式下，取小的那个值来限定整个RadarView的最大值。那么该如何去控制呢？

 onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int)

  由于我们继承自View，在onMeasure方法中，我们可以根据两个参数来获取Mode，并且根据Mode来指定宽/高对应的值，再通过setMeasuredDimension去指定控件主体的宽高即可。

 override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {     super.onMeasure(widthMeasureSpec, heightMeasureSpec)     val vWidth = measureDimension(widthMeasureSpec)     val vHeight = measureDimension(heightMeasureSpec)     val size = min(vWidth, vHeight)      setMeasuredDimension(size, size) }  private fun measureDimension(spec: Int) =  when (MeasureSpec.getMode(spec)) {     MeasureSpec.EXACTLY -> {         // exactly number or match_parent         MeasureSpec.getSize(spec)     }     MeasureSpec.AT_MOST -> {         // wrap_content         min(mDefaultSize, MeasureSpec.getSize(spec))     }     else -> {         mDefaultSize     } }

  测量工作完成了，我们自然可以去绘制了。为了不让中间的小圆看起来那么突兀（偏大或偏小），这里设置了一个scaleFactor的缩放因子，使其能根据外圆的尺寸来进行缩放。

 override fun onDraw(canvas: Canvas?) {     super.onDraw(canvas)     // draw outside circle (background)     canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, measuredWidth.toFloat() / 2, mOutlinePaint)     if (mBorderWidth > 0F && mOutlinePaint.shader == null) {         drawBorder(canvas)     }      // mOutlineRect = Rect(0, 0, measuredWidth, measuredHeight)     canvas?.drawArc(mOutlineRect.toRectF(), mStartAngle, mSweepAngle, true, mSweepPaint)      // draw center circle     // scaleFactor = 30F     canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, measuredWidth.toFloat() / 2 / mScaleFactor, mPaint) }  private fun drawBorder(canvas: Canvas?) {     Log.i("RadarView", "drawBorder")     mOutlinePaint.style = Paint.Style.STROKE     mOutlinePaint.color = mBorderColor     mOutlinePaint.strokeWidth = mBorderWidth     canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2,         (measuredWidth.toFloat() - mBorderWidth) / 2, mOutlinePaint)     // 还原     mOutlinePaint.style = Paint.Style.FILL_AND_STROKE     mOutlinePaint.color = mBackgroundColor }

  绘制了基准圆以后，要实现雷达扫描时那种渐变的效果，我们可以通过SweepGradient来操作。通过指定中心点，渐变颜色，以及颜色的分布，来定制扫描渐变的样式，默认的即时开头时gif展示的那种。由于这里是从第一象限开始旋转，因此将旋转的起点通过matrix逆时针旋转90度，从而达到由浅入深的效果。

 private fun setShader(size: Int) {     val shader = SweepGradient(size.toFloat() / 2, size.toFloat() / 2,         mScanColors?: mDefaultScanColors,  // 可通过setScanColors()来定制颜色         floatArrayOf(0F, 0.5F, 1F))  // 这里默认走平均分布     val matrix = Matrix()     // 逆时针旋转90度     matrix.setRotate(-90F, size.toFloat() / 2, size.toFloat() / 2)     shader.setLocalMatrix(matrix)     mSweepPaint.shader = shader }

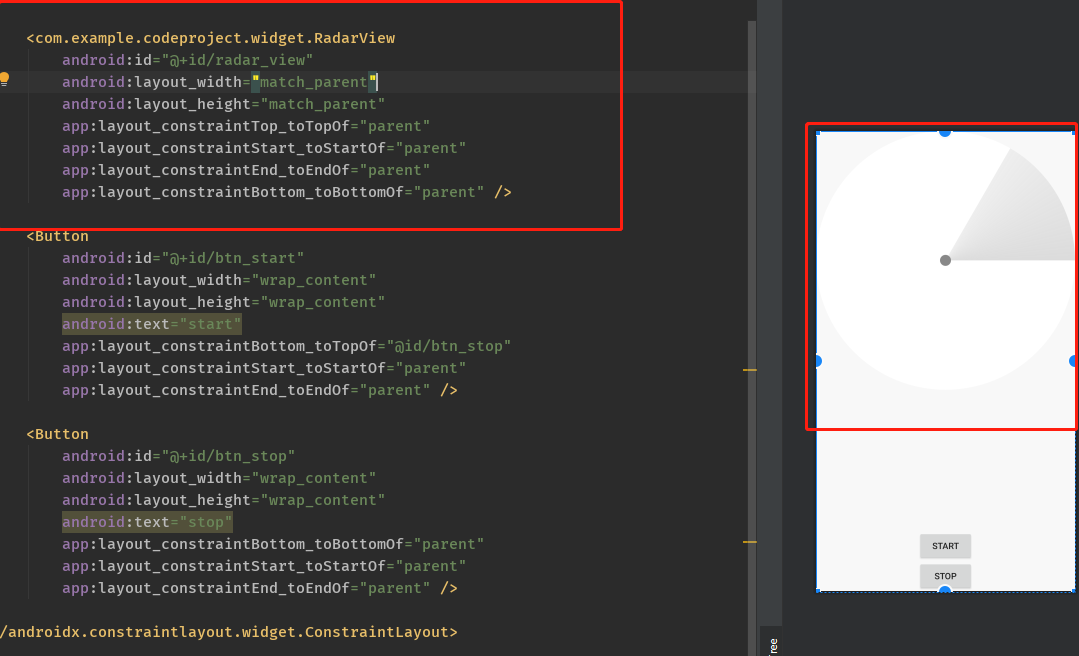

  这里完成了测量与绘制的工作，那么我们在布局里引用以后，就会看到这样的效果：

  这时，由于我们之前在测量的时候，将宽高最小值作为绘制的基准大小给予了RadarView，因此measuredWidth和measuredHeight是相等的，但是由于在布局中指定了match_parent属性，那么实际的控件宽高还是和父布局一致（在这里即占满屏幕宽高，由于宽比高小，所以看到绘制的图形会偏向上方；如果设置了高比宽小，那么绘制的图形就会位于左侧）。一般的雷达控件应该都是居中显示的，所以我在这里也重写了onLayout方法，来实现居中的效果。

 override fun onLayout(changed: Boolean, left: Int, top: Int, right: Int, bottom: Int) {     // 设置默认居中     var l = left     var r = right     var t = top     var b = bottom     when {         width > height -> {             // 宽度比高度大 那么要设置默认居中就得把left往右移 right往左移             l = (width - measuredWidth) / 2             r = width - l             layout(l, t, r, b)         }         height > width -> {             // 高度比宽度大 那么要设置默认居中就得把top往下移 bottom往上移             t = (height - measuredHeight) / 2             b = height - t             layout(l, t, r, b)         }         else -> super.onLayout(changed, left, top, right, bottom)     } }

动画的实现

  完成了绘制，接下来就是思考该如何让他动起来了。由绘制的代码不难想到，我这里考虑的是通过mStartAngle的变化来控制绘制的角度旋转，而ValueAnimator则正好能获取到每次更新时value的值，因此这里我选用了这个方案。

 fun start() {     Log.i("RadarView", "animation start")     mIsAnimating = true     mAnimator.duration = 2000     mAnimator.repeatCount = ValueAnimator.INFINITE     mAnimator.addUpdateListener {         val angle = it.animatedValue as Float         mStartAngle = angle  //        Log.i("RadarView", "mStartAngle = $mStartAngle and curValue = ${it.animatedValue}")         postInvalidate()     }     mAnimator.start() }

  坑

  这里就需要注意一个点，就是canvas在绘制时，后绘制的会覆盖在前绘制的图像上，所以需要注意绘制的顺序。当然，这里也可以把mOutlineRect的宽高设置为measuredWidth – mBorderWidth，那么就能保证绘制填充角度时，不会把边界覆盖。

  至此，动画的效果便完成了。

目标点的加入

  首先，前两点已经能满足大多的雷达扫描需求了。这里这个添加目标点（target）纯粹是我自己想加入的功能，因为觉得可以结合地图sdk的MapView来共同使用，目前也只是开发阶段，扩展性可能考虑得还不是特别充足，也还没应用到具体项目中。但是，总觉得自己想的功能也该试着去实践一下~

  这里主要运用的圆的计算公式：

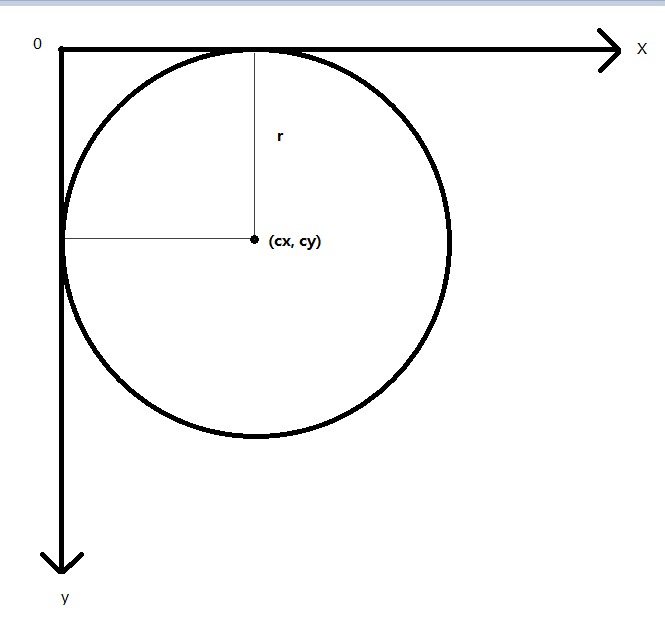

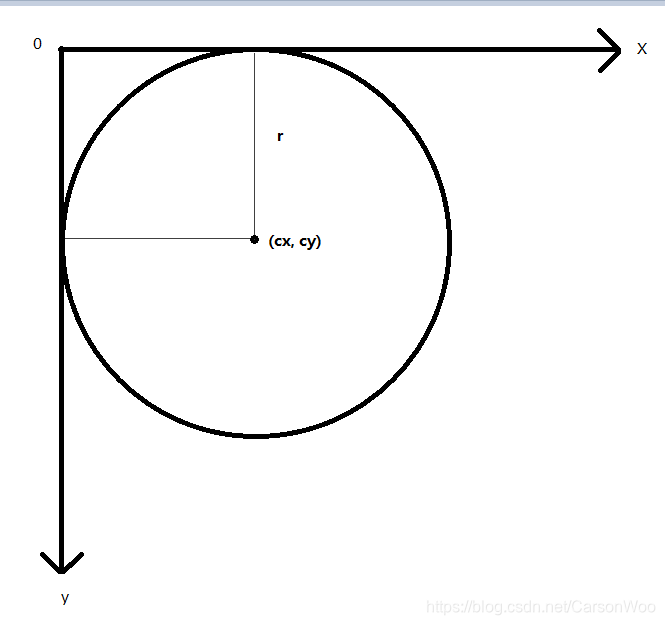

  由于Android的坐标系的原点是在左上角，y轴过顶点向下延伸。由我们的绘制可知，此绘制图像在坐标系中的位置大概如下图所示：

  那么，对应的公式就为：

  要注意的是，这里r的计算会根据图/点的设置来动态计算，具体例子通过代码来进行分析。

 // 随机落点 fun addTarget(size: Int, type: TYPE = TYPE.RANDOM) {     val list = ArrayList<PointF>()     val r = measuredWidth.toFloat() / 2     val innerRect = Rect((r - r / mScaleFactor).toInt(), (r - r / mScaleFactor).toInt(),         (r + r / mScaleFactor).toInt(), (r + r / mScaleFactor).toInt())     // 圆的中心点     val circle = PointF(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2)     while (list.size < size) {         val ranX = Random.nextDouble(0.0, r * 2.0).toFloat()         val ranY = Random.nextDouble(0.0, r * 2.0).toFloat()         val ranPointF = PointF(ranX, ranY)         if (innerRect.contains(ranPointF.toPoint())) {             continue         }         // 圆公式         if (!mNeedBitmap &&             (ranX - circle.x).pow(2) + (ranY - circle.y).pow(2) <               (r - mTargetRadius - mBorderWidth).toDouble().pow(2.0)) {             // 普通点             addTargetFromType(type, list, ranX, ranY, r, ranPointF)         } else if (mNeedBitmap &&             (ranX - circle.x).pow(2) + (ranY - circle.y).pow(2) <               (r - mBorderWidth - max(mBitmap.width, mBitmap.height) / 2).toDouble().pow(2)) {             // 图             addTargetFromType(type, list, ranX, ranY, r, ranPointF)         } else {             continue         }     }     mTargetList = list     for (target in list) {         Log.i("RadarView", "target = [${target.x}, ${target.y}]")     }     invalidate() }

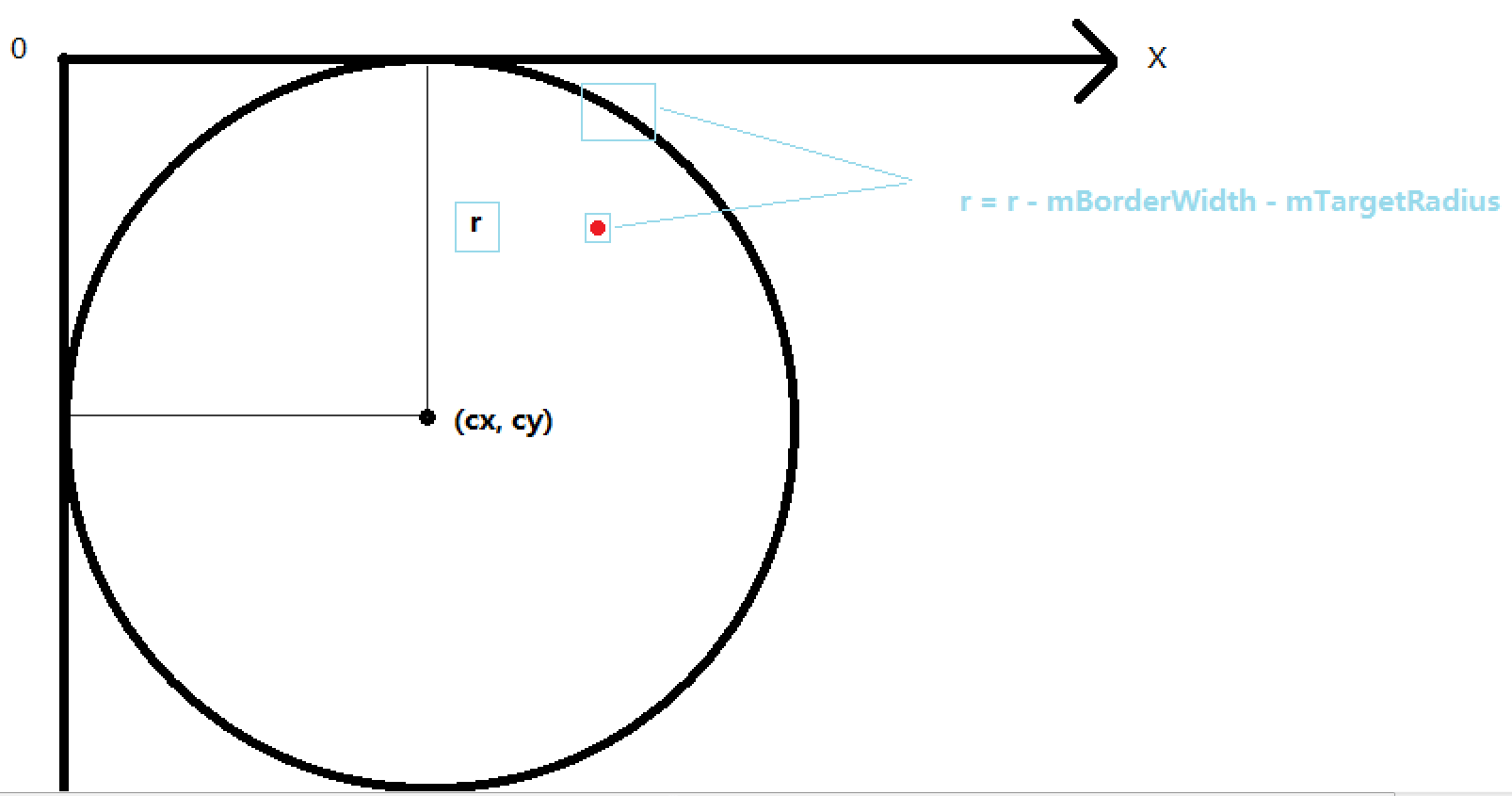

  可以看到，当target为普通点时，r的计算还要减去targetRadius，即目标点的半径，同时还要减去边界的宽度，如图所示：

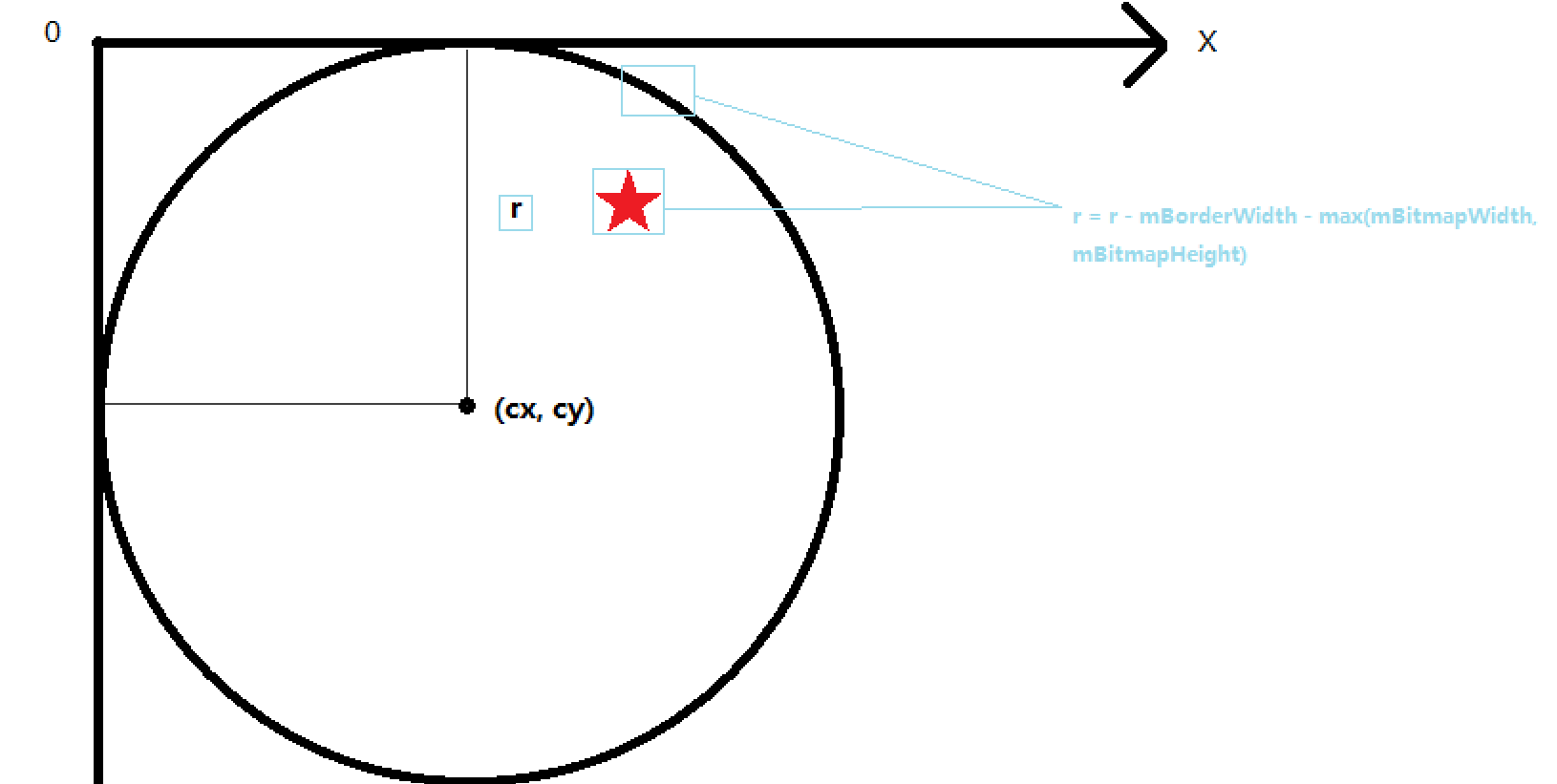

  当target为图时，由于宽高不定，故除了边界外，还要减去大的边，那么r的计算则为：

  同时为了避免图片的尺寸过大，这里同样采取了一个默认值与一个缩放因子，从而保证图的完整性以及避免过大而引起的视觉丑化。

  关于落点的位置，目前采取的是随机落点，如果应用到地图扫点的话，可以通过地图sdk内的距离计算工具再与RadarView的坐标做一个比例转换，从而达到雷达内显示该点具体方位。

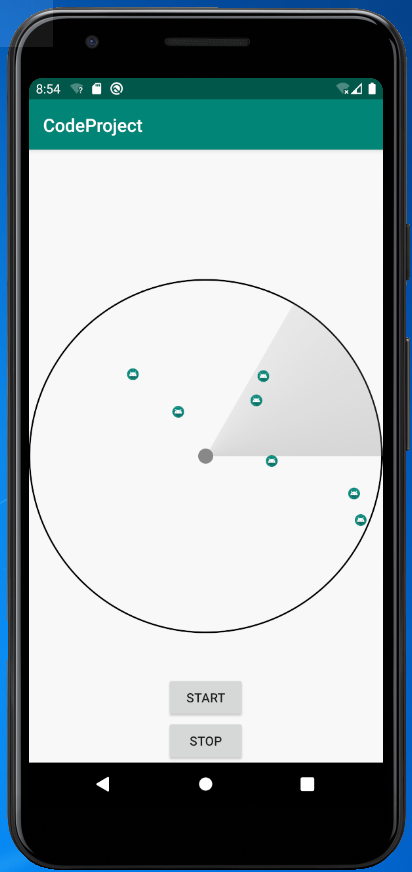

  关于落点的分布，目前提供了5种类型：分别是全象限随机、第一象限、第二象限、第三象限与第四象限随机。

完整代码

 class RadarView : View {      enum class TYPE { RANDOM, FIRST, SECOND, THIRD, FOURTH }      private val mPaint by lazy { Paint(Paint.ANTI_ALIAS_FLAG) }      private val mSweepPaint by lazy { Paint(Paint.ANTI_ALIAS_FLAG) }      private val mOutlinePaint by lazy { Paint(Paint.ANTI_ALIAS_FLAG) }      private val mTargetPaint by lazy { Paint(Paint.ANTI_ALIAS_FLAG) }      private val mDefaultSize = 120// px      // limit the size of bitmap     private var mBitmapMaxSize = 0F      private var mBitmapWHRatio = 0F      private val mScaleFactor = 30F      private var mStartAngle = 0F     private val mSweepAngle = -60F      private var mScanColors: IntArray? = null      private val mDefaultScanColors = intArrayOf(Color.parseColor("#0F7F7F7F"),         Color.parseColor("#7F7F7F7F"),         Color.parseColor("#857F7F7F"))      private val mDefaultBackgroundColor = Color.WHITE      private var mBackgroundColor: Int = mDefaultBackgroundColor      private var mBorderColor: Int = Color.BLACK      private var mBorderWidth = 0F      private var mTargetColor: Int = Color.RED      private var mTargetRadius = 10F      private lateinit var mOutlineRect: Rect      private val mAnimator = ValueAnimator.ofFloat(0F, 360F)      private var mTargetList: ArrayList<PointF>? = null      private var mIsAnimating = false      private var mNeedBitmap = false      private var mBitmap = BitmapFactory.decodeResource(resources, R.mipmap.ic_launcher)      constructor(context: Context): this(context, null)      constructor(context: Context, attributeSet: AttributeSet?) : super(context, attributeSet)      init {         mPaint.color = Color.GRAY         mPaint.strokeWidth = 10F         mPaint.style = Paint.Style.FILL_AND_STROKE         mPaint.strokeJoin = Paint.Join.ROUND         mPaint.strokeCap = Paint.Cap.ROUND          mSweepPaint.style = Paint.Style.FILL          mOutlinePaint.style = Paint.Style.FILL_AND_STROKE         mOutlinePaint.color = mBackgroundColor          mTargetPaint.style = Paint.Style.FILL         mTargetPaint.color = mTargetColor         mTargetPaint.strokeWidth = 10F     }      override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {         super.onMeasure(widthMeasureSpec, heightMeasureSpec)         val vWidth = measureDimension(widthMeasureSpec)         val vHeight = measureDimension(heightMeasureSpec)         val size = min(vWidth, vHeight)          setShader(size)          setMeasuredDimension(size, size)          setParamUpdate()     }      override fun onLayout(changed: Boolean, left: Int, top: Int, right: Int, bottom: Int) {         // 设置默认居中         var l = left         var r = right         var t = top         var b = bottom         when {             width > height -> {                 // 宽度比高度大 那么要设置默认居中就得把left往右移 right往左移                 l = (width - measuredWidth) / 2                 r = width - l                 layout(l, t, r, b)             }             height > width -> {                 // 高度比宽度大 那么要设置默认居中就得把top往下移 bottom往上移                 t = (height - measuredHeight) / 2                 b = height - t                 layout(l, t, r, b)             }             else -> super.onLayout(changed, left, top, right, bottom)         }     }      private fun setShader(size: Int) {         val shader = SweepGradient(size.toFloat() / 2, size.toFloat() / 2,             mScanColors?: mDefaultScanColors,             floatArrayOf(0F, 0.5F, 1F))         val matrix = Matrix()         matrix.setRotate(-90F, size.toFloat() / 2, size.toFloat() / 2)         shader.setLocalMatrix(matrix)         mSweepPaint.shader = shader     }      fun setScanColors(colors: IntArray) {         this.mScanColors = colors         setShader(measuredWidth)         invalidate()     }      fun setRadarColor(@ColorInt color: Int) {         this.mBackgroundColor = color         this.mOutlinePaint.color = color         invalidate()     }      fun setRadarColor(colorString: String) {         if (!colorString.startsWith("#") || colorString.length != 7 || colorString.length != 9) {             Log.e("RadarView", "colorString parse error, please check your enter param")             return         }         val color = Color.parseColor(colorString)         setRadarColor(color)     }      fun setBorderColor(@ColorInt color: Int) {         this.mBorderColor = color         invalidate()     }      fun setBorderColor(colorString: String) {         if (!colorString.startsWith("#") || colorString.length != 7 || colorString.length != 9) {             Log.e("RadarView", "colorString parse error, please check your enter param")             return         }         val color = Color.parseColor(colorString)         setBorderColor(color)     }      fun setRadarGradientColor(colors: IntArray) {         val shader = SweepGradient(measuredWidth.toFloat() / 2,             measuredHeight.toFloat() / 2, colors, null)         mOutlinePaint.shader = shader         invalidate()     }      fun setBorderWidth(width: Float) {         this.mBorderWidth = width         invalidate()     }      private fun setParamUpdate() {         mOutlineRect = Rect(0, 0, measuredWidth, measuredHeight)          mBitmapMaxSize = measuredWidth.toFloat() / mScaleFactor     }      private fun measureDimension(spec: Int) =  when (MeasureSpec.getMode(spec)) {         MeasureSpec.EXACTLY -> {             // exactly number or match_parent             MeasureSpec.getSize(spec)         }         MeasureSpec.AT_MOST -> {             // wrap_content             min(mDefaultSize, MeasureSpec.getSize(spec))         }         else -> {             mDefaultSize         }     }      override fun setBackground(background: Drawable?) {         // 取消传统背景设置 //        super.setBackground(background)     }      override fun onDraw(canvas: Canvas?) {         super.onDraw(canvas)         // draw outside circle (background)         canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, measuredWidth.toFloat() / 2, mOutlinePaint)         if (mBorderWidth > 0F && mOutlinePaint.shader == null) {             drawBorder(canvas)         }          canvas?.drawArc(mOutlineRect.toRectF(), mStartAngle, mSweepAngle, true, mSweepPaint)          if (!mTargetList.isNullOrEmpty() && !mIsAnimating) {             drawTarget(canvas)         }          // draw center circle         canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2, measuredWidth.toFloat() / 2 / mScaleFactor, mPaint)     }      private fun drawBorder(canvas: Canvas?) {         Log.i("RadarView", "drawBorder")         mOutlinePaint.style = Paint.Style.STROKE         mOutlinePaint.color = mBorderColor         mOutlinePaint.strokeWidth = mBorderWidth         canvas?.drawCircle(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2,             (measuredWidth.toFloat() - mBorderWidth) / 2, mOutlinePaint)         // 还原         mOutlinePaint.style = Paint.Style.FILL_AND_STROKE         mOutlinePaint.color = mBackgroundColor     }      private fun drawTarget(canvas: Canvas?) {         mTargetList?.let {             Log.e("RadarView", "draw target")             for (target in it) {                 if (mNeedBitmap) {                     canvas?.drawBitmap(mBitmap, target.x - mBitmap.width / 2,                         target.y - mBitmap.height / 2, mTargetPaint)                 } else {                     canvas?.drawCircle(target.x, target.y, mTargetRadius, mTargetPaint)                 }             }         }     }      fun setBitmapEnabled(enabled: Boolean, drawable: Drawable) {         // 这里是为了防止界面还未获取到宽高时 会导致onMeasure走不到 那么maxSize就会为0         post {             this.mNeedBitmap = enabled             this.mBitmapWHRatio = drawable.intrinsicWidth.toFloat() / drawable.intrinsicHeight.toFloat()             mBitmap = if (mBitmapWHRatio >= 1) {                 // 宽比高大                 drawable.toBitmap(                     width = min(mBitmapMaxSize, drawable.intrinsicWidth.toFloat()).toInt(),                     height = (min(mBitmapMaxSize, drawable.intrinsicWidth.toFloat()) / mBitmapWHRatio).toInt(),                     config = Bitmap.Config.ARGB_8888)             } else {                 // 高比宽大                 drawable.toBitmap(                     height = min(mBitmapMaxSize, drawable.intrinsicHeight.toFloat()).toInt(),                     width = (min(mBitmapMaxSize, drawable.intrinsicHeight.toFloat()) * mBitmapWHRatio).toInt(),                     config = Bitmap.Config.ARGB_8888                 )             }         }     }      // 随机落点     fun addTarget(size: Int, type: TYPE = TYPE.RANDOM) {         val list = ArrayList<PointF>()         val r = measuredWidth.toFloat() / 2         val innerRect = Rect((r - r / mScaleFactor).toInt(), (r - r / mScaleFactor).toInt(),             (r + r / mScaleFactor).toInt(), (r + r / mScaleFactor).toInt())         // 圆的中心点         val circle = PointF(measuredWidth.toFloat() / 2, measuredHeight.toFloat() / 2)         while (list.size < size) {             val ranX = Random.nextDouble(0.0, r * 2.0).toFloat()             val ranY = Random.nextDouble(0.0, r * 2.0).toFloat()             val ranPointF = PointF(ranX, ranY)             if (innerRect.contains(ranPointF.toPoint())) {                 continue             }             // 圆公式             if (!mNeedBitmap &&                 (ranX - circle.x).pow(2) + (ranY - circle.y).pow(2) <                   (r - mTargetRadius - mBorderWidth).toDouble().pow(2.0)) {                 // 在圆内                 addTargetFromType(type, list, ranX, ranY, r, ranPointF)             } else if (mNeedBitmap &&                 (ranX - circle.x).pow(2) + (ranY - circle.y).pow(2) <                   (r - mBorderWidth - max(mBitmap.width, mBitmap.height) / 2).toDouble().pow(2)) {                 addTargetFromType(type, list, ranX, ranY, r, ranPointF)             } else {                 continue             }         }         mTargetList = list         for (target in list) {             Log.i("RadarView", "target = [${target.x}, ${target.y}]")         }         invalidate()     }      private fun addTargetFromType(type: TYPE, list: ArrayList<PointF>, ranX: Float, ranY: Float,                                   r: Float, ranPointF: PointF) {         when (type) {             TYPE.RANDOM -> {                 list.add(ranPointF)             }             TYPE.FOURTH -> {                 if (ranX in r.toDouble()..2 * r.toDouble() && ranY in r.toDouble()..2 * r.toDouble()) {                     list.add(ranPointF)                 }             }             TYPE.THIRD -> {                 if (ranX in 0.0..r.toDouble() && ranY in r.toDouble()..2 * r.toDouble()) {                     list.add(ranPointF)                 }             }             TYPE.SECOND -> {                 if (ranX in 0.0..r.toDouble() && ranY in 0.0..r.toDouble()) {                     list.add(ranPointF)                 }             }             TYPE.FIRST -> {                 if (ranX in r.toDouble()..2 * r.toDouble() && ranY in 0.0..r.toDouble()) {                     list.add(ranPointF)                 }             }         }     }      fun start() {         Log.i("RadarView", "animation start")         mIsAnimating = true         mAnimator.duration = 2000         mAnimator.repeatCount = ValueAnimator.INFINITE         mAnimator.addUpdateListener {             val angle = it.animatedValue as Float             mStartAngle = angle              Log.i("RadarView", "mStartAngle = $mStartAngle and curValue = ${it.animatedValue}")             postInvalidate()         }         mAnimator.start()     }      fun start(startVal: Float, endVal: Float) {         mIsAnimating = true         mAnimator.setFloatValues(startVal, endVal)         mAnimator.duration = 2000         mAnimator.repeatCount = ValueAnimator.INFINITE         mAnimator.addUpdateListener {             mStartAngle = it.animatedValue as Float              Log.i("RadarView", "mStartAngle = $mStartAngle and curValue = ${it.animatedValue}")             postInvalidate()         }         mAnimator.start()     }      fun stop() {         mIsAnimating = false         if (mAnimator.isRunning) {             mAnimator.cancel()             mAnimator.removeAllListeners()         }         mStartAngle = 0F     }  }

调用方式

 override fun onCreate(savedInstanceState: Bundle?) {     super.onCreate(savedInstanceState)     setContentView(R.layout.activity_main)      radar_view.setBorderWidth(5F)     radar_view.setRadarColor(Color.TRANSPARENT)     radar_view.setBitmapEnabled(true, resources.getDrawable(R.mipmap.ic_launcher_round)) //        radar_view.setScanColors(intArrayOf(Color.RED, Color.LTGRAY, Color.CYAN)) //        radar_view.setRadarGradientColor(intArrayOf(Color.RED, Color.GREEN, Color.BLUE))      btn_start.setOnClickListener {         radar_view.start() //        workThreadAndCallback()     }      btn_stop.setOnClickListener {         radar_view.stop()         radar_view.addTarget(7)     } }
