大家好，我是SKODE。

小提示：选中左侧目录，可快速找到所需内容

本系列博客地址：传送门

一、实现目标

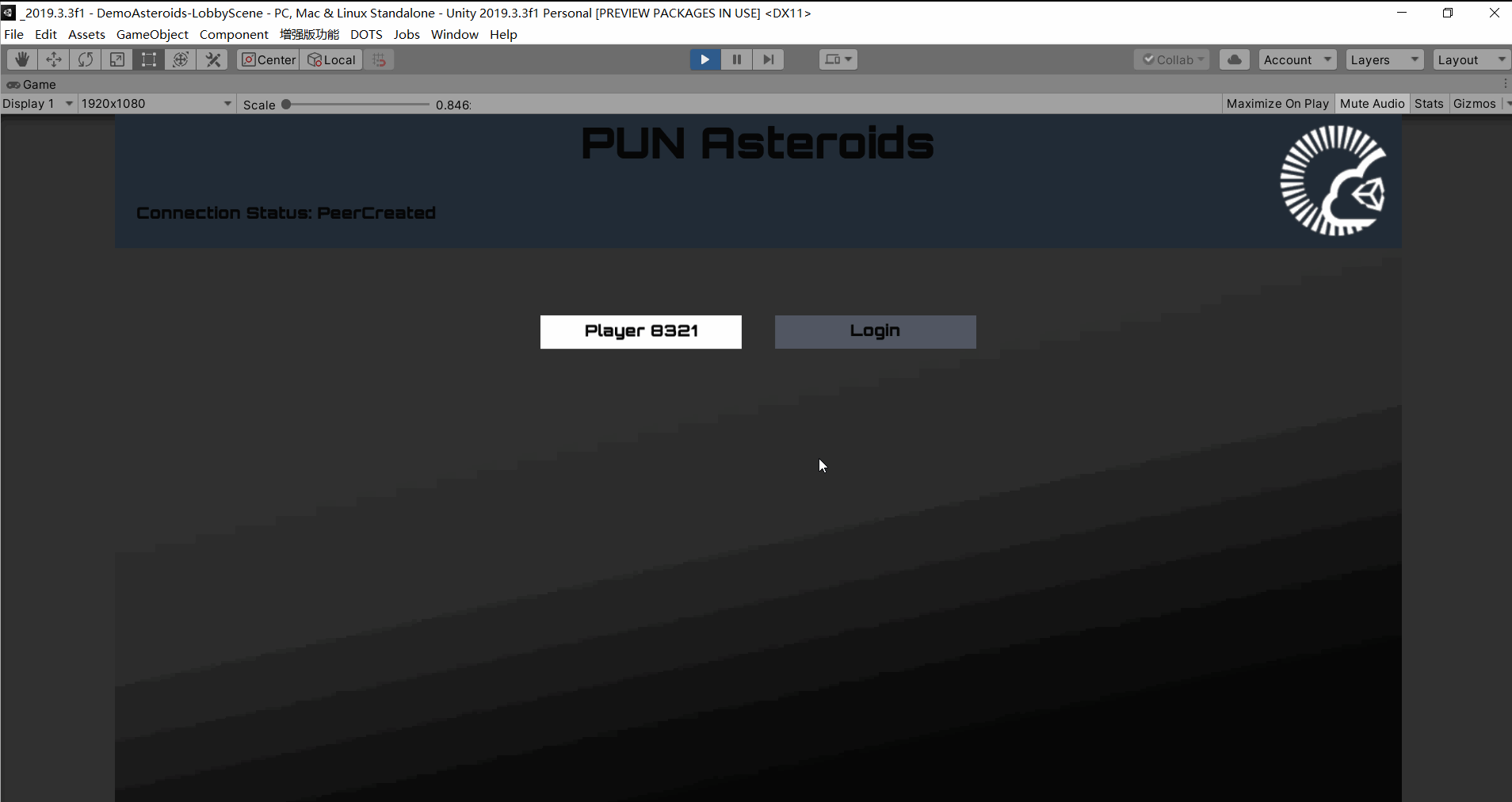

Demo：DemoAsteroids大厅的解析

二、大厅思路

 Awake：设置同步场景的方式  登陆按钮：同步本地昵称、连接到服务器  连接到服务器回调：关闭登陆界面，打开 创建房间 / 加入房间 / 显示房间列表 的面板选择界面  选择创建房间界面的Btn：打开创建房间界面      创建房间界面：输入房间名、最大人数、拥有创建房间、返回的按钮         返回按钮：返回到功能选择界面      创建房间Btn：根据房间名、最大人数，创建服务器房间          创建/加入房间回调：打开房间内面板、实例化当前所有玩家的条形信息预制体，并将（昵称、是否准备）信息初始化到该预制体上的脚本上↓             条形信息物体：上有脚本：保存了该玩家的 ID、昵称、准备信息                            根据初始化的ID==本地玩家ID？不等于则不显示该预制体的准备按钮（即咱们不显示别人电脑的ready，咱们只能控制咱们的ready）                             若等于，即代表着这个预制体是我们自己的。则显示准备按钮。且将准备信息等做为自定义的同步信息                             根据本房间内，该玩家的Number，决定这个预制体是什么颜色。（demo设定最多8人，因此这有8种对应的case）【用PUN的 Number更新回调实现】                             注意，这儿要用到PUN自带的脚本：PlayerNumbering，要将其挂在场景中                          上有准备按钮：                             每次点击，改变自身状态（是否关闭等）、同步自身是否准备信息                             若自己是主服务器，则还可根据当前玩家是否都已准备，显示开始游戏按钮（检查是否都已准备，就是foreach所有玩家的准备信息，进行判断）                          开始游戏按钮：                             设置当前房间状态：不可再加入、大厅列表不可见（隐身）                             PUN同步加载场景                   加入随机房间按钮：加入随机房间，显示服务器房间界面         返回按钮：退出服务器房间，返回到功能选择界面      显示房间列表按钮：使用加入大厅API，使PUN调用 刷新大厅列表 回调，在该回调中完成相关逻辑（该回调会传入所有房间列表缓存）：         清空、删掉房间预制体、         根据从网络获得的缓存列表，判断房间是否可加入、可见性、标记性，删除不需要的房间，将需要的房间添加到本地房间列表。         更新实例化本地房间列表          开始游戏按钮状态：只有主客户端进行检测判断。（其他客户端没有开游戏的资格，自然不用检测）     主客户端点击准备时、     本地玩家进入房间时、（新玩家进来了，当然关闭按钮了）     其他玩家进入房间时、（新玩家进来了，当然关闭按钮了）     其他玩家离开房间时、     主客户端切换给别人时、     玩家属性更新时、（PUN回调）   房间列表更新时机：     显示房间列表信息按钮、     本地玩家退出大厅回调、     本地玩家离开房间回调、     其他玩家加入房间回调、     其他玩家离开房间回调、

三、主要脚本

该场景主要由这两个脚本实现功能

PlayerNumbering作为PUN实用脚本，挂载到场景中，配合我们写的代码。

LobbyMainPanel

 using ExitGames.Client.Photon; using Photon.Realtime; using System.Collections.Generic; using UnityEngine; using UnityEngine.UI;  namespace Photon.Pun.Demo.Asteroids {     public class LobbyMainPanel : MonoBehaviourPunCallbacks     {         #region Public Parameters          [Header("Login Panel")]         public GameObject LoginPanel;          [Tooltip("玩家昵称输入框")]         public InputField PlayerNameInput;          [Header("房间操作界面")]         public GameObject SelectionPanel;          [Header("Create Room Panel")]         public GameObject CreateRoomPanel;          public InputField RoomNameInputField;         public InputField MaxPlayersInputField;          [Header("Join Random Room Panel")]         public GameObject JoinRandomRoomPanel;          [Header("Room List Panel")]         public GameObject RoomListPanel;          public GameObject RoomListContent;         public GameObject RoomListEntryPrefab;          [Header("Inside Room Panel")]         public GameObject InsideRoomPanel;          public Button StartGameButton;         public GameObject PlayerListEntryPrefab;          #endregion           #region Private Parameters          Dictionary<string, RoomInfo> cachedRoomList = new Dictionary<string, RoomInfo>();         Dictionary<string, GameObject> roomListEntries = new Dictionary<string, GameObject>();         Dictionary<int, GameObject> playerListEntries;          #endregion           #region Mono CallBacks          public void Awake()         {             PhotonNetwork.AutomaticallySyncScene = true;              PlayerNameInput.text = "Player " + Random.Range(1000, 10000);         }          #endregion           #region PUN CallBacks          public override void OnConnectedToMaster()         {             SetActivePanel(SelectionPanel.name);         }          //本地玩家进入房间时         public override void OnJoinedRoom()         {             print("OnJoinedRoom");              SetActivePanel(InsideRoomPanel.name);              if (playerListEntries == null)                 playerListEntries = new Dictionary<int, GameObject>();              foreach (Player p in PhotonNetwork.PlayerList)             {                 GameObject entry = Instantiate(PlayerListEntryPrefab);                 entry.transform.SetParent(InsideRoomPanel.transform);                 entry.transform.localScale = Vector3.one;                 entry.GetComponent<PlayerListEntry>().Initialize(p.ActorNumber, p.NickName);                  object isPlayerReady;                 if (p.CustomProperties.TryGetValue(AsteroidsGame.PLAYER_READY, out isPlayerReady))                 {                     entry.GetComponent<PlayerListEntry>().SetPlayerReady((bool)isPlayerReady);                 }                  playerListEntries.Add(p.ActorNumber, entry);             }              StartGameButton.gameObject.SetActive(CheckPlayersReady());              Hashtable props = new Hashtable             {                 {AsteroidsGame.PLAYER_LOADED_LEVEL, false}             };             PhotonNetwork.LocalPlayer.SetCustomProperties(props);         }          //刷新列表回调         public override void OnRoomListUpdate(List<RoomInfo> roomList)         {             ClearRoomListView();              UpdateCachedRoomList(roomList);             UpdateRoomListView();         }          public override void OnLeftLobby()         {             cachedRoomList.Clear();              ClearRoomListView();         }          public override void OnCreateRoomFailed(short returnCode, string message)         {             SetActivePanel(SelectionPanel.name);         }          public override void OnJoinRoomFailed(short returnCode, string message)         {             SetActivePanel(SelectionPanel.name);         }          public override void OnJoinRandomFailed(short returnCode, string message)         {             string roomName = "Room " + Random.Range(1000, 10000);              RoomOptions options = new RoomOptions { MaxPlayers = 8 };              PhotonNetwork.CreateRoom(roomName, options, null);         }          public override void OnLeftRoom()         {             SetActivePanel(SelectionPanel.name);              foreach (GameObject entry in playerListEntries.Values)             {                 Destroy(entry.gameObject);             }              playerListEntries.Clear();             playerListEntries = null;         }          //其他玩家进入房间时         public override void OnPlayerEnteredRoom(Player newPlayer)         {             GameObject entry = Instantiate(PlayerListEntryPrefab);             entry.transform.SetParent(InsideRoomPanel.transform);             entry.transform.localScale = Vector3.one;             entry.GetComponent<PlayerListEntry>().Initialize(newPlayer.ActorNumber, newPlayer.NickName);              playerListEntries.Add(newPlayer.ActorNumber, entry);              StartGameButton.gameObject.SetActive(CheckPlayersReady());         }          public override void OnPlayerLeftRoom(Player otherPlayer)         {             Destroy(playerListEntries[otherPlayer.ActorNumber].gameObject);             playerListEntries.Remove(otherPlayer.ActorNumber);              StartGameButton.gameObject.SetActive(CheckPlayersReady());         }          public override void OnMasterClientSwitched(Player newMasterClient)         {             if (PhotonNetwork.LocalPlayer.ActorNumber == newMasterClient.ActorNumber)             {                 StartGameButton.gameObject.SetActive(CheckPlayersReady());             }         }          public override void OnPlayerPropertiesUpdate(Player targetPlayer, Hashtable changedProps)         {             if (playerListEntries == null)                 playerListEntries = new Dictionary<int, GameObject>();              GameObject entry;             if (playerListEntries.TryGetValue(targetPlayer.ActorNumber, out entry))             {                 object isPlayerReady;                 if (changedProps.TryGetValue(AsteroidsGame.PLAYER_READY, out isPlayerReady))                 {                     entry.GetComponent<PlayerListEntry>().SetPlayerReady((bool)isPlayerReady);                 }             }              StartGameButton.gameObject.SetActive(CheckPlayersReady());         }          #endregion           #region Public Methods          //绑定到登陆按钮         public void OnLoginButtonClicked()         {             string playerName = PlayerNameInput.text;              if (!playerName.Equals(""))             {                 PhotonNetwork.LocalPlayer.NickName = playerName;                 PhotonNetwork.ConnectUsingSettings();             }             else             {                 Debug.LogError("Player Name is invalid.");             }         }          //绑定到创建服务器房间按钮         public void OnCreateRoomButtonClicked()         {             string roomName = RoomNameInputField.text;             roomName = (roomName.Equals(string.Empty)) ? "Room " + Random.Range(1000, 10000) : roomName;              byte maxPlayers;             byte.TryParse(MaxPlayersInputField.text, out maxPlayers);             maxPlayers = (byte)Mathf.Clamp(maxPlayers, 2, 8);              RoomOptions options = new RoomOptions { MaxPlayers = maxPlayers };              PhotonNetwork.CreateRoom(roomName, options, null);         }          //给玩家信息条的准备按钮使用。当本地玩家是主客户端时，执行。         public void LocalPlayerPropertiesUpdated()         {             StartGameButton.gameObject.SetActive(CheckPlayersReady());         }          //绑定到开始游戏按钮         public void OnStartGameButtonClicked()         {             //当前房间不可再加入             PhotonNetwork.CurrentRoom.IsOpen = false;              //让当前房间不可见：在大厅的列表中搜不到。（并且当你创建这个房间时，也可设为隐身的房间）             PhotonNetwork.CurrentRoom.IsVisible = false;              PhotonNetwork.LoadLevel("DemoAsteroids-GameScene");         }          //绑定到加入随机房间按钮         public void OnJoinRandomRoomButtonClicked()         {             SetActivePanel(JoinRandomRoomPanel.name);              PhotonNetwork.JoinRandomRoom();         }          //绑定到显示列表按钮         public void OnRoomListButtonClicked()         {             if (!PhotonNetwork.InLobby)             {                 //使用该API，使PUN调用 刷新大厅房间列表 回调，并在该回调完成相关逻辑。                 PhotonNetwork.JoinLobby();             }              SetActivePanel(RoomListPanel.name);         }          //绑定到创建房间界面的返回按钮         public void OnBackButtonClicked()         {             //这并不会执行，因为没加入大厅             if (PhotonNetwork.InLobby)             {                 PhotonNetwork.LeaveLobby();             }              SetActivePanel(SelectionPanel.name);         }          //绑定到加入随机房间界面的返回按钮上         public void OnLeaveGameButtonClicked()         {             PhotonNetwork.LeaveRoom();         }          #endregion           #region Private Methods          void SetActivePanel(string activePanel)         {             LoginPanel.SetActive(activePanel.Equals(LoginPanel.name));             SelectionPanel.SetActive(activePanel.Equals(SelectionPanel.name));             CreateRoomPanel.SetActive(activePanel.Equals(CreateRoomPanel.name));             JoinRandomRoomPanel.SetActive(activePanel.Equals(JoinRandomRoomPanel.name));             RoomListPanel.SetActive(activePanel.Equals(RoomListPanel.name));    // UI should call OnRoomListButtonClicked() to activate this             InsideRoomPanel.SetActive(activePanel.Equals(InsideRoomPanel.name));         }          //检查所有玩家是否已经准备         bool CheckPlayersReady()         {             if (!PhotonNetwork.IsMasterClient)             {                 return false;             }              foreach (Player p in PhotonNetwork.PlayerList)             {                 object isPlayerReady;                 if (p.CustomProperties.TryGetValue(AsteroidsGame.PLAYER_READY, out isPlayerReady))                 {                     if (!(bool)isPlayerReady)                     {                         return false;                     }                 }                 else                 {                     return false;                 }             }              return true;         }          //清空本地房间数据列表、删除房间预制体         void ClearRoomListView()         {             foreach (GameObject entry in roomListEntries.Values)             {                 Destroy(entry.gameObject);             }              roomListEntries.Clear();         }          //更新本地房间数据列表         void UpdateCachedRoomList(List<RoomInfo> roomList)         {             foreach (RoomInfo info in roomList)             {                 // 如果缓存房间中该房间为关闭状态、不可见或被标记为已删除，则从缓存房间列表中删除该房间                 if (!info.IsOpen || !info.IsVisible || info.RemovedFromList)                 {                     if (cachedRoomList.ContainsKey(info.Name))                     {                         cachedRoomList.Remove(info.Name);                     }                      continue;                 }                  // Update cached room info                 if (cachedRoomList.ContainsKey(info.Name))                 {                     cachedRoomList[info.Name] = info;                 }                 // Add new room info to cache                 else                 {                     cachedRoomList.Add(info.Name, info);                 }             }         }          //实例化房间预制体         void UpdateRoomListView()         {             foreach (RoomInfo info in cachedRoomList.Values)             {                 GameObject entry = Instantiate(RoomListEntryPrefab);                 entry.transform.SetParent(RoomListContent.transform);                 entry.transform.localScale = Vector3.one;                 entry.GetComponent<RoomListEntry>().Initialize(info.Name, (byte)info.PlayerCount, info.MaxPlayers);                  roomListEntries.Add(info.Name, entry);             }         }         #endregion     } }

PlayerListEntry

 // -------------------------------------------------------------------------------------------------------------------- // <copyright file="PlayerListEntry.cs" company="Exit Games GmbH"> //   Part of: Asteroid Demo, // </copyright> // <summary> //  Player List Entry // </summary> // <author>developer@exitgames.com</author> // --------------------------------------------------------------------------------------------------------------------  using UnityEngine; using UnityEngine.UI;  using ExitGames.Client.Photon; using Photon.Realtime; using Photon.Pun.UtilityScripts;  namespace Photon.Pun.Demo.Asteroids {     public class PlayerListEntry : MonoBehaviour     {         [Tooltip("玩家昵称")]         public Text PlayerNameText;          public Image PlayerColorImage;         public Button PlayerReadyButton;         public Image PlayerReadyImage;          int ownerId;         bool isPlayerReady;           #region Mono CallBacks          public void OnEnable()         {             //每次房间索引更新时调用             PlayerNumbering.OnPlayerNumberingChanged += OnPlayerNumberingChanged;         }           public void Start()         {             if (PhotonNetwork.LocalPlayer.ActorNumber != ownerId)             {                 PlayerReadyButton.gameObject.SetActive(false);             }             else             {                 Hashtable initialProps = new Hashtable() {{AsteroidsGame.PLAYER_READY, isPlayerReady}, {AsteroidsGame.PLAYER_LIVES, AsteroidsGame.PLAYER_MAX_LIVES}};                 PhotonNetwork.LocalPlayer.SetCustomProperties(initialProps);                  //这将在本地设置分数，并将同步它在游戏中尽快。                 PhotonNetwork.LocalPlayer.SetScore(0);                  PlayerReadyButton.onClick.AddListener(() =>                 {                     isPlayerReady = !isPlayerReady;                     SetPlayerReady(isPlayerReady);                      Hashtable props = new Hashtable() {{AsteroidsGame.PLAYER_READY, isPlayerReady}};                     PhotonNetwork.LocalPlayer.SetCustomProperties(props);                      //检测是否全员准备，是则显示开始游戏按钮                     if (PhotonNetwork.IsMasterClient)                     {                         FindObjectOfType<LobbyMainPanel>().LocalPlayerPropertiesUpdated();                     }                 });             }         }          public void OnDisable()         {             PlayerNumbering.OnPlayerNumberingChanged -= OnPlayerNumberingChanged;         }          #endregion          public void Initialize(int playerId, string playerName)         {             ownerId = playerId;             PlayerNameText.text = playerName;         }          private void OnPlayerNumberingChanged()         {             foreach (Player p in PhotonNetwork.PlayerList)             {                 if (p.ActorNumber == ownerId)                 {                     PlayerColorImage.color = AsteroidsGame.GetColor(p.GetPlayerNumber());                 }             }         }          public void SetPlayerReady(bool playerReady)         {             PlayerReadyButton.GetComponentInChildren<Text>().text = playerReady ? "Ready!" : "Ready?";             PlayerReadyImage.enabled = playerReady;         }     } }

这是第三次探索PUN了，这次终于硬看源码搞清了它的逻辑  (*￣︶￣)

一起成长

我是SDKODE
