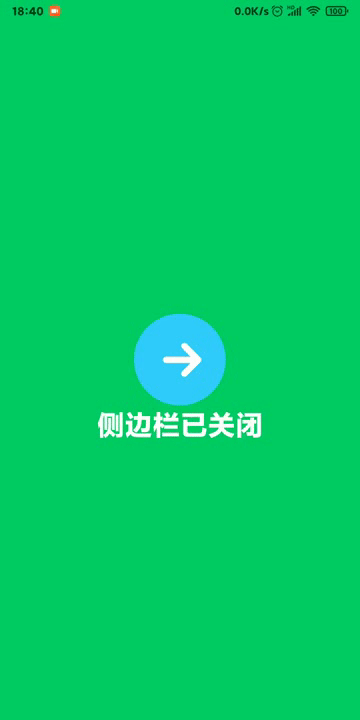

先上图，这是右侧

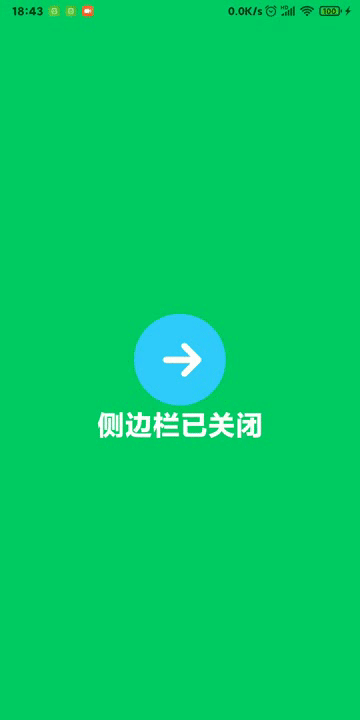

  这是顶部

左边和下边的都类似，就不放图了，支持简单的手势和代码控制

在搞作业的时候需要这样的一个侧边栏功能，能够推挤主屏幕，不是DrawerLayout那种，百度找了好久，只发现一种android近版本中给出的一个Slidingpanelayout的布局，这个布局效果和上图这个类似，唯一不好的就是只有左侧边栏，（或者我没发现有其他设置）于是想到重写这个Slidingpanelayout的例子，打开源代码，发现里面写的太高深，看不懂。

如果Slidingpanelayout左侧栏可以满足就不用往下看了，在build.gradle文件导入包的地方加一行：

implementation ‘androidx.slidingpanelayout:slidingpanelayout:1.0.0’

直接使用就好，它的布局里只能放两个View，第一个是左侧栏内容，第二个为主页面

源码注释开头：

SlidingPaneLayout provides a horizontal, multi-pane layout for use at the top level of a UI. A left (or first) pane is treated as a content list or browser, subordinate to a primary detail view for displaying content.

SlidingPaneLayout提供了一个水平的、多窗格的布局，用于UI的顶层。左(或第一个)窗格被视为内容列表或浏览器，从属于显示内容的主要详细视图。

百度多次无果，决定自己造一个。

自定义的这个布局比较简陋，只实现了我需要的一点点功能，比如侧边栏展开让主页面变暗色，或者拖拽着边框可以拉拽这样的功能实现比较麻烦，也比较鸡肋，需要的话可以自行尝试添加。话不多说上代码：

在styles.xml文件<resources></resources>中添加如下代码:

 <declare-styleable name="MySlidLayout" >     <attr name="position" format="enum">         <enum name="top" value="1"/>         <enum name="left" value="2"/>         <enum name="right" value="3"/>         <enum name="bottom" value="4"/>     </attr> </declare-styleable>

然后java代码：

 import android.animation.ObjectAnimator; import android.content.Context; import android.content.res.TypedArray; import android.util.AttributeSet; import android.view.MotionEvent; import android.view.View; import android.view.ViewGroup; import android.view.animation.AccelerateDecelerateInterpolator;  public class MySideBarLayout  extends ViewGroup {     private int position = 3;//默认右侧栏     private int move = 0;//记录需要滑动的量     private boolean isopen = false;//打开状态     private boolean ishead=false;//判断滑动趋势是否合格     private float lastX = 0;//记录手指在屏幕中的X     private float lastY = 0;//记录手指在屏幕中的Y     private float countmove = 0;//记录累计滑动量X     //实例化一个监听         public MySideBarLayout(Context context, AttributeSet attrs) {         super(context, attrs);         TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.MySideBarLayout);         position = typedArray.getInteger(R.styleable.MySideBarLayout_position, 3);         typedArray.recycle();     }     public void setOnChangeListener(OnChangeListener onChangeListener1){         onChangeListener=onChangeListener1;     }      //打开侧边栏     public void openBar() {         if (!isopen) {             onChangeListener.Onchanged(true);             setMoveAnim(move, getChildAt(0));             setMoveAnim(move, getChildAt(1));             isopen = true;         }     }     //关闭侧边栏     public void closeBar() {         if (isopen) {             onChangeListener.Onchanged(false);             setMoveAnim(0, getChildAt(0));             setMoveAnim(0, getChildAt(1));             isopen = false;         }     }     //返回侧边栏的状态     public boolean isOpen() {         return isopen;     }              //调用方法启动侧边栏的动画     private void setMoveAnim(float distance, View view) {         ObjectAnimator ro;         if (position == 1 || position == 4) {             ro = ObjectAnimator.ofFloat(view, "translationY", distance).setDuration(300);         } else {             ro = ObjectAnimator.ofFloat(view, "translationX", distance).setDuration(300);         }         ro.setInterpolator(new AccelerateDecelerateInterpolator());         ro.start();     }     //手指滑动侧边栏的动画，与上面那个没什么区别，只是时间不一样，手动的快一丢丢     private void setMoveAnimself(float distance, View view) {         ObjectAnimator ro;         if (position == 1 || position == 4) {             ro = ObjectAnimator.ofFloat(view, "translationY", distance).setDuration(150);         } else {             ro = ObjectAnimator.ofFloat(view, "translationX", distance).setDuration(150);         }         ro.setInterpolator(new AccelerateDecelerateInterpolator());         ro.start();     }      //根据子view确定布局本身的大小     @Override     protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {         super.onMeasure(widthMeasureSpec, heightMeasureSpec);         measureChildren(widthMeasureSpec, heightMeasureSpec);         int widthMode = MeasureSpec.getMode(widthMeasureSpec);         int width = MeasureSpec.getSize(widthMeasureSpec);         int heightMode = MeasureSpec.getMode(heightMeasureSpec);         int height = MeasureSpec.getSize(heightMeasureSpec);         if (widthMode == MeasureSpec.AT_MOST && heightMode == MeasureSpec.AT_MOST) {             int groupWidth = getMaxWidth();             int groupHeight = getTotalHeight();             setMeasuredDimension(groupWidth, groupHeight);         } else if (widthMode == MeasureSpec.AT_MOST) {             setMeasuredDimension(getMaxWidth(), height);         } else if (heightMode == MeasureSpec.AT_MOST) {             setMeasuredDimension(width, getTotalHeight());         }     }     @Override     protected void onLayout(boolean changed, int l, int t, int r, int b) {         int pw = r - l;         int ph = b - t;         View v1 = getChildAt(0);         v1.layout(0, 0, pw, ph);         View v2 = getChildAt(1);         int vw = v2.getMeasuredWidth();         int vh = v2.getMeasuredHeight();         if (position == 1) {             move = vh;             v2.layout(0, -vh, pw, 0);         } else if (position == 2) {             move = vw;             v2.layout(-vw, 0, 0, ph);         } else if (position == 3) {             move = -vw;             v2.layout(pw, 0, pw + vw, ph);         } else if (position == 4) {             move = -vh;             v2.layout(0, ph, pw, ph + vh);         }     }     @Override     public boolean onTouchEvent(MotionEvent event) {         switch (event.getAction()) {             case MotionEvent.ACTION_DOWN:                 lastX = event.getRawX();                 lastY = event.getRawY();                 break;             case MotionEvent.ACTION_MOVE:                 float vx = event.getRawX() - lastX;                 float vy = event.getRawY() - lastY;                 if (position == 1) {                     if(Math.abs(vy)>Math.abs(2*vx)) {                         if (isopen && vy < 0) {                             countmove = vy;                             ishead = true;                         } else if (!isopen && vy > 0) {                             countmove = vy;                             ishead = true;                         }                     }                 } else if (position == 2) {                     if(Math.abs(vx)>Math.abs(2*vy)) {                         if (isopen && vx < 0) {                             countmove = vx;                             ishead = true;                         } else if (!isopen && vx > 0) {                             countmove = vx;                             ishead = true;                         }                     }                 } else if (position == 3) {                     if(Math.abs(vx)>Math.abs(2*vy)) {                         if (isopen && vx > 0) {                             countmove = vx;                             ishead = true;                         } else if (!isopen && vx < 0) {                             countmove = vx;                             ishead = true;                         }                     }                 } else if (position == 4) {                     if(Math.abs(vy)>Math.abs(2*vx)) {                         if (isopen && vy > 0) {                             countmove = vy;                             ishead = true;                         } else if (!isopen && vy < 0) {                             countmove = vy;                             ishead = true;                         }                     }                 }                 break;             case MotionEvent.ACTION_UP:                 if (Math.abs(countmove) > Math.abs(move) / 2 && !isopen&&ishead) {                     isopen = true;                     ishead=false;                     onChangeListener.Onchanged(true);                     setMoveAnimself(move, getChildAt(0));                     setMoveAnimself(move, getChildAt(1));                 } else if (Math.abs(countmove) > Math.abs(move) / 2 && isopen&&ishead) {                     isopen = false;                     ishead=false;                     onChangeListener.Onchanged(false);                     setMoveAnimself(0, getChildAt(0));                     setMoveAnimself(0, getChildAt(1));                 }                 break;         }         return true;      }     private int getMaxWidth() {         int count = getChildCount();         int maxWidth = 0;         for (int i = 0; i < count; i++) {             int currentWidth = getChildAt(i).getMeasuredWidth();             if (maxWidth < currentWidth) {                 maxWidth = currentWidth;             }         }         return maxWidth;     }      private int getTotalHeight() {         int count = getChildCount();         int totalHeight = 0;         for (int i = 0; i < count; i++) {             totalHeight += getChildAt(i).getMeasuredHeight();         }         return totalHeight;     }     private OnChangeListener onChangeListener=new OnChangeListener() {         @Override         public void Onchanged(boolean status) {          }     };      public  interface OnChangeListener{         void Onchanged(boolean status);     } }

使用方法：第一个view为主页面，第二个为侧页面。

在<MySideBarLayout/>中调用

app:position=”top”

提供四个选项 ： top , left , right , bottom

 <包名.MySideBarLayout     android:id="@+id/sidelayout"     android:layout_width="match_parent"     android:layout_height="match_parent"     app:position="top"     >     <RelativeLayout         android:layout_width="match_parent"         android:layout_height="match_parent"         android:background="#00cc66">      </RelativeLayout>      <LinearLayout         android:layout_width="match_parent"         android:layout_height="200dp"         android:background="#ffff33">           </LinearLayout>    </包名.MySideBarLayout>

java 代码中我实现了几个简单的方法：

openBar()打开侧栏

closeBar()关闭侧栏

isOpen()  获取侧边栏的状态

setOnChangeListener(OnChangeListener onChangeListener1)设置侧边栏变化监听

这里注意监听名，MySideBarLayout.OnChangeListener()是我在包内自定义的监听

 mysidebarlayout.setOnChangeListener(new MySideBarLayout.OnChangeListener() {     @Override     public void Onchanged(boolean status) {         if(status){             textview.setText("侧边栏已打开");         }else{             textview.setText("侧边栏已关闭");         }     } });

就这么简单就OK了，如果需要在这个布局里同时能滑动四个侧边栏，也可以实现的，重写这个onlayout……..需要的话自行解决吧，东西比较简陋，有什么问题可以留言建议，我再调整调整，一起学习学习
