Spring Cloud之Feign结合Hystrix断路器的两种方式java北有孤酒的博客-

关于Feign和Hystrix断路器的概念知识，有兴趣的小伙伴们可以去https://blog.csdn.net/weixin_44364444/article/details/105969229看看。

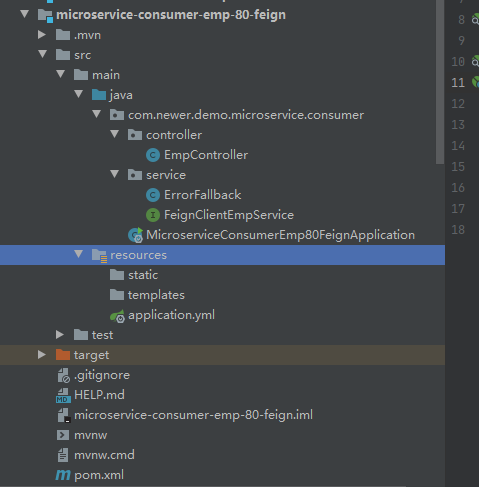

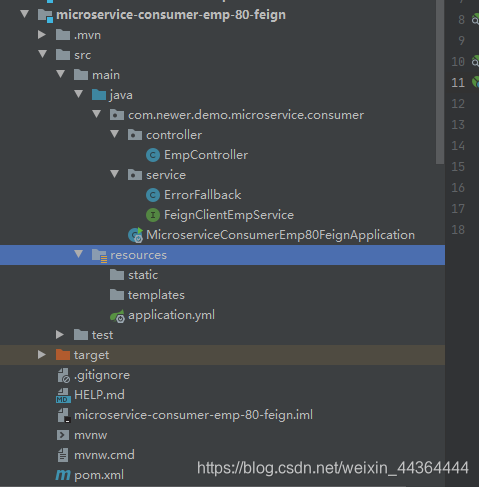

microservice-consumer-emp-80-feign

pom.xml

 <?xml version="1.0" encoding="UTF-8"?> <project xmlns="https://maven.apache.org/POM/4.0.0" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"          xsi:schemaLocation="https://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">     <modelVersion>4.0.0</modelVersion>     <parent>         <groupId>org.springframework.boot</groupId>         <artifactId>spring-boot-starter-parent</artifactId>         <version>2.2.6.RELEASE</version>         <relativePath/> <!-- lookup parent from repository -->     </parent>     <groupId>com.newer.demo</groupId>     <artifactId>microservice-consumer-emp-80-feign</artifactId>     <version>0.0.1-SNAPSHOT</version>     <name>microservice-consumer-emp-80-feign</name>     <description>Demo project for Spring Boot</description>      <properties>         <java.version>1.8</java.version>         <spring-cloud.version>Hoxton.SR4</spring-cloud.version>     </properties>      <dependencies>         <dependency>             <groupId>org.springframework.boot</groupId>             <artifactId>spring-boot-starter-web</artifactId>         </dependency>         <dependency>             <groupId>org.springframework.cloud</groupId>             <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>         </dependency>         <dependency>             <groupId>org.springframework.cloud</groupId>             <artifactId>spring-cloud-starter-openfeign</artifactId>         </dependency>          <dependency>             <groupId>org.springframework.boot</groupId>             <artifactId>spring-boot-devtools</artifactId>             <scope>runtime</scope>             <optional>true</optional>         </dependency>         <dependency>             <groupId>org.springframework.boot</groupId>             <artifactId>spring-boot-starter-test</artifactId>             <scope>test</scope>             <exclusions>                 <exclusion>                     <groupId>org.junit.vintage</groupId>                     <artifactId>junit-vintage-engine</artifactId>                 </exclusion>             </exclusions>         </dependency>     </dependencies>      <dependencyManagement>         <dependencies>             <dependency>                 <groupId>org.springframework.cloud</groupId>                 <artifactId>spring-cloud-dependencies</artifactId>                 <version>${spring-cloud.version}</version>                 <type>pom</type>                 <scope>import</scope>             </dependency>         </dependencies>     </dependencyManagement>      <build>         <plugins>             <plugin>                 <groupId>org.springframework.boot</groupId>                 <artifactId>spring-boot-maven-plugin</artifactId>             </plugin>         </plugins>     </build>  </project>

application.yml

 server:   port: 80     #设置Eureka请求地址 eureka:   client:     service-url:       defaultZone: https://eureka7001.com:7001/eureka/,https://eureka7002.com:7002/eureka/,https://eureka7003.com:7003/eureka/  #调整显示ip   instance:     instance-id: microservice-consumer-emp-80-feign     prefer-ip-address: true #注册服务名称 spring:   application:     name: microservice-consumer-feign  #启用hystrix feign:   hystrix:     enabled: true

MicroserviceConsumerEmp80FeignApplication

 package com.newer.demo.microservice.consumer;  import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; import org.springframework.cloud.openfeign.EnableFeignClients;  @SpringBootApplication @EnableDiscoveryClient @EnableFeignClients public class MicroserviceConsumerEmp80FeignApplication {      public static void main(String[] args) {         SpringApplication.run(MicroserviceConsumerEmp80FeignApplication.class, args);     }  }

FeignClientEmpService.java

 package com.newer.demo.microservice.consumer.service;  import org.springframework.cloud.openfeign.FeignClient; import org.springframework.http.ResponseEntity; import org.springframework.web.bind.annotation.GetMapping;  /**  * 定义Feign客户端接口  */ //指定服务名称 //   fallback  ,fallbackFactory  二选一 @FeignClient(value ="EmpService" ,fallback = ErrorFallback.class) public interface FeignClientEmpService {  //    服务提供方映射地址     @GetMapping("/api/emps")     public ResponseEntity<?> emps(); }

ErrorFallback.java

 package com.newer.demo.microservice.consumer.service;  import org.springframework.http.HttpStatus; import org.springframework.http.ResponseEntity; import org.springframework.stereotype.Component;  /**  * 1.编写类实现FeignClientEmpService接口  * 2.将该类装配成Bean  */ @Component public class ErrorFallback implements FeignClientEmpService{     @Override     public ResponseEntity<?> emps() {         return new ResponseEntity<>("服务出现异常，将进行熔断", HttpStatus.OK);     } }

EmpController.java

 package com.newer.demo.microservice.consumer.controller;  import com.newer.demo.microservice.consumer.service.FeignClientEmpService; import org.springframework.http.ResponseEntity; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController;  import javax.annotation.Resource;  @RestController @RequestMapping("/api") public class EmpController {   //    注入     @Resource     private FeignClientEmpService feignClientEmpService;      @GetMapping("/emps")     public ResponseEntity<?> emps(){         return feignClientEmpService.emps();      } }

上面使用到的是 fallback

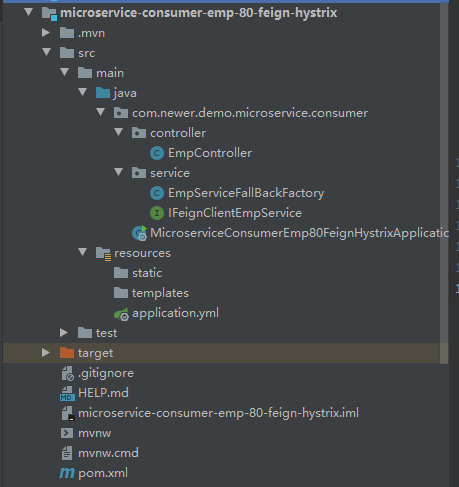

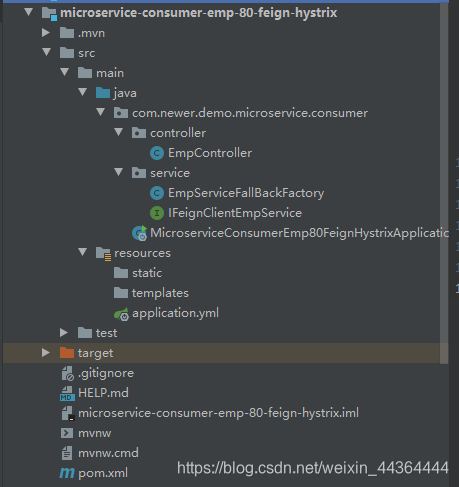

microservice-consumer-emp-80-feign-hystrix

pom.xml

 <?xml version="1.0" encoding="UTF-8"?> <project xmlns="https://maven.apache.org/POM/4.0.0" xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"          xsi:schemaLocation="https://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">     <modelVersion>4.0.0</modelVersion>     <parent>         <groupId>org.springframework.boot</groupId>         <artifactId>spring-boot-starter-parent</artifactId>         <version>2.2.6.RELEASE</version>         <relativePath/> <!-- lookup parent from repository -->     </parent>     <groupId>com.newer.demo</groupId>     <artifactId>microservice-consumer-emp-80-feign-hystrix</artifactId>     <version>0.0.1-SNAPSHOT</version>     <name>microservice-consumer-emp-80-feign-hystrix</name>     <description>Demo project for Spring Boot</description>      <properties>         <java.version>1.8</java.version>         <spring-cloud.version>Hoxton.SR4</spring-cloud.version>     </properties>      <dependencies>         <dependency>             <groupId>org.springframework.boot</groupId>             <artifactId>spring-boot-starter-web</artifactId>         </dependency>         <dependency>             <groupId>org.springframework.cloud</groupId>             <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>         </dependency>         <dependency>             <groupId>org.springframework.cloud</groupId>             <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>         </dependency>         <dependency>             <groupId>org.springframework.cloud</groupId>             <artifactId>spring-cloud-starter-openfeign</artifactId>         </dependency>          <dependency>             <groupId>org.springframework.boot</groupId>             <artifactId>spring-boot-devtools</artifactId>             <scope>runtime</scope>             <optional>true</optional>         </dependency>         <dependency>             <groupId>org.springframework.boot</groupId>             <artifactId>spring-boot-starter-test</artifactId>             <scope>test</scope>             <exclusions>                 <exclusion>                     <groupId>org.junit.vintage</groupId>                     <artifactId>junit-vintage-engine</artifactId>                 </exclusion>             </exclusions>         </dependency>     </dependencies>      <dependencyManagement>         <dependencies>             <dependency>                 <groupId>org.springframework.cloud</groupId>                 <artifactId>spring-cloud-dependencies</artifactId>                 <version>${spring-cloud.version}</version>                 <type>pom</type>                 <scope>import</scope>             </dependency>         </dependencies>     </dependencyManagement>      <build>         <plugins>             <plugin>                 <groupId>org.springframework.boot</groupId>                 <artifactId>spring-boot-maven-plugin</artifactId>             </plugin>         </plugins>     </build>  </project>

application.yml

 server:   port: 80     #设置Eureka请求地址 eureka:   client:     service-url:       defaultZone: https://eureka7001.com:7001/eureka/,https://eureka7002.com:7002/eureka/,https://eureka7003.com:7003/eureka/  #调整显示ip   instance:     instance-id: microservice-consumer-emp-80-feign-hystrix     prefer-ip-address: true #注册服务名称 spring:   application:     name: microservice-consumer-feign  #启用hystrix feign:   hystrix:     enabled: true

MicroserviceConsumerEmp80FeignHystrixApplication

 package com.newer.demo.microservice.consumer;  import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker; import org.springframework.cloud.client.discovery.EnableDiscoveryClient; import org.springframework.cloud.openfeign.EnableFeignClients;  @SpringBootApplication @EnableDiscoveryClient @EnableCircuitBreaker @EnableFeignClients public class MicroserviceConsumerEmp80FeignHystrixApplication {      public static void main(String[] args) {         SpringApplication.run(MicroserviceConsumerEmp80FeignHystrixApplication.class, args);     }  }

IFeignClientEmpService.java

 package com.newer.demo.microservice.consumer.service;  import org.springframework.cloud.openfeign.FeignClient; import org.springframework.http.ResponseEntity; import org.springframework.web.bind.annotation.GetMapping;  /**  *  *  */  @FeignClient(value = "EmpService",fallbackFactory =EmpServiceFallBackFactory.class ) public interface IFeignClientEmpService {      @GetMapping("/api/emps")     public ResponseEntity<?> emps(); }

EmpServiceFallBackFactory.java

 package com.newer.demo.microservice.consumer.service;  import feign.hystrix.FallbackFactory; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.http.HttpStatus; import org.springframework.http.ResponseEntity; import org.springframework.stereotype.Component;  @Component public class EmpServiceFallBackFactory implements FallbackFactory<IFeignClientEmpService> {       //创建日志记录器实例     private static final Logger log= LoggerFactory.getLogger(EmpServiceFallBackFactory.class);      @Override     public IFeignClientEmpService create(Throwable throwable) { //        可以通过throwable得到异常信息         return new IFeignClientEmpService() {             @Override             public ResponseEntity<?> emps() {                 log.error("大事不好了，他跑路了",throwable);                 return new ResponseEntity<>("服务结束", HttpStatus.INTERNAL_SERVER_ERROR);             }         };     } }

EmpController.java

 package com.newer.demo.microservice.consumer.controller;  import com.newer.demo.microservice.consumer.service.IFeignClientEmpService; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.http.ResponseEntity; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController;  /**  *  */ @RestController @RequestMapping("/api") public class EmpController {      @Autowired     private IFeignClientEmpService feignClientEmpService;      @GetMapping("/emps")     public ResponseEntity<?> emps(){         return  feignClientEmpService.emps();     } }

这里使用的是 fallbackFactory

其他模块可以去https://blog.csdn.net/weixin_44364444/article/details/105955997看看

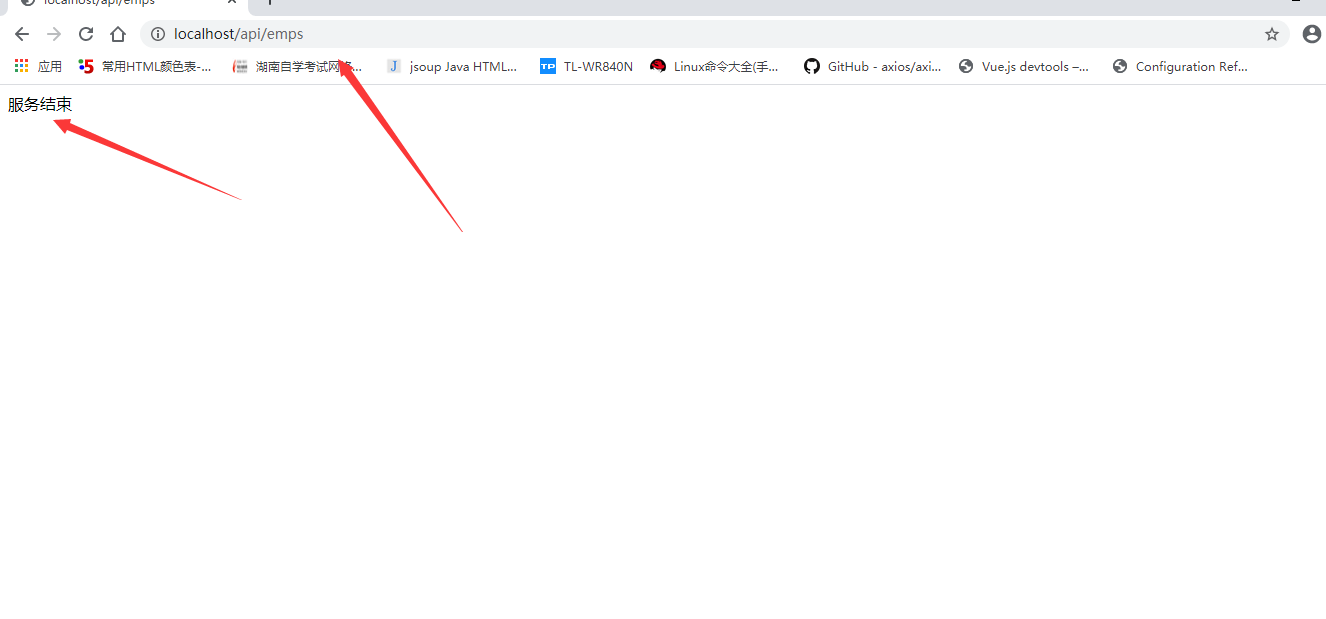

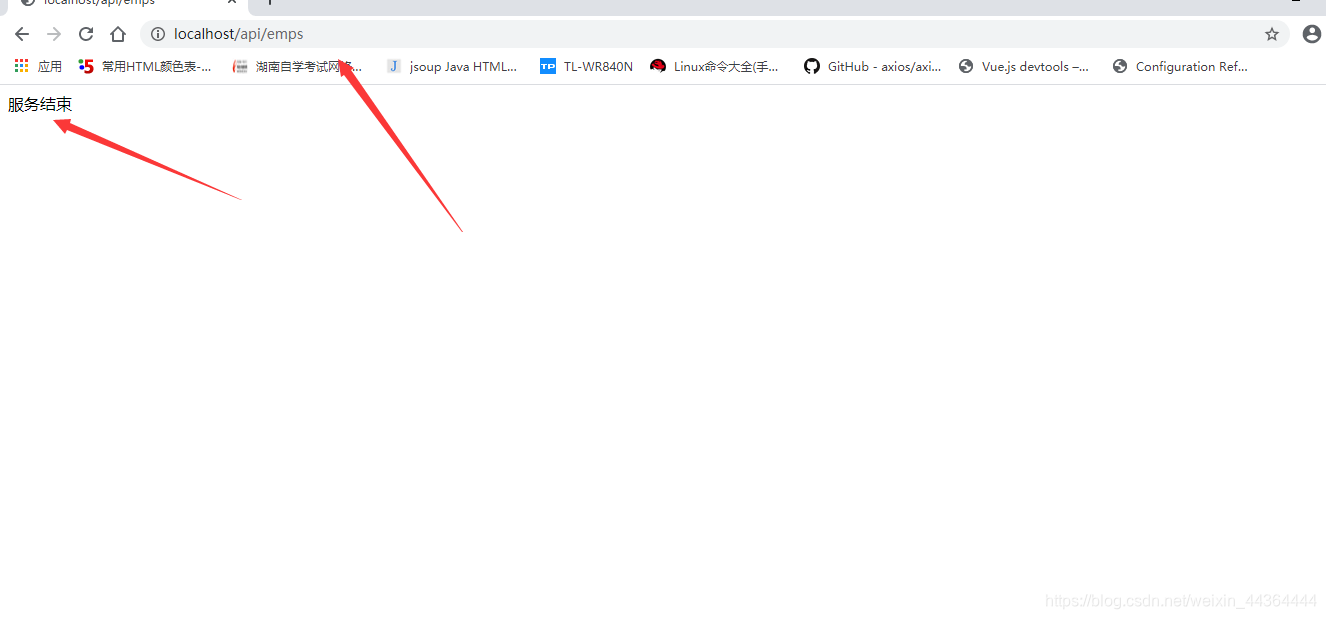

程序运行，可以看的负载均衡的这个服务器已经Hystrix

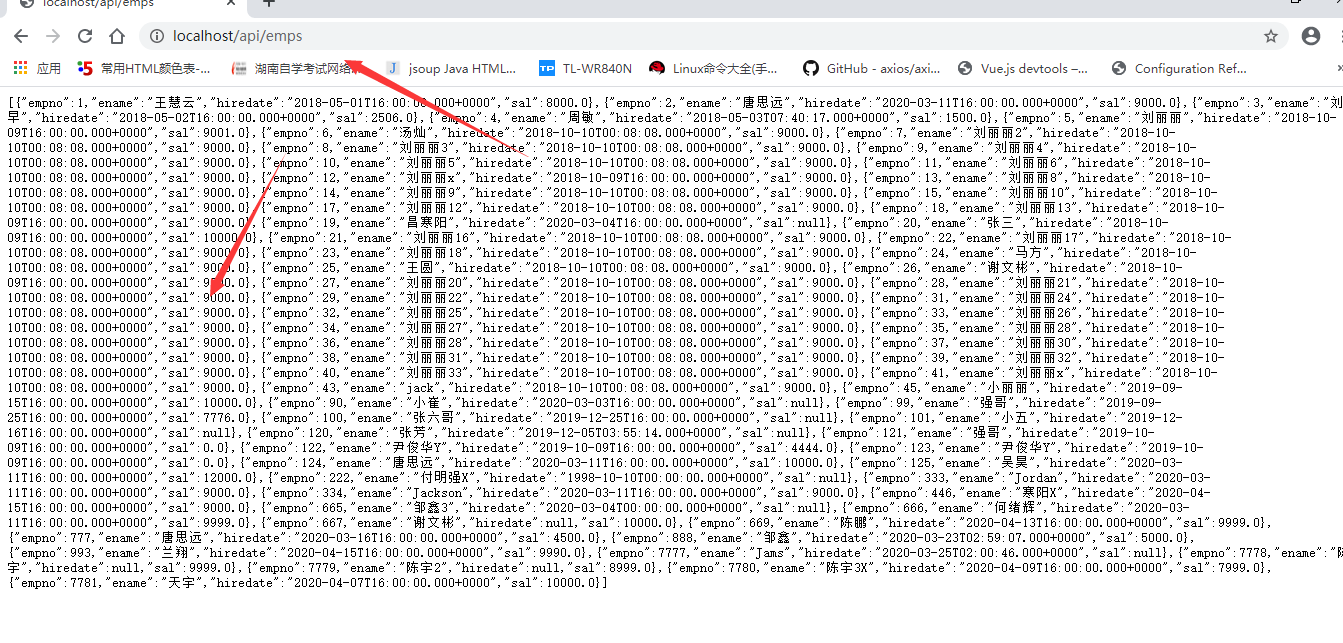

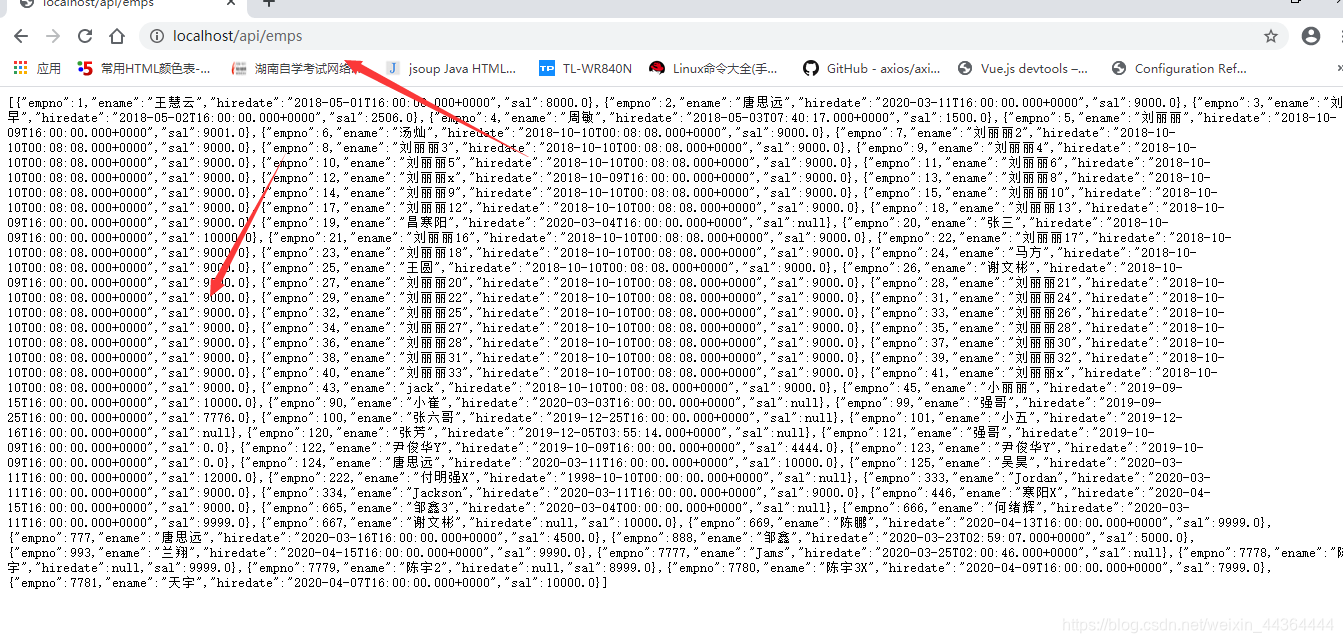

当刷新浏览器，服务器切换到其他，数据又会重新出来

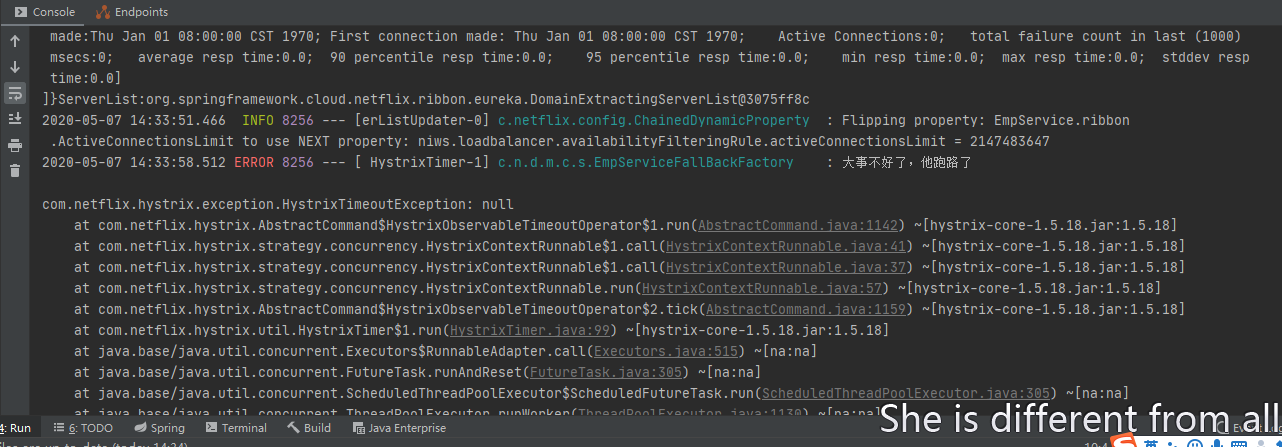

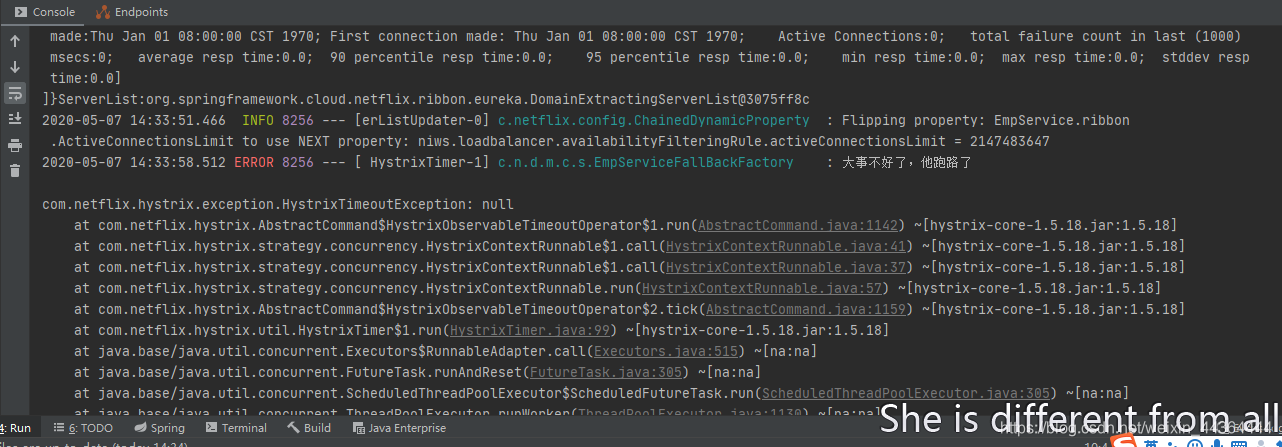

控制会打印被 Hystrix的信息

 关于Spring Cloud之Feign结合Hystrix断路器的两种方式就到这里了，有问题的小伙伴可以去前面的博客看，或者留言！！！
