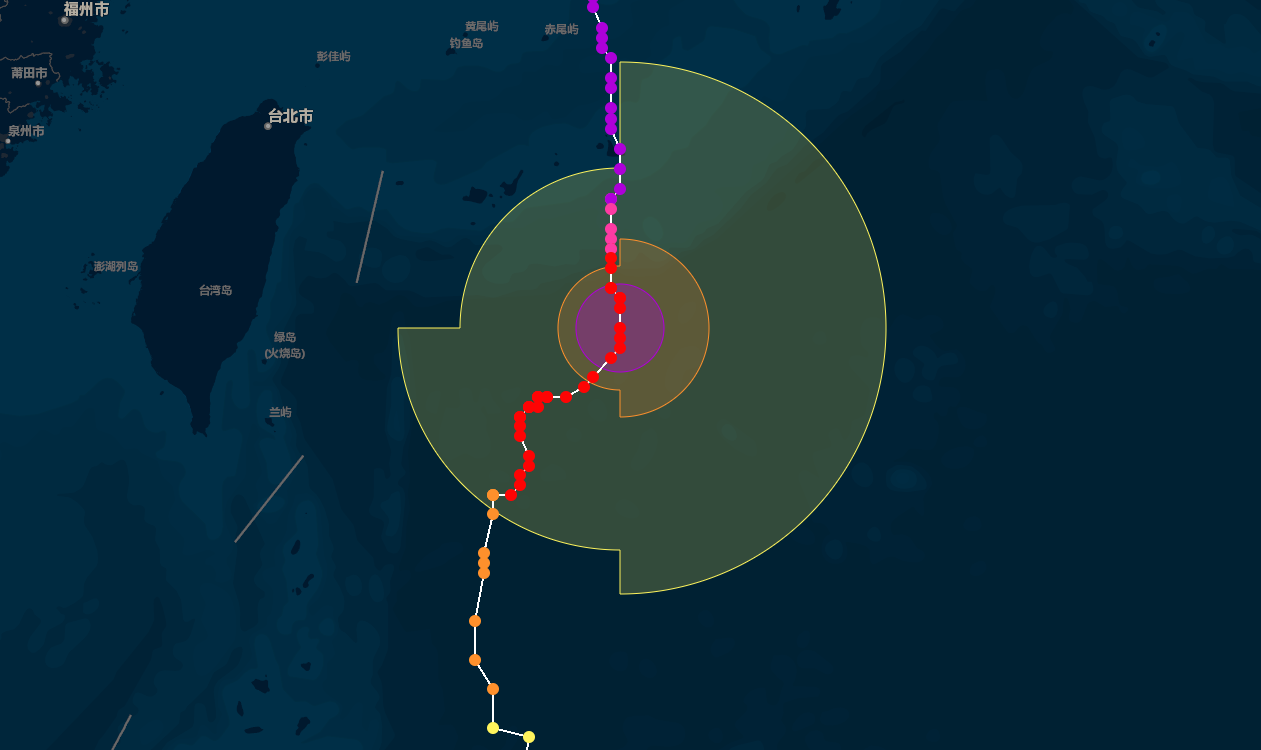

实现效果

实现思路

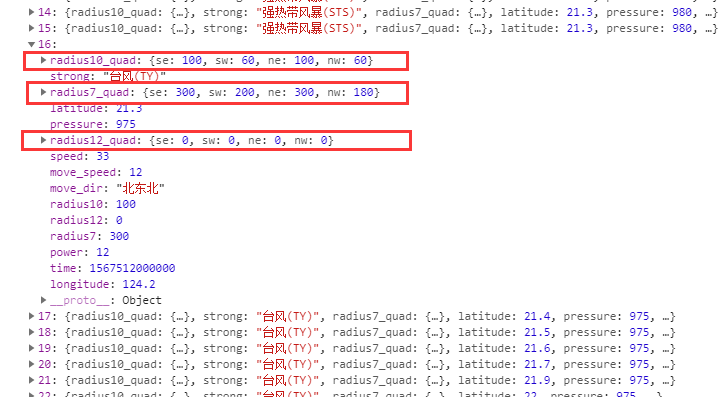

我们先来看一下，后端返回的数据格式。下面是台风轨迹列表中的一条记录，红框的字段就是画台风风圈的关键字段：se、se、ne、nw分别代表当前点位台风风圈的东南、西南、东北、西北四个方向的影响半径。

html的图形的绘制，svg和canvas。最开始选择的是canvas，绘制好了之后，在地图的位移时要重新计算和绘制实现效果不理想。

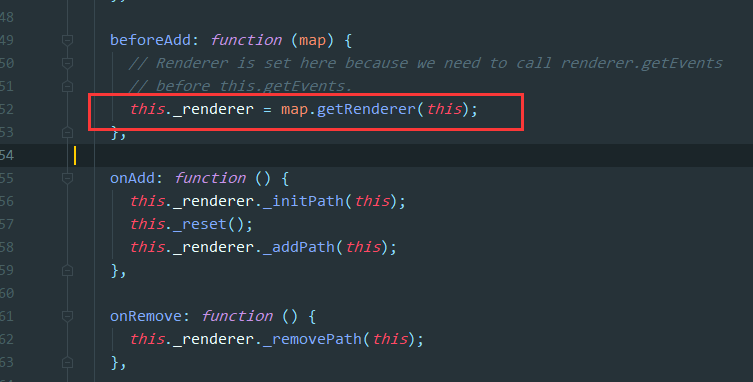

之后看了下leaflet的源码发现L.Polygon 是继承自L.Path对象。而L.Path本身又是，基于SVG实现的。那就好办了，我们继承L.Polygon再写个类L.Typhoon

L.Typhoon类中，两个最核心方法：一个是计算风圈四个方向半径，一个是绘制台风风圈： 基于SVG的path元素来实现的，下面是代码：

核心代码

1. 计算风圈半径：台风中心经纬度和半径计算屏幕坐标

projectLatlngs: function () { try { var e = this._latlng; this._point = this._map.latLngToLayerPoint(e); var t_northeast = this._getLngRadius(this._getLatRadius(this._circle.ne * 1000)),            i_northeast = this._map.latLngToLayerPoint([e.lat, e.lng - t_northeast]); this._radius_northeast = Math.max(this._point.x - i_northeast.x, 1); var t_southeast = this._getLngRadius(this._getLatRadius(this._circle.se * 1000)),            i_southeast = this._map.latLngToLayerPoint([e.lat, e.lng - t_southeast]); this._radius_southeast = Math.max(this._point.x - i_southeast.x, 1); var t_southwest = this._getLngRadius(this._getLatRadius(this._circle.sw * 1000)),            i_southwest = this._map.latLngToLayerPoint([e.lat, e.lng - t_southwest]); this._radius_southwest = Math.max(this._point.x - i_southwest.x, 1); var t_northwest = this._getLngRadius(this._getLatRadius(this._circle.nw * 1000)),            i_northwest = this._map.latLngToLayerPoint([e.lat, e.lng - t_northwest]); this._radius_northwest = Math.max(this._point.x - i_northwest.x, 1) } catch (e) { this._radius_northeast = null; this._radius_southeast = null; this._radius_southwest = null; this._radius_northwest = null } },

3. 绘制台风风圈：

getTyphoonPath: function () { if (this._radius_northeast && this._radius_southeast && this._radius_southwest && this._radius_northwest) { var t = this._point; var e_northeast = this._radius_northeast; var path_svg = "M" + t.x + "," + (t.y - e_northeast); var path_vml = "M" + t.x + "," + (t.y - e_northeast);         path_svg += "A" + e_northeast + "," + e_northeast + ",0,0,1," + (t.x + e_northeast) + "," + t.y;         path_vml += " ae " + t.x + "," + t.y + " " + e_northeast + "," + e_northeast + " " + 65535 * 450 + "," + -5898150; var e_southeast = this._radius_southeast;         path_svg += "L" + (t.x + e_southeast) + "," + t.y;         path_svg += "A" + e_southeast + "," + e_southeast + ",0,0,1," + t.x + "," + (t.y + e_southeast);         path_vml += " ae " + t.x + "," + t.y + " " + e_southeast + "," + e_southeast + " " + 65535 * 360 + "," + -5898150; var e_southwest = this._radius_southwest;         path_svg += "L" + t.x + "," + (t.y + e_southwest);         path_svg += "A" + e_southwest + "," + e_southwest + ",0,0,1," + (t.x - e_southwest) + "," + t.y;         path_vml += " ae " + t.x + "," + t.y + " " + e_southwest + "," + e_southwest + " " + 65535 * 270 + "," + -5898150; var e_northwest = this._radius_northwest;         path_svg += "L" + (t.x - e_northwest) + "," + t.y;         path_svg += "A" + e_northwest + "," + e_northwest + ",0,0,1," + t.x + "," + (t.y - e_northwest) + "z";         path_vml += " ae " + t.x + "," + t.y + " " + e_northwest + "," + e_northwest + " " + 65535 * 180 + "," + -5898150 + "X"; this.svgPath = L.Browser.svg ? path_svg : path_vml         return L.Browser.svg ? path_svg : path_vml       } return "" },

全部代码

(function () { L.Typhoon = L.Polygon.extend({     initialize: function (t, e, i) { L.Polygon.prototype.initialize.call(this, e), this._latlng = L.latLng(t), this._circle = e,this._style = i; },     options: {fill: !0},     projectLatlngs: function () { try { var e = this._latlng; this._point = this._map.latLngToLayerPoint(e); var t_northeast = this._getLngRadius(this._getLatRadius(this._circle.ne * 1000)),             i_northeast = this._map.latLngToLayerPoint([e.lat, e.lng - t_northeast]); this._radius_northeast = Math.max(this._point.x - i_northeast.x, 1); var t_southeast = this._getLngRadius(this._getLatRadius(this._circle.se * 1000)),             i_southeast = this._map.latLngToLayerPoint([e.lat, e.lng - t_southeast]); this._radius_southeast = Math.max(this._point.x - i_southeast.x, 1); var t_southwest = this._getLngRadius(this._getLatRadius(this._circle.sw * 1000)),             i_southwest = this._map.latLngToLayerPoint([e.lat, e.lng - t_southwest]); this._radius_southwest = Math.max(this._point.x - i_southwest.x, 1); var t_northwest = this._getLngRadius(this._getLatRadius(this._circle.nw * 1000)),             i_northwest = this._map.latLngToLayerPoint([e.lat, e.lng - t_northwest]); this._radius_northwest = Math.max(this._point.x - i_northwest.x, 1) } catch (e) { this._radius_northeast = null; this._radius_southeast = null; this._radius_southwest = null; this._radius_northwest = null } },     getTyphoonPath: function () { if (this._radius_northeast && this._radius_southeast && this._radius_southwest && this._radius_northwest) { var t = this._point; var e_northeast = this._radius_northeast; var path_svg = "M" + t.x + "," + (t.y - e_northeast); var path_vml = "M" + t.x + "," + (t.y - e_northeast);         path_svg += "A" + e_northeast + "," + e_northeast + ",0,0,1," + (t.x + e_northeast) + "," + t.y;         path_vml += " ae " + t.x + "," + t.y + " " + e_northeast + "," + e_northeast + " " + 65535 * 450 + "," + -5898150; var e_southeast = this._radius_southeast;         path_svg += "L" + (t.x + e_southeast) + "," + t.y;         path_svg += "A" + e_southeast + "," + e_southeast + ",0,0,1," + t.x + "," + (t.y + e_southeast);         path_vml += " ae " + t.x + "," + t.y + " " + e_southeast + "," + e_southeast + " " + 65535 * 360 + "," + -5898150; var e_southwest = this._radius_southwest;         path_svg += "L" + t.x + "," + (t.y + e_southwest);         path_svg += "A" + e_southwest + "," + e_southwest + ",0,0,1," + (t.x - e_southwest) + "," + t.y;         path_vml += " ae " + t.x + "," + t.y + " " + e_southwest + "," + e_southwest + " " + 65535 * 270 + "," + -5898150; var e_northwest = this._radius_northwest;         path_svg += "L" + (t.x - e_northwest) + "," + t.y;         path_svg += "A" + e_northwest + "," + e_northwest + ",0,0,1," + t.x + "," + (t.y - e_northwest) + "z";         path_vml += " ae " + t.x + "," + t.y + " " + e_northwest + "," + e_northwest + " " + 65535 * 180 + "," + -5898150 + "X"; this.svgPath = L.Browser.svg ? path_svg : path_vml         return L.Browser.svg ? path_svg : path_vml       } return "" },     beforeAdd: function (map) { this._renderer = map.getRenderer(this); },     onAdd: function (map) { this.projectLatlngs(); this.getTyphoonPath(); this._renderer._initPath(this); this._reset(); this._path.setAttribute('d',this.svgPath); this._renderer._addPath(this); this._setStyle(this._style); },      _setStyle: function (style) { L.setOptions(this, style); if (this._renderer) { this._renderer._updateStyle(this); } return this; },     _getLatRadius: function (r) { return r / 40075017 * 360 },     _getLngRadius: function (lr) { return lr / Math.cos(Math.PI / 180 * this._latlng.lat) } }); L.typhoon = function (t, e, i) { return new L.Typhoon(t, e, i) } })();

结束语

以上就是台风风圈的绘制实现及代码。本文是基于leaflet v1.6.0的完成的，低版本的leaflet是否可以用并未进行测试，请自行进行测试或对代码进行修改。
