【项目】数仓项目（八）大数据Together-【项目】数仓项目（八）大数据Together-

（图片来源于网络，侵删）

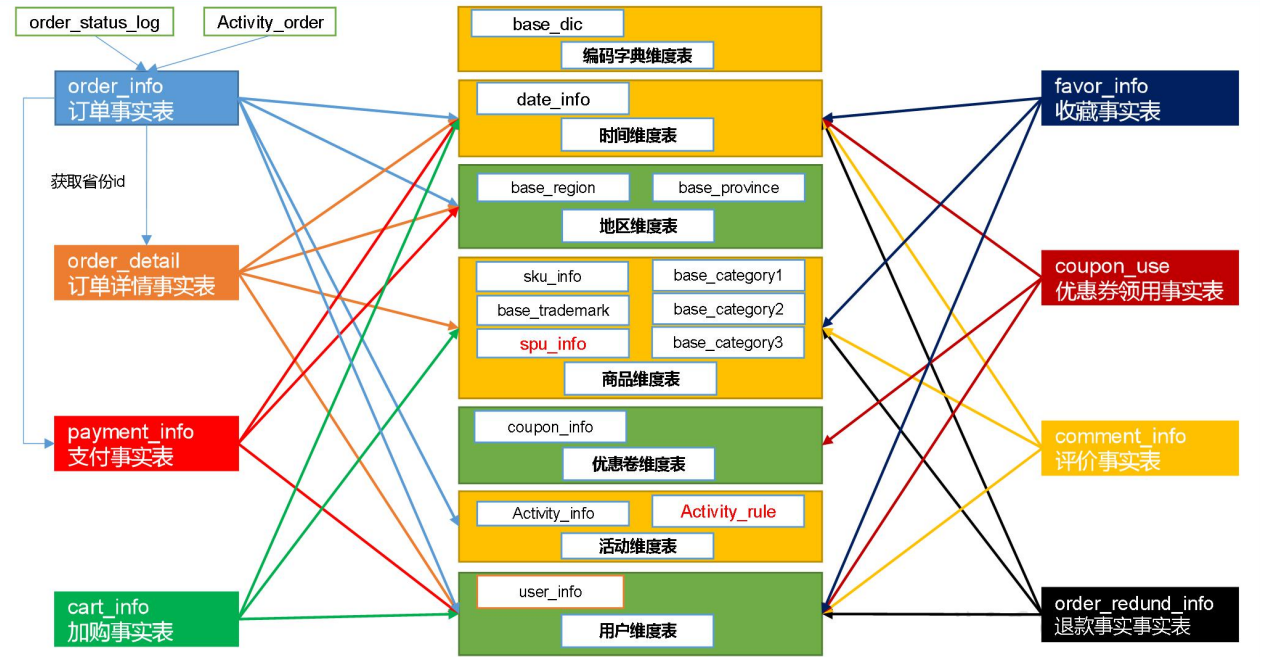

1.1 DWD 层（业务数据）

【项目】数仓项目（八）大数据Together-

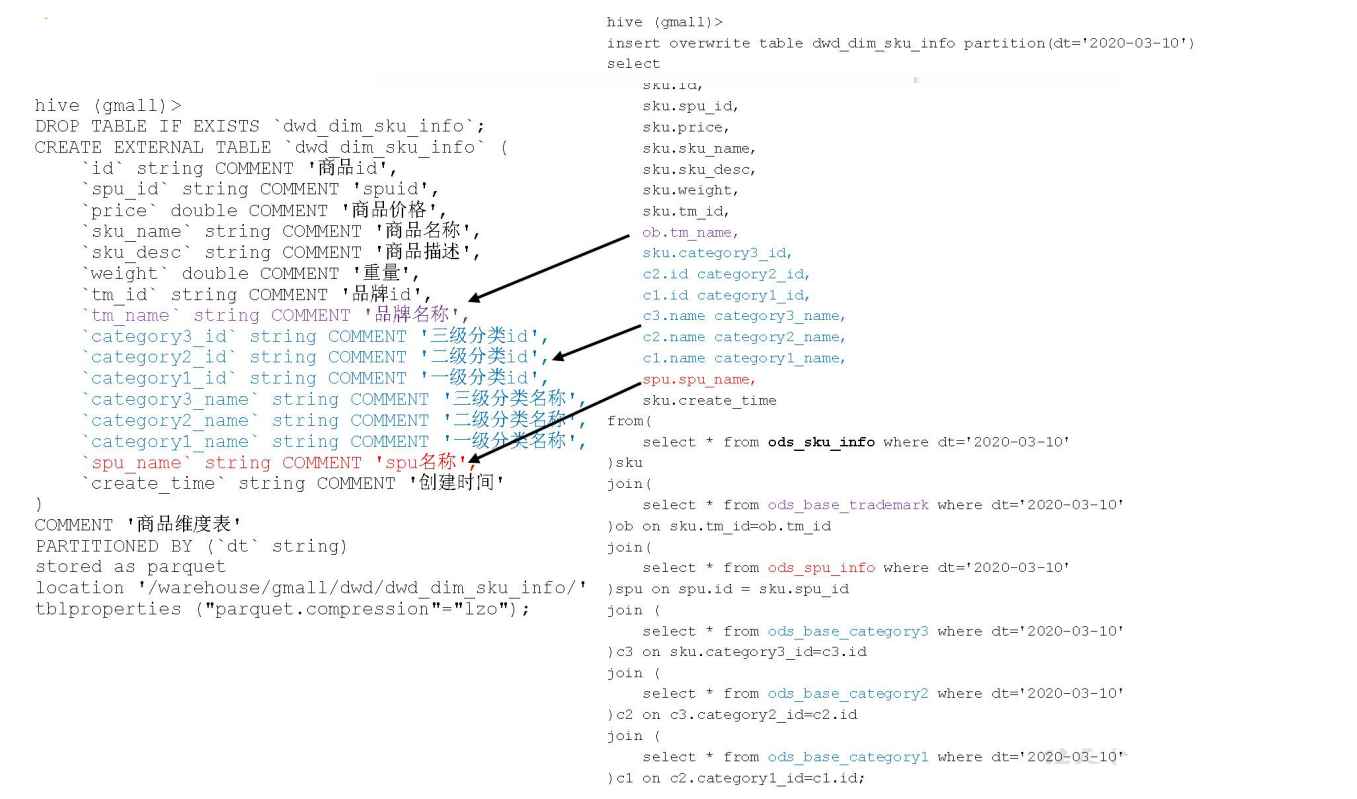

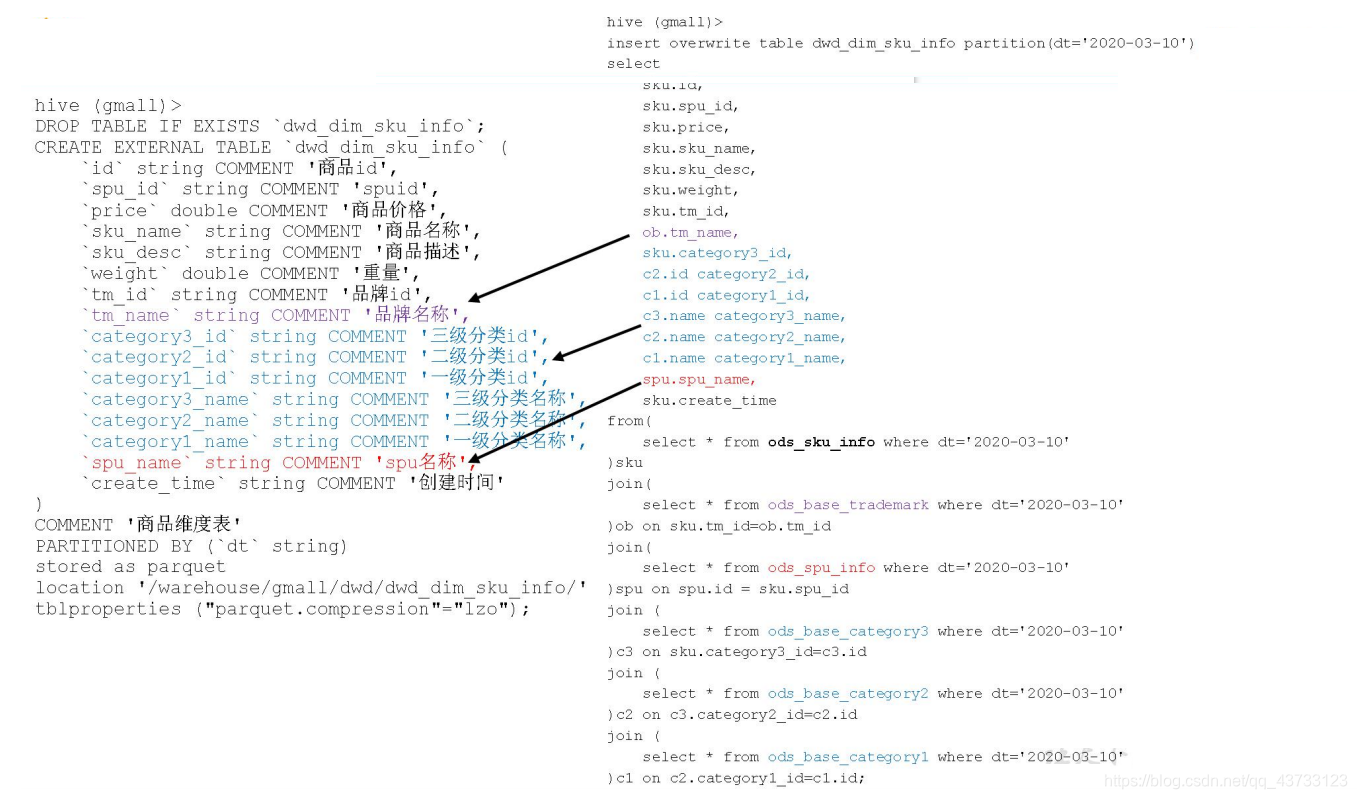

1.1.1 商品维度表（全量表）

【项目】数仓项目（八）大数据Together-
1）建表语句

DROP TABLE IF EXISTS `dwd_dim_sku_info`; CREATE EXTERNAL TABLE `dwd_dim_sku_info` ( `id` string COMMENT '商品 id', `spu_id` string COMMENT 'spuid', `price` double COMMENT '商品价格', `sku_name` string COMMENT '商品名称', `sku_desc` string COMMENT '商品描述', `weight` double COMMENT '重量', `tm_id` string COMMENT '品牌 id', `tm_name` string COMMENT '品牌名称', `category3_id` string COMMENT '三级分类 id', `category2_id` string COMMENT '二级分类 id', `category1_id` string COMMENT '一级分类 id', `category3_name` string COMMENT '三级分类名称', `category2_name` string COMMENT '二级分类名称', `category1_name` string COMMENT '一级分类名称', `spu_name` string COMMENT 'spu 名称', `create_time` string COMMENT '创建时间' ) COMMENT '商品维度表' PARTITIONED BY (`dt` string) stored as parquet location '/warehouse/gmall/dwd/dwd_dim_sku_info/' tblproperties ("parquet.compression"="lzo");

2）数据装载

insert overwrite table dwd_dim_sku_info partition(dt='2020-03-10') select sku.id, sku.spu_id, sku.price, sku.sku_name, sku.sku_desc, sku.weight, sku.tm_id, ob.tm_name, sku.category3_id, c2.id category2_id, c1.id category1_id, c3.name category3_name, c2.name category2_name, c1.name category1_name, spu.spu_name, sku.create_time from ( select * from ods_sku_info where dt='2020-03-10' )sku join ( select * from ods_base_trademark where dt='2020-03-10' )ob on sku.tm_id=ob.tm_id join ( select * from ods_spu_info where dt='2020-03-10' )spu on spu.id = sku.spu_id join ( select * from ods_base_category3 where dt='2020-03-10' )c3 on sku.category3_id=c3.id join ( select * from ods_base_category2 where dt='2020-03-10' )c2 on c3.category2_id=c2.id join ( select * from ods_base_category1 where dt='2020-03-10' )c1 on c2.category1_id=c1.id;

3）查询加载结果

select * from dwd_dim_sku_info where dt='2020-03-10';
1.1.2 优惠券信息表（全量）

把 ODS 层 ods_coupon_info 表数据导入到 DWD 层优惠卷信息表，在导入过程中可以做适当的清洗
1）建表语句

drop table if exists dwd_dim_coupon_info; create external table dwd_dim_coupon_info( `id` string COMMENT '购物券编号', `coupon_name` string COMMENT '购物券名称', `coupon_type` string COMMENT '购物券类型 1 现金券 2 折扣券 3 满减券 4 满件打折券', `condition_amount` string COMMENT '满额数', `condition_num` string COMMENT '满件数', `activity_id` string COMMENT '活动编号', `benefit_amount` string COMMENT '减金额', `benefit_discount` string COMMENT '折扣', `create_time` string COMMENT '创建时间', `range_type` string COMMENT '范围类型 1、商品 2、品类 3、品牌', `spu_id` string COMMENT '商品 id', `tm_id` string COMMENT '品牌 id', `category3_id` string COMMENT '品类 id', `limit_num` string COMMENT '最多领用次数', `operate_time` string COMMENT '修改时间', `expire_time` string COMMENT '过期时间' ) COMMENT '优惠券信息表' PARTITIONED BY (`dt` string) row format delimited fields terminated by 't' stored as parquet location '/warehouse/gmall/dwd/dwd_dim_coupon_info/' tblproperties ("parquet.compression"="lzo");

2）数据装载

insert overwrite table dwd_dim_coupon_info partition(dt='2020-03-10') select id, coupon_name, coupon_type, condition_amount, condition_num, activity_id, benefit_amount, benefit_discount, create_time, range_type, spu_id, tm_id, category3_id, limit_num, operate_time, expire_time from ods_coupon_info where dt='2020-03-10';

3）查询加载结果

select * from dwd_dim_coupon_info where dt='2020-03-10';

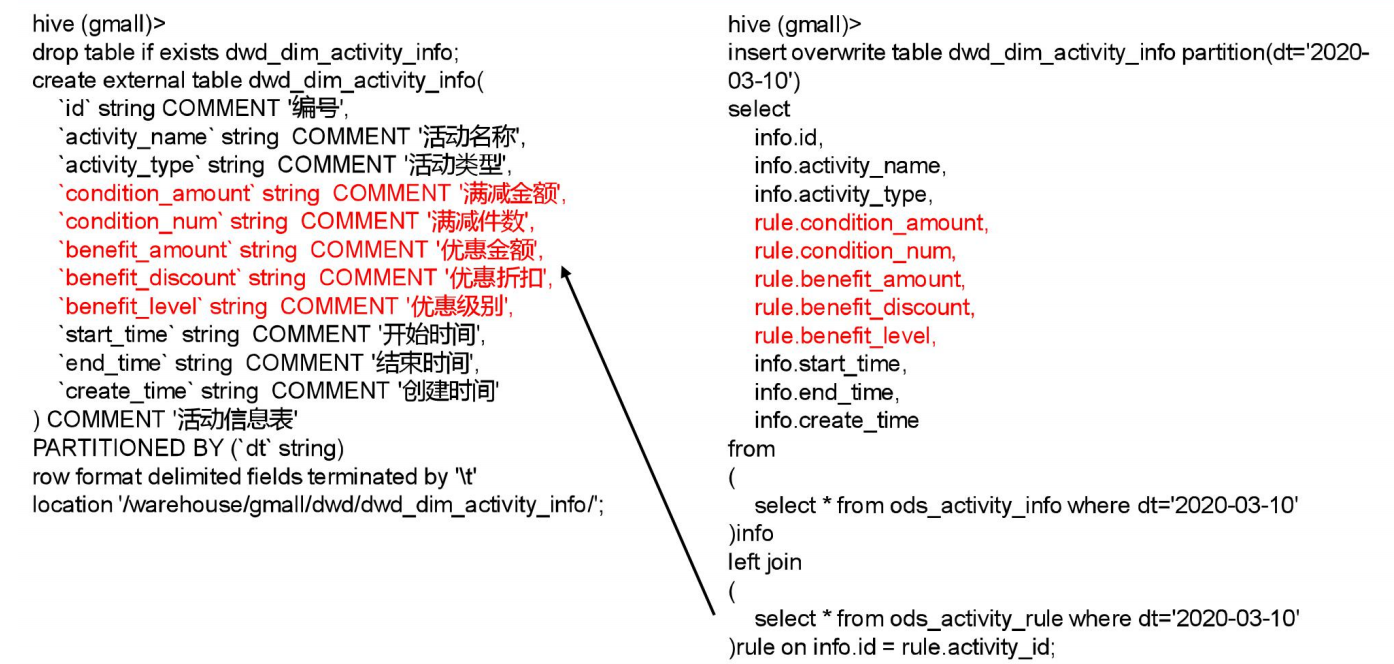

1.1.3 活动维度表（全量）

【项目】数仓项目（八）大数据Together-
1）建表语句

drop table if exists dwd_dim_activity_info; create external table dwd_dim_activity_info( `id` string COMMENT '编号', `activity_name` string COMMENT '活动名称', `activity_type` string COMMENT '活动类型', `condition_amount` string COMMENT '满减金额', `condition_num` string COMMENT '满减件数', `benefit_amount` string COMMENT '优惠金额', `benefit_discount` string COMMENT '优惠折扣', `benefit_level` string COMMENT '优惠级别', `start_time` string COMMENT '开始时间', `end_time` string COMMENT '结束时间', `create_time` string COMMENT '创建时间' ) COMMENT '活动信息表' PARTITIONED BY (`dt` string) row format delimited fields terminated by 't' stored as parquet location '/warehouse/gmall/dwd/dwd_dim_activity_info/' tblproperties ("parquet.compression"="lzo");

2）数据装载

insert overwrite table dwd_dim_activity_info partition(dt='2020-03-10') select info.id, info.activity_name, info.activity_type, rule.condition_amount, rule.condition_num, rule.benefit_amount, rule.benefit_discount, rule.benefit_level, info.start_time, info.end_time, info.create_time from ( select * from ods_activity_info where dt='2020-03-10' )info left join ( select * from ods_activity_rule where dt='2020-03-10' )rule on info.id = rule.activity_id;

3）查询加载结果

select * from dwd_dim_activity_info where dt='2020-03-10';

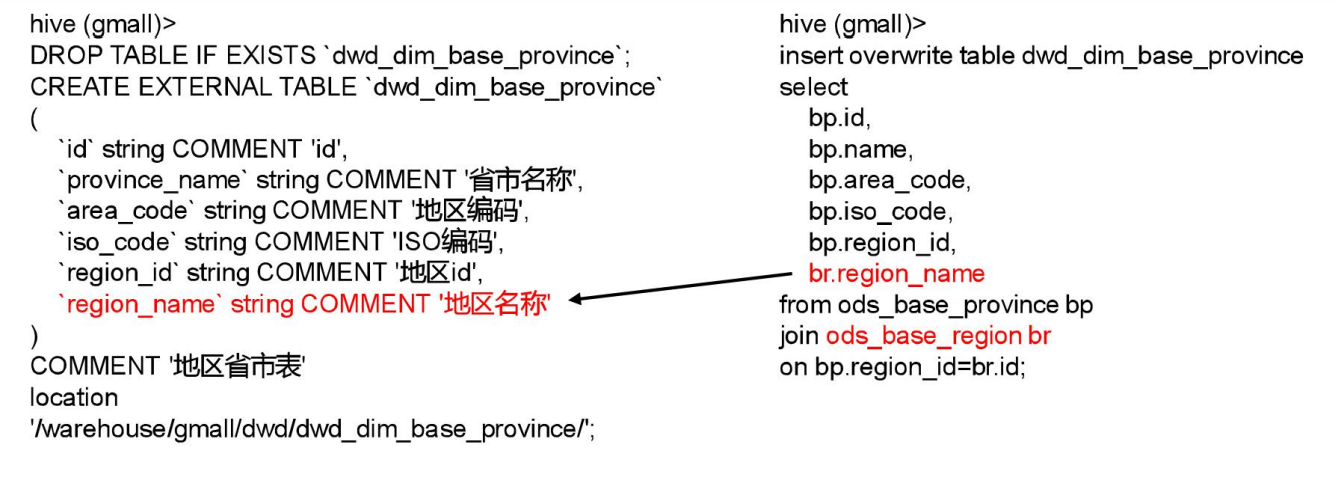

1.1.4 地区维度表（特殊）

【项目】数仓项目（八）大数据Together-
1）建表语句

DROP TABLE IF EXISTS `dwd_dim_base_province`; CREATE EXTERNAL TABLE `dwd_dim_base_province` ( `id` string COMMENT 'id', `province_name` string COMMENT '省市名称', `area_code` string COMMENT '地区编码', `iso_code` string COMMENT 'ISO 编码', `region_id` string COMMENT '地区 id', `region_name` string COMMENT '地区名称' ) COMMENT '地区省市表' stored as parquet location '/warehouse/gmall/dwd/dwd_dim_base_province/' tblproperties ("parquet.compression"="lzo");

2）数据装载

insert overwrite table dwd_dim_base_province select bp.id, bp.name, bp.area_code, bp.iso_code, bp.region_id, br.region_name from ods_base_province bp join ods_base_region br on bp.region_id=br.id;
1.1.5 时间维度表（特殊）（预留）

1）建表语句

DROP TABLE IF EXISTS `dwd_dim_date_info`; CREATE EXTERNAL TABLE `dwd_dim_date_info`( `date_id` string COMMENT '日', `week_id` int COMMENT '周', `week_day` int COMMENT '周的第几天', `day` int COMMENT '每月的第几天', `month` int COMMENT '第几月', `quarter` int COMMENT '第几季度', `year` int COMMENT '年', `is_workday` int COMMENT '是否是周末', `holiday_id` int COMMENT '是否是节假日' ) row format delimited fields terminated by 't' stored as parquet location '/warehouse/gmall/dwd/dwd_dim_date_info/' tblproperties ("parquet.compression"="lzo");

2）把 date_info.txt 文件上传到 node01 的 /opt/modules/db_log/路径

3）数据装载

load data local inpath '/opt/modules/db_log/date_info.txt' into table dwd_dim_date_info;

4）查询加载结果

select * from dwd_dim_date_info;

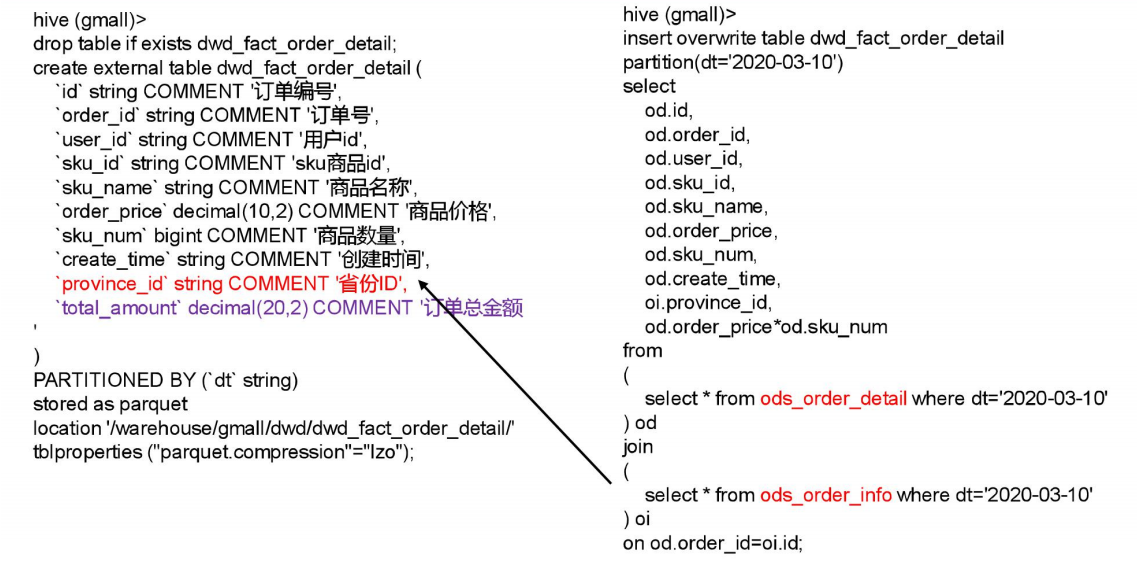

1.1.6 订单明细事实表（事务型快照事实表）

【项目】数仓项目（八）大数据Together-
【项目】数仓项目（八）大数据Together-
1）建表语句

drop table if exists dwd_fact_order_detail; create external table dwd_fact_order_detail ( `id` string COMMENT '订单编号', `order_id` string COMMENT '订单号', `user_id` string COMMENT '用户 id', `sku_id` string COMMENT 'sku 商品 id', `sku_name` string COMMENT '商品名称', `order_price` decimal(10,2) COMMENT '商品价格', `sku_num` bigint COMMENT '商品数量', `create_time` string COMMENT '创建时间', `province_id` string COMMENT '省份 ID', `total_amount` decimal(20,2) COMMENT '订单总金额' ) PARTITIONED BY (`dt` string) stored as parquet location '/warehouse/gmall/dwd/dwd_fact_order_detail/' tblproperties ("parquet.compression"="lzo");

2）数据装载

insert overwrite table dwd_fact_order_detail partition(dt='2020-03-10') select od.id, od.order_id, od.user_id, od.sku_id, od.sku_name, od.order_price, od.sku_num, od.create_time, oi.province_id, od.order_price*od.sku_num from ( select * from ods_order_detail where dt='2020-03-10' ) od join ( select * from ods_order_info where dt='2020-03-10' ) oi on od.order_id=oi.id;

3）查询加载结果

select * from dwd_fact_order_detail where dt='2020-03-10';

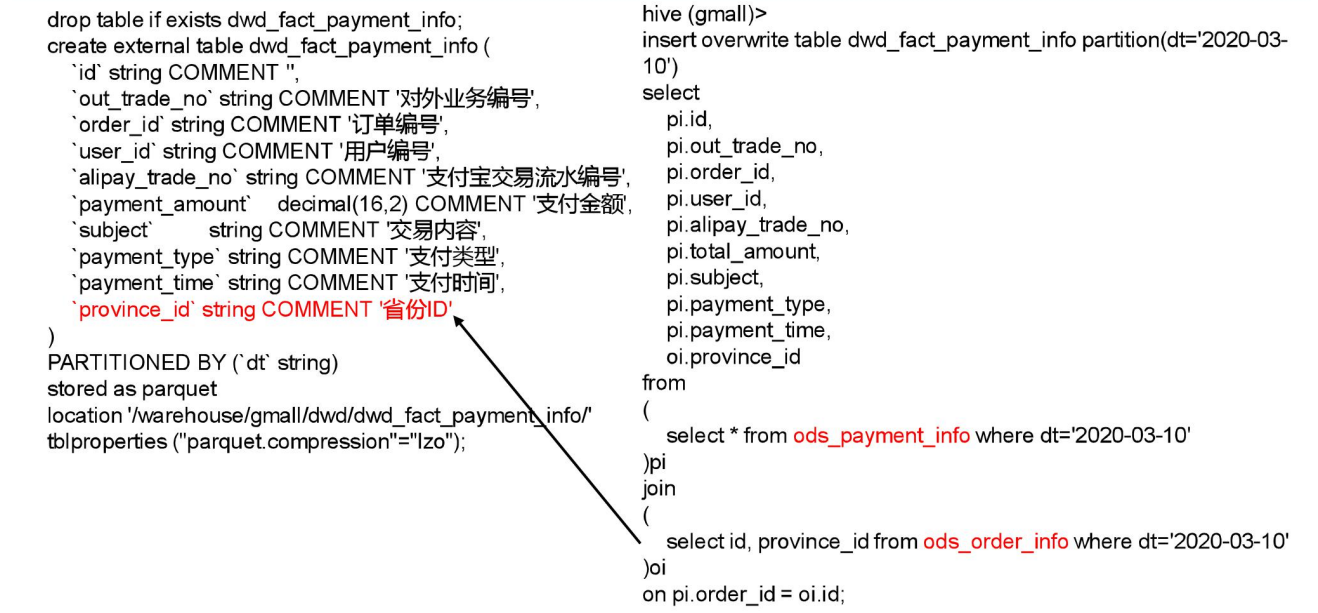

1.1.7 支付事实表（事务型快照事实表）

【项目】数仓项目（八）大数据Together-
【项目】数仓项目（八）大数据Together-
1）建表语句

drop table if exists dwd_fact_payment_info; create external table dwd_fact_payment_info ( `id` string COMMENT '', `out_trade_no` string COMMENT '对外业务编号', `order_id` string COMMENT '订单编号', `user_id` string COMMENT '用户编号', `alipay_trade_no` string COMMENT '支付宝交易流水编号', `payment_amount` decimal(16,2) COMMENT '支付金额', `subject` string COMMENT '交易内容', `payment_type` string COMMENT '支付类型', `payment_time` string COMMENT '支付时间', `province_id` string COMMENT '省份 ID' ) PARTITIONED BY (`dt` string) stored as parquet location '/warehouse/gmall/dwd/dwd_fact_payment_info/' tblproperties ("parquet.compression"="lzo");

2）数据装载

insert overwrite table dwd_fact_payment_info partition(dt='2020-03-10') select pi.id, pi.out_trade_no, pi.order_id, pi.user_id, pi.alipay_trade_no, pi.total_amount, pi.subject, pi.payment_type, pi.payment_time, oi.province_id from ( select * from ods_payment_info where dt='2020-03-10' )pi join ( select id, province_id from ods_order_info where dt='2020-03-10' )oi on pi.order_id = oi.id;

3）查询加载结果

select * from dwd_fact_payment_info where dt='2020-03-10';
1.1.8 退款事实表（事务型快照事实表）

把 ODS 层 ods_order_refund_info 表数据导入到 DWD 层退款事实表，在导入过程中可以做适当的清洗
【项目】数仓项目（八）大数据Together-
1）建表语句

drop table if exists dwd_fact_order_refund_info; create external table dwd_fact_order_refund_info( `id` string COMMENT '编号', `user_id` string COMMENT '用户 ID', `order_id` string COMMENT '订单 ID', `sku_id` string COMMENT '商品 ID', `refund_type` string COMMENT '退款类型', `refund_num` bigint COMMENT '退款件数', `refund_amount` decimal(16,2) COMMENT '退款金额', `refund_reason_type` string COMMENT '退款原因类型', `create_time` string COMMENT '退款时间' ) COMMENT '退款事实表' PARTITIONED BY (`dt` string) row format delimited fields terminated by 't' location '/warehouse/gmall/dwd/dwd_fact_order_refund_info/';

2）数据装载

insert overwrite table dwd_fact_order_refund_info partition(dt='2020-03-10') select id, user_id, order_id, sku_id, refund_type, refund_num, refund_amount, refund_reason_type, create_time from ods_order_refund_info where dt='2020-03-10';

3）查询加载结果

select * from dwd_fact_order_refund_info where dt='2020-03-10';
1.1.9 评价事实表（事务型快照事实表）

把 ODS 层 ods_comment_info 表数据导入到 DWD 层评价事实表，在导入过程中可以做适当的清洗
【项目】数仓项目（八）大数据Together-
1）建表语句

drop table if exists dwd_fact_comment_info; create external table dwd_fact_comment_info( `id` string COMMENT '编号', `user_id` string COMMENT '用户 ID', `sku_id` string COMMENT '商品 sku', `spu_id` string COMMENT '商品 spu', `order_id` string COMMENT '订单 ID', `appraise` string COMMENT '评价', `create_time` string COMMENT '评价时间' ) COMMENT '评价事实表' PARTITIONED BY (`dt` string) row format delimited fields terminated by 't' location '/warehouse/gmall/dwd/dwd_fact_comment_info/';

2）数据装载

insert overwrite table dwd_fact_comment_info partition(dt='2020-03-10') select id, user_id, sku_id, spu_id, order_id, appraise, create_time from ods_comment_info where dt='2020-03-10';

3）查询加载结果

select * from dwd_fact_comment_info where dt='2020-03-10';
1.1.10 加购事实表（周期型快照事实表，每日快照）

由于购物车的数量是会发生变化，所以导增量不合适
每天做一次快照，导入的数据是全量，区别于事务型事实表是每天导入新增
周期型快照事实表劣势：存储的数据量会比较大
解决方案：周期型快照事实表存储的数据比较讲究时效性，时间太久了的意义不大，可以删除以前的数据
【项目】数仓项目（八）大数据Together-
1）建表语句

drop table if exists dwd_fact_cart_info; create external table dwd_fact_cart_info( `id` string COMMENT '编号', `user_id` string COMMENT '用户 id', `sku_id` string COMMENT 'skuid', `cart_price` string COMMENT '放入购物车时价格', `sku_num` string COMMENT '数量', `sku_name` string COMMENT 'sku 名称 (冗余)', `create_time` string COMMENT '创建时间', `operate_time` string COMMENT '修改时间', `is_ordered` string COMMENT '是否已经下单。1 为已下单;0 为未下单', `order_time` string COMMENT '下单时间' ) COMMENT '加购事实表' PARTITIONED BY (`dt` string) row format delimited fields terminated by 't' location '/warehouse/gmall/dwd/dwd_fact_cart_info/';

2）数据装载

insert overwrite table dwd_fact_cart_info partition(dt='2020-03-10') select id, user_id, sku_id, cart_price, sku_num, sku_name, create_time, operate_time, is_ordered, order_time from ods_cart_info where dt='2020-03-10';

3）查询加载结果

select * from dwd_fact_cart_info where dt='2020-03-10';
1.1.11 事实表（周期型快照事实表，每日快照）

的标记，是否取消，会发生变化，做增量不合适
每天做一次快照，导入的数据是全量，区别于事务型事实表是每天导入新增
【项目】数仓项目（八）大数据Together-
1）建表语句

drop table if exists dwd_fact_favor_info; create external table dwd_fact_favor_info( `id` string COMMENT '编号', `user_id` string COMMENT '用户 id', `sku_id` string COMMENT 'skuid', `spu_id` string COMMENT 'spuid', `is_cancel` string COMMENT '是否取消', `create_time` string COMMENT '时间', `cancel_time` string COMMENT '取消时间' ) COMMENT '事实表' PARTITIONED BY (`dt` string) row format delimited fields terminated by 't' location '/warehouse/gmall/dwd/dwd_fact_favor_info/';

2）数据装载

insert overwrite table dwd_fact_favor_info partition(dt='2020-03-10') select id, user_id, sku_id, spu_id, is_cancel, create_time, cancel_time from ods_favor_info where dt='2020-03-10';

3）查询加载结果

select * from dwd_fact_favor_info where dt='2020-03-10';
1.1.12 优惠券领用事实表（累积型快照事实表）

【项目】数仓项目（八）大数据Together-
优惠卷的生命周期：领取优惠卷-》用优惠卷下单-》优惠卷参与支付

累积型快照事实表使用：统计优惠卷领取次数、优惠卷下单次数、优惠卷参与支付次数

1）建表语句

drop table if exists dwd_fact_coupon_use; create external table dwd_fact_coupon_use( `id` string COMMENT '编号', `coupon_id` string COMMENT '优惠券 ID', `user_id` string COMMENT 'userid', `order_id` string COMMENT '订单 id', `coupon_status` string COMMENT '优惠券状态', `get_time` string COMMENT '领取时间', `using_time` string COMMENT '使用时间(下单)', `used_time` string COMMENT '使用时间(支付)' ) COMMENT '优惠券领用事实表' PARTITIONED BY (`dt` string) row format delimited fields terminated by 't' location '/warehouse/gmall/dwd/dwd_fact_coupon_use/';

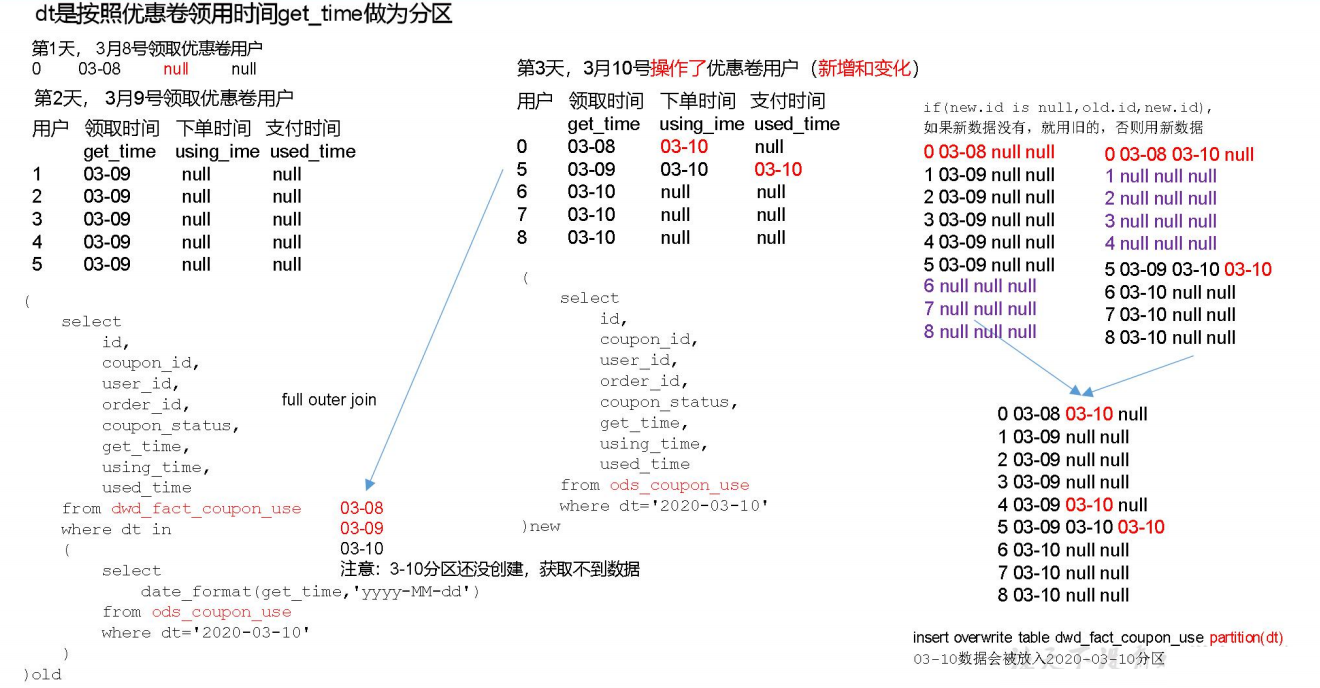

注意：dt 是按照优惠卷领用时间 get_time 做为分区

2）数据装载
【项目】数仓项目（八）大数据Together-

set hive.exec.dynamic.partition.mode=nonstrict; insert overwrite table dwd_fact_coupon_use partition(dt) select if(new.id is null,old.id,new.id), if(new.coupon_id is null,old.coupon_id,new.coupon_id), if(new.user_id is null,old.user_id,new.user_id), if(new.order_id is null,old.order_id,new.order_id), if(new.coupon_status is null,old.coupon_status,new.coupon_status), if(new.get_time is null,old.get_time,new.get_time), if(new.using_time is null,old.using_time,new.using_time), if(new.used_time is null,old.used_time,new.used_time), date_format(if(new.get_time is null,old.get_time,new.get_time),'yyyy-MM-dd') from ( select id, coupon_id, user_id, order_id, coupon_status, get_time, using_time, used_time from dwd_fact_coupon_use where dt in ( select date_format(get_time,'yyyy-MM-dd') from ods_coupon_use where dt='2020-03-10' ) )old full outer join ( select id, coupon_id, user_id, order_id, coupon_status, get_time, using_time, used_time from ods_coupon_use where dt='2020-03-10' )new on old.id=new.id;

3）查询加载结果

select * from dwd_fact_coupon_use where dt='2020-03-10';
1.1.13 订单事实表（累积型快照事实表）

1）concat 函数
concat 函数在连接字符串的时候，只要其中一个是 NULL，那么将返回 NULL

hive> select concat('a','b'); ab hive> select concat('a','b',null); NULL

2）concat_ws 函数
concat_ws 函数在连接字符串的时候，只要有一个字符串不是 NULL，就不会返回 NULL。concat_ws 函数需要指定分隔符

hive> select concat_ws('-','a','b'); a-b hive> select concat_ws('-','a','b',null); a-b hive> select concat_ws('','a','b',null); ab

3）STR_TO_MAP 函数

  • （1）语法描述
    STR_TO_MAP(VARCHAR text, VARCHAR listDelimiter, VARCHAR keyValueDelimiter)
  • （2）功能描述
    使用 listDelimiter 将 text 分隔成 K-V 对，然后使用 keyValueDelimiter 分隔每个 K-V 对，
    组装成 MAP 返回。默认 listDelimiter 为（ ，），keyValueDelimiter 为（=）。
  • （3）案例
    str_to_map(‘1001=2020-03-10,1002=2020-03-10’, ‘,’ , ‘=’)
    输出{“1001”:“2020-03-10”,“1002”:“2020-03-10”}

4）建表语句
【项目】数仓项目（八）大数据Together-
订单生命周期：创建时间=》支付时间=》取消时间=》完成时间=》退款时间=》退款完成时间

由于 ODS 层订单表只有创建时间和操作时间两个状态，不能表达所有时间含义，所以需要关联订单状态表。订单事实表里面增加了活动 id，所以需要关联活动订单表

drop table if exists dwd_fact_order_info; create external table dwd_fact_order_info ( `id` string COMMENT '订单编号', `order_status` string COMMENT '订单状态', `user_id` string COMMENT '用户 id', `out_trade_no` string COMMENT '支付流水号', `create_time` string COMMENT '创建时间(未支付状态)', `payment_time` string COMMENT '支付时间(已支付状态)', `cancel_time` string COMMENT '取消时间(已取消状态)', `finish_time` string COMMENT '完成时间(已完成状态)', `refund_time` string COMMENT '退款时间(退款中状态)', `refund_finish_time` string COMMENT '退款完成时间(退款完成状态)', `province_id` string COMMENT '省份 ID', `activity_id` string COMMENT '活动 ID', `original_total_amount` string COMMENT '原价金额', `benefit_reduce_amount` string COMMENT '优惠金额', `feight_fee` string COMMENT '运费', `final_total_amount` decimal(10,2) COMMENT '订单金额' ) PARTITIONED BY (`dt` string) stored as parquet location '/warehouse/gmall/dwd/dwd_fact_order_info/' tblproperties ("parquet.compression"="lzo");

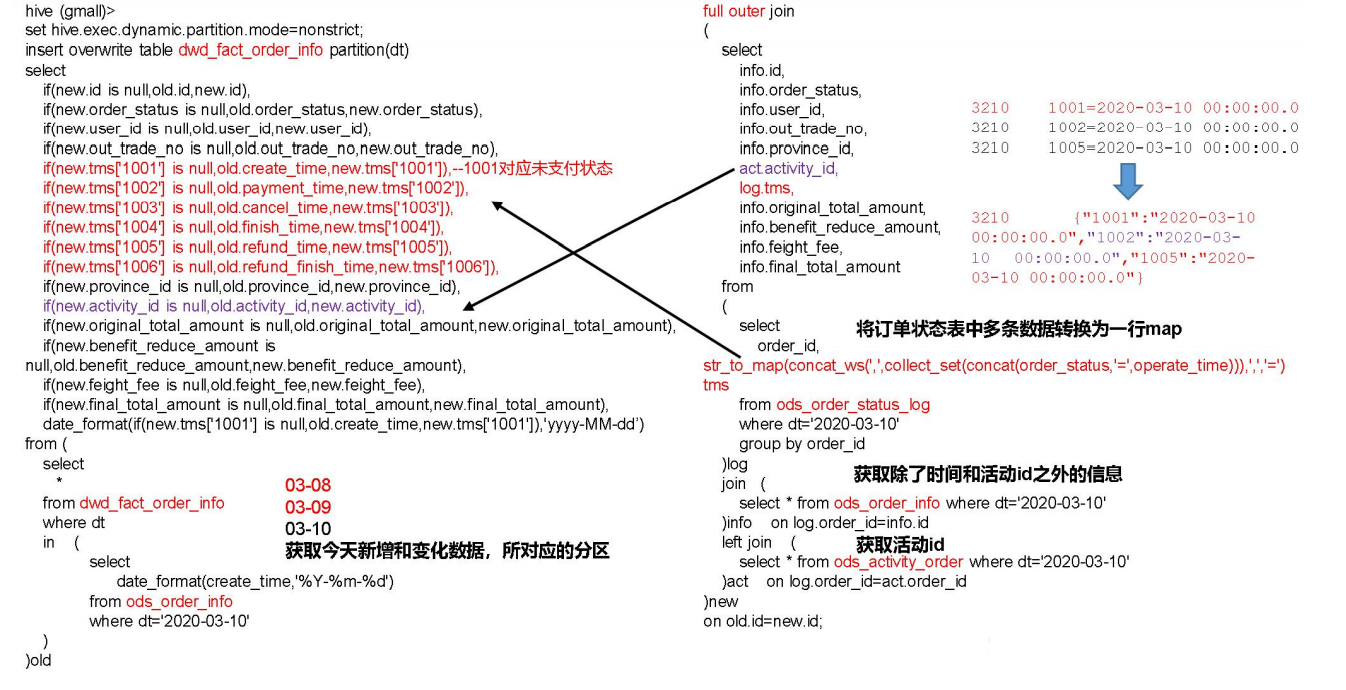

5）数据装载
【项目】数仓项目（八）大数据Together-
5）常用函数
更多函数请点击博客【HIve】Hive入门解析（五）

6）数据装载

set hive.exec.dynamic.partition.mode=nonstrict; insert overwrite table dwd_fact_order_info partition(dt) select if(new.id is null,old.id,new.id), if(new.order_status is null,old.order_status,new.order_status), if(new.user_id is null,old.user_id,new.user_id), if(new.out_trade_no is null,old.out_trade_no,new.out_trade_no), if(new.tms['1001'] is null,old.create_time,new.tms['1001']),--1001 对应未支付状态 if(new.tms['1002'] is null,old.payment_time,new.tms['1002']), if(new.tms['1003'] is null,old.cancel_time,new.tms['1003']), if(new.tms['1004'] is null,old.finish_time,new.tms['1004']), if(new.tms['1005'] is null,old.refund_time,new.tms['1005']), if(new.tms['1006'] is null,old.refund_finish_time,new.tms['1006']), if(new.province_id is null,old.province_id,new.province_id), if(new.activity_id is null,old.activity_id,new.activity_id), if(new.original_total_amount is null,old.original_total_amount,new.original_total_amount), if(new.benefit_reduce_amount is null,old.benefit_reduce_amount,new.benefit_reduce_amount), if(new.feight_fee is null,old.feight_fee,new.feight_fee), if(new.final_total_amount is null,old.final_total_amount,new.final_total_amount), date_format(if(new.tms['1001'] is null,old.create_time,new.tms['1001']),'yyyy-MM-dd') from ( select id, order_status, user_id, out_trade_no, create_time, payment_time, cancel_time, finish_time, refund_time, refund_finish_time, province_id, activity_id, original_total_amount, benefit_reduce_amount, feight_fee, final_total_amount from dwd_fact_order_info where dt in ( select date_format(create_time,'yyyy-MM-dd') from ods_order_info where dt='2020-03-10' ) )old full outer join ( select info.id, info.order_status, info.user_id, info.out_trade_no, info.province_id, act.activity_id, log.tms, info.original_total_amount, info.benefit_reduce_amount, info.feight_fee, info.final_total_amount from ( select order_id, str_to_map(concat_ws(',',collect_set(concat(order_status,'=',operate_time))),',','=') tms from ods_order_status_log where dt='2020-03-10' group by order_id )log join ( select * from ods_order_info where dt='2020-03-10' )info on log.order_id=info.id left join ( select * from ods_activity_order where dt='2020-03-10' )act on log.order_id=act.order_id )new on old.id=new.id;

6）查询加载结果

select * from dwd_fact_order_info where dt='2020-03-10';
1.1.14 用户维度表（拉链表）

用户表中的数据每日既有可能新增，也有可能修改，但修改频率并不高，属于缓慢变化
维度，此处采用拉链表存储用户维度数据

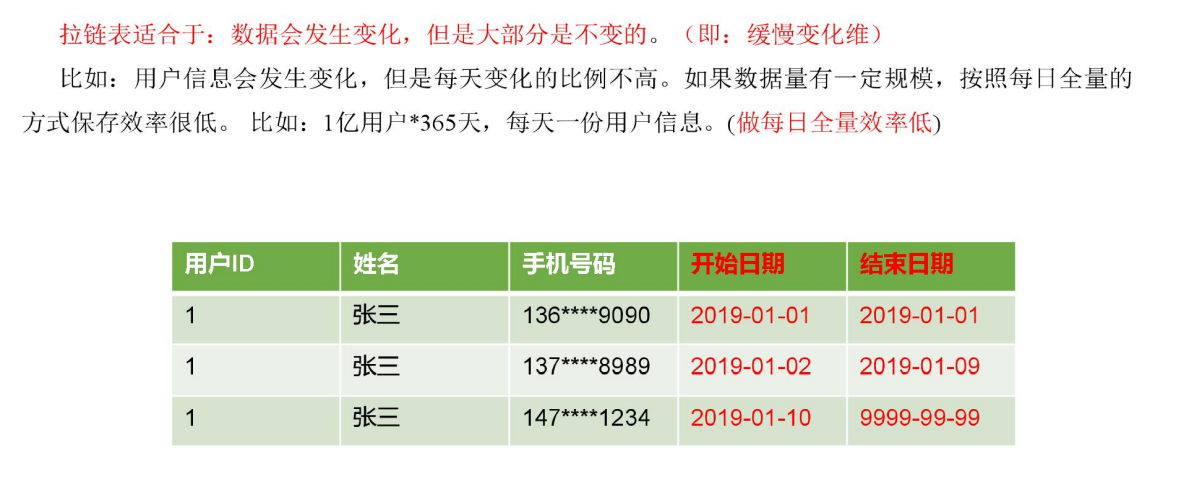

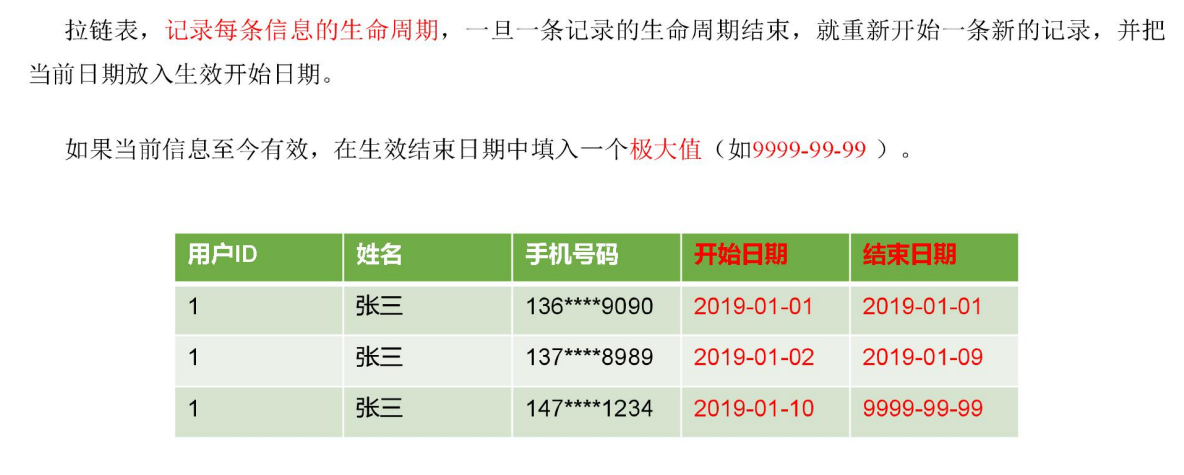

1）什么是拉链表
【项目】数仓项目（八）大数据Together-

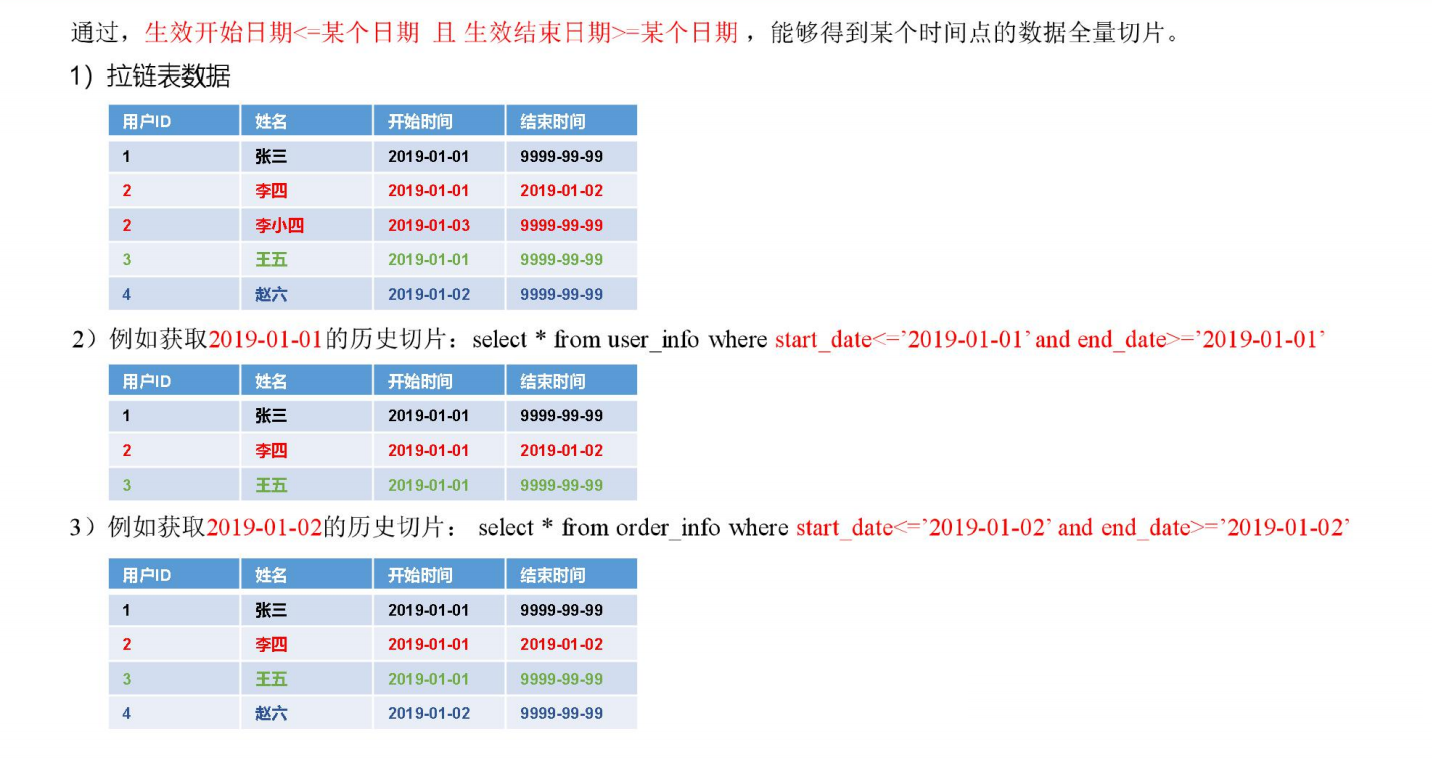

2）为什么要做拉链表
【项目】数仓项目（八）大数据Together-
【项目】数仓项目（八）大数据Together-

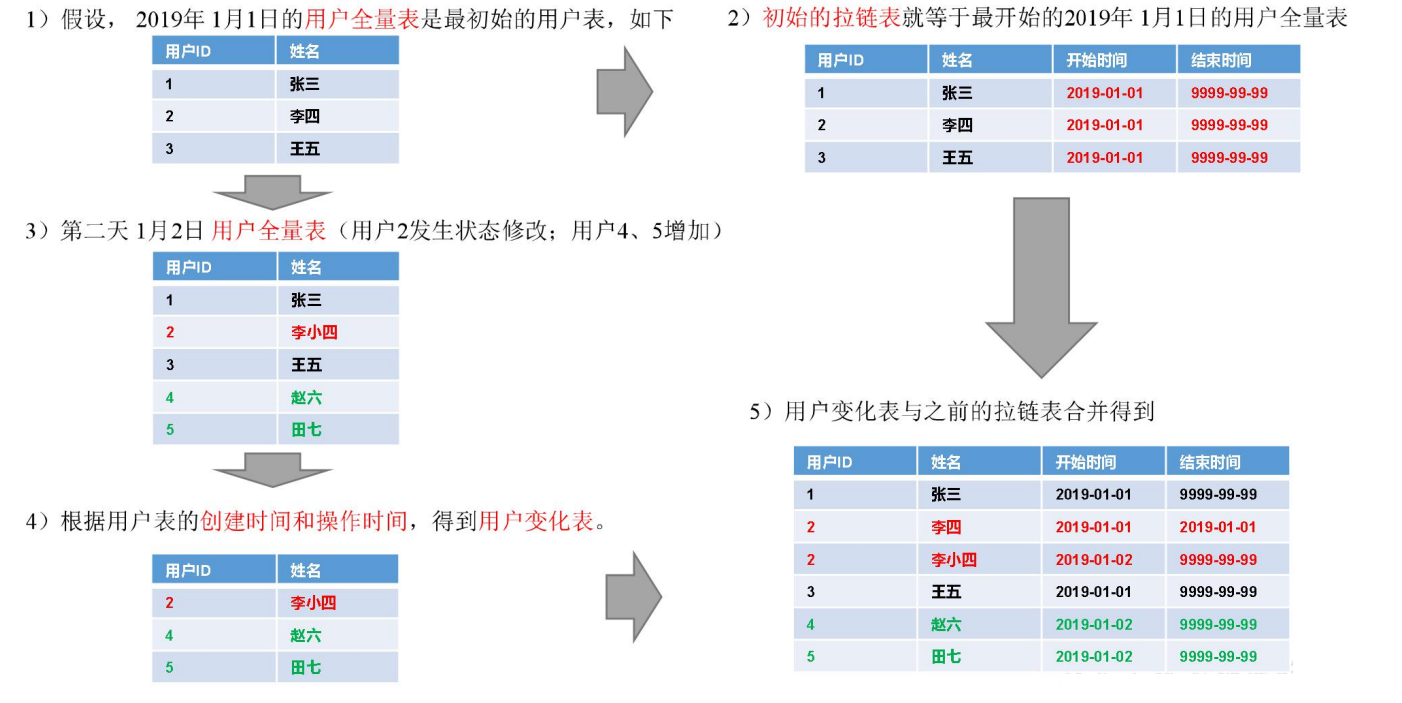

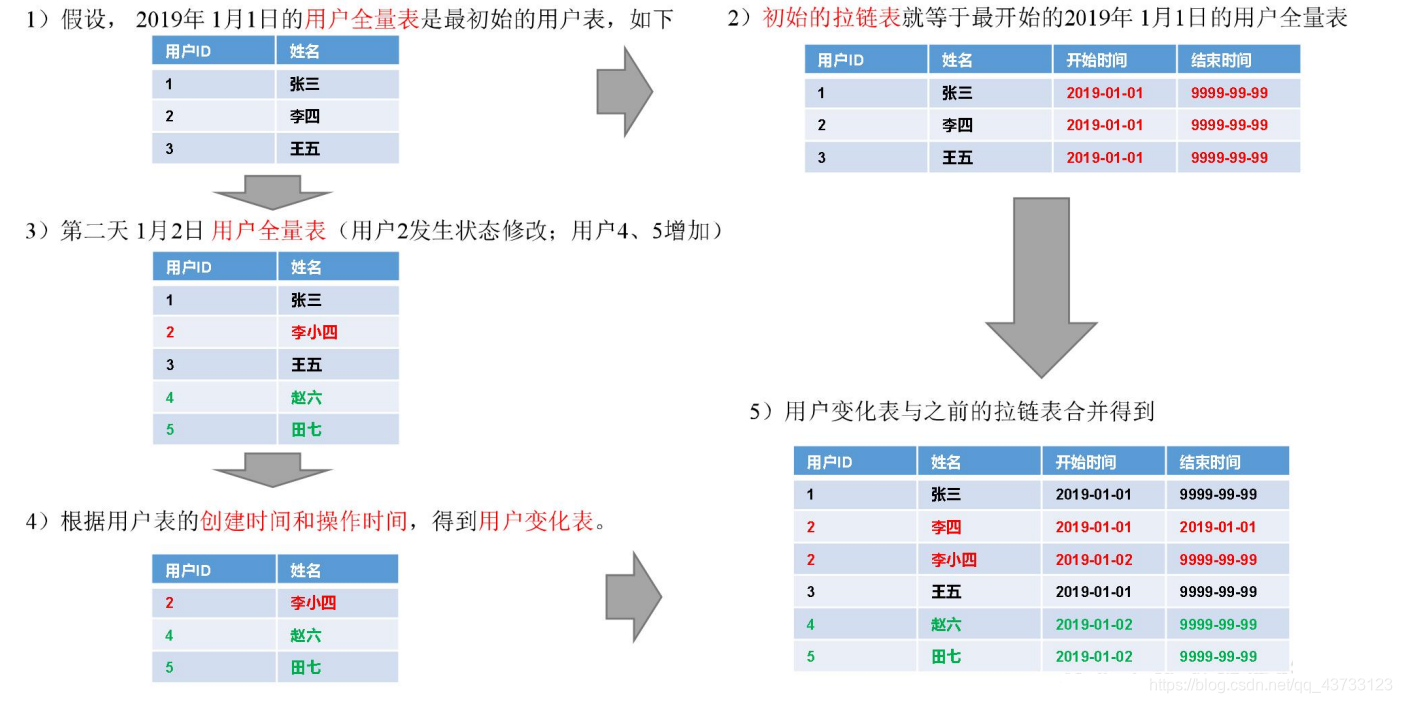

3）拉链表形成过程
【项目】数仓项目（八）大数据Together-

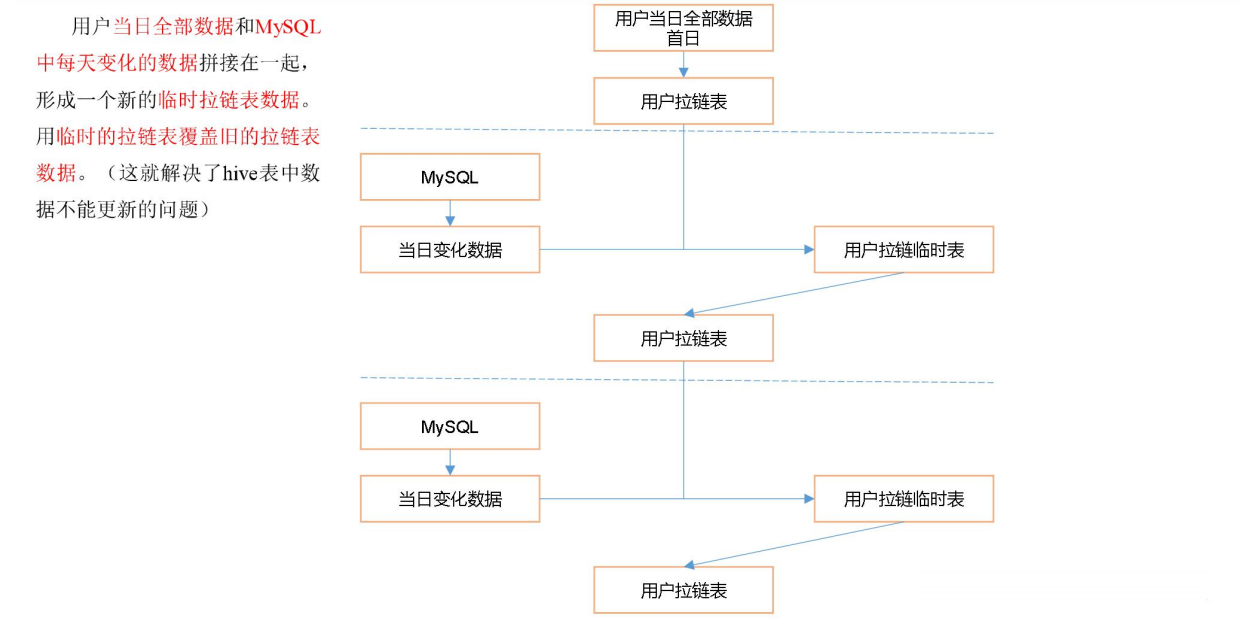

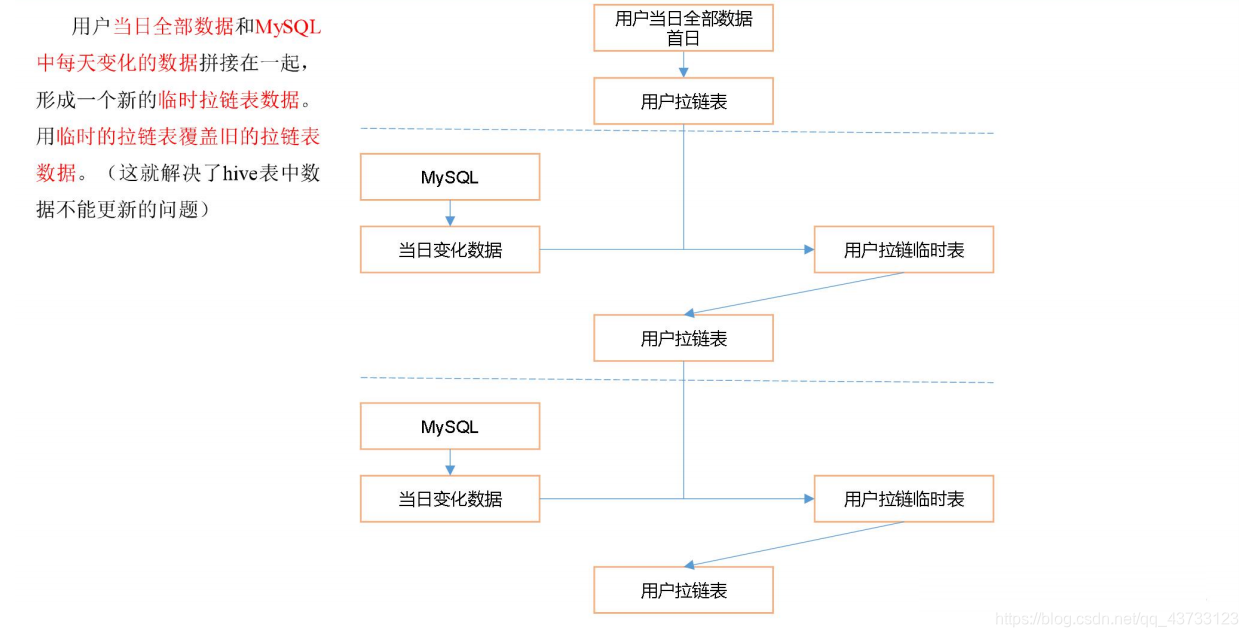

4）拉链表制作过程图
【项目】数仓项目（八）大数据Together-
5）拉链表制作过程
步骤 0：初始化拉链表（首次独立执行）

（1）建立拉链表

drop table if exists dwd_dim_user_info_his; create external table dwd_dim_user_info_his( `id` string COMMENT '用户 id', `name` string COMMENT '姓名', `birthday` string COMMENT '生日', `gender` string COMMENT '性别', `email` string COMMENT '邮箱', `user_level` string COMMENT '用户等级', `create_time` string COMMENT '创建时间', `operate_time` string COMMENT '操作时间', `start_date` string COMMENT '有效开始日期', `end_date` string COMMENT '有效结束日期' ) COMMENT '订单拉链表' stored as parquet location '/warehouse/gmall/dwd/dwd_dim_user_info_his/' tblproperties ("parquet.compression"="lzo");

（2）初始化拉链表

insert overwrite table dwd_dim_user_info_his select id, name, birthday, gender, email, user_level, create_time, operate_time, '2020-03-10', '9999-99-99' from ods_user_info oi where oi.dt='2020-03-10';

步骤 1：制作当日变动数据（包括新增，修改）每日执行

（1）如何获得每日变动表

  • a.最好表内有创建时间和变动时间（Lucky!）
  • b.如果没有，可以利用第三方工具监控比如 canal，监控 MySQL 的实时变化进行记录（麻
    烦）
  • c.逐行对比前后两天的数据，检查 md5(concat(全部有可能变化的字段))是否相同(low)
  • d.要求业务数据库提供变动流水（人品，颜值）

（2）因为 ods_order_info 本身导入过来就是新增变动明细的表，所以不用处理

  • a）数据库中新增 2020-03-11 一天的数据
  • b）通过 Sqoop 把 2020-03-11 日所有数据导入
    mysqlTohdfs.sh all 2020-03-11
  • c）ods 层数据导入
    hdfs_to_ods_db.sh all 2020-03-11

步骤 2：先合并变动信息，再追加新增信息，插入到临时表中

1）建立临时表

drop table if exists dwd_dim_user_info_his_tmp; create external table dwd_dim_user_info_his_tmp( `id` string COMMENT '用户 id', `name` string COMMENT '姓名', `birthday` string COMMENT '生日', `gender` string COMMENT '性别', `email` string COMMENT '邮箱', `user_level` string COMMENT '用户等级', `create_time` string COMMENT '创建时间', `operate_time` string COMMENT '操作时间', `start_date` string COMMENT '有效开始日期', `end_date` string COMMENT '有效结束日期' ) COMMENT '订单拉链临时表' stored as parquet location '/warehouse/gmall/dwd/dwd_dim_user_info_his_tmp/' tblproperties ("parquet.compression"="lzo");

2）导入脚本

insert overwrite table dwd_dim_user_info_his_tmp select * from ( select id, name, birthday, gender, email, user_level, create_time, operate_time, '2020-03-11' start_date, '9999-99-99' end_date from ods_user_info where dt='2020-03-11' union all select uh.id, uh.name, uh.birthday, uh.gender, uh.email, uh.user_level, uh.create_time, uh.operate_time, uh.start_date, if(ui.id is not null and uh.end_date='9999-99-99', date_add(ui.dt,-1), uh.end_date) end_date from dwd_dim_user_info_his uh left join ( select * from ods_user_info where dt='2020-03-11' ) ui on uh.id=ui.id )his order by his.id, start_date;

步骤 3：把临时表覆盖给拉链表

1）导入数据

insert overwrite table dwd_dim_user_info_his select * from dwd_dim_user_info_his_tmp;

2）查询导入数据

select id, start_date, end_date from dwd_dim_user_info_his;
1.1.15 DWD 层数据导入脚本

1）vim ods_to_dwd_db.sh

#!/bin/bash APP=gmall hive=/opt/modules/hive/bin/hive # 如果是输入的日期按照取输入日期；如果没输入日期取当前时间的前一天 if [ -n "$2" ] ;then do_date=$2 else do_date=`date -d "-1 day" +%F` fi sql1=" set hive.exec.dynamic.partition.mode=nonstrict;  insert overwrite table ${APP}.dwd_dim_sku_info partition(dt='$do_date') select sku.id, sku.spu_id, sku.price, sku.sku_name, sku.sku_desc, sku.weight, sku.tm_id, ob.tm_name, sku.category3_id, c2.id category2_id, c1.id category1_id, c3.name category3_name, c2.name category2_name, c1.name category1_name, spu.spu_name, sku.create_time from ( select * from ${APP}.ods_sku_info where dt='$do_date' )sku join ( select * from ${APP}.ods_base_trademark where dt='$do_date' )ob on sku.tm_id=ob.tm_id join ( select * from ${APP}.ods_spu_info where dt='$do_date' )spu on spu.id = sku.spu_id join ( select * from ${APP}.ods_base_category3 where dt='$do_date' )c3 on sku.category3_id=c3.id join ( select * from ${APP}.ods_base_category2 where dt='$do_date' )c2 on c3.category2_id=c2.id join ( select * from ${APP}.ods_base_category1 where dt='$do_date' )c1 on c2.category1_id=c1.id;   insert overwrite table ${APP}.dwd_dim_coupon_info partition(dt='$do_date') select id, coupon_name, coupon_type, condition_amount, condition_num, activity_id, benefit_amount, benefit_discount, create_time, range_type, spu_id, tm_id, category3_id, limit_num, operate_time, expire_time from ${APP}.ods_coupon_info where dt='$do_date';   insert overwrite table ${APP}.dwd_dim_activity_info partition(dt='$do_date') select info.id, info.activity_name, info.activity_type, rule.condition_amount, rule.condition_num, rule.benefit_amount, rule.benefit_discount, rule.benefit_level, info.start_time, info.end_time, info.create_time from ( select * from ${APP}.ods_activity_info where dt='$do_date' )info left join ( select * from ${APP}.ods_activity_rule where dt='$do_date' )rule on info.id = rule.activity_id;   insert overwrite table ${APP}.dwd_fact_order_detail partition(dt='$do_date') select od.id, od.order_id, od.user_id, od.sku_id, od.sku_name, od.order_price, od.sku_num, od.create_time, oi.province_id, od.order_price*od.sku_num from ( select * from ${APP}.ods_order_detail where dt='$do_date' ) od join ( select * from ${APP}.ods_order_info where dt='$do_date' ) oi on od.order_id=oi.id;   insert overwrite table ${APP}.dwd_fact_payment_info partition(dt='$do_date') select pi.id, pi.out_trade_no, pi.order_id, pi.user_id, pi.alipay_trade_no, pi.total_amount, pi.subject, pi.payment_type, pi.payment_time, oi.province_id from ( select * from ${APP}.ods_payment_info where dt='$do_date' )pi join ( select id, province_id from ${APP}.ods_order_info where dt='$do_date' )oi on pi.order_id = oi.id;   insert overwrite table ${APP}.dwd_fact_order_refund_info partition(dt='$do_date') select id, user_id, order_id, sku_id, refund_type, refund_num, refund_amount, refund_reason_type, create_time from ${APP}.ods_order_refund_info where dt='$do_date';   insert overwrite table ${APP}.dwd_fact_comment_info partition(dt='$do_date') select id, user_id, sku_id, spu_id, order_id, appraise, create_time from ${APP}.ods_comment_info where dt='$do_date';   insert overwrite table ${APP}.dwd_fact_cart_info partition(dt='$do_date') select id, user_id, sku_id, cart_price, sku_num, sku_name, create_time, operate_time, is_ordered, order_time from ${APP}.ods_cart_info where dt='$do_date';   insert overwrite table ${APP}.dwd_fact_favor_info partition(dt='$do_date') select id, user_id, sku_id, spu_id, is_cancel, create_time, cancel_time from ${APP}.ods_favor_info where dt='$do_date';   insert overwrite table ${APP}.dwd_fact_coupon_use partition(dt) select if(new.id is null,old.id,new.id), if(new.coupon_id is null,old.coupon_id,new.coupon_id), if(new.user_id is null,old.user_id,new.user_id), if(new.order_id is null,old.order_id,new.order_id), if(new.coupon_status is null,old.coupon_status,new.coupon_status), if(new.get_time is null,old.get_time,new.get_time), if(new.using_time is null,old.using_time,new.using_time), if(new.used_time is null,old.used_time,new.used_time), date_format(if(new.get_time is null,old.get_time,new.get_time),'yyyy-MM-dd') from ( select id, coupon_id, user_id, order_id, coupon_status, get_time, using_time, used_time from ${APP}.dwd_fact_coupon_use where dt in ( select date_format(get_time,'yyyy-MM-dd') from ${APP}.ods_coupon_use where dt='$do_date' ) )old full outer join ( select id, coupon_id, user_id, order_id, coupon_status, get_time, using_time, used_time from ${APP}.ods_coupon_use where dt='$do_date' )new on old.id=new.id;   insert overwrite table ${APP}.dwd_fact_order_info partition(dt) select if(new.id is null,old.id,new.id), if(new.order_status is null,old.order_status,new.order_status), if(new.user_id is null,old.user_id,new.user_id), if(new.out_trade_no is null,old.out_trade_no,new.out_trade_no), if(new.tms['1001'] is null,old.create_time,new.tms['1001']),--1001 对应未支付状态 if(new.tms['1002'] is null,old.payment_time,new.tms['1002']), if(new.tms['1003'] is null,old.cancel_time,new.tms['1003']), if(new.tms['1004'] is null,old.finish_time,new.tms['1004']), if(new.tms['1005'] is null,old.refund_time,new.tms['1005']), if(new.tms['1006'] is null,old.refund_finish_time,new.tms['1006']), if(new.province_id is null,old.province_id,new.province_id), if(new.activity_id is null,old.activity_id,new.activity_id), if(new.original_total_amount is null,old.original_total_amount,new.original_total_amount), if(new.benefit_reduce_amount is null,old.benefit_reduce_amount,new.benefit_reduce_amount), if(new.feight_fee is null,old.feight_fee,new.feight_fee), if(new.final_total_amount is null,old.final_total_amount,new.final_total_amount), date_format(if(new.tms['1001'] is null,old.create_time,new.tms['1001']),'yyyy-MM-dd') from ( select id, order_status, user_id, out_trade_no, create_time, payment_time, cancel_time, finish_time, refund_time, refund_finish_time, province_id, activity_id, original_total_amount, benefit_reduce_amount, feight_fee, final_total_amount from ${APP}.dwd_fact_order_info where dt in ( select date_format(create_time,'yyyy-MM-dd') from ${APP}.ods_order_info where dt='$do_date' ) )old full outer join ( select info.id, info.order_status, info.user_id, info.out_trade_no, info.province_id, act.activity_id, log.tms, info.original_total_amount, info.benefit_reduce_amount, info.feight_fee, info.final_total_amount from ( select order_id, str_to_map(concat_ws(',',collect_set(concat(order_status,'=',operate_time))),',',' =') tms from ${APP}.ods_order_status_log where dt='$do_date' group by order_id )log join ( select * from ${APP}.ods_order_info where dt='$do_date' )info on log.order_id=info.id left join ( select * from ${APP}.ods_activity_order where dt='$do_date' )act on log.order_id=act.order_id )new on old.id=new.id; insert overwrite table ${APP}.dwd_dim_user_info_his_tmp select * from ( select id, name, birthday, gender, email, user_level, create_time, operate_time, '$do_date' start_date, '9999-99-99' end_date from ${APP}.ods_user_info where dt='$do_date' union all select uh.id, uh.name, uh.birthday, uh.gender, uh.email, uh.user_level, uh.create_time, uh.operate_time, uh.start_date, if(ui.id is not null and uh.end_date='9999-99-99', date_add(ui.dt,-1), uh.end_date) end_date from ${APP}.dwd_dim_user_info_his uh left join ( select * from ${APP}.ods_user_info where dt='$do_date' ) ui on uh.id=ui.id )his order by his.id, start_date;  insert overwrite table ${APP}.dwd_dim_user_info_his select * from ${APP}.dwd_dim_user_info_his_tmp; "  sql2=" insert overwrite table ${APP}.dwd_dim_base_province select bp.id, bp.name, bp.area_code, bp.iso_code, bp.region_id, br.region_name from ${APP}.ods_base_province bp join ${APP}.ods_base_region br on bp.region_id=br.id; "  case $1 in "first"){ $hive -e "$sql1" $hive -e "$sql2" };; "all"){ $hive -e "$sql1" };; esac

2）增加脚本执行权限

chmod 770 ods_to_dwd_db.sh

3）执行脚本导入数据

ods_to_dwd_db.sh all 2020-03-11

4）查看导入数据

select * from dwd_fact_order_info where dt='2020-03-11'; select * from dwd_fact_order_detail where dt='2020-03-11'; select * from dwd_fact_comment_info where dt='2020-03-11'; select * from dwd_fact_order_refund_info where dt='2020-03-11';

结束语

本章着重介绍了DWD层的业务数据的搭建流程，自此，DWD层搭建完成，下章开启DWS层的搭建！！！
