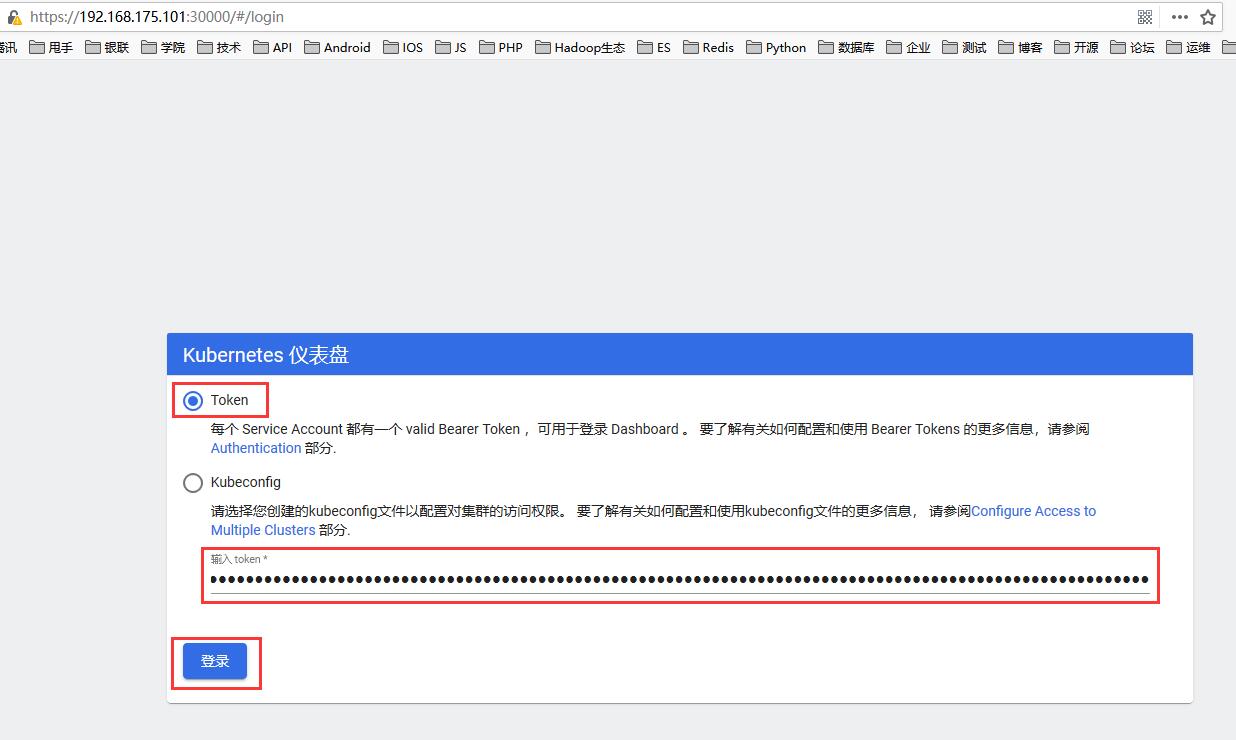

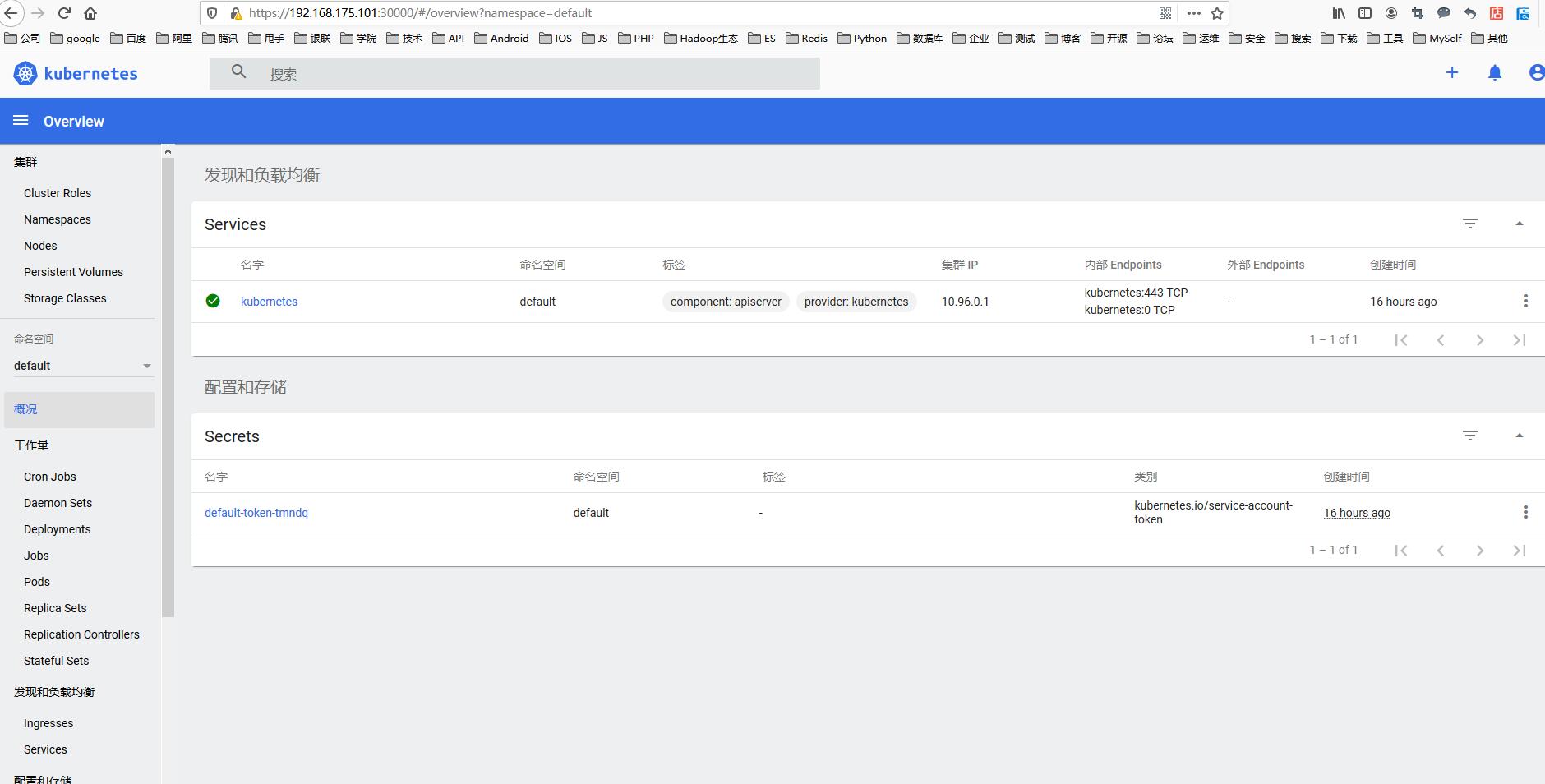

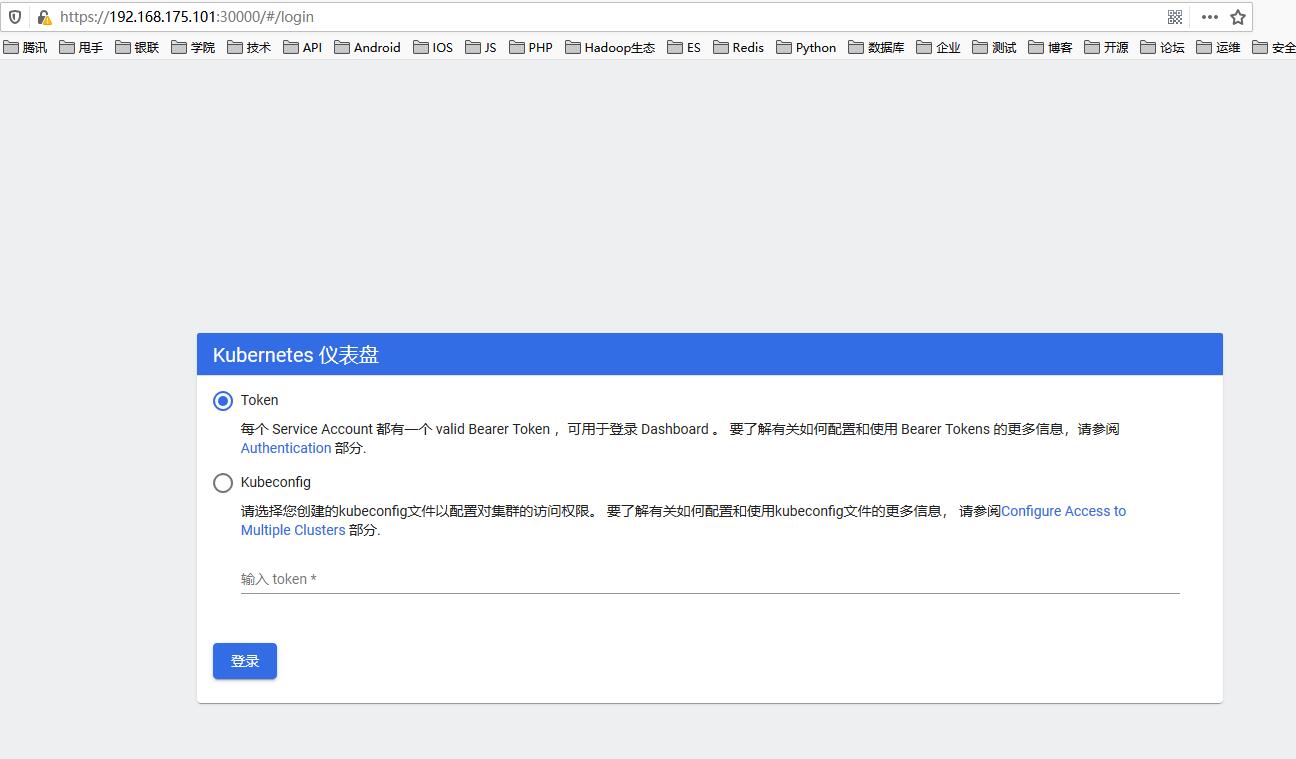

K8S集群部署成功了，如何对集群进行可视化管理呢？别着急，接下来，我们一起搭建kubernetes-dashboard来解决这个问题。 有关K8S集群的安装可以参考《【K8S】基于单Master节点安装K8S集群》 有关Metrics-Service的安装可以参考《【K8S】K8s部署Metrics-Server服务》 1.查看pod运行情况 2.下载recommended.yaml文件 3.修改recommended.yaml文件 需要修改的内容如下所示。 4.创建证书 5.安装dashboard 注意：这里可能会报如下所示。 这是因为我们在创建证书时，已经创建了kubernetes-dashboard命名空间，所以，直接忽略此错误信息即可。 6.查看安装结果 7.创建dashboard管理员 创建dashboard-admin.yaml文件。 文件的内容如下所示。 保存退出后执行如下命令创建管理员。 8.为用户分配权限 创建dashboard-admin-bind-cluster-role.yaml文件。 文件内容如下所示。 保存退出后执行如下命令为用户分配权限。 9.查看并复制用户Token 在命令行执行如下命令。 具体执行情况如下所示。 可以看到，此时的Token值为： 在浏览器中打开链接 https://192.168.175.101:30000 ，如下所示。 这里，我们选择Token方式登录，并输入在命令行获取到的Token，如下所示。 点击登录后进入dashboard，如下所示。 由于我们在《【K8S】K8s部署Metrics-Server服务》一文中安装了Metrics-Server服务，所以，我们可以查看节点服务器CPU和内存的使用情况，如下所示。 至此，dashboard 2.0.0安装成功。 如果觉得文章对你有点帮助，请微信搜索并关注「 冰河技术 」微信公众号，跟冰河学习各种编程技术。 最后附上K8S最全知识图谱链接： 祝大家在学习K8S时，少走弯路。
写在前面
安装部署dashboard
[root@binghe101 ~]# kubectl get pods -A -o wide NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES kube-system calico-kube-controllers-5b8b769fcd-l2tmm 1/1 Running 2 15h 172.18.203.71 binghe101 <none> <none> kube-system calico-node-7b7fx 1/1 Running 2 15h 192.168.175.102 binghe102 <none> <none> kube-system calico-node-8krsl 1/1 Running 2 15h 192.168.175.101 binghe101 <none> <none> kube-system coredns-546565776c-rd2zr 1/1 Running 2 15h 172.18.203.72 binghe101 <none> <none> kube-system coredns-546565776c-x8r7l 1/1 Running 2 15h 172.18.203.73 binghe101 <none> <none> kube-system etcd-binghe101 1/1 Running 2 15h 192.168.175.101 binghe101 <none> <none> kube-system kube-apiserver-binghe101 1/1 Running 3 15h 192.168.175.101 binghe101 <none> <none> kube-system kube-controller-manager-binghe101 1/1 Running 3 15h 192.168.175.101 binghe101 <none> <none> kube-system kube-proxy-cgq5n 1/1 Running 2 15h 192.168.175.102 binghe102 <none> <none> kube-system kube-proxy-qnffb 1/1 Running 2 15h 192.168.175.101 binghe101 <none> <none> kube-system kube-scheduler-binghe101 1/1 Running 3 15h 192.168.175.101 binghe101 <none> <none> kube-system metrics-server-57bc7f4584-cwsn8 1/1 Running 0 109m 172.18.229.68 binghe102 <none> <none> wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0/aio/deploy/recommended.yaml vim recommended.yaml --- kind: Service apiVersion: v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard spec: type: NodePort #增加 ports: - port: 443 targetPort: 8443 nodePort: 30000 #增加 selector: k8s-app: kubernetes-dashboard --- #因为自动生成的证书很多浏览器无法使用，所以我们自己创建，注释掉kubernetes-dashboard-certs对象声明 #apiVersion: v1 #kind: Secret #metadata: # labels: # k8s-app: kubernetes-dashboard # name: kubernetes-dashboard-certs # namespace: kubernetes-dashboard #type: Opaque --- mkdir dashboard-certs cd dashboard-certs/ #创建命名空间 kubectl create namespace kubernetes-dashboard # 创建key文件 openssl genrsa -out dashboard.key 2048 #证书请求 openssl req -days 36000 -new -out dashboard.csr -key dashboard.key -subj '/CN=dashboard-cert' #自签证书 openssl x509 -req -in dashboard.csr -signkey dashboard.key -out dashboard.crt #创建kubernetes-dashboard-certs对象 kubectl create secret generic kubernetes-dashboard-certs --from-file=dashboard.key --from-file=dashboard.crt -n kubernetes-dashboard kubectl create -f ~/recommended.yaml Error from server (AlreadyExists): error when creating "./recommended.yaml": namespaces "kubernetes-dashboard" already exists [root@binghe101 ~]# kubectl get pods -A -o wide NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES kube-system calico-kube-controllers-5b8b769fcd-l2tmm 1/1 Running 2 15h 172.18.203.71 binghe101 <none> <none> kube-system calico-node-7b7fx 1/1 Running 2 15h 192.168.175.102 binghe102 <none> <none> kube-system calico-node-8krsl 1/1 Running 2 15h 192.168.175.101 binghe101 <none> <none> kube-system coredns-546565776c-rd2zr 1/1 Running 2 15h 172.18.203.72 binghe101 <none> <none> kube-system coredns-546565776c-x8r7l 1/1 Running 2 15h 172.18.203.73 binghe101 <none> <none> kube-system etcd-binghe101 1/1 Running 2 15h 192.168.175.101 binghe101 <none> <none> kube-system kube-apiserver-binghe101 1/1 Running 3 15h 192.168.175.101 binghe101 <none> <none> kube-system kube-controller-manager-binghe101 1/1 Running 3 15h 192.168.175.101 binghe101 <none> <none> kube-system kube-proxy-cgq5n 1/1 Running 2 15h 192.168.175.102 binghe102 <none> <none> kube-system kube-proxy-qnffb 1/1 Running 2 15h 192.168.175.101 binghe101 <none> <none> kube-system kube-scheduler-binghe101 1/1 Running 3 15h 192.168.175.101 binghe101 <none> <none> kube-system metrics-server-57bc7f4584-cwsn8 1/1 Running 0 133m 172.18.229.68 binghe102 <none> <none> kubernetes-dashboard dashboard-metrics-scraper-6b4884c9d5-qccwt 1/1 Running 0 102s 172.18.229.75 binghe102 <none> <none> kubernetes-dashboard kubernetes-dashboard-7b544877d5-s8cgd 1/1 Running 0 102s 172.18.229.74 binghe102 <none> <none> [root@binghe101 ~]# kubectl get service -n kubernetes-dashboard -o wide NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR dashboard-metrics-scraper ClusterIP 10.96.249.138 <none> 8000/TCP 2m21s k8s-app=dashboard-metrics-scraper kubernetes-dashboard NodePort 10.96.219.128 <none> 443:30000/TCP 2m21s k8s-app=kubernetes-dashboard vim dashboard-admin.yaml apiVersion: v1 kind: ServiceAccount metadata: labels: k8s-app: kubernetes-dashboard name: dashboard-admin namespace: kubernetes-dashboard kubectl create -f ./dashboard-admin.yaml vim dashboard-admin-bind-cluster-role.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: dashboard-admin-bind-cluster-role labels: k8s-app: kubernetes-dashboard roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cluster-admin subjects: - kind: ServiceAccount name: dashboard-admin namespace: kubernetes-dashboard kubectl create -f ./dashboard-admin-bind-cluster-role.yaml kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep dashboard-admin | awk '{print $1}') [root@binghe101 ~]# kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep dashboard-admin | awk '{print $1}') Name: dashboard-admin-token-p8tng Namespace: kubernetes-dashboard Labels: <none> Annotations: kubernetes.io/service-account.name: dashboard-admin kubernetes.io/service-account.uid: c3640b5f-cd92-468c-ba01-c886290c41ca Type: kubernetes.io/service-account-token Data ==== ca.crt: 1025 bytes namespace: 20 bytes token: eyJhbGciOiJSUzI1NiIsImtpZCI6IlVsRVBqTG5RNC1oTlpDS2xMRXF2cFIxWm44ZXhWeXlBRG5SdXpmQXpDdWcifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tcDh0bmciLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiYzM2NDBiNWYtY2Q5Mi00NjhjLWJhMDEtYzg4NjI5MGM0MWNhIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.XOrXofgbk5EDa8COxOkv31mYwciUGXcBD9TQrb6QTOfT2W4eEpAAZUzKYzSmxLeHMqvu_IUIUF2mU5Lt6wN3L93C2NLfV9jqaopfq0Q5GjgWNgGRZAgsuz5W3v_ntlKz0_VW3a7ix3QQSrEWLBF6YUPrzl8p3r8OVWpDUndjx-OXEw5pcYQLH1edy-tpQ6Bc8S1BnK-d4Zf-ZuBeH0X6orZKhdSWhj9WQDJUx6DBpjx9DUc9XecJY440HVti5hmaGyfd8v0ofgtdsSE7q1iizm-MffJpcp4PGnUU3hy1J-XIP0M-8SpAyg2Pu_-mQvFfoMxIPEEzpOrckfC1grlZ3g eyJhbGciOiJSUzI1NiIsImtpZCI6IlVsRVBqTG5RNC1oTlpDS2xMRXF2cFIxWm44ZXhWeXlBRG5SdXpmQXpDdWcifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tcDh0bmciLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiYzM2NDBiNWYtY2Q5Mi00NjhjLWJhMDEtYzg4NjI5MGM0MWNhIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.XOrXofgbk5EDa8COxOkv31mYwciUGXcBD9TQrb6QTOfT2W4eEpAAZUzKYzSmxLeHMqvu_IUIUF2mU5Lt6wN3L93C2NLfV9jqaopfq0Q5GjgWNgGRZAgsuz5W3v_ntlKz0_VW3a7ix3QQSrEWLBF6YUPrzl8p3r8OVWpDUndjx-OXEw5pcYQLH1edy-tpQ6Bc8S1BnK-d4Zf-ZuBeH0X6orZKhdSWhj9WQDJUx6DBpjx9DUc9XecJY440HVti5hmaGyfd8v0ofgtdsSE7q1iizm-MffJpcp4PGnUU3hy1J-XIP0M-8SpAyg2Pu_-mQvFfoMxIPEEzpOrckfC1grlZ3g 查看dashboard界面
写在最后
