《Android移动应用基础教程》之Android购物商城移动开发MrSuper王的博客-

activity_main.xml代码如下：

<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="https://schemas.android.com/apk/res/android"     android:layout_width="match_parent"     android:layout_height="match_parent"     android:orientation="vertical">     <TextView         android:layout_width="match_parent"         android:layout_height="45dp"         android:text="购物商城"         android:textSize="18sp"         android:textColor="#FFFFFF"         android:background="#FF8F03"         android:gravity="center"/>     <ListView         android:id="@+id/lv"         android:layout_width="match_parent"         android:layout_height="wrap_content"/> </LinearLayout>

list_item.xml代码如下：

<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="https://schemas.android.com/apk/res/android"     android:layout_width="match_parent"     android:layout_height="match_parent"     android:padding="16dp">      <ImageView         android:id="@+id/iv"         android:layout_width="120dp"         android:layout_height="90dp"         android:layout_centerVertical="true" />      <RelativeLayout         android:layout_width="wrap_content"         android:layout_height="wrap_content"         android:layout_centerVertical="true"         android:layout_marginLeft="10dp"         android:layout_toRightOf="@+id/iv">          <TextView             android:id="@+id/title"             android:layout_width="wrap_content"             android:layout_height="wrap_content"             android:text="桌子"             android:textColor="#000000"             android:textSize="20sp" />          <TextView             android:id="@+id/tv_price"             android:layout_width="wrap_content"             android:layout_height="wrap_content"             android:layout_below="@+id/title"             android:layout_marginTop="10dp"             android:text="价格："             android:textColor="#FF8F03"             android:textSize="20sp" />          <TextView             android:id="@+id/price"             android:layout_width="wrap_content"             android:layout_height="wrap_content"             android:layout_below="@+id/title"             android:layout_marginTop="10dp"             android:layout_toRightOf="@+id/tv_price"             android:text="1000"             android:textColor="#FF8F03"             android:textSize="20sp" />     </RelativeLayout> </RelativeLayout>

MainActivity.java代码如下：

package com.itcast.listview;  import android.app.Activity; import android.os.Bundle; import android.view.View; import android.view.ViewGroup; import android.widget.BaseAdapter; import android.widget.ImageView; import android.widget.ListView; import android.widget.TextView; public class MainActivity extends Activity {     private ListView mListView;     //需要适配的数据     private String[] titles = { "桌子", "苹果", "蛋糕", "线衣", "猕猴桃",             "围巾"};     private String[] prices = { "1800元", "10元/kg", "300元", "350元", "10元/kg",             "280元"};     //图片集合     private int[] icons = {R.drawable.table,R.drawable.apple,R.drawable.cake,             R.drawable.wireclothes,R.drawable.kiwifruit,R.drawable.scarf};     protected void onCreate(Bundle savedInstanceState) {         super.onCreate(savedInstanceState);         setContentView(R.layout.activity_main);         //初始化ListView控件         mListView = (ListView) findViewById(R.id.lv);         //创建一个Adapter的实例         MyBaseAdapter mAdapter = new MyBaseAdapter();         //设置Adapter         mListView.setAdapter(mAdapter);     }     //创建一个类继承BaseAdapter     class MyBaseAdapter extends BaseAdapter {         //得到item的总数         @Override         public int getCount() {             //返回ListView Item条目的总数             return titles.length;         }         //得到Item代表的对象         @Override         public Object getItem(int position) {             //返回ListView Item条目代表的对象             return titles[position];         }         //得到Item的id         @Override         public long getItemId(int position) {             //返回ListView Item的id             return position;         }         //得到Item的View视图         @Override         public View getView(int position, View convertView, ViewGroup parent) {          /*   //将list_item.xml文件找出来并转换成View对象             View view  = View.inflate(MainActivity.this,                     R.layout.list_item, null);             //找到list_item.xml中创建的TextView             TextView title = (TextView) view.findViewById(R.id.title);             TextView price = (TextView) view.findViewById(R.id.price);             ImageView iv = (ImageView) view.findViewById(R.id.iv);             title.setText(titles[position]);             price.setText(prices[position]);             iv.setBackgroundResource(icons[position]);             return view;*/             ViewHolder holder = null;             if(convertView == null){                 //将list_item.xml文件找出来并转换成View对象                 convertView  = View.inflate(MainActivity.this, R.layout.list_item, null);                 //找到list_item.xml中创建的TextView                 holder = new ViewHolder();                 holder.title = (TextView) convertView.findViewById(R.id.title);                 holder.price = (TextView) convertView.findViewById(R.id.price);                 holder.iv = (ImageView) convertView.findViewById(R.id.iv);                 convertView.setTag(holder);             }else{                 holder = (ViewHolder) convertView.getTag();             }             holder.title.setText(titles[position]);             holder.price.setText(prices[position]);             holder.iv.setBackgroundResource(icons[position]);             return convertView;            }      }     static class ViewHolder{         TextView title;         TextView price;         ImageView iv;     } }

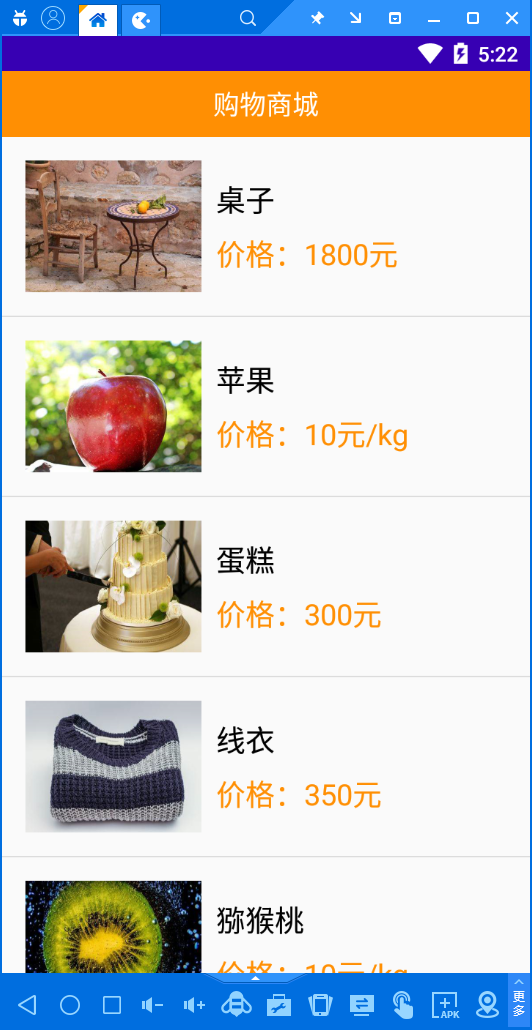

实现效果如下：
