Hadoop_MapReduce_Shuffle工作原理

Shuffle 是连接 Mapper 和 Reducer 之间的桥梁，Mapper的输出结果必须经过Shuffle环节才能传递给Reducer
Shuffle分为Map阶段的数据准备和Reducer阶段的数据拷贝。
Shuffle核心机制：数据分区、排序、合并。

在 mapTask 阶段，通过代码：context.write(key, iw) 将 mapTask 输出的Key和Value写进buffer（缓冲区），缓冲区默认大小为100M，如果mapTask的输出很大（缓冲区大小不足），（默认当缓存超出缓冲区大小的80%时）会发生多次溢写操作（将数据从缓冲区写入磁盘），生成多个小文件，然后合并为一个大文件。
将数据从缓冲区写入磁盘之前，会先进行分区（partition），每个分区会默认按键（字典顺序）进行排序。
reduceTask 在执行前，不断拉取每个mapTask的最终结果，然后将从不同mapTask拉取来的数据做合并（merge），最终形成一个文件作为 reduceTask 的输入文件。

自定义分区

Partitioner类用于指定map的输出值对应由哪个reducer处理，而Hadoop默认的reducer只有一个，此时的Partitioner类没有意义，但当修改reducer的个数为多个的时候，Partitioner类就会指定key所对应的reducer节点序号（从0开始）。
默认地，Hadoop对KV对中的Key取hash值来确定分区。在这种情况下，当前数据要进入哪个分区，用户是不可控的。可以通过job.setPartitionerClass方法指定自定义的Partitioner类。

示例：将WordCount的统计结果按不同首字母输出到不同文件。
步骤：

1. 自定义类继承Partitioner并重写getPartition()方法
2. 在 job 中指定自定义的Partitioner类
3. 根据自定义的Partitioner类的逻辑设置相应数量的reduce Task

注意：

1. 如果reduceTask数量大于分区数量，会多产生几个空的输出文件part-r-000xx;
2. 如果reduceTask数量小于分区数量且大于1，会报错（一部分数据得不到处理）；
3. 如果reduceTask数量为1（默认值），无论mapTask生成多少个分区文件，都会给这一个reduceTask处理，最终只产生一个输出文件。

输入数据（D:datapoem.txt）：

Two roads diverged in a yellow wood, And sorry I could not travel both And be one traveler, long I stood And looked down one as far as I could To where it bent in the undergrowth; Then took the other, as just as fair, And having perhaps the better claim, Because it was grassy and wanted wear; Though as for that the passing there Had worn them really about the same, And both that morning equally lay In leaves no step had trodden black. Oh, I kept the first for another day! Yet knowing how way leads on to way, I doubted if I should ever come back. I shall be telling this with a sigh Somewhere ages and ages hence: Two roads diverged in a wood, and I took the one less traveled by, And that has made all the difference.

修改Hadoop_WordCount单词统计工程

1. 创建 MyPartitioner 类：
   getPartition方法的返回值有0，1，2三种，表示三个分区。首字母为a-g的单词为0号分区，首字母为h-n的单词为1号分区，其他单词为2号分区，忽略大小写。

package com.blu.mywordcount.partition; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Partitioner; /**  * 泛型是mapper输出的Key和Value  * @author BLU  */ public class MyPartitioner extends Partitioner<Text, IntWritable>{ /**   * 定义分区   * 以a-g开头的单词放在一个文件中   * 以h-n开头的单词放在一个文件中   */ @Override public int getPartition(Text key, IntWritable value, int numPartitions) {   String word = key.toString(); int num = 2; if(word.matches("(?i)^[a-g]{1}\S*$")) {    num = 0; }else if(word.matches("(?i)^[h-n]{1}\S*$")){    num = 1; } return num; } }

2. 修改 MyWordCount 类（因为分区数量为3，所以也要设置reduceTask的数量为3）：

package com.blu.mywordcount; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; import com.blu.mywordcount.partition.MyPartitioner; public class MyWordCount { public static void main(String[] args) { try {    Configuration conf = new Configuration();    Job job = Job.getInstance(conf);    job.setJarByClass(MyWordCount.class);    job.setMapperClass(MyWordCountMapper.class);    job.setReducerClass(MyWordCountReducer.class);    job.setMapOutputKeyClass(Text.class);    job.setMapOutputValueClass(IntWritable.class);    job.setOutputKeyClass(Text.class);    job.setOutputValueClass(IntWritable.class); //设置自定义的分区    job.setPartitionerClass(MyPartitioner.class); //设置reduceTask的数量    job.setNumReduceTasks(3);    FileInputFormat.addInputPath(job, new Path(args[0]));    FileOutputFormat.setOutputPath(job, new Path(args[1])); boolean flag = job.waitForCompletion(true);    System.exit(flag ?0 : 1); } catch (Exception e) {    e.printStackTrace(); } } }

关键代码：

//设置自定义的分区 job.setPartitionerClass(MyPartitioner.class); //设置reduceTask的数量 job.setNumReduceTasks(3);

3. 运行参数：

D:datapoem.txt D:dataoutput

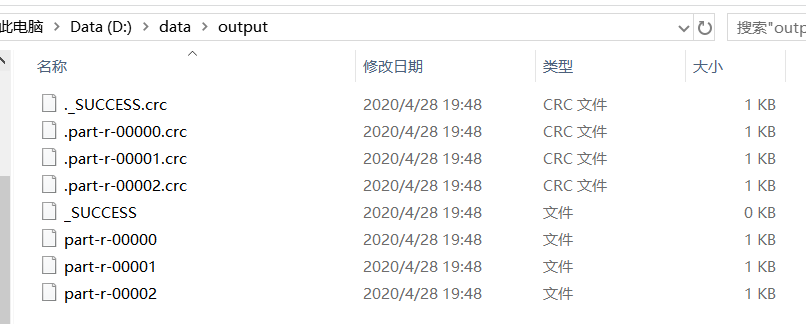

4. 运行结果：

   part-r-00000

And 6 Because 1 a 3 about 1 ages 2 all 1 and 3 another 1 as 5 back. 1 be 2 bent 1 better 1 black. 1 both 2 by, 1 claim, 1 come 1 could 2 day! 1 difference. 1 diverged 2 doubted 1 down 1 equally 1 ever 1 fair, 1 far 1 first 1 for 2 grassy 1

part-r-00001

Had 1 I 8 In 1 had 1 has 1 having 1 hence: 1 how 1 if 1 in 3 it 2 just 1 kept 1 knowing 1 lay 1 leads 1 leaves 1 less 1 long 1 looked 1 made 1 morning 1 no 1 not 1

part-r-00002

Oh, 1 Somewhere 1 Then 1 Though 1 To 1 Two 2 Yet 1 on 1 one 3 other, 1 passing 1 perhaps 1 really 1 roads 2 same, 1 shall 1 should 1 sigh 1 sorry 1 step 1 stood 1 telling 1 that 3 the 8 them 1 there 1 this 1 to 1 took 2 travel 1 traveled 1 traveler, 1 trodden 1 undergrowth; 1 wanted 1 was 1 way 1 way, 1 wear; 1 where 1 with 1 wood, 2 worn 1 yellow 1

自定义排序 — 默认1个分区

示例：对以下文件的数据按照结余进行倒序或正序排序：

D:datasort.txt

lisi 160 200 -40.0 blu 4000 400 3600.0 zhangsan 100 50 50.0

1. User类

package com.blu.sort; import java.io.DataInput; import java.io.DataOutput; import java.io.IOException; import org.apache.hadoop.io.WritableComparable; public class User implements WritableComparable<User>{ /**   * lisi 160 200 -40.0   */ private String uname; private Double income; private Double expend; private Double shengyu; public void readFields(DataInput in) throws IOException {   uname = in.readUTF();   income = in.readDouble();   expend = in.readDouble();   shengyu = in.readDouble(); } public void write(DataOutput out) throws IOException {   out.writeUTF(uname);   out.writeDouble(income);   out.writeDouble(expend);   out.writeDouble(shengyu); } /**   * 比较   * 返回1：a>b   * 返回0：a=b   * 返回-1：a<b   */ public int compareTo(User o) { if(shengyu<o.getShengyu()) { return 1; }else if(shengyu>o.getShengyu()) { return -1; }else { return 0; } } public String getUname() { return uname; } public void setUname(String uname) { this.uname = uname; } public Double getIncome() { return income; } public void setIncome(Double income) { this.income = income; } public Double getExpend() { return expend; } public void setExpend(Double expend) { this.expend = expend; } public Double getShengyu() { return shengyu; } public void setShengyu(Double shengyu) { this.shengyu = shengyu; } @Override public String toString() { return uname + " " + income + " " + expend + " " + shengyu; } }

2. MySortMapper

package com.blu.sort; import java.io.IOException; import org.apache.hadoop.io.LongWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Mapper; public class MySortMapper extends Mapper<LongWritable, Text, User, Text>{    User u = new User();  Text t = new Text(); @Override protected void map(LongWritable key, Text value, Mapper<LongWritable, Text, User, Text>.Context context) throws IOException, InterruptedException {      String result = value.toString();   String[] vals = result.split(" ");   u.setUname(vals[0]);   u.setIncome(Double.parseDouble(vals[1]));   u.setExpend(Double.parseDouble(vals[2]));   u.setShengyu(Double.parseDouble(vals[3]));   context.write(u, t); } }

3. MySortReducer

package com.blu.sort; import java.io.IOException; import org.apache.hadoop.io.NullWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Reducer; public class MySortReducer extends Reducer<User, Text, User, NullWritable>{ @Override protected void reduce(User key, Iterable<Text> value, Reducer<User, Text, User, NullWritable>.Context context) throws IOException, InterruptedException {      context.write(key, NullWritable.get()); } }

4. MySortJob

package com.blu.sort; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.NullWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; public class MySortJob { public static void main(String[] args) throws Exception {      Job job = Job.getInstance();   job.setJarByClass(MySortJob.class);   job.setMapperClass(MySortMapper.class);   job.setReducerClass(MySortReducer.class);   job.setMapOutputKeyClass(User.class);   job.setMapOutputValueClass(Text.class);   job.setOutputKeyClass(User.class);   job.setOutputValueClass(NullWritable.class);   FileInputFormat.addInputPath(job, new Path("D:\data\sort.txt"));   FileOutputFormat.setOutputPath(job, new Path("D:\data\output")); boolean flag = job.waitForCompletion(true);   System.exit(flag ?0 : 1); } }

5. 运行结果：

blu 4000.0 400.0 3600.0 zhangsan 100.0 50.0 50.0 lisi 160.0 200.0 -40.0

自定义排序 — 多个分区

示例：将D:datasort.txt文件按结余排序且a-g开头的姓名输出到一个文件，h-n开头的输出到第二个文件，其余的输出到第三个文件

sort.txt：

lisi 160 200 -40.0 blu 4000 400 3600.0 zhangsan 100 50 50.0 xiaoming 160 100 60 kat 0 800 -800 amy 1000 1 999 wangwu 800 400 400 candy 1 1 0 elly 250 20 230 greepy 1400 1300 100 jakaboy 1000 0 1000 micppi 488 108 380 picimy 4000 4001 -1 ruby 300 30 270 sunbun 750 1000 -250 yangyin 4000 1000 3000

修改上面的 “自定义排序 — 默认1个分区” 中的代码：

1. 增加自定义分区
   创建MySortPartitioner类：

package com.blu.sort; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Partitioner; public class MySortPartitioner extends Partitioner<User, Text>{ @Override public int getPartition(User key, Text value, int numPartitions) { int num = 2;   String uname = key.getUname(); if(uname.matches("(?i)^[a-g]{1}\S*$")) { return 0; }else if(uname.matches("(?i)^[h-n]{1}\S*$")){    num = 1; }else { return num; } return num; } }

2. 修改MySortJob

package com.blu.sort; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.NullWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; public class MySortJob { public static void main(String[] args) throws Exception {      Job job = Job.getInstance();   job.setJarByClass(MySortJob.class);   job.setMapperClass(MySortMapper.class);   job.setReducerClass(MySortReducer.class);   job.setMapOutputKeyClass(User.class);   job.setMapOutputValueClass(Text.class);   job.setOutputKeyClass(User.class);   job.setOutputValueClass(NullWritable.class); //设置Partitioner类   job.setPartitionerClass(MySortPartitioner.class); //设置reduce task的数量   job.setNumReduceTasks(3);   FileInputFormat.addInputPath(job, new Path("D:\data\sort.txt"));   FileOutputFormat.setOutputPath(job, new Path("D:\data\output")); boolean flag = job.waitForCompletion(true);   System.exit(flag ?0 : 1); } }

主要修改代码：

//设置Partitioner类 job.setPartitionerClass(MySortPartitioner.class); //设置reduce task的数量 job.setNumReduceTasks(3);

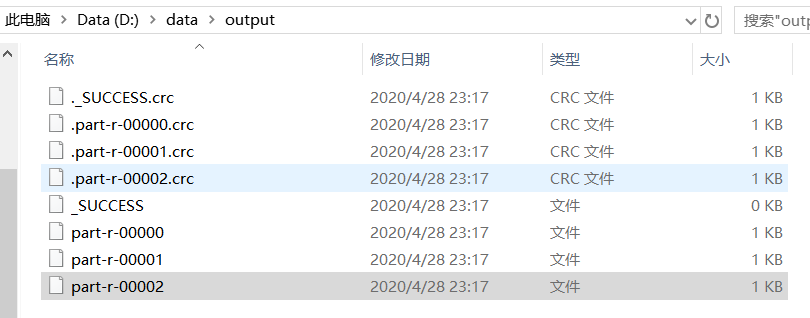

3. 运行结果


part-r-00000

blu 4000.0 400.0 3600.0 amy 1000.0 1.0 999.0 elly 250.0 20.0 230.0 greepy 1400.0 1300.0 100.0 candy 1.0 1.0 0.0

part-r-00001

jakaboy 1000.0 0.0 1000.0 micppi 488.0 108.0 380.0 lisi 160.0 200.0 -40.0 kat 0.0 800.0 -800.0

part-r-00002

yangyin 4000.0 1000.0 3000.0 wangwu 800.0 400.0 400.0 ruby 300.0 30.0 270.0 xiaoming 160.0 100.0 60.0 zhangsan 100.0 50.0 50.0 picimy 4000.0 4001.0 -1.0 sunbun 750.0 1000.0 -250.0

Combiner合并

Combiner可以减少 Map 阶段的输出结果数，降低网络开销。默认是没有Combiner的，需要用户自定义Combiner类，Combiner类必须是Reducer的子类，且Combiner的输入类型和输出类型都必须是mapper的输出类型。

示例：修改 Hadoop_WordCount单词统计 工程

1. 输入数据（D:datapoem.txt）：

Two roads diverged in a yellow wood, And sorry I could not travel both And be one traveler, long I stood And looked down one as far as I could To where it bent in the undergrowth; Then took the other, as just as fair, And having perhaps the better claim, Because it was grassy and wanted wear; Though as for that the passing there Had worn them really about the same, And both that morning equally lay In leaves no step had trodden black. Oh, I kept the first for another day! Yet knowing how way leads on to way, I doubted if I should ever come back. I shall be telling this with a sigh Somewhere ages and ages hence: Two roads diverged in a wood, and I took the one less traveled by, And that has made all the difference.

2. 先运行MyWordCount类

package com.blu.mywordcount; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; import com.blu.mywordcount.combiner.MyCombiner; import com.blu.mywordcount.partition.MyPartitioner; public class MyWordCount { public static void main(String[] args) { try {    Configuration conf = new Configuration();    Job job = Job.getInstance(conf);    job.setJarByClass(MyWordCount.class);    job.setMapperClass(MyWordCountMapper.class);    job.setReducerClass(MyWordCountReducer.class);    job.setMapOutputKeyClass(Text.class);    job.setMapOutputValueClass(IntWritable.class);    job.setOutputKeyClass(Text.class);    job.setOutputValueClass(IntWritable.class);    FileInputFormat.addInputPath(job, new Path(args[0]));    FileOutputFormat.setOutputPath(job, new Path(args[1])); boolean flag = job.waitForCompletion(true);    System.exit(flag ?0 : 1); } catch (Exception e) {    e.printStackTrace(); } } }

3. 控制台打印( 默认没有Combine的情况：Combine 的输入和输出都为0 且 Map output records 等于 Reduce input records)：

Map input records=20 Map output records=143 Map output bytes=1296 Map output materialized bytes=1588 Input split bytes=87 Combine input records=0 Combine output records=0 Reduce input groups=99 Reduce shuffle bytes=1588 Reduce input records=143 Reduce output records=99

4. 创建 MyCombiner 类

package com.blu.mywordcount.combiner; import java.io.IOException; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Reducer; /**  * Combiner的输入类型和输出类型都是mapper的输出类型  * @author BLU  */ public class MyCombiner extends Reducer<Text, IntWritable, Text, IntWritable>{    IntWritable iw = new IntWritable(); @Override protected void reduce(Text key, Iterable<IntWritable> value,    Reducer<Text, IntWritable, Text, IntWritable>.Context context) throws IOException, InterruptedException { int sum = 0; for(IntWritable i : value) {    sum += i.get(); }   iw.set(sum);   context.write(key, iw); } }

5. 在 MyWordCount 中添加 MyCombiner 类：

//设置Combiner的类 job.setCombinerClass(MyCombiner.class);

6. 重新运行，控制台打印（此时 Combine 的输入输出不为0，且 Reduce input records 不等于 Map output records，）：

Map input records=20 Map output records=143 Map output bytes=1296 Map output materialized bytes=1158 Input split bytes=87 Combine input records=143 Combine output records=99 Reduce input groups=99 Reduce shuffle bytes=1158 Reduce input records=99 Reduce output records=99
