前言

刚学完SSM框架的时候，感觉整合还是很简单的，但是，等过了一段时间之后，再回过头来用SSM框架写项目的时候，感觉既熟悉又陌生，所以，本人就复习一下，并且写这一篇博客记录相关知识。

1.创建数据库

CREATE DATABASE `ssmbuild`; USE `ssmbuild`; DROP TABLE IF EXISTS `books`; CREATE TABLE `books` ( `bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id', `bookName` VARCHAR(100) NOT NULL COMMENT '书名', `bookCounts` INT(11) NOT NULL COMMENT '数量', `detail` VARCHAR(200) NOT NULL COMMENT '描述', KEY `bookID` (`bookID`) ) ENGINE=INNODB DEFAULT CHARSET=utf8  INSERT INTO books(bookID,bookName,bookCounts,detail)VALUES (1,'Java',1,'从入门到放弃'), (2,'MySQL',10,'从删库到跑路'), (3,'Linux',5,'从进门到进牢');

2.创建项目

1）首先创建一个maven项目，添加web支持，在pom.xml中导入依赖

<dependencies> <!--Junit--> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>4.12</version> </dependency> <!--数据库驱动--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.47</version> </dependency> <!-- 数据库连接池 --> <dependency> <groupId>com.mchange</groupId> <artifactId>c3p0</artifactId> <version>0.9.5.2</version> </dependency> <!--Servlet - JSP --> <dependency> <groupId>javax.servlet</groupId> <artifactId>servlet-api</artifactId> <version>2.5</version> </dependency> <dependency> <groupId>javax.servlet.jsp</groupId> <artifactId>jsp-api</artifactId> <version>2.2</version> </dependency> <dependency> <groupId>javax.servlet</groupId> <artifactId>jstl</artifactId> <version>1.2</version> </dependency> <!--Mybatis--> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.5.2</version> </dependency> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis-spring</artifactId> <version>2.0.2</version> </dependency> <!--Spring--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>5.1.9.RELEASE</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-jdbc</artifactId> <version>5.1.9.RELEASE</version> </dependency> </dependencies>

2）创建相关包
ewen.dao
ewen.pojo
ewen.service
ewen.controller
在resource目录下，创建mapper、spring文件夹

3.mybatis 相关配置

1）创建mybatis-connfig.xml

<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE configuration         PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "https://mybatis.org/dtd/mybatis-3-config.dtd"> <configuration> </configuration>

2）创建jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=true&useUnicode=true&characterEncoding=utf8 jdbc.username=root jdbc.password=123456

3）创建实体类

 private int bookID; private String bookName; private int bookCounts; private String detail; //get 、set 方法，构造函数

4）在dao包中创建BookMapper接口

 public interface BookMapper { public int insert(Book book); public int delete(Book book); public int update(Book book); public Book queryByBookId(int id); public List<Book> queryAll(); public Book queryByBookName(String bookName); }

5）在mapper文件加下创建BookMapper.xml,编写SQL语句

<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE mapper         PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "https://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="ewen.dao.BookMapper"> <!--添加书--> <select id="insert" resultType="int" parameterType="Book">         insert into books         (bookName,bookCounts,detail)         values         (#{bookName},#{bookCounts},#{detail}); </select> <!--删除书--> <delete id="delete" parameterType="int">         delete from books where bookID = #{bookID} </delete> <!--修改书--> <update id="update" parameterType="Book">         update books set bookName = #{bookName}, bookCounts = #{bookCounts}, detail = #{detail}         where bookID = #{bookID} </update> <!--通过id查询书--> <select id="queryByBookID" parameterType="int" resultType="Book">         select * from books where bookID = #{bookID} </select> <!--查询所有书--> <select id="queryAll" resultType="Book">         select * from books     </select> <!--根据书名进行查询--> <select id="queryByBookName" resultType="Book" parameterType="String">         select * from books where bookName = #{bookName} </select> </mapper>

6）编写service层的接口和实现类
BookService接口：

public interface BookService { public int insert(Book book); public int delete(Book book); public int update(Book book); public Book queryByBookId(int id); public List<Book> queryAll(); }

实现类：

public class BookServiceImpl implements BookService { @Autowired private BookMapper bookMapper; public int insert(Book book) { return bookMapper.insert(book); } public int delete(Book book) { return bookMapper.delete(book); } public int update(Book book) { return bookMapper.update(book); } public Book queryByBookId(int id) { return bookMapper.queryByBookId(id); } public List<Book> queryAll() { return bookMapper.queryAll(); } }

4.spring整合mybatis

在spring文件夹下创建spring-dao.xml

<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="https://www.springframework.org/schema/beans"        xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"        xmlns:context="https://www.springframework.org/schema/context"        xsi:schemaLocation="http://www.springframework.org/schema/beans        http://www.springframework.org/schema/beans/spring-beans.xsd        http://www.springframework.org/schema/context        https://www.springframework.org/schema/context/spring-context.xsd"> <!--加载数据库连接的配置文件--> <context:property-placeholder location="classpath:jdbc.properties"/> <!--配置c3p0连接池--> <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource"> <!--配置连接池属性--> <property name="driverClass" value="${jdbc.driver}" /> <property name="user" value="${jdbc.username}" /> <property name="password" value="${jdbc.password}" /> <property name="jdbcUrl" value="${jdbc.url}" /> <!-- c3p0连接池的私有属性 --> <property name="maxPoolSize" value="30" /> <property name="minPoolSize" value="10" /> <!-- 关闭连接后不自动commit --> <property name="autoCommitOnClose" value="false" /> <!-- 获取连接超时时间 --> <property name="checkoutTimeout" value="10000" /> <!-- 当获取连接失败重试次数 --> <property name="acquireRetryAttempts" value="2" /> </bean> <!--配置sqlSessionFactory对象--> <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean"> <!--注入连接池--> <property name="dataSource" ref="dataSource"/> <!--配置mybatis核心配置文件--> <property name="configLocation" value="classpath:mybatis-config.xml"/> <!--开启别名--> <property name="typeAliasesPackage" value="ewen.pojo"/> <!-- 扫描sql配置文件:mapper需要的xml文件 --> <property name="mapperLocations" value="classpath:mapper/*.xml"/> </bean> <!--用扫描包的形式配置mapper，动态实现Dao接口，注入到spring容器中 --> <bean  class="org.mybatis.spring.mapper.MapperScannerConfigurer"> <!--注入sqlSessionFactory对象--> <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/> <!--给出需要扫描的dao接口--> <property name="basePackage" value="ewen.dao"/> </bean> </beans>

5.Spring整合service层

在spring文件夹下创建spring-service.xml

<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="https://www.springframework.org/schema/beans"        xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"        xmlns:context="https://www.springframework.org/schema/context"        xsi:schemaLocation="http://www.springframework.org/schema/beans        http://www.springframework.org/schema/beans/spring-beans.xsd        http://www.springframework.org/schema/context        https://www.springframework.org/schema/context/spring-context.xsd"> <!--配置service扫描，扫描service包下所有使用注解的类型--> <context:component-scan base-package="ewen.service"/> </beans>

6.配置springMVC

1）web.xml

<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns="https://xmlns.jcp.org/xml/ns/javaee"          xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"          xsi:schemaLocation="https://xmlns.jcp.org/xml/ns/javaee https://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"          version="4.0"> <!--配置核心控制器--> <servlet> <servlet-name>ssm</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <!--加载总的核心配置文件--> <init-param> <param-name>ContextConfigLocation</param-name> <param-value>classpath:spring/spring-*.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>ssm</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> <!--解决乱码问题--> <filter> <filter-name>encodingFilter</filter-name> <filter-class>             org.springframework.web.filter.CharacterEncodingFilter         </filter-class> <init-param> <param-name>encoding</param-name> <param-value>utf-8</param-value> </init-param> </filter> <filter-mapping> <filter-name>encodingFilter</filter-name> <url-pattern>/*</url-pattern>     </filter-mapping> </web-app>

2）Spring-mvc.xml文件

<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="https://www.springframework.org/schema/beans"        xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"        xmlns:p="https://www.springframework.org/schema/p"        xmlns:context="https://www.springframework.org/schema/context"        xmlns:mvc="https://www.springframework.org/schema/mvc"        xsi:schemaLocation=                "http://www.springframework.org/schema/beans      http://www.springframework.org/schema/beans/spring-beans-4.0.xsd      http://www.springframework.org/schema/mvc      http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd      http://www.springframework.org/schema/context      http://www.springframework.org/schema/context/spring-context-4.0.xsd"> <!--配置包扫描器--> <context:component-scan base-package="ewen.controller"/> <!--配置springmvc的注解驱动--> <mvc:annotation-driven/> <!--配置视图解析器--> <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="prefix" value="/WEB-INF/jsp/"/> <property name="suffix" value=".jsp"/> </bean> </beans>

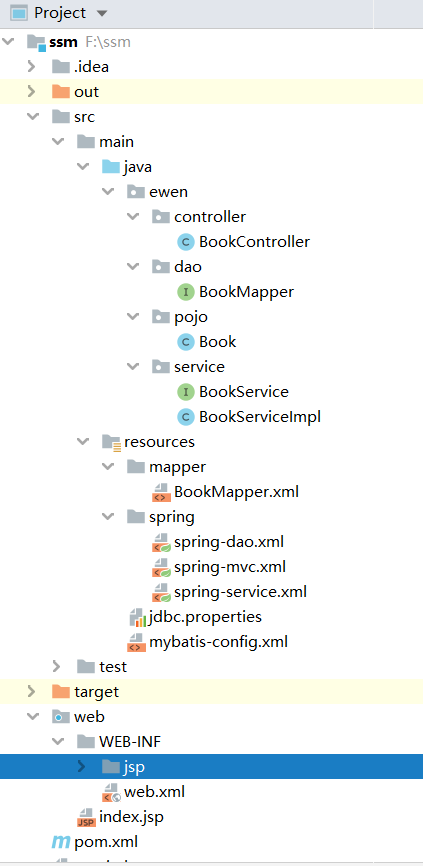

到这里框架就整合好了,整个项目的架构如图：

下面写一个简单的增删改查操作
前端页面简单使用bootstrap
1.书籍列表页面allBook.jsp

<%@ taglib prefix="c" uri="https://java.sun.com/jsp/jstl/core" %> <%@ page contentType="text/html;charset=UTF-8" language="java" %> <html> <head> <title>书籍列表</title> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <!-- 引入 Bootstrap --> <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet"> </head> <body> <div class="container"> <div class="row clearfix"> <div class="col-md-12 column"> <div class="page-header"> <h1> <small>书籍列表 —— 显示所有书籍</small> </h1> </div> </div> </div> <div class="row"> <div class="col-md-4 column" > <a class="btn btn-primary" href="${pageContext.request.contextPath}/book/toInsert">添加</a> <a class="btn btn-primary" href="${pageContext.request.contextPath}/book/list">显示所有书籍</a> </div> <div class="col-mid-8 column"/> <form action="${pageContext.request.contextPath}/book/queryByBookName" class="form-inline"> <div class="form-group"> <input type="text" class="form-control" name="bookName"  placeholder="请输入书籍名称"/> </div> <button type="submit" class="btn btn-primary">查询</button> <span style="color: red">${error}</span> </form> </div> </div> <div class="row clearfix"> <div class="col-md-12 column"> <table class="table table-hover table-striped"> <thead> <tr> <th>书籍编号</th> <th>书籍名字</th> <th>书籍数量</th> <th>书籍详情</th> <th>操作</th> </tr> </thead> <tbody> <tbody> <c:forEach var="book" items="${list}"> <tr> <td>${book.getBookID()}</td> <td>${book.getBookName()}</td> <td>${book.getBookCounts()}</td> <td>${book.getDetail()}</td> <td> <a class="btn btn-default" href="${pageContext.request.contextPath}/book/toUpdate?id=${book.getBookID()}">更改</a> &nbsp; | &nbsp; <a class="btn btn-default" href="${pageContext.request.contextPath}/book/delete/${book.getBookID()}">删除</a> </td> </tr> </c:forEach> </tbody> </table> </div> </div> </div> </body>

2.插入书籍页面

<%--   Created by IntelliJ IDEA.   User: lenovo   Date: 2020/4/27   Time: 9:28   To change this template use File | Settings | File Templates. --%> <%@ page contentType="text/html;charset=UTF-8" language="java" %> <html> <head> <title>插入书籍</title> <!-- 引入 Bootstrap --> <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet"> </head> <body> <div class="container"> <div class="row clearfix"> <div class="col-md-12 column"> <div class="page-header"> <h1> <small>新增书籍</small> </h1> </div> </div> </div> <div class="row clearfix"> <div class="col-md-12 column"> <form action="${pageContext.request.contextPath}/book/insert"> <div class="form-group"> <label>书籍名称</label> <input type="text" class="form-control"  name="bookName" required> </div> <div class="form-group"> <label>书籍数量</label> <input type="text" class="form-control"   name="bookCounts" required> </div> <div class="form-group"> <label>书籍描述</label> <input type="text" class="form-control"  name="detail" required> </div> <button type="submit" class="btn btn-default">添加</button> </form> </div> </div> </div> </body> </html>

3.更新书籍页面

<%@ taglib prefix="c" uri="https://java.sun.com/jsp/jstl/core" %> <%@ page contentType="text/html;charset=UTF-8" language="java" %> <html> <head> <title>更改书籍</title> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <!-- 引入 Bootstrap --> <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet"> </head> <body> <div class="container"> <div class="row clearfix"> <div class="col-md-12 column"> <div class="page-header"> <h1> <small>更改书籍</small> </h1> </div> </div> </div> <div class="row clearfix"> <div class="col-md-12 column"> <form action="${pageContext.request.contextPath}/book/updateBook"> <input type="hidden" name="bookID" value="${book.bookID}"> <div class="form-group"> <label>书籍名称</label> <input type="text" class="form-control"  name="bookName" value="${book.bookName}" required> </div> <div class="form-group"> <label>书籍数量</label> <input type="text" class="form-control"  name="bookCounts" value="${book.bookCounts}" required> </div> <div class="form-group"> <label>书籍描述</label> <input type="text" class="form-control"  name="detail" value="${book.detail}" required> </div> <button type="submit" class="btn btn-default">更改</button> </form> </div> </div> </div> </body>

4.BookController

@Controller @RequestMapping("/book") public class BookController { @Resource private BookService bookService; //查询所有书籍 @RequestMapping("/list") public String list(Model model){         List<Book> list = bookService.queryAll();         model.addAttribute("list",list); return "allBook"; } //到添加页面 @RequestMapping("/toInsert") public String toInsert(){ return "insert"; } //添加书籍 @RequestMapping("/insert") public String insert(Book book){         bookService.insert(book); return "redirect: /book/list"; } //到更新页面 @RequestMapping("/toUpdate") public String toUpdate(Model model, int id){         Book book = bookService.queryByBookId(id);         model.addAttribute("book",book); return "update"; } @RequestMapping("/updateBook") public String updateBook(Book book){         bookService.update(book); return "redirect:/book/list"; } @RequestMapping("/delete/{bookID}") public String delete(@PathVariable("bookID") int id){         Book book = bookService.queryByBookId(id);         bookService.delete(book); return "redirect:/book/list"; } @RequestMapping("/queryByBookName") public String queryByBookName(String bookName,Model model){         Book book = bookService.queryByBookName(bookName);         System.out.println(book);         List<Book> list = new ArrayList<Book>();         list.add(book); if(book == null){             list = bookService.queryAll();             model.addAttribute("error","数据库无此书"); }         model.addAttribute("list", list); return "allBook"; } }

基于这个，还可以添加更多功能，有时间还会持续更新的。
