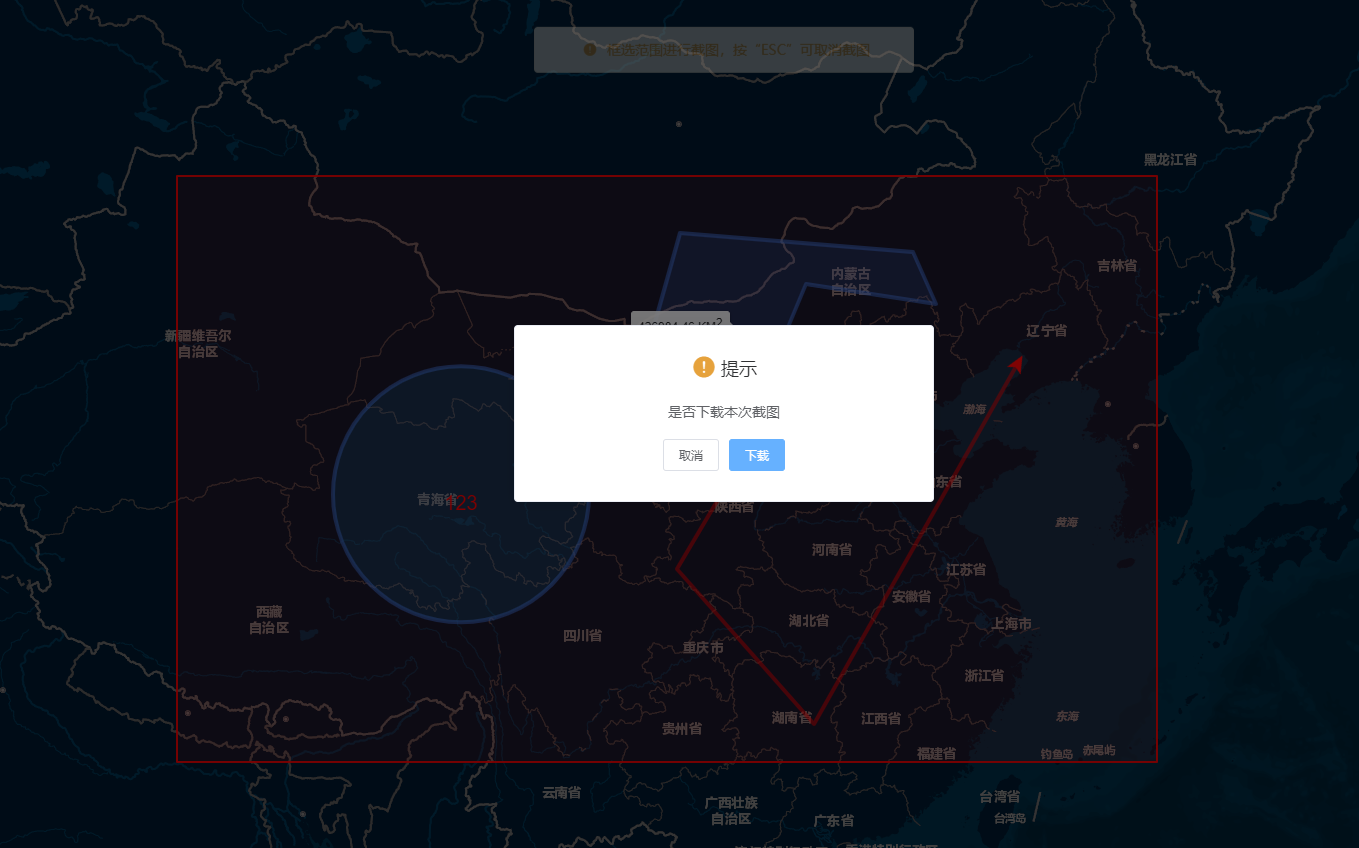

实现截图(红框中即是将要截取的内容)

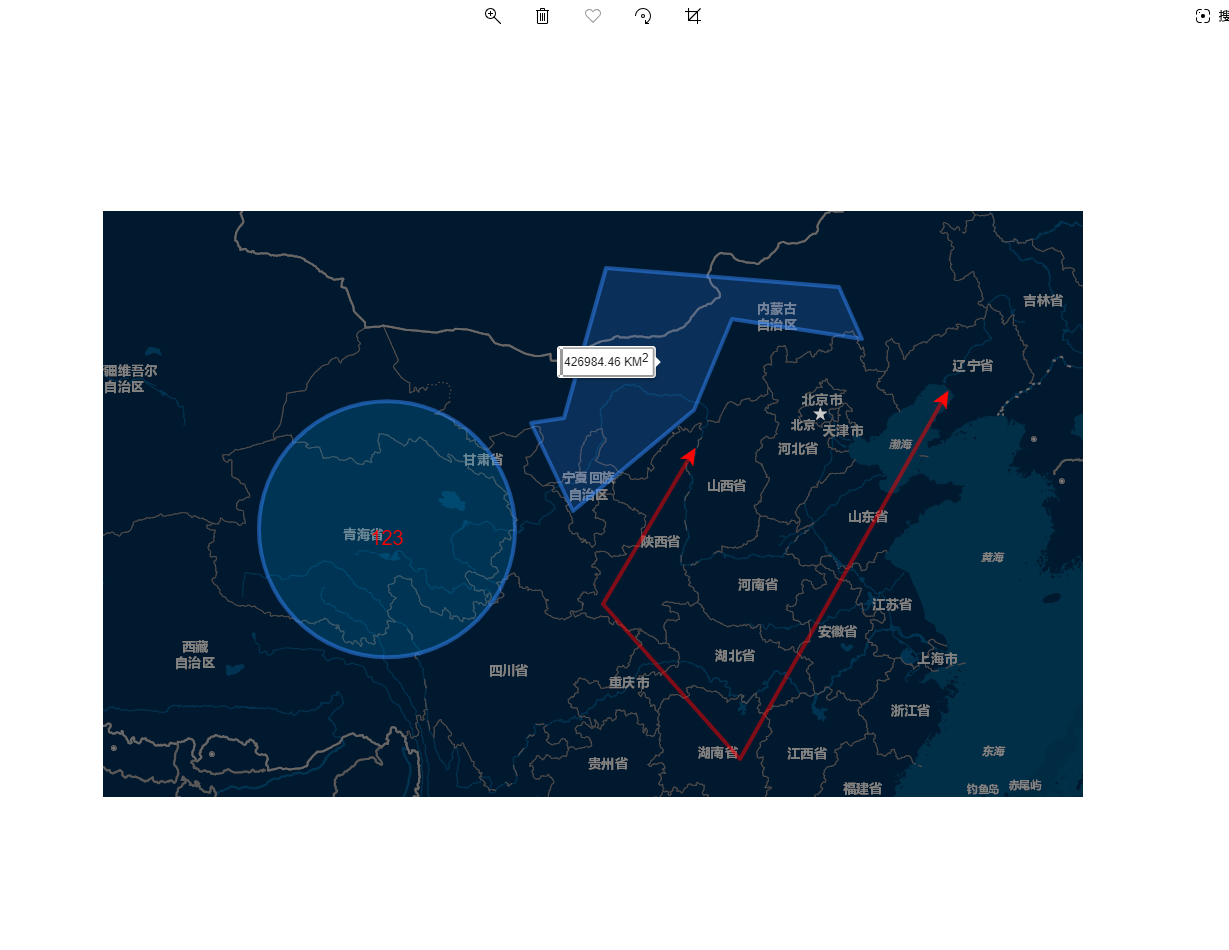

下载到本地的截图

功能需求

近日。 项目中有一需求：在Leaflet地图中进行框选载图，同时把地图中的所有标记和图形一同载图，并下载到本地。

搜索资源

在网上搜索了一下，找到一个载图的js库 html2canvs。网上的大部分例子都是基于html2canvas来完成的。找一圈并未找到现成的轮子，那就自己造一个吧。

功能拆分

框选：绘制矩形 ——» 载图：html2canvas —–»下载：生成a标签 —–» 模拟点击：下载完成。大致应该是上面三个步骤。

1. 框选：绘制矩形。文中使用的绘制插件是：Leaflet.draw。
   代码如下：

 // 矩形实例 let rectangle = new L.Draw.Rectangle(this.map, {           shapeOptions: {             stroke: true,             color: 'red',             weight: 2,             opacity: 0.9,             fill: true,             fillColor: null, /*same as color by default*/             fillOpacity: 0.1,             clickable: true } });         rectangle.enable(); //绘制矩形 this.map.on(L.Draw.Event.CREATED, (e) => { if (this.currentLayerType == type && e.layerType == 'rectangle'){ this.featureGroup.addLayer(e.layer); if (!e.layer.flag){ this.$confirm('是否下载本次截图', '提示', {                 confirmButtonText: '下载',                 cancelButtonText: '取消',                 type: 'warning',                 showClose:false,                 center: true }).then(() => { let latlngs = e.layer._latlngs[0] // 获取矩形的 经纬度 list // console.log(latlngs) this.featureGroup.removeLayer(e.layer); // 移除框选的矩形 this.captureScreenEnd(latlngs); // 开始截图 this.$message({                   type: 'success',                   message: '下载成功!',                   offset:100 }); }).catch(() => { this.featureGroup.removeLayer(e.layer); }); }             e.layer.flag = true } }); this.map.on(L.Draw.Event.DRAWSTOP, (e)=> {           console.log('框选截图结束====')           rectangle.disable() });

2. 截图 ： 功能核心代码。
   代码如下：

 let bounds = this.map.getBounds(),             zero = [bounds._northEast.lat,bounds._southWest.lng], // 计算当前 视窗内的 原点经纬度 ==> 对应的屏幕坐标 （地图位移及缩放时计算 startPoint的偏移量）必须！！！             zeroPoint = map.latLngToLayerPoint(zero) let startPoint = map.latLngToLayerPoint(points[1]), // latlng 转 屏幕坐标 计算 起点及宽高             endPoint =  map.latLngToLayerPoint(points[3]),             width = Math.abs(startPoint.x - endPoint.x),             height = Math.abs(startPoint.y - endPoint.y); html2canvas(document.getElementById('map'),{           useCORS:true, // 底图跨域 必须！！ // allowTaint:false }).then((canvas) => { this.downloadIamge(canvas,(startPoint.x - zeroPoint.x),(startPoint.y - zeroPoint.y),width,height) this.resetToolbar() });

3. 下载：截图下载
   代码如下：

 // 创建一个用于截取的canvas var clipCanvas = document.createElement('canvas')         clipCanvas.width = capture_width         clipCanvas.height = capture_height         // 截取图片         clipCanvas.getContext('2d').drawImage(canvas, capture_x, capture_y, capture_width, capture_height, 0, 0, capture_width, capture_height) var clipImgBase64 = clipCanvas.toDataURL() // 生成图片url // 下载图片 let link = document.createElement("a");         link.href = clipImgBase64;//下载链接         link.setAttribute("download", new Date().toLocaleString() + "_截图.png");         link.style.display = "none";//a标签隐藏         document.body.appendChild(link);         link.click(); // 点击下载         document.body.removeChild(link); // 移除a标签

进阶功能

此功能是基于地图矩形绘制来实现的。如果要实际网页版的框选截图如何实现？原理都是一样的，只是第一步的框选用canvas来进行绘制就可以了。本文使用的是jcanvas，核心代码如下：

 import html2canvas from 'html2canvas' export const screenShot = { /**      *  画矩形      * @param canvasId canvasId      * @param penColor 画笔颜色      * @param strokeWidth 线宽      */     cancelFlag: false, // 是否可以进行截图操作     defaultStrokeWidth: 1, // 默认画矩形选取框的线宽     defaultLineColor: 'blue',     init: function (canvasId, targetId) { var that = this; // 注册 esc 监控取消事件 $("#" + canvasId).show()         document.body.style.cursor = 'crosshair';         that.cancelFlag = true },     drawRect: function (canvasId, targetId, penColor, strokeWidth, callback) { var that = this;         that.init(canvasId, targetId);         that.penColor = penColor || that.defaultLineColor;         that.penWidth = strokeWidth || that.defaultStrokeWidth; var canvas = document.getElementById(canvasId); //canvas 的矩形框 var canvasRect = canvas.getBoundingClientRect(); //canvas 矩形框的左上角坐标 var canvasLeft = canvasRect.left; var canvasTop = canvasRect.top; // 要画的矩形的起点 xy var x = 0; var y = 0;          document.addEventListener('keydown', function (e) { //此处填写你的业务逻辑即可 if (e.keyCode == 27) {                 that.cancel(canvasId, callback);                 x = e.clientX - canvasLeft;                 y = e.clientY - canvasTop; } }) //鼠标点击按下事件，画图准备         canvas.onmousedown = function (e) { if (!that.cancelFlag) { return } //设置画笔颜色和宽度 var color = that.penColor; var penWidth = that.penWidth; // 确定起点             x = e.clientX - canvasLeft;             y = e.clientY - canvasTop;             console.log('down=====>', x, y) // 添加layer $("#" + canvasId).addLayer({                 type: 'rectangle',                 strokeStyle: color,                 strokeWidth: penWidth,                 name: 'areaLayer',                 fromCenter: false,                 x: x, y: y,                 width: 1,                 height: 1 }); // 绘制 $("#" + canvasId).drawLayers(); $("#" + canvasId).saveCanvas(); //鼠标移动事件，画图             canvas.onmousemove = function (e) { // 要画的矩形的宽高 var width = e.clientX - canvasLeft - x; var height = e.clientY - canvasTop - y;                 console.log('move=====>', width, height) // 清除之前画的 $("#" + canvasId).removeLayer('areaLayer'); $("#" + canvasId).addLayer({                     type: 'rectangle',                     strokeStyle: color,                     strokeWidth: penWidth,                     name: 'areaLayer',                     fromCenter: false,                     x: x, y: y,                     width: width,                     height: height, }); $("#" + canvasId).drawLayers(); } }; //鼠标抬起         canvas.onmouseup = function (e) { if (!that.cancelFlag) { return } var color = that.penColor; var penWidth = that.penWidth;              canvas.onmousemove = null;             console.log('up=====>', x, y) var width = e.clientX - canvasLeft - x; var height = e.clientY - canvasTop - y; $("#" + canvasId).removeLayer('areaLayer'); $("#" + canvasId).addLayer({                 type: 'rectangle',                 strokeStyle: color,                 strokeWidth: penWidth,                 name: 'areaLayer',                 fromCenter: false,                 x: x, y: y,                 width: width,                 height: height             }); $("#" + canvasId).drawLayers(); // 绘制矩形 $("#" + canvasId).saveCanvas(); // 保存矩形 // 把body转成canvas html2canvas(document.getElementById(targetId), {                 scale: 1, // allowTaint: true,                 useCORS: true //跨域使用 }).then(canvas => { var capture_x, capture_y                 if (width > 0) { //从左往右画                     capture_x = x + that.penWidth                 } else { //从右往左画                     capture_x = x + width + that.penWidth                 } if (height > 0) { //从上往下画                     capture_y = y + that.penWidth                 } else { //从下往上画                     capture_y = y + height + that.penWidth                 }                 that.printClip(canvas, capture_x, capture_y, Math.abs(width), Math.abs(height)) });             that.cancel(canvasId, callback)             callback && callback(); } }, // 结束 取消截图     cancel: function (canvasId, callback) {         document.body.style.cursor = 'auto' $("#" + canvasId).removeLayer('areaLayer'); $("#" + canvasId).clearCanvas() $("#" + canvasId).hide() this.cancelFlag = false         callback && callback() }, /**      * 截取区域转为图片      * @param canvas 截取的canvas      * @param capture_x 截取的起点x      * @param capture_y 截取的起点y      * @param capture_width 截取的起点宽      * @param capture_height 截取的起点高      */     printClip: function (canvas, capture_x, capture_y, capture_width, capture_height) { // 创建一个用于截取的canvas var clipCanvas = document.createElement('canvas')         clipCanvas.width = capture_width         clipCanvas.height = capture_height         // 截取         clipCanvas.getContext('2d').drawImage(canvas, capture_x, capture_y, capture_width, capture_height, 0, 0, capture_width, capture_height) var clipImgBase64 = clipCanvas.toDataURL() this.downloadIamge(clipImgBase64) // 下载图片 }, /**      * 下载保存图片      * @param imgUrl 图片地址      */     downloadIamge: function (imgUrl) { let link = document.createElement("a");         link.href = imgUrl;//下载链接         link.setAttribute("download", new Date().toLocaleString() + "_截图.png");         link.style.display = "none";//a标签隐藏         document.body.appendChild(link);         link.click();         document.body.removeChild(link) } };

结束语

好了。框选截图的功能基就写完了，希望本文对您在关于地图及cavnas有一个简单的了解。

感谢您的阅读，希望本文对您有所帮助。 —— chysxslt
