Hadoop_MapReduce工作原理

六个阶段：

• Input 文件输入
• Splitting 分片
• Mapping
• Shuffling
• Reducing
• Final result

mapper的输入数据为KV对形式，每一个KV对都会调用map()方法，输出数据也是KV对形式。

mapper从context中获得输入数据，将处理后的结果写入context中（context.write(text, iw);），输入（LongWritable, Text）和输出（Text, IntWritable）的数据格式由用户设置。

context通过RecordReader获取输入数据，通过RecordWriter保存mapper处理后的数据

InputFormat负责处理MR的输入

InputFormat是一个抽象类，有以下几个子类：

• ComposableInputFormat
• CompositeInputFormat
• DBInputFormat
• DelegatingInputFormat
• FileInputFormat

InputFormat有三个方法：

• InputFormat() ：构造器
• createRecordReader() ：提供RecordReader的实现类，把切片读到Mapper中进行处理。
• getSplits() ：把输入文件进行切分

InputFormat的子类FileInputFormat还是一个抽象类，有以下几个子类：

• CombineFileInputFormat
• FixedLengthInputFormat
• KeyValueTextInputFormat
• NLineInputFormat
• SequenceFileInputFormat
• TextInputFormat

TextInputFormat

TextInputFormat 是MapReduce默认的InputFormat，它是按行读取每条记录。
Key（LongWritable）：用来存储该行在整个文件中的起始字节偏移量
Value（Text）：为该行的内容。
TextInputFormat对文件切分的逻辑是使用父类（FileInputFormat）的 getSplits() 方法。
切片方式为：对每个文件进行切分，默认的切片大小为128M.

NLineInputFormat

切片方式：以文件N行作为一个切片，默认一行一个切片。
KEY类型：LongWritable
VALUE类型：Text

示例：输入12行数据，以3行为一个切片，分成4个切片：

修改 Hadoop_WordCount单词统计 工程

1. 修改 MyWordCount.java

package com.blu.mywordcount; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.input.NLineInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; public class MyWordCount { public static void main(String[] args) { try {    Configuration conf = new Configuration();    Job job = Job.getInstance(conf);    job.setJarByClass(MyWordCount.class);    job.setMapperClass(MyWordCountMapper.class);    job.setReducerClass(MyWordCountReducer.class);    job.setMapOutputKeyClass(Text.class);    job.setMapOutputValueClass(IntWritable.class);    job.setOutputKeyClass(Text.class);    job.setOutputValueClass(IntWritable.class);    FileInputFormat.addInputPath(job, new Path(args[0]));    FileOutputFormat.setOutputPath(job, new Path(args[1])); //指定划分切片的行数    NLineInputFormat.setNumLinesPerSplit(job, 3); //指定InputFormat的类型    job.setInputFormatClass(NLineInputFormat.class); boolean flag = job.waitForCompletion(true);    System.exit(flag ?0 : 1); } catch (Exception e) {    e.printStackTrace(); } } }

2. 在D:data下的testdata.txt文件中写入12行的数据：

good morning good afternoon good evening zhangsan male lisi female wangwu male good morning good afternoon good evening zhangsan male lisi female wangwu male

3. 设置以下参数运行MyWordCount的main方法

D:datatestdata.txt D:dataoutput

4. 运行结果

afternoon 2 evening 2 female 2 good 6 lisi 2 male 4 morning 2 wangwu 2 zhangsan 2

5. 控制台打印切片数量为4：

[INFO ] 2020-04-26 17:12:41,643 method:org.apache.hadoop.mapreduce.JobSubmitter.submitJobInternal(JobSubmitter.java:204) number of splits:4

6. 修改的关键代码：

//指定划分切片的行数 NLineInputFormat.setNumLinesPerSplit(job, 3); //指定InputFormat的类型 job.setInputFormatClass(NLineInputFormat.class);

KeyValueTextInputFormat
KEY类型：Text ：以分隔符前的数据作为key
VALUE类型：Text ：以分隔符后的数据作为value

示例，使用 KeyValueTextInputFormat 统计以下txt中人名出现的次数

D:datamoney.txt ( 注意该文件中每一行的人名与后面的数据的分割符为Tab )

zhangsan 500 450 jan lisi 200 150 jan lilei 150 160 jan zhangsan 500 500 feb lisi 200 150 feb lilei 150 160 feb

1. 创建 Kvmapper 类

package com.blu.kvdemo; import java.io.IOException; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Mapper; /**  * 输出格式：  * zhangsan 1  * lisi 1  * zhangsan 1  *   * @author BLU  *  */ public class Kvmapper extends Mapper<Text, Text, Text, IntWritable>{ /**   * 输入格式：   * zhangsan 500 450 jan   * key:zhangsan   * value:500 450 jan   */ private IntWritable iw = new IntWritable(1); @Override protected void map(Text key, Text value, Mapper<Text, Text, Text, IntWritable>.Context context) throws IOException, InterruptedException {      context.write(key, iw); } }

2. KvReducer类

package com.blu.kvdemo; import java.io.IOException; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Reducer; public class KvReducer extends Reducer<Text, IntWritable, Text, IntWritable>{    IntWritable iw = new IntWritable(); @Override protected void reduce(Text key, Iterable<IntWritable> value,    Reducer<Text, IntWritable, Text, IntWritable>.Context context) throws IOException, InterruptedException { int sum = 0; for(IntWritable iw : value) {    sum += iw.get(); }   iw.set(sum);   context.write(key, iw); } }

3. KeyValueDemo

package com.blu.kvdemo; import java.io.IOException; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.input.KeyValueLineRecordReader; import org.apache.hadoop.mapreduce.lib.input.KeyValueTextInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; public class KeyValueDemo { public static void main(String[] args) throws Exception {      Job job = Job.getInstance();   job.setInputFormatClass(KeyValueTextInputFormat.class);   Configuration conf = new Configuration(); //设置以tab为分隔符   conf.set(KeyValueLineRecordReader.KEY_VALUE_SEPERATOR, "t");   job.setJarByClass(KeyValueDemo.class);   job.setMapperClass(com.blu.kvdemo.Kvmapper.class);   job.setReducerClass(com.blu.kvdemo.KvReducer.class);   job.setMapOutputKeyClass(Text.class);   job.setMapOutputValueClass(IntWritable.class);   job.setOutputKeyClass(Text.class);   job.setOutputValueClass(IntWritable.class);   FileInputFormat.setInputPaths(job, new Path(args[0]));   FileOutputFormat.setOutputPath(job, new Path(args[1])); boolean flag = job.waitForCompletion(true);   System.exit(flag?0:1); } }

4. 设置以下参数运行KeyValueDemo的main方法

D:datamoney.txt D:dataoutput

5. 运行结果

lilei 2 lisi 2 zhangsan 2

CombineTextInputFormat

TextInputFormat 的切片机制是按文件切片，如果有大量的小文件，就会产生大量的MapTask，处理效率会很低。而CombineTextInputFormat可以将小文件合并为一个切片进行处理。
CombineTextInputFormat的切片机制：

1. 虚拟存储过程

假设有以下四个文件：

 a.txt 1.7M  b.txt 5.1M  c.txt 3.4M  d.txt 6.8M

假设 setMaxInputSplitSize的值为4M
将所有文件依次与 setMaxInputSplitSize的值4M比较，如果小于4M，逻辑上划分为一块。如果大于4M但小于8M，则文件均分为两块。如果大于8M，则先以4M为一块，剩余大小继续比较。
分块情况如下：

块1： 1.7M 块2： 2.55M 块3： 2.55M 块4： 3.4M 块5： 3.4M 块6： 3.4M

2. 切片过程
   判断虚拟存储文件块大小是否大于等于setMaxInputSplitSize的值（4M），如果大于等于4M，则单独作为一个切片。如果小于4M，则与下一个文件块合并为一个切片。
   最终形成3个切片：

切片1： 1.7M+2.55M 切片2： 2.55M+3.4M 切片3： 3.4M+3.4M

CombineTextInputFormat实例演示：

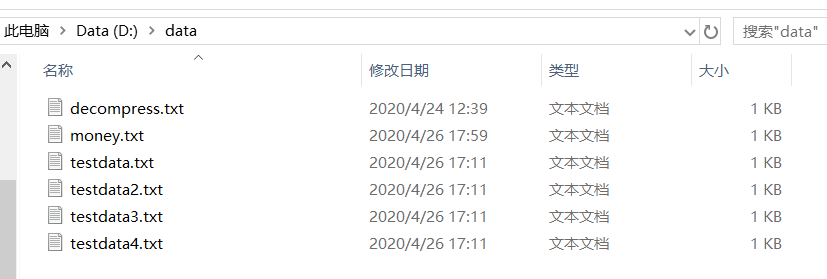

1. 在D:data下创建6个小文件：
2. 修改Hadoop_WordCount单词统计工程的MyWordCount

package com.blu.mywordcount; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.input.NLineInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; public class MyWordCount { public static void main(String[] args) { try {    Configuration conf = new Configuration();    Job job = Job.getInstance(conf);    job.setJarByClass(MyWordCount.class);    job.setMapperClass(MyWordCountMapper.class);    job.setReducerClass(MyWordCountReducer.class);    job.setMapOutputKeyClass(Text.class);    job.setMapOutputValueClass(IntWritable.class);    job.setOutputKeyClass(Text.class);    job.setOutputValueClass(IntWritable.class);    FileInputFormat.addInputPath(job, new Path(args[0]));    FileOutputFormat.setOutputPath(job, new Path(args[1])); boolean flag = job.waitForCompletion(true);    System.exit(flag ?0 : 1); } catch (Exception e) {    e.printStackTrace(); } } }

3. 用以下参数运行main方法：

D:data D:dataoutput

4. 控制台打印，输入文件数为6，切片数为6（这是默认的TextInputFormat的切片方式）：

Total input files to process : 6 number of splits:6

5. 再次修改 MyWordCount 类：

package com.blu.mywordcount; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.CombineTextInputFormat; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.input.NLineInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; public class MyWordCount { public static void main(String[] args) { try {    Configuration conf = new Configuration();    Job job = Job.getInstance(conf);    job.setJarByClass(MyWordCount.class);    job.setMapperClass(MyWordCountMapper.class);    job.setReducerClass(MyWordCountReducer.class);    job.setMapOutputKeyClass(Text.class);    job.setMapOutputValueClass(IntWritable.class);    job.setOutputKeyClass(Text.class);    job.setOutputValueClass(IntWritable.class); //设置输入的格式类为CombineTextInputFormat    job.setInputFormatClass(CombineTextInputFormat.class); //设置虚拟切片最大值为1M    CombineTextInputFormat.setMaxInputSplitSize(job, 1024*1024);    FileInputFormat.addInputPath(job, new Path(args[0]));    FileOutputFormat.setOutputPath(job, new Path(args[1])); boolean flag = job.waitForCompletion(true);    System.exit(flag ?0 : 1); } catch (Exception e) {    e.printStackTrace(); } } }

关键代码：

//设置输入的格式类为CombineTextInputFormat job.setInputFormatClass(CombineTextInputFormat.class); //设置虚拟切片最大值为1M CombineTextInputFormat.setMaxInputSplitSize(job, 1024*1024);

5. 再次运行的结果，输入文件为6，切片数为1：

Total input files to process : 6 number of splits:1

自定义InputFormat
步骤：
自定义一个类继承FileInputFormat
重写RecordReader

实例：过滤指定的单词，不进行统计

修改Hadoop_WordCount单词统计工程

1. MyInputFormat 类：

package com.blu.mywordcount.inputformat; import java.io.IOException; import org.apache.hadoop.io.LongWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.InputSplit; import org.apache.hadoop.mapreduce.RecordReader; import org.apache.hadoop.mapreduce.TaskAttemptContext; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; public class MyInputFormat extends FileInputFormat<LongWritable, Text>{ @Override public RecordReader<LongWritable, Text> createRecordReader(InputSplit split, TaskAttemptContext context) throws IOException, InterruptedException { return new myRecordReader(context.getConfiguration()); } }

2. myRecordReader类：

package com.blu.mywordcount.inputformat; import java.io.IOException; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.io.LongWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.InputSplit; import org.apache.hadoop.mapreduce.RecordReader; import org.apache.hadoop.mapreduce.TaskAttemptContext; import org.apache.hadoop.mapreduce.lib.input.LineRecordReader; public class myRecordReader extends RecordReader<LongWritable, Text> { public static String CUSTOM_KEYWORD="mapreduce.input.myRecordReader.line.keyword"; private LineRecordReader lineRecordReader; //要过滤的单词 private String keyword; private LongWritable key; private Text value; public myRecordReader() { super(); } public myRecordReader(Configuration conf) {   lineRecordReader = new LineRecordReader();   keyword = conf.get(CUSTOM_KEYWORD); } /**   * 初始化方法   */ @Override public void initialize(InputSplit split, TaskAttemptContext context) throws IOException, InterruptedException {   lineRecordReader.initialize(split, context); } /**   * 主要逻辑   * 返回值true表示继续获取后面的数据   * 返回值false表示停止获取后面的数据   */ @Override public boolean nextKeyValue() throws IOException, InterruptedException { //判断是否还有数据,没有数据就停止继续读取 if(!lineRecordReader.nextKeyValue()) { return false; } //获得一行数据   Text currentValue = lineRecordReader.getCurrentValue(); //判断这一行数据中是否包含要过滤的单词   String val = currentValue.toString(); if(keyword != null) { if(val.contains(keyword)) {     val = val.replace(keyword+" ", "");     currentValue.set(val); } }   key = lineRecordReader.getCurrentKey();   value = currentValue; return true; } /**   * 返回当前行的Key的值   */ @Override public LongWritable getCurrentKey() throws IOException, InterruptedException { return key; } /**   * 返回当前行的Value的值   */ @Override public Text getCurrentValue() throws IOException, InterruptedException { return value; } @Override public float getProgress() throws IOException, InterruptedException { return 0; } @Override public void close() throws IOException { } }

3. 修改MyWordCount类：

package com.blu.mywordcount; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.Path; import org.apache.hadoop.io.IntWritable; import org.apache.hadoop.io.Text; import org.apache.hadoop.mapreduce.Job; import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; import com.blu.mywordcount.inputformat.MyInputFormat; import com.blu.mywordcount.inputformat.myRecordReader; public class MyWordCount { public static void main(String[] args) { try {    Configuration conf = new Configuration(); //设置要过滤的单词    conf.set(myRecordReader.CUSTOM_KEYWORD, "zhangsan");    Job job = Job.getInstance(conf);    job.setJarByClass(MyWordCount.class);    job.setMapperClass(MyWordCountMapper.class);    job.setReducerClass(MyWordCountReducer.class);    job.setMapOutputKeyClass(Text.class);    job.setMapOutputValueClass(IntWritable.class);    job.setOutputKeyClass(Text.class);    job.setOutputValueClass(IntWritable.class); //设置自定义的输入类    job.setInputFormatClass(MyInputFormat.class);    FileInputFormat.addInputPath(job, new Path(args[0]));    FileOutputFormat.setOutputPath(job, new Path(args[1])); boolean flag = job.waitForCompletion(true);    System.exit(flag ?0 : 1); } catch (Exception e) {    e.printStackTrace(); } } }

4. D:datatestdata.txt的内容：

good morning good afternoon good evening zhangsan male lisi female wangwu male good morning good afternoon good evening zhangsan male lisi female wangwu male

5. 用以下参数运行

D:datatestdata.txt D:dataoutput

6. 结果

afternoon 2 evening 2 female 2 good 6 lisi 2 male 4 morning 2 wangwu 2
