一、前言

Photon Unity Networking (PUN)是一种用于多人游戏的Unity软件包。
灵活的匹配可以让玩家进入房间，可以通过网络同步对象。
快速和可靠的通信是通过专用的Photon 服务器完成的，因此客户端连接不需要1对1。

二、参考文章

1、【PUN】Photon Unity Networking(PUN)的简单使用
2、【Unity3D】 Photon多人游戏开发教程
3、PUN介绍(干货)
4、Photon Unity Networking 案例（一）
5、Unity3D利用Photon实现实时联网对战（二）PUN SDK介绍
6、Photon Unity Networking基础教程 7 修改Player的联网版本
7、使用Photon Unity Networking开发多人网络游戏的基本思路（一）：大厅与等待房间

三、正文

3.1 快速搭建

1.下载PUN插件，下载地址：https://doc.photonengine.com/en-us/pun/current/getting-started/pun-intro

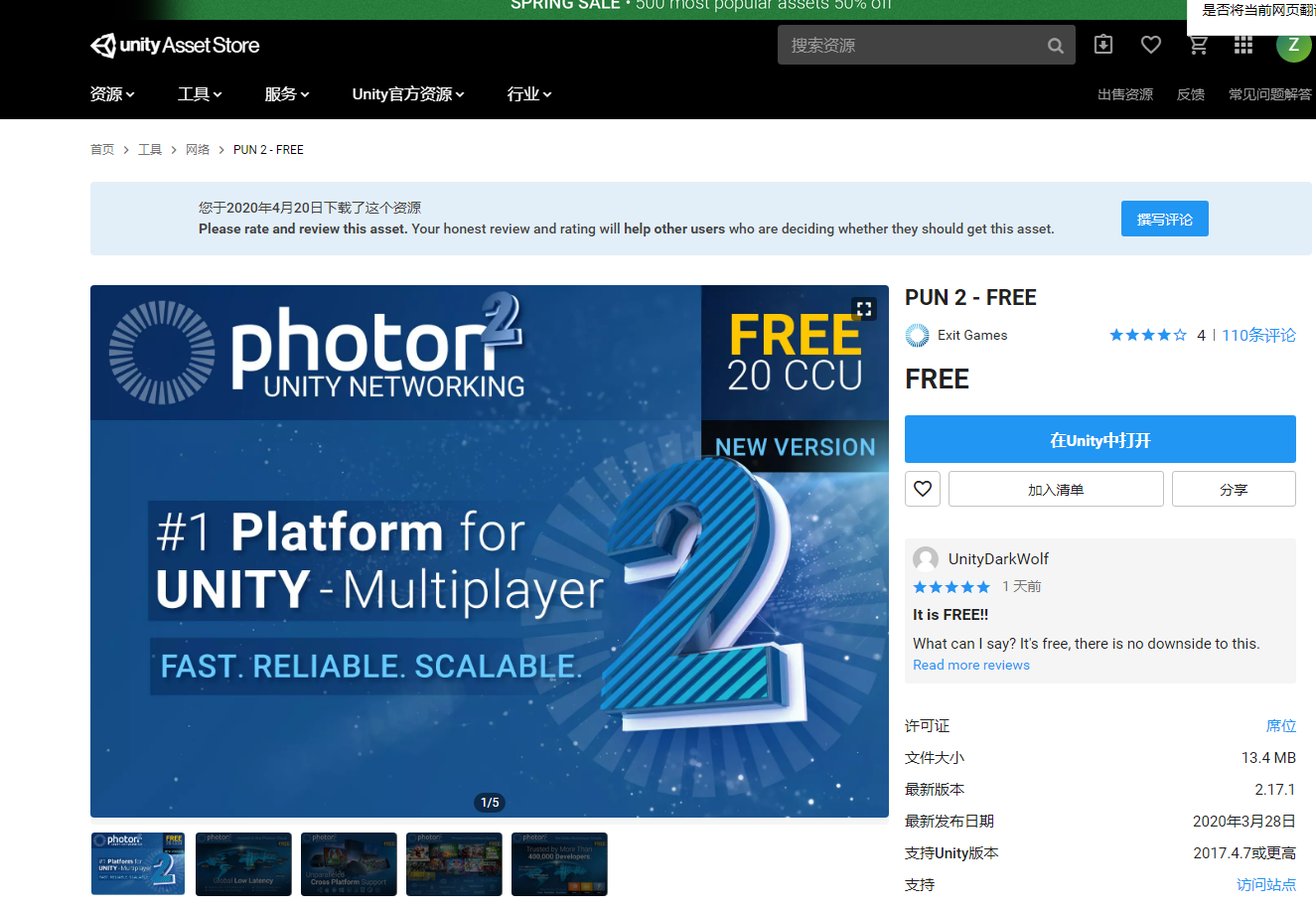

会跳转到AssetStore商店：

需要注意的是版本要Unity2017.4.7以上，如果是以前的版本，可以安装PUN1.0版本

或者直接在Unity里面Alt+9访问商店，然后搜索PUN插件

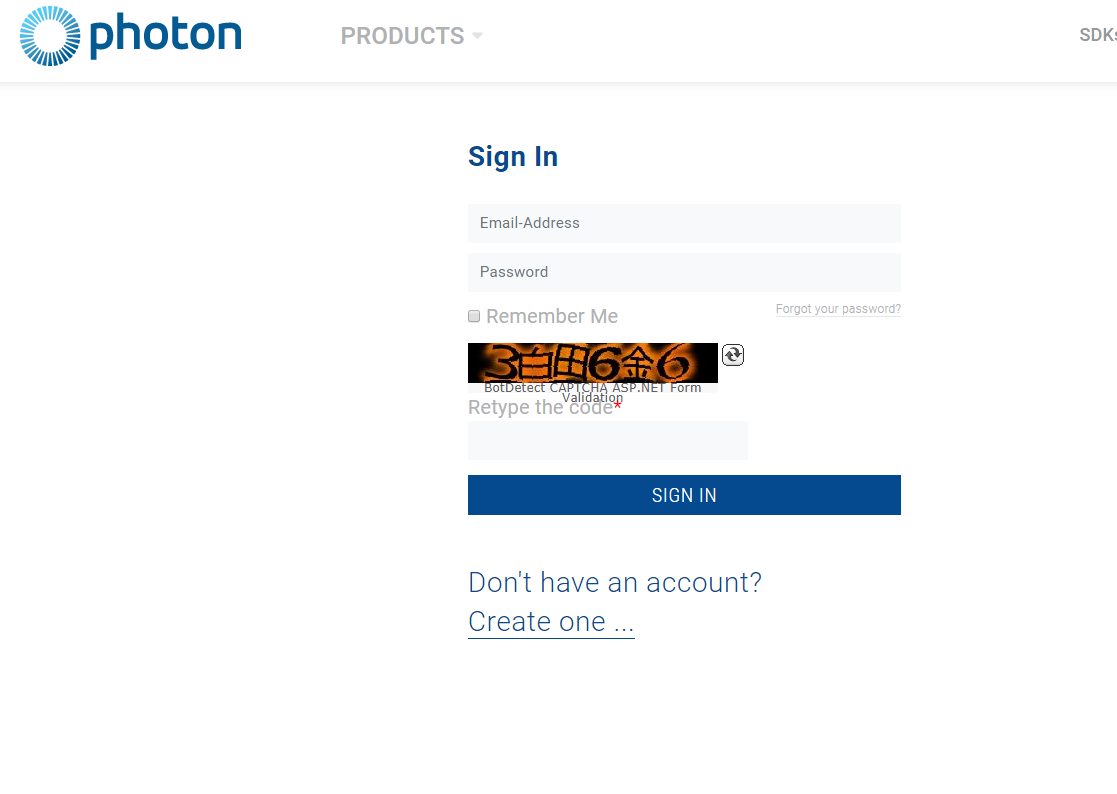

2.然后需要打开Photon的官网注册一个账号，https://dashboard.photonengine.com/Account/SignIn?ReturnUrl=%2fzh-CN%2fpubliccloud

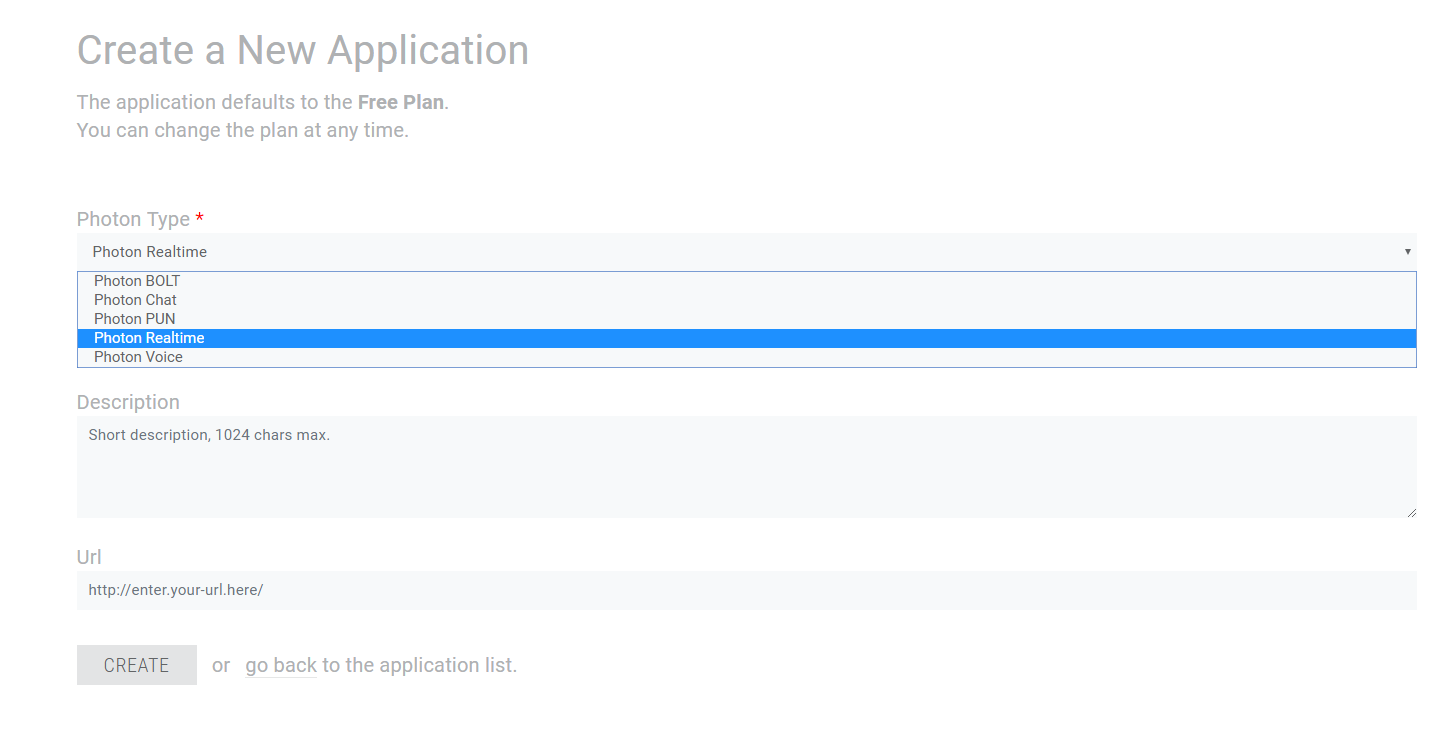

登录以后，点击新建一个APP：

类型的话，如果是聊天室可以选择Photon Chat，普通的选择Photon PUN就可以了

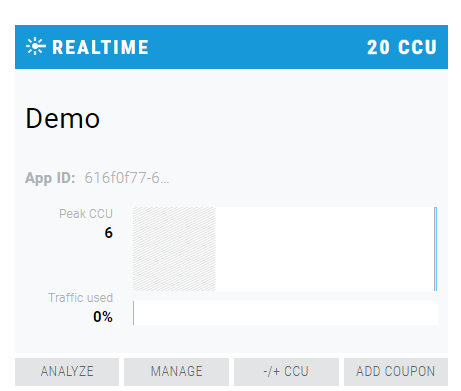

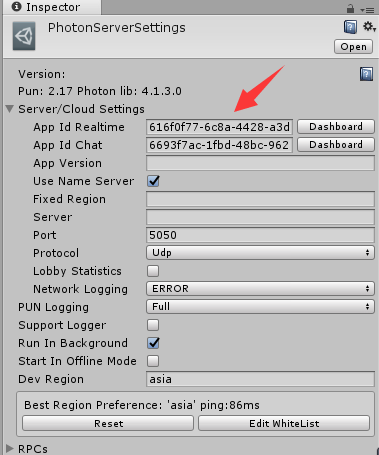

复制App ID，到Unity项目中的Photon/PhotonUnityNetworking/Resources/PhotonServerSettings的
App Id Realtim

3.新建场景，新建一个Plane，和Cube，将Cube设成预制体，放到Resouces文件夹：

4.给Cube加上Photon View组件，如果要同步的话，这个组件是必须的

将Cube的Transform拖入Observed Components

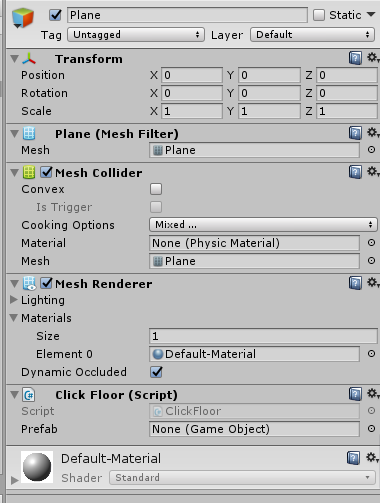

5.新建脚本ClickFloor，将脚本付给Plane

using Photon.Pun; using UnityEngine; public class ClickFloor : MonoBehaviour { public GameObject m_Prefab; void Update() { if (Input.GetMouseButtonDown(0)) { Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition); RaycastHit hit; if (Physics.Raycast(ray, out hit)) {                 PhotonNetwork.Instantiate(m_Prefab.name, hit.point + new Vector3(0, 3, 0), Quaternion.identity, 0); } } } }

6.新建脚本PhotonConnect.cs

using UnityEngine; using Photon.Pun;//导入Photon命名空间 using Photon.Realtime; public class PhotonConnect : MonoBehaviour { void Start() { //初始化版本号         PhotonNetwork.ConnectUsingSettings();         PhotonNetwork.GameVersion = "1"; } //按钮事件 创建房间 public void Btn_CreateRoom(string _roomName) { //设置房间属性 RoomOptions m_Room = new RoomOptions { IsOpen = true, IsVisible = true, MaxPlayers = 4 };         PhotonNetwork.CreateRoom(_roomName, m_Room); } //根据房间名加入房间 public void Btn_JoinRoom(string _roomName) {         PhotonNetwork.JoinRoom(_roomName); } //随机加入已经创建的房间 public void Btn_JoinRandomRoom() {         PhotonNetwork.JoinRandomRoom(); } void OnGUI() { //显示连接信息         GUILayout.Label(PhotonNetwork.NetworkClientState.ToString(),GUILayout.Width(300),GUILayout.Height(100)); } }

7.将脚本付给Main Camera(任意一个场景中的对象就行)，然后新建3个按钮，绑定事件：

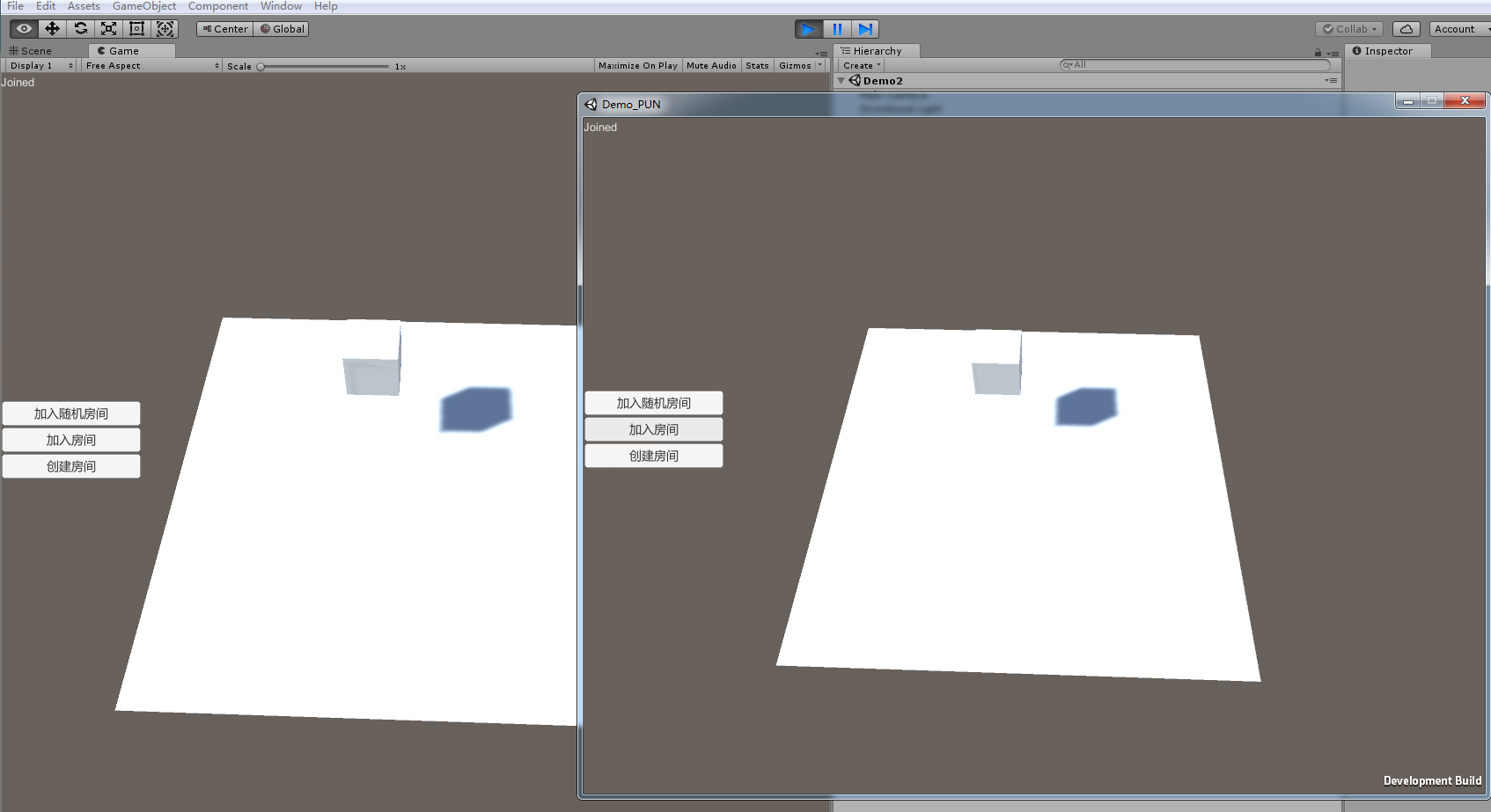

8.Cube预制体Apply一下，然后从场景中删除，运行：

3.2 API解析

连接和回调

ConnectUsingSettings 建立连接

PhotonNetwork.ConnectUsingSettings();

PUN 使用回调让你知道客户什么时候建立了连接，加入了一个房间等等。

例如：IConnectionCallbacks.OnConnectedToMaster.

为了方便起见，可以继承MonoBehaviourPunCallbacks接口，它实现了重要的回调接口并自动注册自己，只需覆盖特定的回调方法

public class YourClass : MonoBehaviourPunCallbacks { public override void OnConnectedToMaster() {         Debug.Log("Launcher: 连接到主客户端"); } }

加入和创建房间

加入房间

PhotonNetwork.JoinRoom("someRoom");

加入存在的随机房间

PhotonNetwork.JoinRandomRoom();

创建房间

PhotonNetwork.CreateRoom("MyMatch");

如果想跟朋友一起玩，可以编一个房间名称，并使用JoinOrCreateRoom创建房间，将IsVisible 设为false，那么就只能使用房间名来加入（而不是随机加入创建的房间了）

RoomOptions roomOptions = new RoomOptions(); roomOptions.IsVisible = false; roomOptions.MaxPlayers = 4; PhotonNetwork.JoinOrCreateRoom(nameEveryFriendKnows, roomOptions, TypedLobby.Default);

游戏逻辑

可以使用PhotonView组件将游戏对象实例化为“联网游戏对象”，它标识对象和所有者(或控制器)更新状态给其他人

需要添加一个PhotonView组件选择Observed组件并使用PhotonNetwork.Instantiate若要创建实例，请执行以下操作。

PhotonStream 负责写入(和读取)网络对象的状态，每秒钟几次，脚本需要继承接口IPunObservable，它定义了OnPhotonSerializeView。看起来是这样的：

public void OnPhotonSerializeView(PhotonStream stream, PhotonMessageInfo info) { if (stream.IsWriting) { Vector3 pos = transform.localPosition;         stream.Serialize(ref pos); } else { Vector3 pos = Vector3.zero;         stream.Serialize(ref pos); } }

远程过程调用

Remote Procedure Calls (RPC)使你可以调用”networked GameObjects”上的方法，对由用户输入等触发的不常用动作很有用。

一个RPC会被在同房间里的每个玩家在相同的游戏对象上被执行，所以你可以容易地触发整个场景效果就像你可以修改某些GameObject。

作为RPC被调用的方法必须在一个带PhotonView组件的游戏对象上。该方法自身必须要被[PunRPC]属性标记。

[PunRPC] void ChatMessage(string a, string b) {        Debug.Log("ChatMessage " + a + " " + b); }

要调用该方法，先访问到目标对象的PhotonView组件。而不是直接调用目标方法，调用PhotonView.RPC()并提供想要调用的方法名称：

PhotonView photonView = PhotonView.Get(this);  photonView.RPC("ChatMessage", PhotonTargets.All, "jup", "and jup!");

回调函数

更多API参考：
https://doc-api.photonengine.com/en/pun/v2/namespace_photon_1_1_pun.html

四、案例

1.简单的多人游戏

1.新建Launcher.cs脚本

using UnityEngine; using Photon.Pun; namespace Com.MyCompany.MyGame { public class Launcher : MonoBehaviour { #region Private Serializable Fields #endregion #region Private Fields /// <summary> /// This client's version number. Users are separated from each other by gameVersion (which allows you to make breaking changes). /// </summary> string gameVersion = "1"; #endregion #region MonoBehaviour CallBacks /// <summary> /// MonoBehaviour method called on GameObject by Unity during early initialization phase. /// </summary> void Awake() { // #Critical // this makes sure we can use PhotonNetwork.LoadLevel() on the master client and all clients in the same room sync their level automatically             PhotonNetwork.AutomaticallySyncScene = true; } /// <summary> /// MonoBehaviour method called on GameObject by Unity during initialization phase. /// </summary> void Start() { Connect(); } #endregion #region Public Methods /// <summary> /// Start the connection process. /// - If already connected, we attempt joining a random room /// - if not yet connected, Connect this application instance to Photon Cloud Network /// </summary> public void Connect() { // we check if we are connected or not, we join if we are , else we initiate the connection to the server. if (PhotonNetwork.IsConnected) { // #Critical we need at this point to attempt joining a Random Room. If it fails, we'll get notified in OnJoinRandomFailed() and we'll create one.                 PhotonNetwork.JoinRandomRoom(); } else { // #Critical, we must first and foremost connect to Photon Online Server.                 PhotonNetwork.ConnectUsingSettings();                 PhotonNetwork.GameVersion = gameVersion; } } #endregion } }

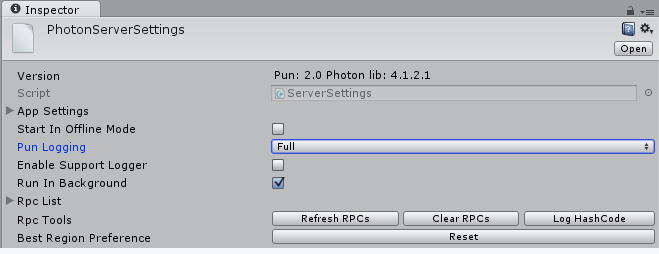

打开PhotonServerSettings：

2.扩展MonoBehaviourPunCallback
修改MonoBehaviour为MonoBehaviourPunCallbacks
加using Photon.Realtime;命名空间
添加以下两个方法：

public class Launcher : MonoBehaviourPunCallbacks {

#region MonoBehaviourPunCallbacks Callbacks public override void OnConnectedToMaster() {     Debug.Log("PUN Basics Tutorial/Launcher: OnConnectedToMaster() was called by PUN");     PhotonNetwork.JoinRandomRoom(); } public override void OnDisconnected(DisconnectCause cause) {     Debug.LogWarningFormat("PUN Basics Tutorial/Launcher: OnDisconnected() was called by PUN with reason {0}", cause); } #endregion

当我们有效地加入一个房间时，它将通知您的脚本：

public override void OnJoinRandomFailed(short returnCode, string message) {     Debug.Log("PUN Basics Tutorial/Launcher:OnJoinRandomFailed() was called by PUN. No random room available, so we create one.nCalling: PhotonNetwork.CreateRoom"); // #Critical: we failed to join a random room, maybe none exists or they are all full. No worries, we create a new room.     PhotonNetwork.CreateRoom(null, new RoomOptions()); } public override void OnJoinedRoom() {     Debug.Log("PUN Basics Tutorial/Launcher: OnJoinedRoom() called by PUN. Now this client is in a room."); }

新建字段：

/// <summary> /// The maximum number of players per room. When a room is full, it can't be joined by new players, and so new room will be created. /// </summary> [Tooltip("The maximum number of players per room. When a room is full, it can't be joined by new players, and so new room will be created")] [SerializeField] private byte maxPlayersPerRoom = 4;

然后修改PhototonNetwork.CreateRoom()调用并使用这个新字段

// #Critical: we failed to join a random room, maybe none exists or they are all full. No worries, we create a new room. PhotonNetwork.CreateRoom(null, new RoomOptions { MaxPlayers = maxPlayersPerRoom });

3.UI界面搭建
开始按钮
新建一个Button，命名为Play Button，绑定事件Launcher.Connect()
打卡脚本Launcher.cs，移除Start()函数

4.玩家名字
创建PlayerNameInputField.cs脚本：

using UnityEngine; using UnityEngine.UI; using Photon.Pun; using Photon.Realtime; using System.Collections; namespace Com.MyCompany.MyGame { /// <summary> /// Player name input field. Let the user input his name, will appear above the player in the game. /// </summary> [RequireComponent(typeof(InputField))] public class PlayerNameInputField : MonoBehaviour { #region Private Constants // Store the PlayerPref Key to avoid typos const string playerNamePrefKey = "PlayerName"; #endregion #region MonoBehaviour CallBacks /// <summary> /// MonoBehaviour method called on GameObject by Unity during initialization phase. /// </summary> void Start () { string defaultName = string.Empty; InputField _inputField = this.GetComponent<InputField>(); if (_inputField!=null) { if (PlayerPrefs.HasKey(playerNamePrefKey)) {                     defaultName = PlayerPrefs.GetString(playerNamePrefKey);                     _inputField.text = defaultName; } }               PhotonNetwork.NickName =  defaultName; } #endregion #region Public Methods /// <summary> /// Sets the name of the player, and save it in the PlayerPrefs for future sessions. /// </summary> /// <param name="value">The name of the Player</param> public void SetPlayerName(string value) { // #Important if (string.IsNullOrEmpty(value)) {                 Debug.LogError("Player Name is null or empty"); return; }             PhotonNetwork.NickName = value;               PlayerPrefs.SetString(playerNamePrefKey,value); } #endregion } }

5.为玩家的名字创建UI
在场景中新建UI—InputField，添加事件On Value Change (String)，拖动PlayerNameInputField附加到对象上，选择SetPlayerName方法

6.连接信息显示
使用“GameObject/UI/Panel”菜单创建UI面板，命名为Control Panel，
拖放Play Button和Name InputField在Control Panel
新建一个text用作信息显示，命名为Progress Label

7.打开Launcher.cs脚本
添加以下两个属性

[Tooltip("The Ui Panel to let the user enter name, connect and play")] [SerializeField] private GameObject controlPanel; [Tooltip("The UI Label to inform the user that the connection is in progress")] [SerializeField] private GameObject progressLabel;

添加到Start()方法：

progressLabel.SetActive(false); controlPanel.SetActive(true);

添加到Connect()方法：

progressLabel.SetActive(true); controlPanel.SetActive(false);

添加到OnDisconnected()方法：

progressLabel.SetActive(false); controlPanel.SetActive(true);

7.创建不同的场景
创建一个新场景，保存它并命名Room for 1
新建一个Plane，缩放到20，1，20
新建4个Cube：
Cube1

Cube2

Cube3

Cube4

8.新建c#脚本GameManager.cs

using System; using System.Collections; using UnityEngine; using UnityEngine.SceneManagement; using Photon.Pun; using Photon.Realtime; namespace Com.MyCompany.MyGame { public class GameManager : MonoBehaviourPunCallbacks { #region Photon Callbacks /// <summary> /// Called when the local player left the room. We need to load the launcher scene. /// </summary> public override void OnLeftRoom() {             SceneManager.LoadScene(0); } #endregion #region Public Methods public void LeaveRoom() {             PhotonNetwork.LeaveRoom(); } #endregion } }

9.退出房间按钮
新建一个面板Top Panel，设置锚点

添加一个退出按钮，命名为Leave Button，绑定事件Game Manager的LeaveRoom()

10.创造其他场景
2人场景：
Cube1:

Cube2:

Cube3:

Cube4:

3人场景：
Cube1：

Cube2:

Cube3:

Cube4:

4人场景：
Floor 比例尺：60，1，60
Cube1:

Cube2:

Cube3:

Cube4:

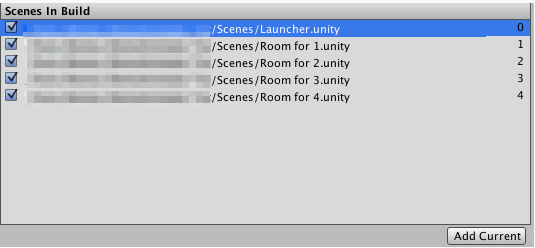

11.生成设置场景列表
File/Build Settings拖放所有场景

12.加载场景
打开GameManager.cs
添加新方法：

#region Private Methods void LoadArena() { if (!PhotonNetwork.IsMasterClient) {         Debug.LogError("PhotonNetwork : Trying to Load a level but we are not the master Client"); }     Debug.LogFormat("PhotonNetwork : Loading Level : {0}", PhotonNetwork.CurrentRoom.PlayerCount);     PhotonNetwork.LoadLevel("Room for " + PhotonNetwork.CurrentRoom.PlayerCount); } #endregion

13.检测其他玩家的加入：

#region Photon Callbacks public override void OnPlayerEnteredRoom(Player other) {     Debug.LogFormat("OnPlayerEnteredRoom() {0}", other.NickName); // not seen if you're the player connecting if (PhotonNetwork.IsMasterClient) {         Debug.LogFormat("OnPlayerEnteredRoom IsMasterClient {0}", PhotonNetwork.IsMasterClient); // called before OnPlayerLeftRoom LoadArena(); } } public override void OnPlayerLeftRoom(Player other) {     Debug.LogFormat("OnPlayerLeftRoom() {0}", other.NickName); // seen when other disconnects if (PhotonNetwork.IsMasterClient) {         Debug.LogFormat("OnPlayerLeftRoom IsMasterClient {0}", PhotonNetwork.IsMasterClient); // called before OnPlayerLeftRoom LoadArena(); } } #endregion

14.加入游戏大厅
将下列内容附加到OnJoinedRoom()方法

// #Critical: We only load if we are the first player, else we rely on `PhotonNetwork.AutomaticallySyncScene` to sync our instance scene. if (PhotonNetwork.CurrentRoom.PlayerCount == 1) {     Debug.Log("We load the 'Room for 1' "); // #Critical // Load the Room Level.     PhotonNetwork.LoadLevel("Room for 1"); }

打开场景Launcher运行它。点击“Play”但如果你离开房间，你会注意到当你回到大厅时，它会自动重新加入要解决这个问题，我们可以修改Launcher.cs脚本

添加新属性：

/// <summary> /// Keep track of the current process. Since connection is asynchronous and is based on several callbacks from Photon, /// we need to keep track of this to properly adjust the behavior when we receive call back by Photon. /// Typically this is used for the OnConnectedToMaster() callback. /// </summary> bool isConnecting;

Connect()方法添加：

// keep track of the will to join a room, because when we come back from the game we will get a callback that we are connected, so we need to know what to do then isConnecting = PhotonNetwork.ConnectUsingSettings();

结果：

public void Connect() {     progressLabel.SetActive(true);     controlPanel.SetActive(false); if (PhotonNetwork.IsConnected) {         PhotonNetwork.JoinRandomRoom(); } else {         isConnecting = PhotonNetwork.ConnectUsingSettings();         PhotonNetwork.GameVersion = gameVersion; } }

OnConnectedToMaster()方法加入：

// we don't want to do anything if we are not attempting to join a room. // this case where isConnecting is false is typically when you lost or quit the game, when this level is loaded, OnConnectedToMaster will be called, in that case // we don't want to do anything. if (isConnecting) { // #Critical: The first we try to do is to join a potential existing room. If there is, good, else, we'll be called back with OnJoinRandomFailed()     PhotonNetwork.JoinRandomRoom();     isConnecting = false; }

15.玩家设置
模型在AssetsPhotonPhotonUnityNetworkingDemosShared AssetsModels
Kyle Robot.fbx
新建一个空场景，拖入Kyle Robot.fbx进入场景，将模型拖入Resources文件夹，做成一个预制体：

双击My Kyle Robot修改碰撞器：

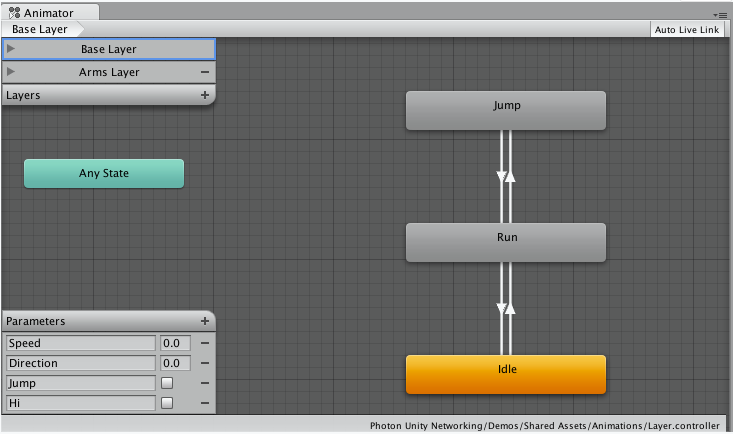

动画设置

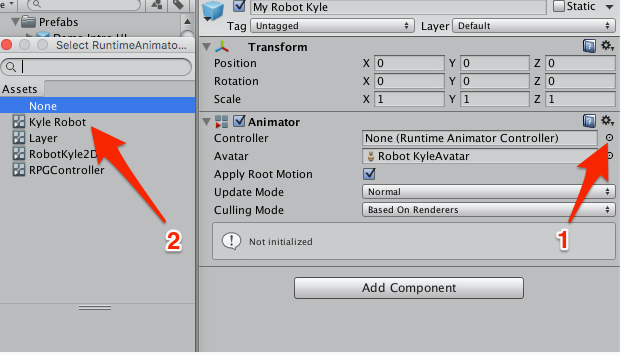

配这个Kyle Robot我们的控制器预制件，只需设置属性Controller要指向的动画组件的Kyle Robot

使用控制器参数
新建PlayerAnimatorManager.cs脚本：

using UnityEngine; using System.Collections; namespace Com.MyCompany.MyGame { public class PlayerAnimatorManager : MonoBehaviour { #region MonoBehaviour Callbacks // Use this for initialization void Start() { } // Update is called once per frame void Update() { } #endregion } }

创建变量：

private Animator animator; // Use this for initialization void Start() {     animator = GetComponent<Animator>(); if (!animator) {         Debug.LogError("PlayerAnimatorManager is Missing Animator Component", this); } } // Update is called once per frame void Update() { if (!animator) { return; } float h = Input.GetAxis("Horizontal"); float v = Input.GetAxis("Vertical"); if (v < 0) {         v = 0; }     animator.SetFloat("Speed", h * h + v * v); }

动画管理员脚本：方向控制
编辑脚本PlayerAnimatorManager

#region Private Fields [SerializeField] private float directionDampTime = 0.25f; #endregion

Update里面添加：

animator.SetFloat("Direction", h, directionDampTime, Time.deltaTime);

动画管理员脚本：跳跃
编辑脚本PlayerAnimatorManager

// deal with Jumping AnimatorStateInfo stateInfo = animator.GetCurrentAnimatorStateInfo(0); // only allow jumping if we are running. if (stateInfo.IsName("Base Layer.Run")) { // When using trigger parameter if (Input.GetButtonDown("Fire2")) {         animator.SetTrigger("Jump"); } }

结果：

using UnityEngine; using System.Collections; namespace Com.MyCompany.MyGame { public class PlayerAnimatorManager : MonoBehaviour { #region Private Fields [SerializeField] private float directionDampTime = .25f; private Animator animator; #endregion #region MonoBehaviour CallBacks // Use this for initialization void Start() {             animator = GetComponent<Animator>(); if (!animator) {                 Debug.LogError("PlayerAnimatorManager is Missing Animator Component", this); } } // Update is called once per frame void Update() { if (!animator) { return; } // deal with Jumping AnimatorStateInfo stateInfo = animator.GetCurrentAnimatorStateInfo(0); // only allow jumping if we are running. if (stateInfo.IsName("Base Layer.Run")) { // When using trigger parameter if (Input.GetButtonDown("Fire2")) {                     animator.SetTrigger("Jump"); } } float h = Input.GetAxis("Horizontal"); float v = Input.GetAxis("Vertical"); if (v < 0) {                 v = 0; }             animator.SetFloat("Speed", h * h + v * v);             animator.SetFloat("Direction", h, directionDampTime, Time.deltaTime); } #endregion } }

摄像机设置
添加组件CameraWork到My Kyle Robot预制件

PhotonView组件
给模型添加一个PhotonView组件：
设置Observe Option到Unreliable On Change

增加武器射线
点击模型，打开层级列表，找到头部：

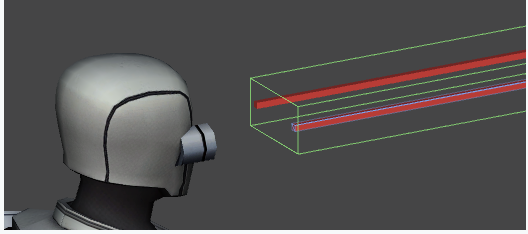

设置两个Cube为射线，然后父对象为Head:


控制射线：
创建一个新的脚本：PlayerManager.cs

using UnityEngine; using UnityEngine.EventSystems; using Photon.Pun; using System.Collections; namespace Com.MyCompany.MyGame { /// <summary> /// Player manager. /// Handles fire Input and Beams. /// </summary> public class PlayerManager : MonoBehaviourPunCallbacks { #region Private Fields [Tooltip("The Beams GameObject to control")] [SerializeField] private GameObject beams; //True, when the user is firing bool IsFiring; #endregion #region MonoBehaviour CallBacks /// <summary> /// MonoBehaviour method called on GameObject by Unity during early initialization phase. /// </summary> void Awake() { if (beams == null) {                 Debug.LogError("<Color=Red><a>Missing</a></Color> Beams Reference.", this); } else {                 beams.SetActive(false); } } /// <summary> /// MonoBehaviour method called on GameObject by Unity on every frame. /// </summary> void Update() { ProcessInputs(); // trigger Beams active state if (beams != null && IsFiring != beams.activeInHierarchy) {                 beams.SetActive(IsFiring); } } #endregion #region Custom /// <summary> /// Processes the inputs. Maintain a flag representing when the user is pressing Fire. /// </summary> void ProcessInputs() { if (Input.GetButtonDown("Fire1")) { if (!IsFiring) {                     IsFiring = true; } } if (Input.GetButtonUp("Fire1")) { if (IsFiring) {                     IsFiring = false; } } } #endregion } }

生命值
打开PlayerManager剧本
增加一个公众Health属性

[Tooltip("The current Health of our player")] public float Health = 1f;

以下两个方法添加到MonoBehaviour Callbacks区域。

/// <summary> /// MonoBehaviour method called when the Collider 'other' enters the trigger. /// Affect Health of the Player if the collider is a beam /// Note: when jumping and firing at the same, you'll find that the player's own beam intersects with itself /// One could move the collider further away to prevent this or check if the beam belongs to the player. /// </summary> void OnTriggerEnter(Collider other) { if (!photonView.IsMine) { return; } // We are only interested in Beamers // we should be using tags but for the sake of distribution, let's simply check by name. if (!other.name.Contains("Beam")) { return; }     Health -= 0.1f; } /// <summary> /// MonoBehaviour method called once per frame for every Collider 'other' that is touching the trigger. /// We're going to affect health while the beams are touching the player /// </summary> /// <param name="other">Other.</param> void OnTriggerStay(Collider other) { // we dont' do anything if we are not the local player. if (! photonView.IsMine) { return; } // We are only interested in Beamers // we should be using tags but for the sake of distribution, let's simply check by name. if (!other.name.Contains("Beam")) { return; } // we slowly affect health when beam is constantly hitting us, so player has to move to prevent death.     Health -= 0.1f*Time.deltaTime; }

在公共字段区域中添加此变量

public static GameManager Instance;

Start()方法添加：

void Start() {     Instance = this; }

Update函数添加：

if (Health <= 0f) {     GameManager.Instance.LeaveRoom(); }

16.联网
Transform 同步

添加组件PhotonTransformView

动画同步
添加组件PhotonAnimatorView

16.用户输入管理
打开PlayerAnimatorManager.cs
Update添加

if (photonView.IsMine == false && PhotonNetwork.IsConnected == true) { return; }

17.摄像机控制
打开PlayerManager剧本

/// <summary> /// MonoBehaviour method called on GameObject by Unity during initialization phase. /// </summary> void Start() { CameraWork _cameraWork = this.gameObject.GetComponent<CameraWork>(); if (_cameraWork != null) { if (photonView.IsMine) {             _cameraWork.OnStartFollowing(); } } else {         Debug.LogError("<Color=Red><a>Missing</a></Color> CameraWork Component on playerPrefab.", this); } }

禁用Follow on Start

18.开火控制

打开脚本PlayerManager

if (photonView.IsMine) {     ProcessInputs (); }

添加接口IPunObservable

public class PlayerManager : MonoBehaviourPunCallbacks, IPunObservable { #region IPunObservable implementation public void OnPhotonSerializeView(PhotonStream stream, PhotonMessageInfo info) { } #endregion

IPunObservable.OnPhotonSerializeView添加以下代码

if (stream.IsWriting) { // We own this player: send the others our data     stream.SendNext(IsFiring); } else { // Network player, receive data this.IsFiring = (bool)stream.ReceiveNext(); }

将PlayerManager组件拖入PhotonView组件

19.生命值同步
打开脚本PlayerManager

if (stream.IsWriting) { // We own this player: send the others our data     stream.SendNext(IsFiring);     stream.SendNext(Health); } else { // Network player, receive data this.IsFiring = (bool)stream.ReceiveNext(); this.Health = (float)stream.ReceiveNext(); }

20.实例化玩家

打开GameManager脚本
在公共字段区域中添加以下变量

[Tooltip("The prefab to use for representing the player")] public GameObject playerPrefab;

在Start()方法，添加以下内容

if (playerPrefab == null) {     Debug.LogError("<Color=Red><a>Missing</a></Color> playerPrefab Reference. Please set it up in GameObject 'Game Manager'",this); } else {     Debug.LogFormat("We are Instantiating LocalPlayer from {0}", Application.loadedLevelName); // we're in a room. spawn a character for the local player. it gets synced by using PhotonNetwork.Instantiate     PhotonNetwork.Instantiate(this.playerPrefab.name, new Vector3(0f,5f,0f), Quaternion.identity, 0); }

21.跟随玩家
打开PlayerManager脚本
在“公共字段”区域中，添加以下内容

[Tooltip("The local player instance. Use this to know if the local player is represented in the Scene")] public static GameObject LocalPlayerInstance;

在Awake()方法，添加以下内容

// #Important // used in GameManager.cs: we keep track of the localPlayer instance to prevent instantiation when levels are synchronized if (photonView.IsMine) {     PlayerManager.LocalPlayerInstance = this.gameObject; } // #Critical // we flag as don't destroy on load so that instance survives level synchronization, thus giving a seamless experience when levels load. DontDestroyOnLoad(this.gameObject);

将实例化调用包围在if条件

if (PlayerManager.LocalPlayerInstance == null) {     Debug.LogFormat("We are Instantiating LocalPlayer from {0}", SceneManagerHelper.ActiveSceneName); // we're in a room. spawn a character for the local player. it gets synced by using PhotonNetwork.Instantiate     PhotonNetwork.Instantiate(this.playerPrefab.name, new Vector3(0f, 5f, 0f), Quaternion.identity, 0); } else {     Debug.LogFormat("Ignoring scene load for {0}", SceneManagerHelper.ActiveSceneName); }

22.管理场景外的玩家
打开PlayerManager脚本

#if UNITY_5_4_OR_NEWER void OnSceneLoaded(UnityEngine.SceneManagement.Scene scene, UnityEngine.SceneManagement.LoadSceneMode loadingMode) { this.CalledOnLevelWasLoaded(scene.buildIndex); } #endif

在Start()方法，添加以下代码

#if UNITY_5_4_OR_NEWER // Unity 5.4 has a new scene management. register a method to call CalledOnLevelWasLoaded. UnityEngine.SceneManagement.SceneManager.sceneLoaded += OnSceneLoaded; #endif

在“MonoBehaviour回调”区域中添加以下两个方法

#if !UNITY_5_4_OR_NEWER /// <summary>See CalledOnLevelWasLoaded. Outdated in Unity 5.4.</summary> void OnLevelWasLoaded(int level) { this.CalledOnLevelWasLoaded(level); } #endif void CalledOnLevelWasLoaded(int level) { // check if we are outside the Arena and if it's the case, spawn around the center of the arena in a safe zone if (!Physics.Raycast(transform.position, -Vector3.up, 5f)) {         transform.position = new Vector3(0f, 5f, 0f); } }

覆盖OnDisable方法如下

#if UNITY_5_4_OR_NEWER public override void OnDisable() { // Always call the base to remove callbacks base.OnDisable ();     UnityEngine.SceneManagement.SceneManager.sceneLoaded -= OnSceneLoaded; } #endif

23.玩家UI 血条和名字预设体
在场景中新建UI，Slider，锚点，中间位置，rect宽度80高度15，背景设置成红色，加一个CanvasGroup组件，设置Interactable和Blocks Raycast为false，拖入到Prefab文件夹,删除场景中的实例，我们不再需要它了

创建一个新的C#脚本PlayerUI.cs

using UnityEngine; using UnityEngine.UI; using System.Collections; namespace Com.MyCompany.MyGame { public class PlayerUI : MonoBehaviour { #region Private Fields [Tooltip("UI Text to display Player's Name")] [SerializeField] private Text playerNameText; [Tooltip("UI Slider to display Player's Health")] [SerializeField] private Slider playerHealthSlider; #endregion #region MonoBehaviour Callbacks #endregion #region Public Methods #endregion } }

添加属性：

private PlayerManager target;

添加此公共方法

public void SetTarget(PlayerManager _target) { if (_target == null) {         Debug.LogError("<Color=Red><a>Missing</a></Color> PlayMakerManager target for PlayerUI.SetTarget.", this); return; } // Cache references for efficiency     target = _target; if (playerNameText != null) {         playerNameText.text = target.photonView.Owner.NickName; } }

添加此方法

void Update() { // Reflect the Player Health if (playerHealthSlider != null) {         playerHealthSlider.value = target.Health; } }

24.实例化
打开脚本PlayerManager
添加一个公共字段以保存对Player UI预置的引用，如下所示：

[Tooltip("The Player's UI GameObject Prefab")] [SerializeField] public GameObject PlayerUiPrefab;

将此代码添加到Start()方法

if (PlayerUiPrefab != null) { GameObject _uiGo = Instantiate(PlayerUiPrefab);     _uiGo.SendMessage ("SetTarget", this, SendMessageOptions.RequireReceiver); } else {     Debug.LogWarning("<Color=Red><a>Missing</a></Color> PlayerUiPrefab reference on player Prefab.", this); }

将此添加到Update()功能

// Destroy itself if the target is null, It's a fail safe when Photon is destroying Instances of a Player over the network if (target == null) { Destroy(this.gameObject); return; }

将此代码添加到CalledOnLevelWasLoaded()方法

GameObject _uiGo = Instantiate(this.PlayerUiPrefab); _uiGo.SendMessage("SetTarget", this, SendMessageOptions.RequireReceiver);

在“MonoBehaviour回调”区域中添加此方法

void Awake() { this.transform.SetParent(GameObject.Find("Canvas").GetComponent<Transform>(), false); }

在“公共字段”区域中添加此公共属性

[Tooltip("Pixel offset from the player target")] [SerializeField] private Vector3 screenOffset = new Vector3(0f,30f,0f);

将这四个字段添加到“私有字段”区域

float characterControllerHeight = 0f; Transform targetTransform; Renderer targetRenderer; CanvasGroup _canvasGroup; Vector3 targetPosition;

将此添加到Awake方法域

_canvasGroup = this.GetComponent<CanvasGroup>();

将下列代码追加到SetTarget()后法_target已经设定好了。

targetTransform = this.target.GetComponent<Transform>(); targetRenderer = this.target.GetComponent<Renderer>(); CharacterController characterController = _target.GetComponent<CharacterController> (); // Get data from the Player that won't change during the lifetime of this Component if (characterController != null) { characterControllerHeight = characterController.height; }

在“MonoBehaviour回调”区域中添加此公共方法

void LateUpdate() { // Do not show the UI if we are not visible to the camera, thus avoid potential bugs with seeing the UI, but not the player itself. if (targetRenderer!=null) { this._canvasGroup.alpha = targetRenderer.isVisible ? 1f : 0f; } // #Critical // Follow the Target GameObject on screen. if (targetTransform != null) {     targetPosition = targetTransform.position;     targetPosition.y += characterControllerHeight; this.transform.position = Camera.main.WorldToScreenPoint (targetPosition) + screenOffset; } }

2.游戏大厅与等待房间

1.游戏大厅

// 用于连接Cloud并进入游戏大厅  PhotonNetwork.ConnectUsingSettings(string version) //进入游戏大厅的默认回调函数 void OnJoinedLobby() //显示连接日志  GUILayout.Label(PhotonNetwork.connectionStateDetailed.ToString())

2.创建等待房间

//设置房间属性并创建房间 RoomOptions ro = new RoomOptions();  ro.IsOpen = true;ro.IsVisible = true; //设置最大玩家数 为了简单就从2个人开始做起吧 可以随意设置  ro.MaxPlayers = 2;  PhotonNetwork.CreateRoom(srting roomName, ro, TypedLobby.Default); //创建房间失败的回调函数 void OnPhotonCreateRoomFailed()

3.加入等待房间

//随机加入房间  PhotonNetwork.JoinRandomRoom(); //随机进入房间失败（可能是因为没有空房间）的回调函数 //默认的回调函数一定不能眼花写错！！！ void OnPhotonRandomJoinFailed() {可以调用PhotonNetwork.CreateRoom创建一个} //进入房间的回调函数 void OnJoinedRoom() { StartCoroutine(this.ChangeToWaitScene()); //写一个协程 当成功进入房间后就加载等待房间的场景 } IEnumerator ChangeToWaitScene() { //切换场景期间中断与photon服务器的网络信息传输  //（加载场景尚未完成的情况下 服务器传递的网络信息可能会引发不必要的错误）  PhotonNetwork.isMessageQueueRunning = false; //加载场景 AsyncOperation ao = SceneManager.LoadSceneAsync("RoomForWait"); yield return ao; }

加入房间的同时最好将玩家姓名PhotonNetwork.player.NickName读取或者设置，可以与PlayerPrefs连用实现数据的持久化。

4.房间列表的显示
UGUI里面的Grid Layout Group和 Horizontal Layout Group就是针对于这种情况设计的。我们可以将一个房间列表存储成一个预设，每次有新房间生成就生成一个预设。上面这俩组件可以帮助你把这些房间列表预设排列得整齐划一。

需要用到的prefab都要存在根目录下的Resources文件夹。硬性规定。

//只有在大厅里的房间有玩家进入的时候才会执行 接收房间列表

void OnReceivedRoomListUpdate() { //给单个房间列表的预设增加标签         GameObject[] a = GameObject.FindGameObjectsWithTag("OneRoom"); for (int i = 0; i < a.Length; i++) Destroy(a[i].gameObject); //每次接收房间列表前把旧的预设销毁 这样就能更新在线人数和房间总人数 //利用接收房间目录信息的函数生成单个列表预设  //PhotonNetwork.GetRoomList()可以获取房间列表里的房间数组 foreach (RoomInfo _room in PhotonNetwork.GetRoomList()）         { //接收房间列表 GameObject room = (GameObject)Instantiate(OneRoom);             room.transform.SetParent(RoomList.transform, false);             roomData rd = room.GetComponent<roomData>();             rd.roomName = _room.Name;             rd.connectPlayer = _room.PlayerCount;             rd.maxPlayers = _room.MaxPlayers;             rd.DisplayRoomData();//把数据都获取并设置好了就显示在面板上 } }

至于roomData脚本里面存储的就是房间名、房间人数、最大容纳人数等基本信息，同时最好根据房间人数是否满来设置加入房间的按钮interactable= ture还是false。

这时候如果点击房间列表上的Join 就能进入房间了。

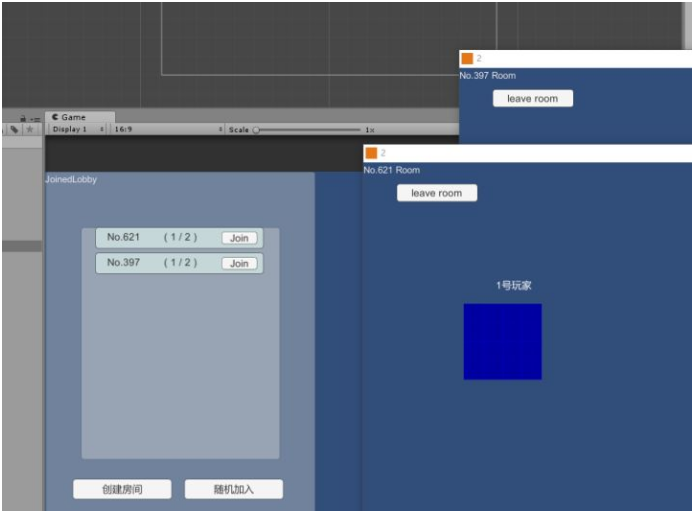

大致效果如下（那个NO.是我给房间用随机数字命名的房间名。场景中其实还有个输入玩家姓名的输入框，如果玩家没有输入姓名就自动随机给个数字当名称。）
