Mqtt最开始是为石油管道的监控而设计的一个协议，占用带宽小，低功耗。在iot领域有广泛应用。

• 服务端用erlang编写的一个开源项目：emqqtd
• 客户端用golang客户端的库：“github.com/eclipse/paho.mqtt.golang”

服务器端搭建：

下载预编译安装包：

root@ubuntu:/home/jack# wget https://github.com/emqx/emqx/releases/download/v4.0.4/emqx-ubuntu18.04-v4.0.4.zip --2020-04-18 18:54:51--  https://github.com/emqx/emqx/releases/download/v4.0.4/emqx-ubuntu18.04-v4.0.4.zip Resolving github.com (github.com)... 52.74.223.119 Connecting to github.com (github.com)|52.74.223.119|:443... connected. HTTP request sent, awaiting response... 302 Found Location: https://github-production-release-asset-2e65be.s3.amazonaws.com/7202769/4b404580-5fa4-11ea-9fe4-73ad70b12bdc?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20200419%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20200419T015452Z&X-Amz-Expires=300&X-Amz-Signature=6f5336e167fccc50b81ab189f5e3f8edfd1ccf4daa862af3a5d564a4cc17893b&X-Amz-SignedHeaders=host&actor_id=0&repo_id=7202769&response-content-disposition=attachment%3B%20filename%3Demqx-ubuntu18.04-v4.0.4.zip&response-content-type=application%2Foctet-stream [following] --2020-04-18 18:54:52--  https://github-production-release-asset-2e65be.s3.amazonaws.com/7202769/4b404580-5fa4-11ea-9fe4-73ad70b12bdc?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20200419%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20200419T015452Z&X-Amz-Expires=300&X-Amz-Signature=6f5336e167fccc50b81ab189f5e3f8edfd1ccf4daa862af3a5d564a4cc17893b&X-Amz-SignedHeaders=host&actor_id=0&repo_id=7202769&response-content-disposition=attachment%3B%20filename%3Demqx-ubuntu18.04-v4.0.4.zip&response-content-type=application%2Foctet-stream Resolving github-production-release-asset-2e65be.s3.amazonaws.com (github-production-release-asset-2e65be.s3.amazonaws.com)... 52.217.46.76 Connecting to github-production-release-asset-2e65be.s3.amazonaws.com (github-production-release-asset-2e65be.s3.amazonaws.com)|52.217.46.76|:443... connected. HTTP request sent, awaiting response... 200 OK Length: 23267163 (22M) [application/octet-stream] Saving to: ‘emqx-ubuntu18.04-v4.0.4.zip’  emqx-ubuntu18.04-v4.0.4.zip              100%[=================================================================================>]  22.19M  1.45MB/s    in 16s       2020-04-18 18:55:10 (1.36 MB/s) - ‘emqx-ubuntu18.04-v4.0.4.zip’ saved [23267163/23267163]  root@ubuntu:/home/jack

解压，查看目录结构：

root@ubuntu:/home/jack# unzip emqx-ubuntu18.04-v4.0.4.zip root@ubuntu:/home/jack/mqttd/emqx# tree -L 1 . ├── bin ├── data ├── erts-10.5.2 ├── etc ├── lib ├── log └── releases  7 directories, 0 files root@ubuntu:/home/jack/mqttd/emqx#

启动服务器:

root@ubuntu:/home/jack/mqttd/emqx# ./bin/emqx start EMQ X Broker v4.0.4 is started successfully! root@ubuntu:/home/jack/mqttd/emqx#

查看状态：

root@ubuntu:/home/jack/mqttd/emqx# ./bin/emqx_ctl status Node 'emqx@127.0.0.1' is started emqx 4.0.4 is running root@ubuntu:/home/jack/mqttd/emqx#

停止服务器：

root@ubuntu:/home/jack/mqttd/emqx# ./bin/emqx stop ok root@ubuntu:/home/jack/mqttd/emqx#

mqtt服务器的ip查看：

root@ubuntu:/home/jack/mqttd/emqx# ifconfig  ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500         inet 192.168.1.243  netmask 255.255.255.0  broadcast 192.168.1.255         inet6 fe80::20c:29ff:fef4:a0f6  prefixlen 64  scopeid 0x20<link>         ether 00:0c:29:f4:a0:f6  txqueuelen 1000  (Ethernet)         RX packets 193799  bytes 60667948 (60.6 MB)         RX errors 0  dropped 0  overruns 0  frame 0         TX packets 140410  bytes 12827731 (12.8 MB)         TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0  lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536         inet 127.0.0.1  netmask 255.0.0.0         inet6 ::1  prefixlen 128  scopeid 0x10<host>         loop  txqueuelen 1000  (Local Loopback)         RX packets 1328  bytes 127242 (127.2 KB)         RX errors 0  dropped 0  overruns 0  frame 0         TX packets 1328  bytes 127242 (127.2 KB)         TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0  root@ubuntu:/home/jack/mqttd/emqx#

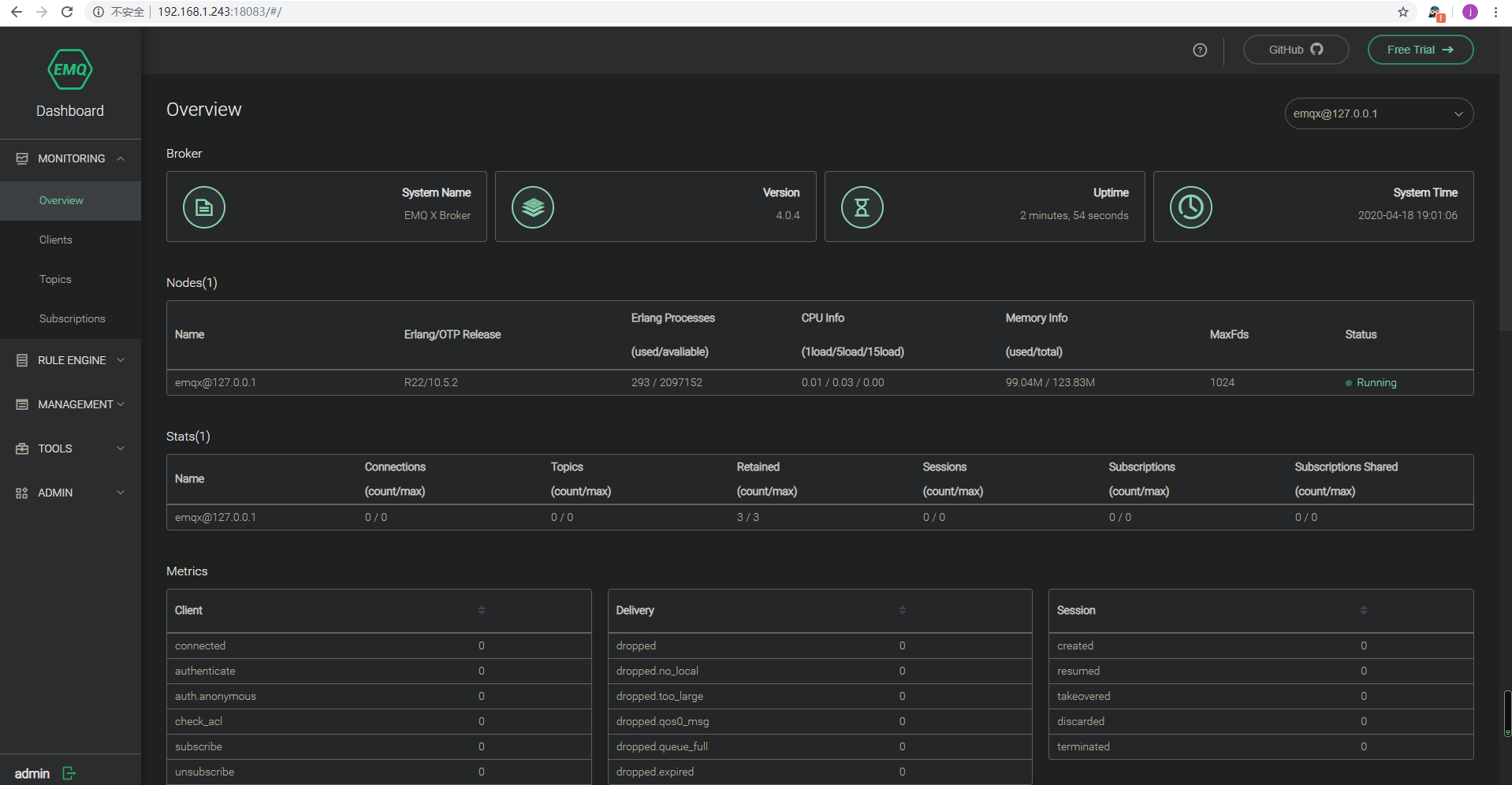

服务器启动后，可以通过dash board来监控mqtt broker的状态
在浏览器输入：https://192.168.1.243:18083/#/clients，用户名为：admin，密码为：public。如下图：

vscode IDE，git。
注意：依赖的net包容易下载失败：go get golang.org/x/net/proxy，用git从github下载后，将包拷贝到D:GOPATHsrcgolang.orgxnet目录即可

mqtt客户端实现：

package main  import ( "fmt" "log" "os" "time"   mqtt "github.com/eclipse/paho.mqtt.golang" ) //创建全局mqtt publish消息处理 handler var messagePubHandler mqtt.MessageHandler = func(client mqtt.Client, msg mqtt.Message) {  fmt.Println("发布消息：")  fmt.Printf("TOPIC: %sn", msg.Topic())  fmt.Printf("MSG: %sn", msg.Payload()) } //创建全局mqtt sub消息处理 handler var messageSubHandler mqtt.MessageHandler = func(client mqtt.Client, msg mqtt.Message) {  fmt.Println("收到订阅消息：")  fmt.Printf("Sub Client Topic : %s n", msg.Topic())  fmt.Printf("Sub Client msg : %s n", msg.Payload()) } func main() {  mqtt.DEBUG = log.New(os.Stdout, "", 0)  mqtt.ERROR = log.New(os.Stdout, "", 0) //opts := mqtt.NewClientOptions().AddBroker("tcp://broker.emqx.io:1883").SetClientID("emqx_test_client") // 创建消息发布go程 go func() {   opts := mqtt.NewClientOptions().AddBroker("tcp://192.168.1.243:1883").SetClientID("emqx_test_client66666")   opts.SetKeepAlive(60 * time.Second) // Message callback handler，在没有任何订阅时，发布端调用此函数   opts.SetDefaultPublishHandler(messagePubHandler)   opts.SetPingTimeout(1 * time.Second)    client := mqtt.NewClient(opts) if token := client.Connect(); token.Wait() && token.Error() != nil { panic(token.Error()) } for i := 0; i < 6; i++ {    time.Sleep(1 * time.Second)    fmt.Println("发布一条天气预报消息")    token := client.Publish("testtopic/1", 0, false, "Hello World，深圳天气晴朗")    token.Wait() }    fmt.Println("发布客户端断开与broker的连接")   client.Disconnect(250) }() // 创建消息订阅go程 go func() {   opts := mqtt.NewClientOptions().AddBroker("tcp://192.168.1.243:1883").SetClientID("emqx_test_client99999")   opts.SetKeepAlive(60 * time.Second)   opts.SetPingTimeout(1 * time.Second)    client := mqtt.NewClient(opts) if token := client.Connect(); token.Wait() && token.Error() != nil { panic(token.Error()) } // Subscription /*if token := client.Subscribe("testtopic/#", 0, messageSubHandler); token.Wait() && token.Error() != nil {    fmt.Println(token.Error())    os.Exit(1)   }*/ for i := 0; i < 6; i++ {    time.Sleep(time.Duration(3) * time.Second) //发布消息 if token := client.Subscribe("testtopic/#", 1, messageSubHandler); token.Wait() && token.Error() != nil {     fmt.Println(token.Error())     os.Exit(1) } } // Cancel subscription if token := client.Unsubscribe("testtopic/#"); token.Wait() && token.Error() != nil {    fmt.Println(token.Error())    os.Exit(1) }    fmt.Println("订阅客户端断开与broker的连接") //c.Disconnect(250) }() // Disconnect  time.Sleep(10 * time.Second) }

按F5，执行效果：

API server listening at: 127.0.0.1:34378 [client]   Connect() [client]   Connect() [store]    memorystore initialized [store]    memorystore initialized [client]   about to write new connect msg [client]   about to write new connect msg [client]   socket connected to broker [client]   Using MQTT 3.1.1 protocol [client]   socket connected to broker [client]   Using MQTT 3.1.1 protocol [net]      connect started [net]      connect started [net]      received connack [client]   client is connected [client]   exit startClient [pinger]   keepalive starting [net]      logic started [net]      logic waiting for msg on ibound [net]      outgoing started [net]      outgoing waiting for an outbound message [net]      incoming started [net]      received connack [pinger]   keepalive starting [client]   client is connected [client]   exit startClient [net]      logic started [net]      logic waiting for msg on ibound [net]      outgoing started [net]      outgoing waiting for an outbound message [net]      incoming started 发布一条天气预报消息 [client]   enter Publish [client]   sending publish message, topic: testtopic/1 [net]      obound wrote msg, id: 0 [net]      outgoing waiting for an outbound message 发布一条天气预报消息 [client]   enter Publish [client]   sending publish message, topic: testtopic/1 [net]      obound wrote msg, id: 0 [net]      outgoing waiting for an outbound message [client]   enter Subscribe [client]   SUBSCRIBE: dup: false qos: 1 retain: false rLength: 0 MessageID: 1 topics: [testtopic/#] [client]   sending subscribe message, topic: testtopic/# [client]   exit Subscribe [net]      obound priority msg to write, type *packets.SubscribePacket [net]      outgoing waiting for an outbound message [net]      Received Message [net]      logic got msg on ibound [store]    memorystore del: message 1 was deleted [net]      received suback, id: 1 [net]      granted qoss [1] [net]      logic waiting for msg on ibound 发布一条天气预报消息 [client]   enter Publish [client]   sending publish message, topic: testtopic/1 [net]      obound wrote msg, id: 0 [net]      outgoing waiting for an outbound message [net]      Received Message [net]      logic got msg on ibound [net]      received publish, msgId: 0 [net]      putting msg on onPubChan [net]      done putting msg on incomingPubChan [net]      logic waiting for msg on ibound 收到订阅消息： Sub Client Topic : testtopic/1  Sub Client msg : Hello World，深圳天气晴朗2 发布一条天气预报消息 [client]   enter Publish [client]   sending publish message, topic: testtopic/1 [net]      obound wrote msg, id: 0 [net]      outgoing waiting for an outbound message [net]      Received Message [net]      logic got msg on ibound [net]      received publish, msgId: 0 [net]      putting msg on onPubChan [net]      done putting msg on incomingPubChan [net]      logic waiting for msg on ibound 收到订阅消息： Sub Client Topic : testtopic/1  Sub Client msg : Hello World，深圳天气晴朗3 [pinger]   ping check 1.9993801 [pinger]   ping check 0.9978095 发布一条天气预报消息 [client]   enter Publish [client]   sending publish message, topic: testtopic/1 [net]      obound wrote msg, id: 0 [net]      outgoing waiting for an outbound message [net]      Received Message [net]      logic got msg on ibound [net]      received publish, msgId: 0 [net]      putting msg on onPubChan [net]      done putting msg on incomingPubChan [net]      logic waiting for msg on ibound 收到订阅消息： Sub Client Topic : testtopic/1  Sub Client msg : Hello World，深圳天气晴朗4 [client]   enter Subscribe [client]   SUBSCRIBE: dup: false qos: 1 retain: false rLength: 0 MessageID: 1 topics: [testtopic/#] [client]   sending subscribe message, topic: testtopic/# [client]   exit Subscribe [net]      obound priority msg to write, type *packets.SubscribePacket [net]      outgoing waiting for an outbound message [net]      Received Message [net]      logic got msg on ibound [store]    memorystore del: message 1 was deleted [net]      received suback, id: 1 [net]      granted qoss [1] [net]      logic waiting for msg on ibound 发布一条天气预报消息 [client]   enter Publish [client]   sending publish message, topic: testtopic/1 [net]      obound wrote msg, id: 0 [net]      outgoing waiting for an outbound message 发布客户端断开与broker的连接 [client]   disconnecting [net]      obound priority msg to write, type *packets.DisconnectPacket [net]      outbound wrote disconnect, stopping [pinger]   keepalive stopped [net]      incoming stopped [msgids]   cleaned up [client]   disconnected [store]    memorystore closed [net]      Received Message [net]      logic got msg on ibound [net]      received publish, msgId: 0 [net]      putting msg on onPubChan [net]      done putting msg on incomingPubChan [net]      logic waiting for msg on ibound 收到订阅消息： Sub Client Topic : testtopic/1  Sub Client msg : Hello World，深圳天气晴朗5 [client]   enter Subscribe [client]   SUBSCRIBE: dup: false qos: 1 retain: false rLength: 0 MessageID: 1 topics: [testtopic/#] [client]   sending subscribe message, topic: testtopic/# [client]   exit Subscribe [net]      obound priority msg to write, type *packets.SubscribePacket [net]      outgoing waiting for an outbound message [net]      Received Message [net]      logic got msg on ibound [store]    memorystore del: message 1 was deleted [net]      received suback, id: 1 [net]      granted qoss [1] [net]      logic waiting for msg on ibound Process exiting with code: 0
