K8s部署Dashboard

上一篇文章讲述了自己如果使用 Kubeadm 安装k8s，部署应用还是需要一个前端页面，这样便于操作。

0. 序言

0.1 本文的目录

0.2 阅读本文可以给你带来什么

简单了解在社区k8s上部署Dashboard。

1. 部署Dashboard

1.1 官网推荐部署

官网

其实也就是简单的2步

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-beta8/aio/deploy/recommended.yaml  kubectl proxy  # 访问 https://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy/

1.2 通过NodePort访问Dashboard

1.下载yaml

wget -e robots=off https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-beta8/aio/deploy/recommended.yaml

2.创建namespace

kubectl create ns kubernetes-dashboard

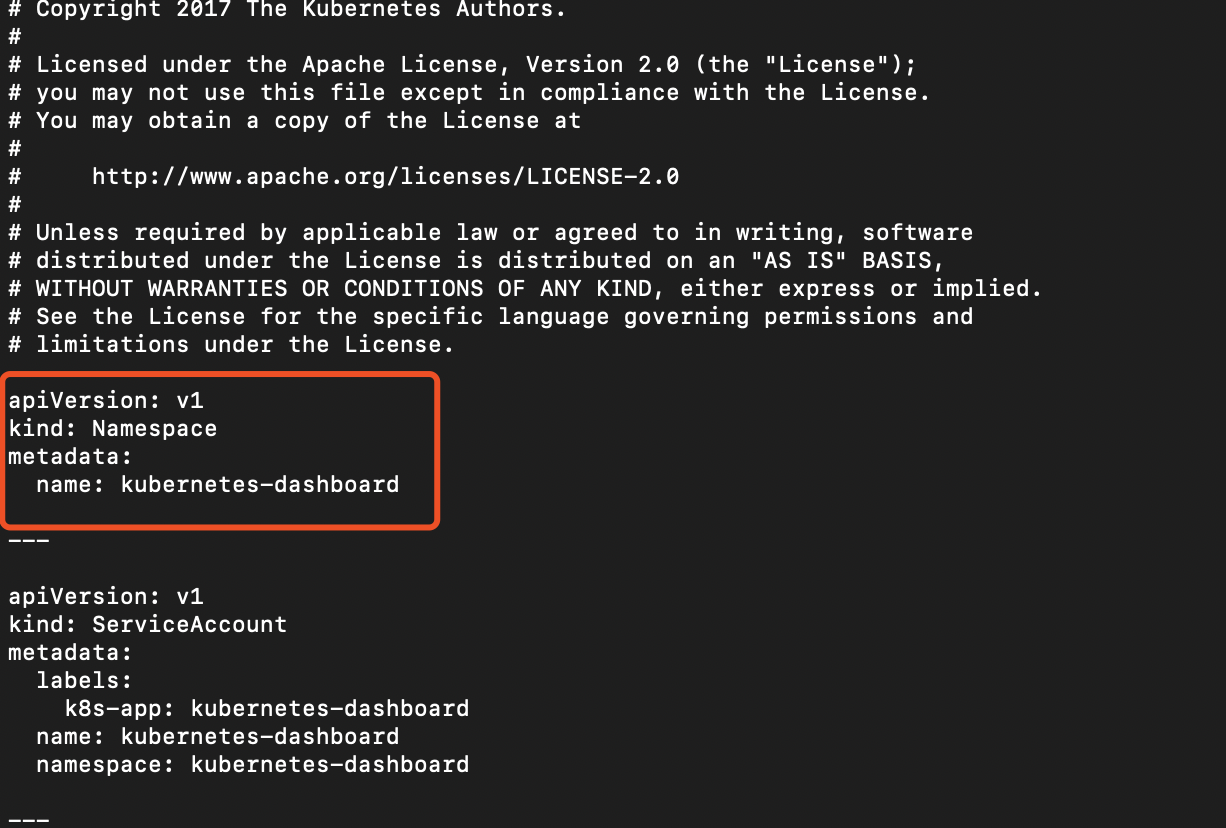

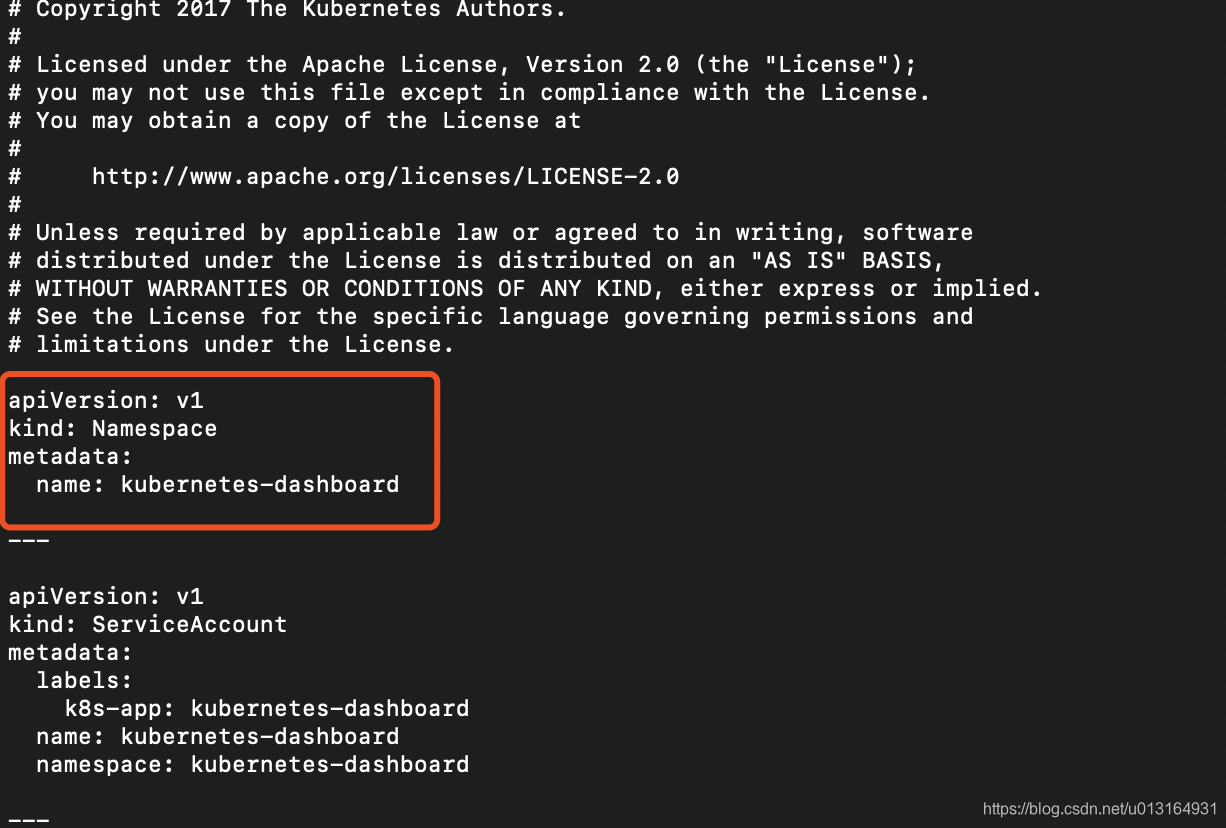

将recommended.yaml中的创建namespace的配置删除

3.创建证书

# 创建目录 mkdir certs cd certs  openssl genrsa -out dashboard.key 2048 openssl req -new -out dashboard.csr -key dashboard.key -subj '/CN=kubernetes-dashboard' openssl x509 -req -in dashboard.csr -signkey dashboard.key -out dashboard.crt

4.创建secret

kubectl create secret generic kubernetes-dashboard-certs --from-file=dashboard.key --from-file=dashboard.crt -nkubernetes-dashboard

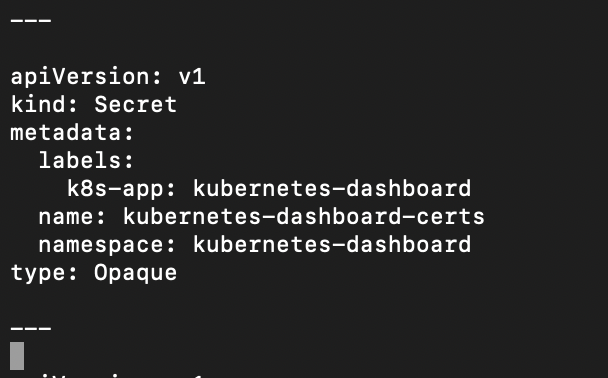

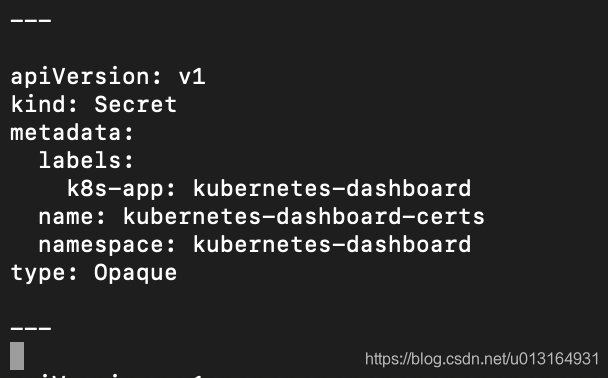

5.删除recommended.yaml中secret

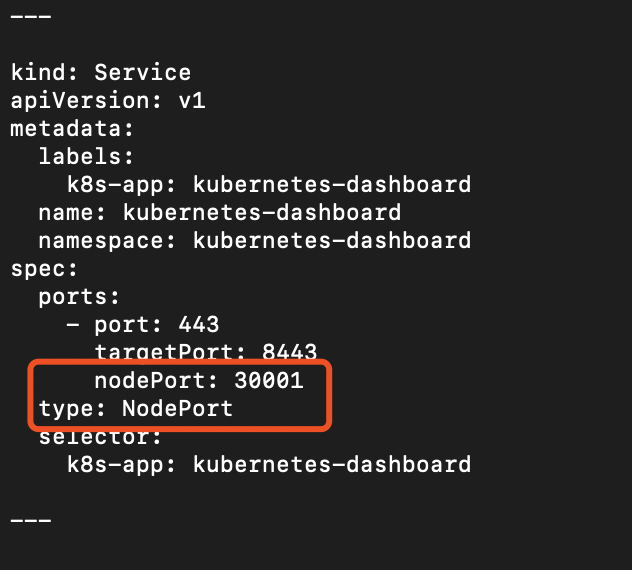

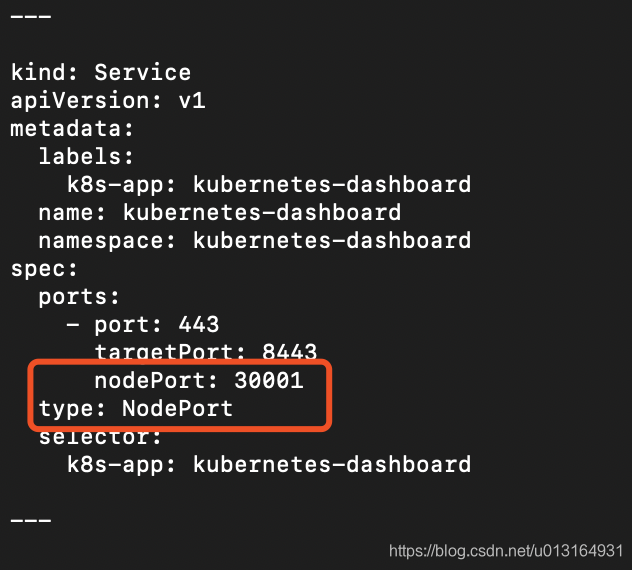

6.修改service类型位nodeport

7.修改ClusterRoleBinding绑定用户——当前集群管理员用户

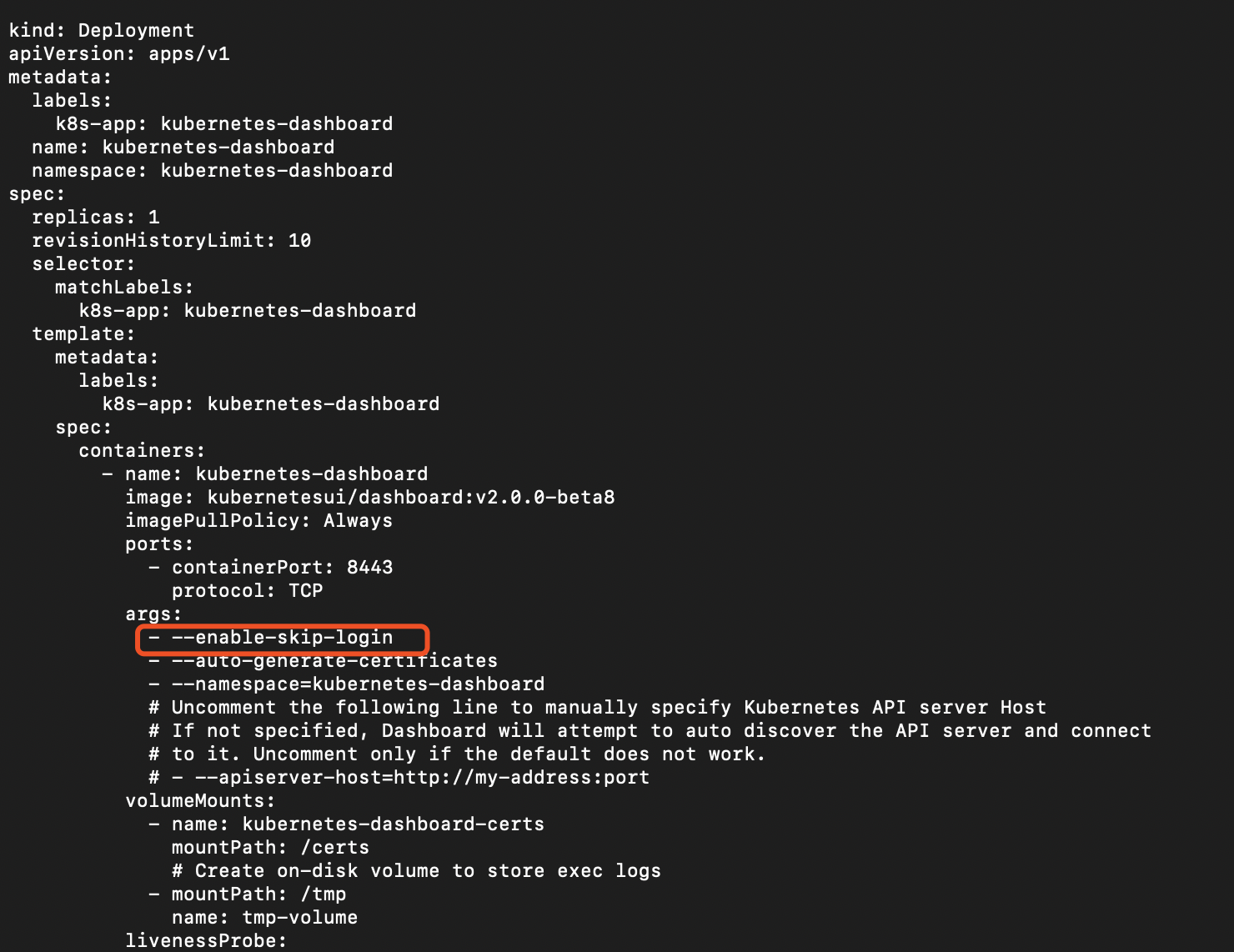

8.添加跳过登陆参数

详细 yaml 信息如下：

# Copyright 2017 The Kubernetes Authors. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # #     https://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. apiVersion: v1 kind: ServiceAccount metadata: labels: k8s-app: kubernetes-dashboard   name: kubernetes-dashboard   namespace: kubernetes-dashboard  --- kind: Service apiVersion: v1 metadata: labels: k8s-app: kubernetes-dashboard   name: kubernetes-dashboard   namespace: kubernetes-dashboard spec: ports: - port: 443 targetPort: 8443 nodePort: 30001 type: NodePort   selector: k8s-app: kubernetes-dashboard  --- apiVersion: v1 kind: Secret metadata: labels: k8s-app: kubernetes-dashboard   name: kubernetes-dashboard-csrf   namespace: kubernetes-dashboard type: Opaque data: csrf: "" --- apiVersion: v1 kind: Secret metadata: labels: k8s-app: kubernetes-dashboard   name: kubernetes-dashboard-key-holder   namespace: kubernetes-dashboard type: Opaque  --- kind: ConfigMap apiVersion: v1 metadata: labels: k8s-app: kubernetes-dashboard   name: kubernetes-dashboard-settings   namespace: kubernetes-dashboard  --- kind: Role apiVersion: rbac.authorization.k8s.io/v1 metadata: labels: k8s-app: kubernetes-dashboard   name: kubernetes-dashboard   namespace: kubernetes-dashboard rules: # Allow Dashboard to get, update and delete Dashboard exclusive secrets. - apiGroups: [""] resources: ["secrets"] resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"] verbs: ["get", "update", "delete"] # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map. - apiGroups: [""] resources: ["configmaps"] resourceNames: ["kubernetes-dashboard-settings"] verbs: ["get", "update"] # Allow Dashboard to get metrics. - apiGroups: [""] resources: ["services"] resourceNames: ["heapster", "dashboard-metrics-scraper"] verbs: ["proxy"] - apiGroups: [""] resources: ["services/proxy"] resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"] verbs: ["get"] --- kind: ClusterRole apiVersion: rbac.authorization.k8s.io/v1 metadata: labels: k8s-app: kubernetes-dashboard   name: kubernetes-dashboard rules: # Allow Metrics Scraper to get metrics from the Metrics server - apiGroups: ["metrics.k8s.io"] resources: ["pods", "nodes"] verbs: ["get", "list", "watch"] --- apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: labels: k8s-app: kubernetes-dashboard   name: kubernetes-dashboard   namespace: kubernetes-dashboard roleRef: apiGroup: rbac.authorization.k8s.io   kind: Role   name: kubernetes-dashboard subjects: - kind: ServiceAccount     name: kubernetes-dashboard     namespace: kubernetes-dashboard  --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: kubernetes-dashboard roleRef: apiGroup: rbac.authorization.k8s.io   kind: ClusterRole   name: cluster-admin subjects: - kind: ServiceAccount     name: kubernetes-dashboard     namespace: kubernetes-dashboard  --- kind: Deployment apiVersion: apps/v1 metadata: labels: k8s-app: kubernetes-dashboard   name: kubernetes-dashboard   namespace: kubernetes-dashboard spec: replicas: 1 revisionHistoryLimit: 10 selector: matchLabels: k8s-app: kubernetes-dashboard   template: metadata: labels: k8s-app: kubernetes-dashboard     spec: containers: - name: kubernetes-dashboard           image: kubernetesui/dashboard:v2.0.0-beta8           imagePullPolicy: Always           ports: - containerPort: 8443 protocol: TCP           args: - --enable-skip-login             - --auto-generate-certificates             - --namespace=kubernetes-dashboard             # Uncomment the following line to manually specify Kubernetes API server Host # If not specified, Dashboard will attempt to auto discover the API server and connect # to it. Uncomment only if the default does not work. # - --apiserver-host=https://my-address:port volumeMounts: - name: kubernetes-dashboard-certs               mountPath: /certs               # Create on-disk volume to store exec logs - mountPath: /tmp               name: tmp-volume           livenessProbe: httpGet: scheme: HTTPS               path: /               port: 8443 initialDelaySeconds: 30 timeoutSeconds: 30 securityContext: allowPrivilegeEscalation: false readOnlyRootFilesystem: true runAsUser: 1001 runAsGroup: 2001 volumes: - name: kubernetes-dashboard-certs           secret: secretName: kubernetes-dashboard-certs         - name: tmp-volume           emptyDir: {} serviceAccountName: kubernetes-dashboard       nodeSelector: "beta.kubernetes.io/os": linux       # Comment the following tolerations if Dashboard must not be deployed on master tolerations: - key: node-role.kubernetes.io/master           effect: NoSchedule  --- kind: Service apiVersion: v1 metadata: labels: k8s-app: dashboard-metrics-scraper   name: dashboard-metrics-scraper   namespace: kubernetes-dashboard spec: ports: - port: 8000 targetPort: 8000 selector: k8s-app: dashboard-metrics-scraper  --- kind: Deployment apiVersion: apps/v1 metadata: labels: k8s-app: dashboard-metrics-scraper   name: dashboard-metrics-scraper   namespace: kubernetes-dashboard spec: replicas: 1 revisionHistoryLimit: 10 selector: matchLabels: k8s-app: dashboard-metrics-scraper   template: metadata: labels: k8s-app: dashboard-metrics-scraper       annotations: seccomp.security.alpha.kubernetes.io/pod: 'runtime/default' spec: containers: - name: dashboard-metrics-scraper           image: kubernetesui/metrics-scraper:v1.0.1           ports: - containerPort: 8000 protocol: TCP           livenessProbe: httpGet: scheme: HTTP               path: /               port: 8000 initialDelaySeconds: 30 timeoutSeconds: 30 volumeMounts: - mountPath: /tmp             name: tmp-volume           securityContext: allowPrivilegeEscalation: false readOnlyRootFilesystem: true runAsUser: 1001 runAsGroup: 2001 serviceAccountName: kubernetes-dashboard       nodeSelector: "beta.kubernetes.io/os": linux       # Comment the following tolerations if Dashboard must not be deployed on master tolerations: - key: node-role.kubernetes.io/master           effect: NoSchedule       volumes: - name: tmp-volume           emptyDir: {}

9.部署recommended.yaml

kubectl create -f recommended.yaml

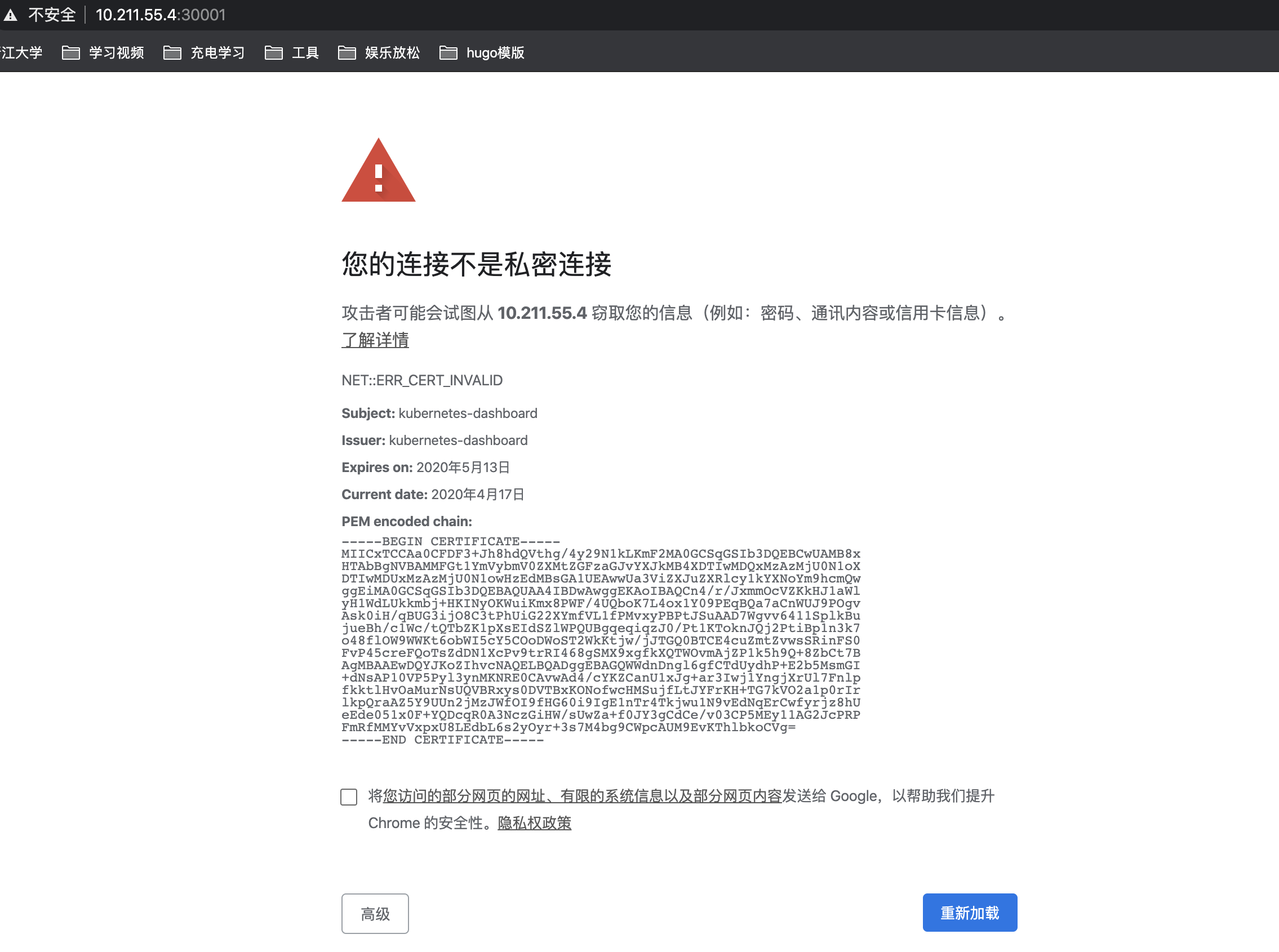

NET::ERR_CERT_INVALID问题

访问https://:30001

解决办法

在chrome该页面上，直接键盘敲入这11个字符：thisisunsafe

参考：https://blog.csdn.net/sendwave/article/details/104425342

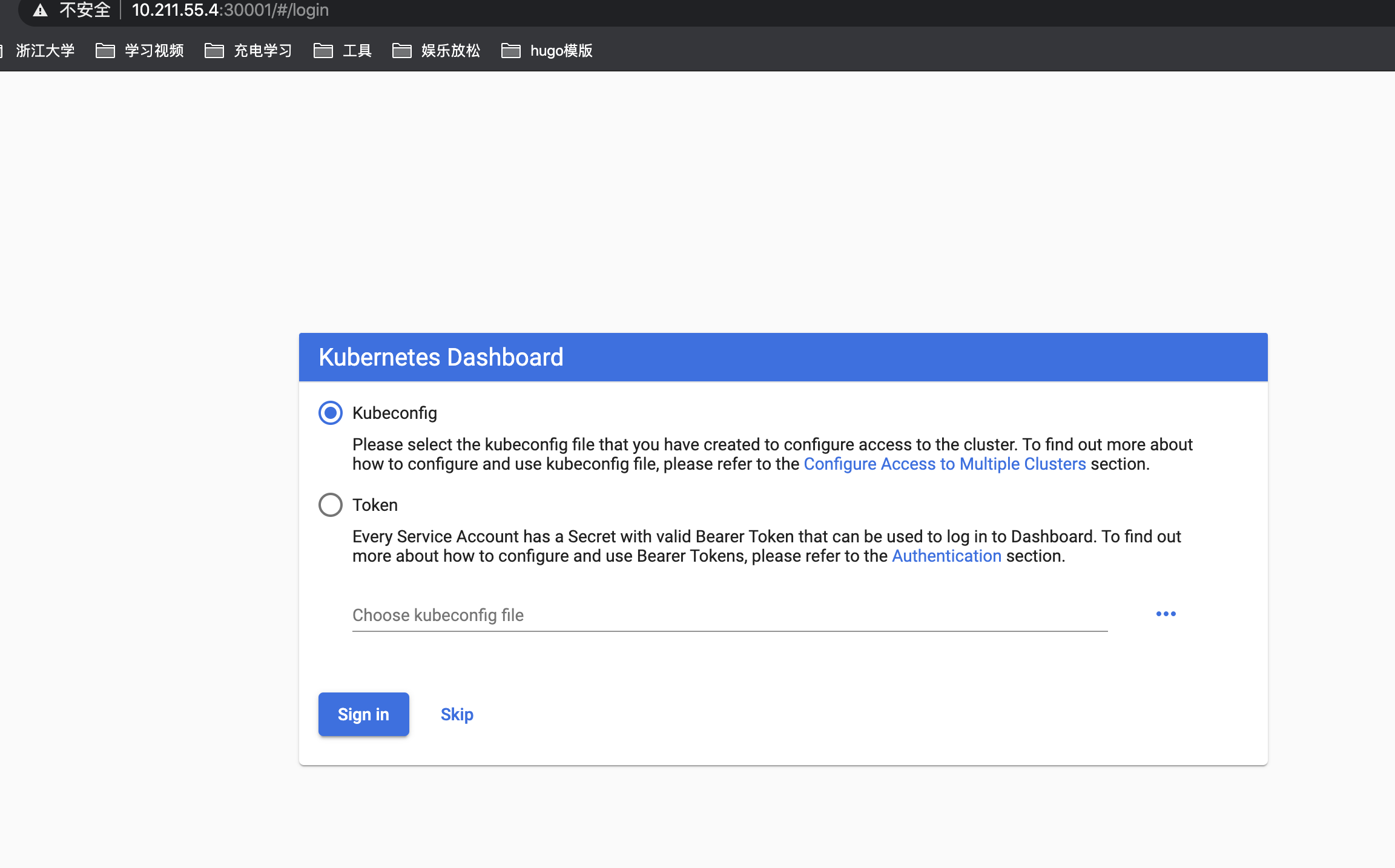

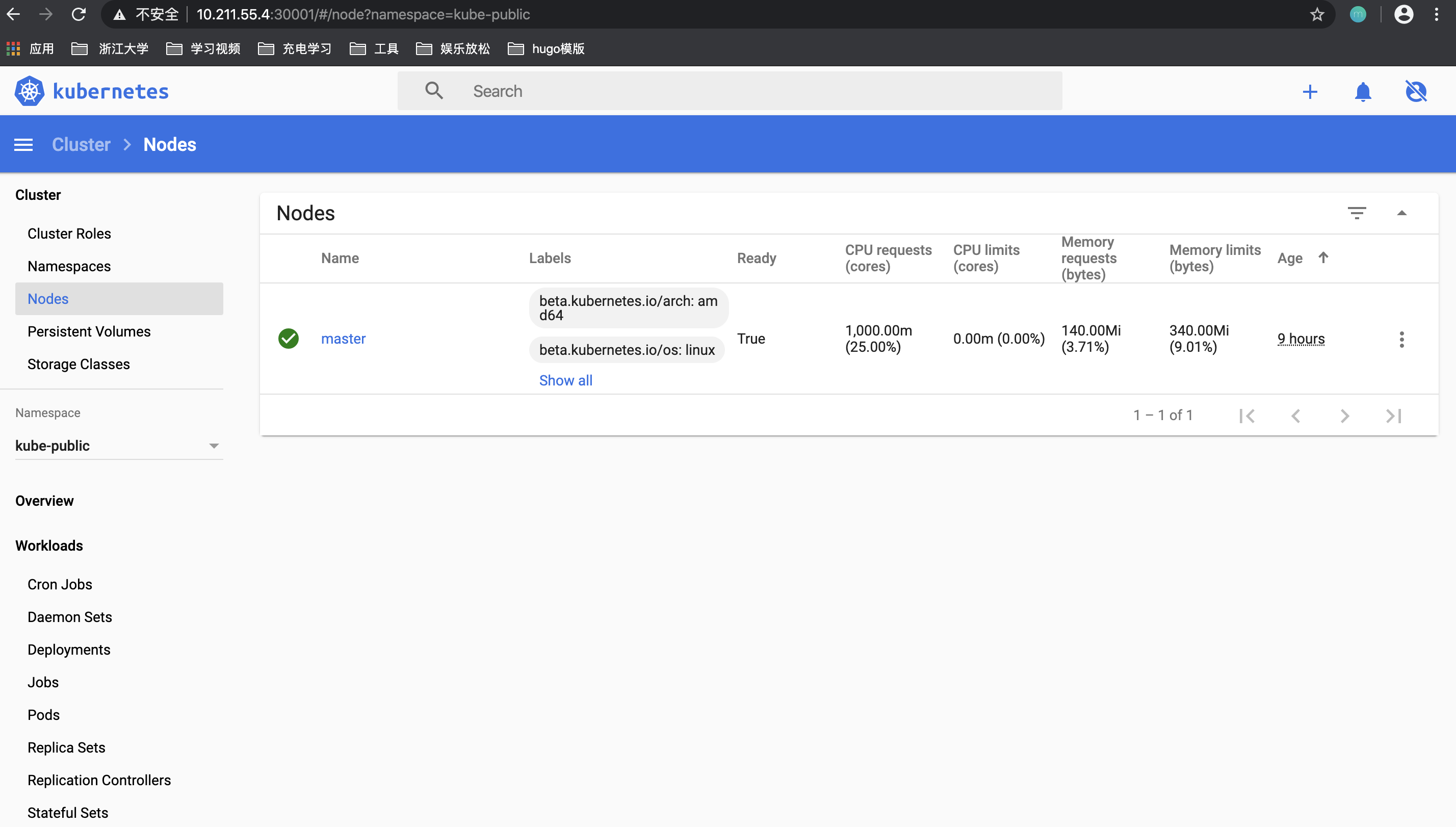

界面展示:

2. 总结

本文简单讲述了在如何在k8s安装Dashboard的2种方式，推荐第二种。
