前言

spring有那些扩展呢？
spring的扩展非常多，比较常用的就是
BeanFactoryPostProcessor 我们可以插手spring bean工厂的初始化
BeanPostProcessor 我们可以插手spring bean实例化前后（比如SPRING AOP)
@Import
ImportAware。

BeanFactoryPostProcessor

spring的扩展点之一BeanFactoryPostProcessor,这个学名叫spring的Bean工厂后置处理器，
它可以插手spring bean工厂的实例化，我们可以启动spring的时候自己手动注册一个bean工厂后置处理器，它能做的事情太多，研究过spring源码的同学都知道，spring容器启动时候，会先暴露一个工厂出来，这个工厂就是DefaultListableBeanFactory，这里面放置了我们的BeanDeinition，我们都知道spring 单例bean容器放了很多单例的bean，而这些bean最后都是来自于DefaultListableBeanFactory中的bd容器；
BeanFactoryPostProcessor是spring提供给我们来扩展spring的，当然了它自己也在用，spring有自己内部的bean工厂后置处理器，处理的时候讲我们的和spring自己的一起处理。我们只需要把我们新建的类实现了BeanFactoryPostProcessor，并且加入@Component或者交给@Import就可以了。实现这个接口必须实现它的一个方法，它的这个方法就可以得到我们的beanDefinittionMap，也就是bdmap，这里面放置了我们系统所有的注册到spring容器里面的bd，最后spring循环这个bd，将其实例化成对象放入Bean容器。

今天我们的主题是使用sprinng的扩展点之一的@Import来实现公司的平台与spring整合，类似于Mybatis与spring整合一样

@Import

这个要说就要说很久，如果没有研究过spring底层源码的，可以去研究下，功能非常强大这边我大概介绍一下：
@import支持3中类型：
普通类（spring管理的类）：就是讲一个普通的类通过@import导入，而不适用@Component,但是这样做毫无意义。
实现了ImportSelector：实现这个接口要求实现它的一个方法返回一个类名列表
Registrar：真正牛逼的注册类，实现了它，我们可以手动往里面添加自己的BeanDefiniton，自己实现扫描机制，自己实现很多很多自己的逻辑（mybatis整合spring就用的它）

实现

我的工程命名是：xxx-spring-platform-1.0.REALSE
xxx是公司的简称
工程结构：

其中context是核心，core是一些常用的核心类，aop写了一半，还没完成

POM文件

 <dependency> <groupId>org.springframework</groupId> <artifactId>spring-core</artifactId> <version>5.2.7.RELEASE</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-context</artifactId> <version>5.2.7.RELEASE</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-beans</artifactId> <version>5.2.7.RELEASE</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-aop</artifactId> <version>5.2.7.RELEASE</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-context-support</artifactId> <version>5.2.7.RELEASE</version> </dependency>

就是用了srping的几个基础包

定义数据层Resource（dao）层的扫描注解

@Documented @Retention(RUNTIME) @Target(TYPE) @Import(ArteryResourceImportBeanDefinitionRegistrar.class) //这个是用了spring的@Import //其中用了其扩展点之一的@Import中的Registrar，ArteryResourceImportBeanDefinitionRegistrar才是我们的核心所在 public @interface ArteryResourceScan {      String[] value() default {}; /**      * 基础包模式      */     String[] basePackages() default {}; /**      * 通配符的模式      */     String[] typeAliases() default {}; /**      * Artery Resource工厂Bean      *      * @return      */     Class<? extends ArteryResourceFactoryBean> factoryBean() default ArteryResourceFactoryBean.class; /**      * This property specifies the annotation that the scanner will  search for.      * <p>      * The scanner will register all interfaces in the base package that also have      * the specified annotation      * </p>      */     Class<? extends Annotation> annotationClass() default Annotation.class; /**      * This property specifies the parent that the scanner will search for.      * <p>      * The scanner will register all interfaces in the base package that also have      * the specified interface class as a parent.      * </p>      */     Class<?> markerInterface() default Class.class; /**      * The property specifies the beanName gererator will extends parent      */      Class<? extends BeanNameGenerator> nameGenerator() default BeanNameGenerator.class; /**      * is lazy load,default false      */ boolean lazy() default false; /**      * scope default singleton      */     String scope() default AbstractBeanDefinition.SCOPE_SINGLETON; }

定义我的数据层Resource使用的注解

ArteryResourceImportBeanDefinitionRegistrar实现

我们的注册类实现了spring的即可ImportBeanDefinitionRegistrar，而ImportBeanDefinitionRegistrar提供了一个方法registerBeanDefinitions可以得到我们的ArteryResourceScan 注解，从而定义自己的扫描规则，使用spring的的扫描逻辑帮助我们完成扫描，然后注册到bdmap里面，因我们的Resource层是接口，而spring实例化是不能实例化接口的，所以当spring帮我们扫描成bd的时候，我们这个时候要这个扫描的列表取出来，替换我们的接口类，怎么替换呢？
因为接口需要被代理出去，而代理类帮我们完成我们想要做的事情，比如数据查询，所以我们还需要定义一个工厂bean即FactoryBean，它来帮我们产生对象，FactoryBean也是一个Bean，但是他比较特殊，它可以产生对象，我们先看Registrar的实现：

public class ArteryResourceImportBeanDefinitionRegistrar implements ImportBeanDefinitionRegistrar { private final String DEFAULT_RESOURACE_PATTERN = "**/*.class"; @Override public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {          ClassPathArteryResourceScanner scanner = new ClassPathArteryResourceScanner(registry); /**          * 拿到注解信息          */         AnnotationAttributes annoAttrs = AnnotationAttributes.fromMap(importingClassMetadata.getAnnotationAttributes(ArteryResourceScan.class.getName()));          Class<? extends ArteryResourceFactoryBean> factoryBean = annoAttrs.getClass("factoryBean"); if (!ArteryResourceFactoryBean.class.equals(factoryBean)) {             scanner.setArteryResourceFactoryBean(BeanUtils.instantiateClass(factoryBean)); }         Class<? extends Annotation> annotionClass = annoAttrs.getClass("annotationClass"); if (!Annotation.class.equals(annotionClass)) {             scanner.setAnnotationClass(annotionClass); }         Class<?> markerInteface = annoAttrs.getClass("markerInterface"); if (!Class.class.equals(markerInteface)) {             scanner.setMarkerInterface(markerInteface); }          Class<? extends BeanNameGenerator> nameGenerator = annoAttrs.getClass("nameGenerator"); if (!BeanNameGenerator.class.equals(nameGenerator)) {             scanner.setBeanNameGenerator(BeanUtils.instantiateClass(nameGenerator)); }         scanner.setLazy(annoAttrs.getBoolean("lazy"));         scanner.setResourceScope(annoAttrs.getString("scope")); //base package handler         List<String> basePackages = new ArrayList<>(20);         Arrays.asList(annoAttrs.getStringArray("basePackages")).forEach(item -> { if (StringUtils.hasText(item)) {                 basePackages.add(item); } });         Arrays.asList(annoAttrs.getStringArray("value")).forEach(item -> { if (StringUtils.hasText(item)) {                 basePackages.add(item); } }); /**          * 处理通配符的扫描问题          */         String[] typeAlis = annoAttrs.getStringArray("typeAliases"); if (typeAlis != null && typeAlis.length > 0) {             ResourcePatternResolver resolver = new PathMatchingResourcePatternResolver();             MetadataReaderFactory metadataReaderFactory = new CachingMetadataReaderFactory(resolver); //typeAliaes for (String typeAliases : Arrays.asList(annoAttrs.getStringArray("typeAliases"))) { getResource(resolver, metadataReaderFactory, typeAliases, basePackages); } }         scanner.registerFilters();         scanner.doScan(StringUtils.toStringArray(basePackages)); } private void getResource(ResourcePatternResolver resolver, MetadataReaderFactory metadataReaderFactory, String classPath, List<String> basePackages) {         classPath = ResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX + ClassUtils.convertClassNameToResourcePath(classPath) + "/" + DEFAULT_RESOURACE_PATTERN; try {             Resource[] resources = resolver.getResources(classPath); if (resources != null && resources.length > 0) {                 MetadataReader metadataReader = null; for (Resource resource : resources) { if (resource.isReadable()) {                         metadataReader = metadataReaderFactory.getMetadataReader(resource);                         basePackages.add(Class.forName(metadataReader.getClassMetadata().getClassName()).getPackage().getName()); } } } } catch (IOException | ClassNotFoundException e) {             e.printStackTrace(); } } }

以上代码的doScan方法是核心，是调用了我们自定义的扫描类

自定义扫描类ClassPathArteryResourceScanner

public class ClassPathArteryResourceScanner extends ClassPathBeanDefinitionScanner { private final Logger logger = LoggerFactory.getLogger(ClassPathArteryResourceScanner.class); /**      * factory baen instance      */ private ArteryResourceFactoryBean<?> arteryResourceFactoryBean = new ArteryResourceFactoryBean<Object>(); /**      * scanner class      */ private Class<? extends Annotation> annotationClass; /**      * scanner class      */ private Class<?> markerInterface; /**      * is lazy load ,default false      */ private boolean isLazy = false; /**      * scope is cantains singleton and prototype,default singlton      */ private String resourceScope = AbstractBeanDefinition.SCOPE_SINGLETON; /**      * 调用父类的构造，构造出扫描对象      *      * @param registry      */ public ClassPathArteryResourceScanner(BeanDefinitionRegistry registry) { super(registry, false); } public void registerFilters() { //是否允许所有的所有的接口(预留） boolean acceptAllIntefaces = true; if (this.annotationClass != null) { addIncludeFilter(new AnnotationTypeFilter(this.annotationClass));             acceptAllIntefaces = false; } if (this.markerInterface != null) { addIncludeFilter(new AssignableTypeFilter(this.markerInterface));             acceptAllIntefaces = false; } if (acceptAllIntefaces) { addIncludeFilter(new TypeFilter() { @Override public boolean match(MetadataReader metadataReader, MetadataReaderFactory metadataReaderFactory) throws IOException { return true; } }); } } @Override public Set<BeanDefinitionHolder> doScan(String... basePackages) {          Set<BeanDefinitionHolder> beanDefinitions = super.doScan(basePackages); if (!beanDefinitions.isEmpty()) { //SPRING 扫描到每个加了@Component或者@Service 成BD processBeanDefinitions(beanDefinitions); } return beanDefinitions; } private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {         beanDefinitions.forEach(this::processBeanDefinition); } private void processBeanDefinition(BeanDefinitionHolder holder) {         GenericBeanDefinition definition = (GenericBeanDefinition) holder.getBeanDefinition(); if (logger.isDebugEnabled()) {             logger.debug("Creating ArteryResourceBean with name {} and {} mapperInterfaces", holder.getBeanName(), definition.getBeanClassName()); }         definition.getConstructorArgumentValues().addGenericArgumentValue(definition.getBeanClassName());         definition.setBeanClass(this.arteryResourceFactoryBean.getClass());         definition.setLazyInit(isLazy);//延迟加载         definition.setScope(resourceScope);         definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE); } @Override protected boolean checkCandidate(String beanName, BeanDefinition beanDefinition) throws IllegalStateException { // check is sucess boolean isSucc = true; if (super.checkCandidate(beanName, beanDefinition)) {             isSucc = true; } else {             isSucc = false; } return isSucc; } @Override protected boolean isCandidateComponent(AnnotatedBeanDefinition beanDefinition) { boolean isComponent = false;         String beanClassName = beanDefinition.getMetadata().getClassName();         isComponent = beanClassName.endsWith("Resource"); try {              isComponent = isComponent ? Class.forName(beanDefinition.getMetadata().getClassName()).isAnnotationPresent(ArteryDao.class) : false; } catch (ClassNotFoundException e) {             e.printStackTrace(); } if (isComponent) {             isComponent = beanDefinition.getMetadata().isInterface() && beanDefinition.getMetadata().isIndependent(); } return isComponent; } public void setArteryResourceFactoryBean(ArteryResourceFactoryBean<?> arteryResourceFactoryBean) { this.arteryResourceFactoryBean = arteryResourceFactoryBean; } public void setAnnotationClass(Class<? extends Annotation> annotationClass) { this.annotationClass = annotationClass; } public void setLazy(boolean lazy) {         isLazy = lazy; } public void setResourceScope(String resourceScope) { this.resourceScope = resourceScope; } public void setMarkerInterface(Class<?> markerInterface) { this.markerInterface = markerInterface; } }

processBeanDefinition这个方法里面就拿到spring给我们扫描返回的bd，我们循环这个bd

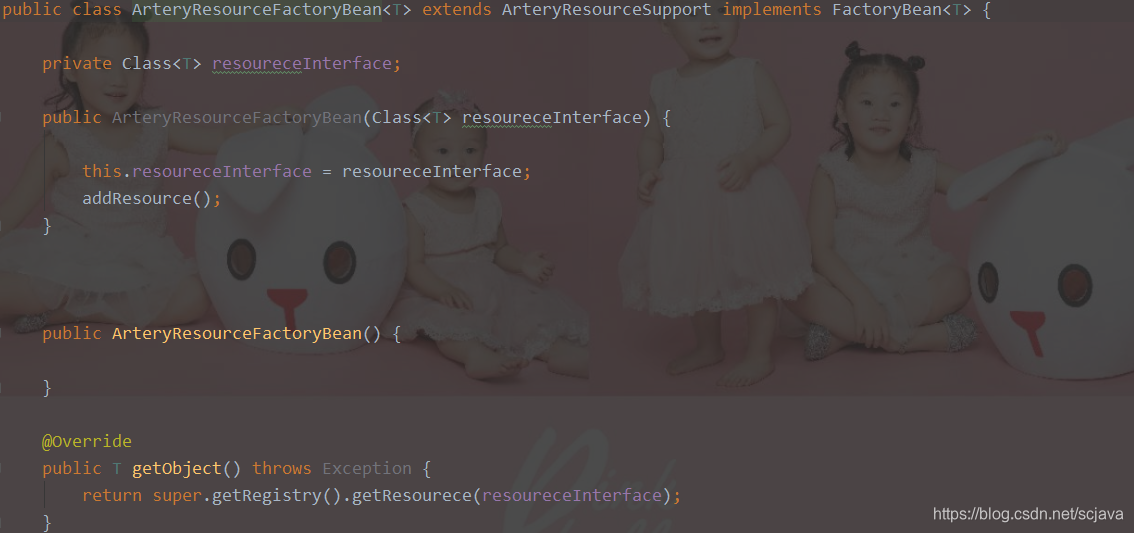

然后替换我们的Resource接口，这里用的是一个FactoryBean
而这个工厂Bean里面的getObject是返回了一个代理对象，具体看下面代码：

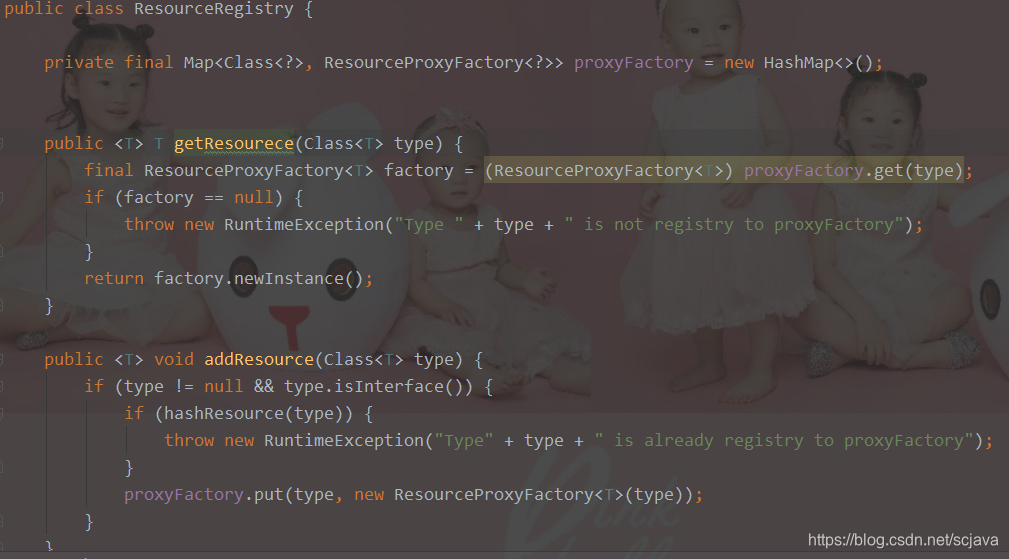

代理注册工厂ResourceRegistry

它的作用主要是来管理我们的注册工厂

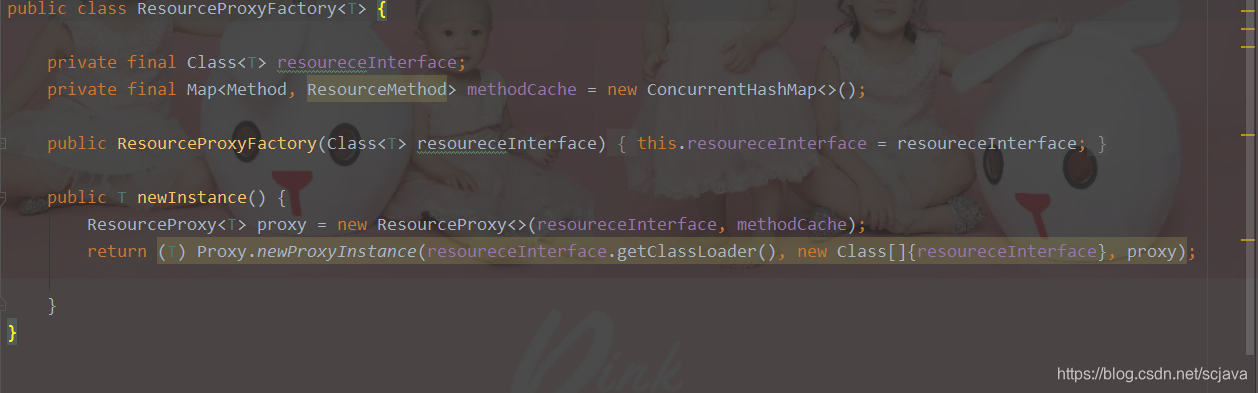

Resouce的代理工厂

它来管理我们的Resouce工厂，从这个Resource工厂中产生代理类，也就是我们的代理类都在代理工厂中产生，然后我们调用的时候是通过它来产生的一个proxy

真正的代理类

public class ResourceProxy<T> implements InvocationHandler, Serializable { private static final long serialVersionUID = 1L; private final Logger logger = LoggerFactory.getLogger(ResourceProxy.class); private final Class<T> resourceInterface; private final Map<Method, ResourceMethod> cacheMethod; public ResourceProxy(Class<T> resourceInterface, Map<Method, ResourceMethod> cacheMethod) { this.resourceInterface = resourceInterface; this.cacheMethod = cacheMethod; } @Override public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {         Object result = null; /**          * handler tostring method          */ if (Object.class.equals(method.getDeclaringClass())) {             result = method.invoke(this, args); } else if (isDefaultMethod(method)) {             result = invokeDefaultMethod(proxy, method, args); } else { /**              * user invoke handler              */ if (logger.isDebugEnabled()) {                 logger.debug("ResourceProxy.invoke begin ....");                 logger.debug("================================================");                 logger.debug("invoke interface name={}", proxy.getClass().getInterfaces()[0].getName());                 logger.debug("invoke method name={}", method.getName());                 logger.debug("invoke method args={}", args); }             ResourceMethod resourceMethod = getCacheMethod(method);             result = resourceMethod.execute(args); if (logger.isDebugEnabled()) {                 logger.debug("ResourceProxy.invoke end ....");                 logger.debug("================================================");                 logger.debug("invoke method result={}", result); } } return result; } public ResourceMethod getCacheMethod(Method method) {         ResourceMethod resourceMethod = cacheMethod.get(method); if (resourceMethod == null) {             resourceMethod = new ResourceMethod(method, resourceInterface);             cacheMethod.put(method, resourceMethod); } return resourceMethod; } /**      * invoke default method      *      * @param proxy  proxy object      * @param method proxy invoke method      * @param args   method args      * @return      * @throws Throwable      */ private Object invokeDefaultMethod(Object proxy, Method method, Object[] args) throws Throwable { final Constructor<MethodHandles.Lookup> constructor = MethodHandles.Lookup.class.getDeclaredConstructor(Class.class, int.class); if (!constructor.isAccessible()) {             constructor.setAccessible(true); } final Class<?> declaringClass = method.getDeclaringClass(); return constructor.newInstance(declaringClass, MethodHandles.Lookup.PRIVATE) .unreflectSpecial(method, declaringClass).bindTo(proxy).invokeWithArguments(args); } /**      * check is default method      *      * @param method      * @return      */ private boolean isDefaultMethod(Method method) { return ((method.getModifiers() & (Modifier.ABSTRACT | Modifier.PUBLIC | Modifier.STATIC)) == Modifier.PUBLIC) && method.getDeclaringClass().isInterface(); } }

方法调用类

public class ResourceMethod<T> extends AbstractAnnotaionHandlerResource<T> { private final Method method; private final Class<?> resourceInterface; public ResourceMethod(Method method, Class<?> resourceInterface) { this.method = method; this.resourceInterface = resourceInterface; } public Object execute(Object[] args) throws Exception {         Object result = null; initTemplate(); if (method.isAnnotationPresent(PubHandler.class)) {             result = pubHandler(args); } else {             result = invokeExtMethod(args); } return result; } private void initTemplate(){ if(queryTemplate == null){             queryTemplate = SpringContainerApplicationContext.getInstance().getBean("queryTemplate"); } if(updateTemplate == null){             updateTemplate =SpringContainerApplicationContext.getInstance().getBean("updateTemplate"); } } private Object invokeExtMethod(Object[] args) throws Exception {         Object result = null;         Annotation[] annotations = method.getAnnotations(); if (annotations != null && annotations.length > 0) {             String annotationName = annotations[0].annotationType().getSimpleName();             SqlCommandType type = SqlCommandType.valueOf(annotationName); switch (type) { case SELECT:                     result = executeQuery(method.getAnnotation(SELECT.class), args); break; case INSERT:                     result = executeInsert(method.getAnnotation(INSERT.class), args); break; case DELETE:                     result = executeDelete(method.getAnnotation(DELETE.class), args); break; case UPDATE:                     result = executeUpdate(method.getAnnotation(UPDATE.class), args); break; } } return result; } private Object pubHandler(Object[] args) {         Object result = null;         PubHandler ph = method.getAnnotation(PubHandler.class); switch (ph.handlerType()) { case P_Q_PAGING:                 result = P_Q_PAGING(args); break; case L_Q_PAGING:                 result = L_Q_PAGING(args); break; case I_PERSISTENCE_IN:                 result = I_PERSISTENCE_IN(args); break; case I_PERSISTENCE_UP:                 result = I_PERSISTENCE_UP(args); break; case I_PERSISTENCE_UP_OVERRIDE:                 result = I_PERSISTENCE_UP_OVERRIDE(args); break; case I_PSERSISTENCE_DE:                 result = I_PSERSISTENCE_DE(args); break; case I_PSERSISTENCE_DE_OVERRIDE:                 result = I_PSERSISTENCE_DE_OVERRIDE(args); break; case E_Q_GET:                 result = E_Q_GET(args); break; case L_Q_ENTITY:                 result = L_Q_ENTITY(args); break; case L_Q_ENTITY_OVERRIDE:                 result = L_Q_ENTITY_OVERRIDE(args); break; case I_BATCH_PERSISTENCE:                 result = I_BATCH_PERSISTENCE(args); break; case I_COUNT:                 result = I_COUNT(args); break; } return result; } @Override public Method getMethod() { return method; } @Override public Class<?> targetInterface() { return resourceInterface; } }

从第七步调用直接到了这里，其中1和2是不一样的，哪里不一样呢？因为pubHandler是我们在基类里面封装的curd操作，如果是调用基类，那么会直接将请求代理给我的基类去做，如果是通过注解sql的那么就执行invokeExtMethod

最后我们编写一个工厂来获取我们的Bean

AbstractBeanDefinitionFactory

public abstract class AbstractBeanDefinitionFactory extends AnnotationConfigDefinitionApplicationContext implements BeanDefinitionFactory { @SuppressWarnings("unchecked") @Override public <K> K getBean(String beanName) { check();   DefinitionBeanFactory<K> beanfactory = () -> {    Object beanInstance = super.applicationContxt.getBean(beanName); if (beanInstance != null) { return (K) beanInstance; } else { throw new RuntimeException(" get spring ioc instance is null "); } }; return beanfactory.getBeanObject(); } @Override public <K> K getBean(Class<K> kclzz) { check();   DefinitionBeanFactory<K> beanfactory = () -> super.applicationContxt.getBean(kclzz); return beanfactory.getBeanObject(); } private void check() { if(!super.runStatus) { throw new RuntimeException("spring 容器未运行"); } } @Override public <K> K getBean(String beanName, Class<K> kClass) { check();   DefinitionBeanFactory<K> beanFactory = () -> super.applicationContxt.getBean(beanName,kClass); return null; } }

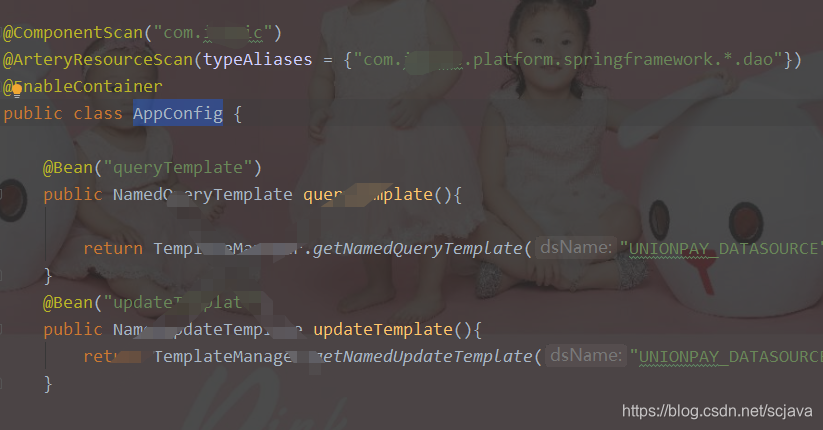

我们编写测试，来启动我们的spring容器

以上我只是提供了一个spring扩展的思路，上面截图和代码都不全，因为涉及到公司机密性，我没有办法暴露太多东西在上面，所以有兴趣可以一起交流交流；整合spring的这个框架是我自己编写，没有任何人参与进来，所以我希望如果有这方面兴趣的朋友可以一起交流交流，最后附上我的qq：631491652

类图

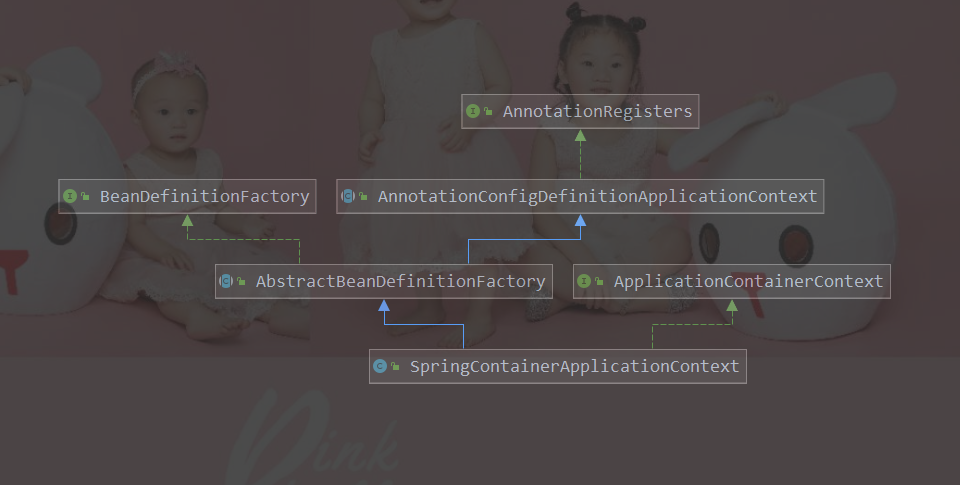

我的启动类的之间关系（全部是自己的类，不是spring的类）：

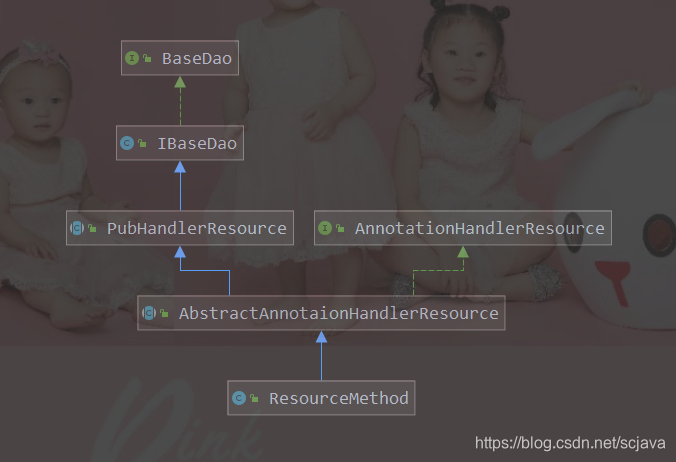

代理工厂调用的调用的方法处理继承关系：
